Foxboro P0973CN I/A Series Expansion Baseplate

Only 10 item(s) left in stock

Manufacturer: Foxboro
Product No.: P0973CN
Country of origin:Franciaország
Product Type: Expansion Baseplates
Payment: T/T, Western Union
Weight: 800g
Dimensions: 240.0 mm x 216.0 mm x 30.3 mm (H x W x D)
Shipping port: Xiamen
Warranty: 12 months

Description

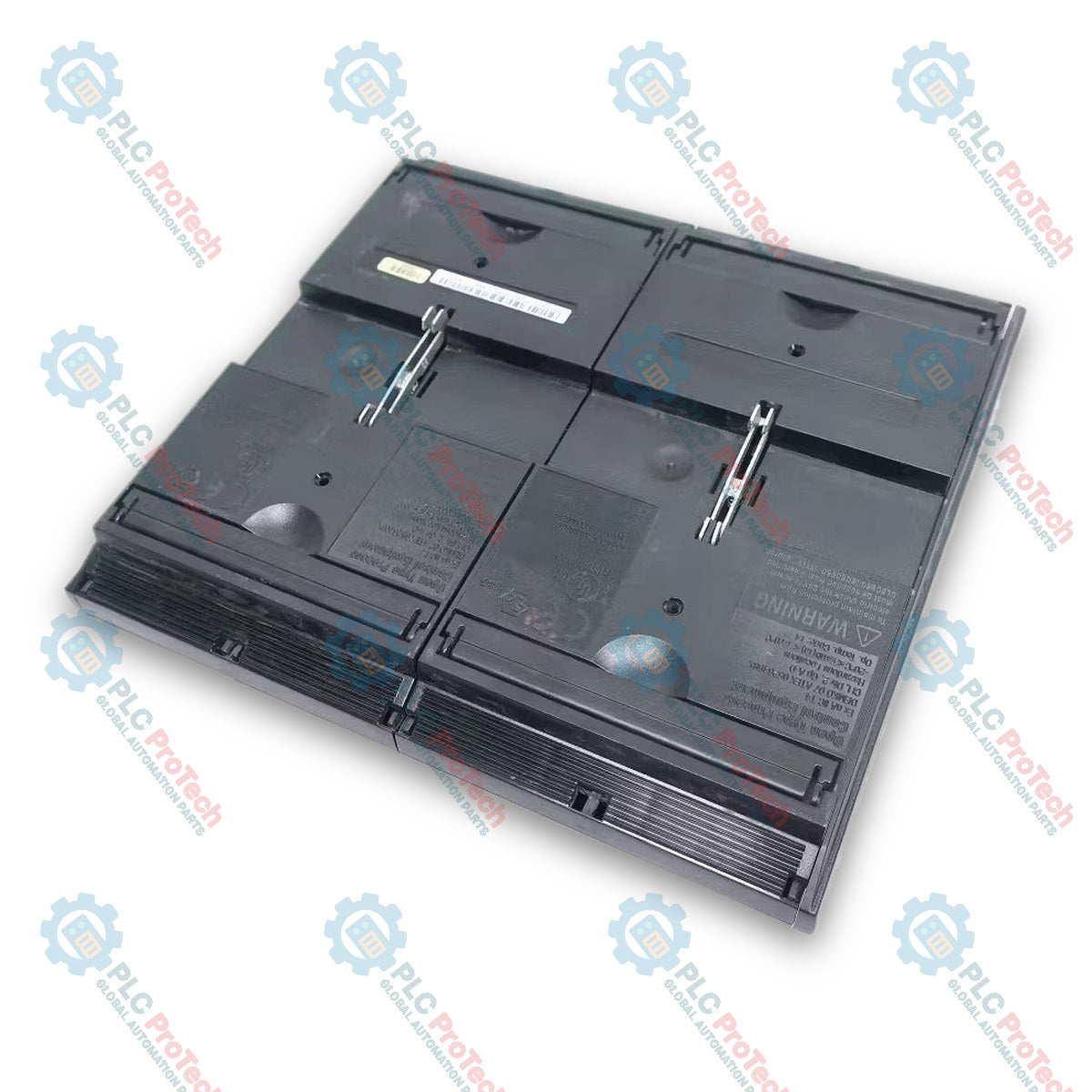

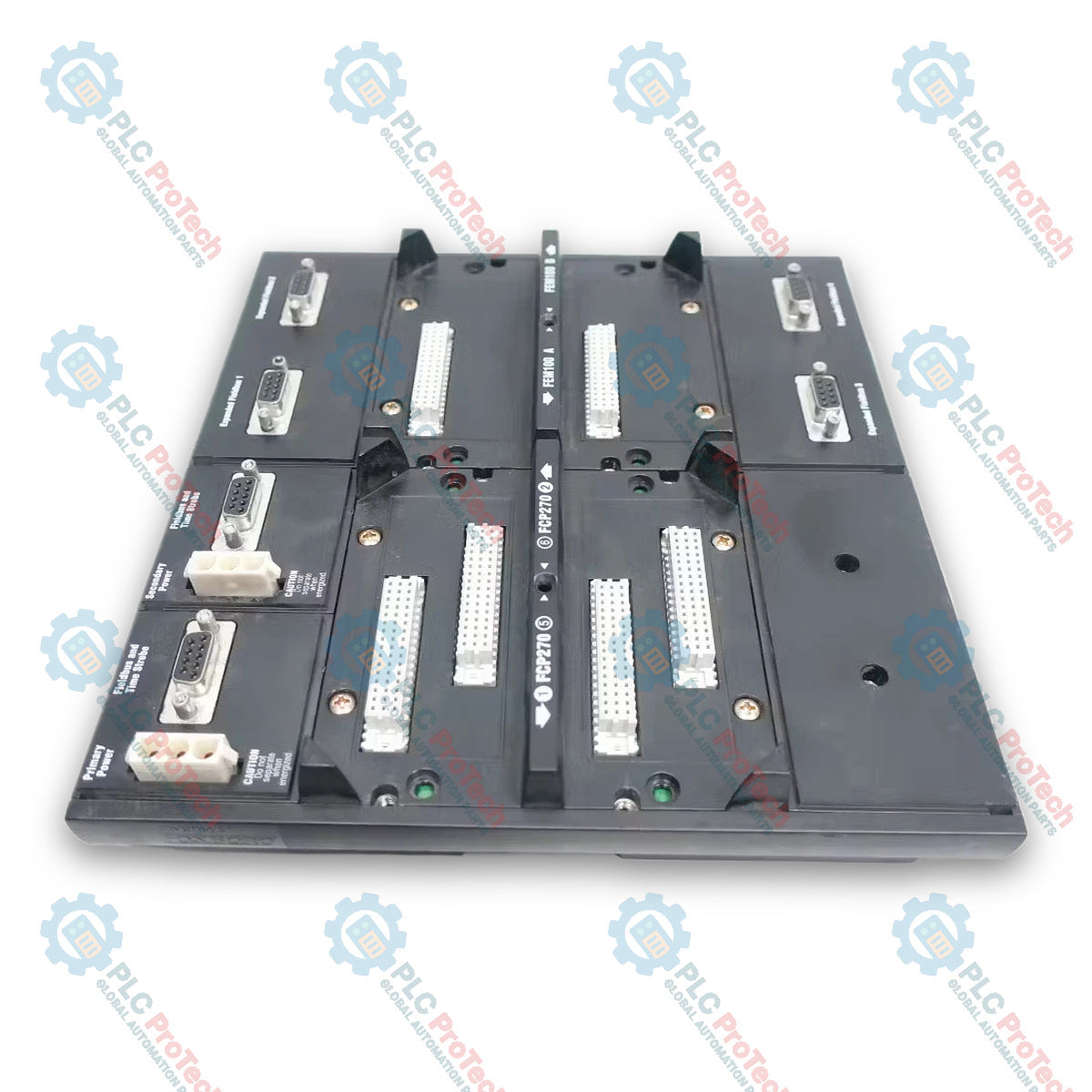

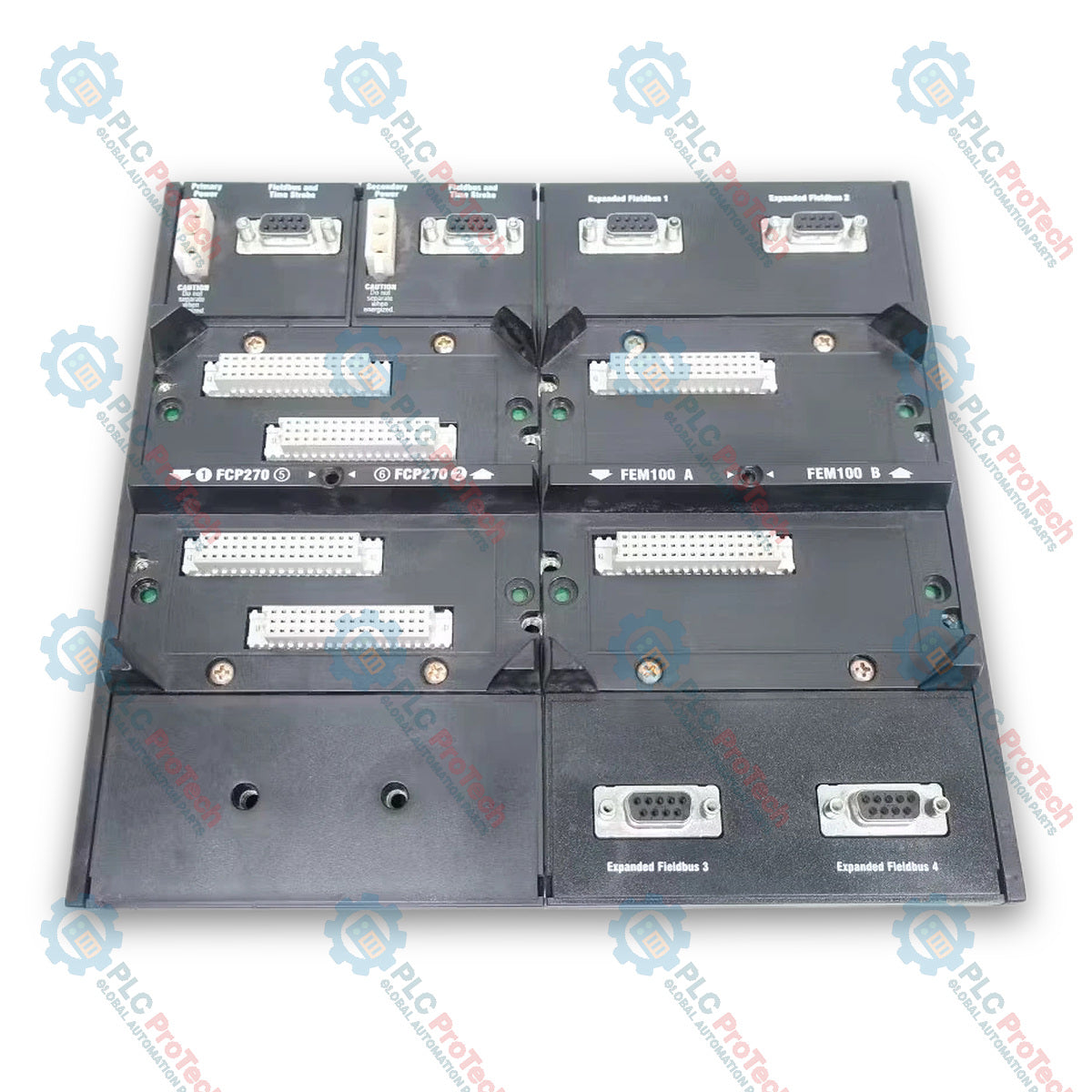

The Foxboro P0973CN is a 4-position vertical DIN rail mounted expansion baseplate used in the Foxboro I/A Series DCS. It provides a dedicated hardware platform to house a fault-tolerant pair of FCP270 field control processors in two positions and a redundant pair of FEM100 fieldbus expansion modules in the remaining two positions. Operating on a passive backplane structure, the Foxboro P0973CN delivers high-reliability power routing and communication interconnections across the 2 Mbps Module Fieldbus. Mounting positions are specifically integrated onto the baseplate to accommodate fiber optic splitter/combiners required for fault-tolerant FCP270 processor operations.

Features

Vertical DIN rail mounting configuration for standard enclosure layouts.
Four dedicated module positions configured for two FCP270 processors and two FEM100 modules.
Integrated mounting space for fiber optic splitter/combiners to support FCP270 redundancy.
Dual primary and secondary 24 V dc power connections.
Shielded twisted-pair Module Fieldbus interconnections operating at 2 Mbps.
Hot-swappable module support allowing unit addition or replacement without disrupting active bus communication.
Passive backplane architecture designed to maximize overall DCS operational reliability.

Applications

Foxboro I/A Series DCS system expansion requiring additional 200 Series FBM fieldbus channels.
High-density industrial automation control cabinets requiring fault-tolerant processing and fieldbus expansion.
Continuous processing plant infrastructure utilizing DIN rail mounted hardware subsystems.

Technical Specifications

Specification	Value
Manufacturer	Foxboro (Invensys)
Model	P0973CN
System Compatibility	Foxboro I/A Series
Mounting Orientation	Vertical DIN Rail
Capacity	4 Module Positions (2x FCP270, 2x FEM100)
Input Voltage Range	24 V dc +5%, -10% (Redundant)
Communication Protocol	2 Mbps HDLC Module Fieldbus
Baseplate ID DIP Switch	Not present (Does not require hardwired address)
Operating Temperature	-20 to +70 degC (-4 to +158 degF)
Storage Temperature	-40 to +70 degC (-40 to +158 degF)
Relative Humidity	5 to 95% (noncondensing)
Altitude	-300 to +3,000 m (-1,000 to +10,000 ft)
Contamination Class	Class G3 (Harsh) per ISA S71.04; Pollution degree 2 per IEC 664-1
Material	PC and ABS, inflammability UL94 V0
Color	Black
Max Cable Length	60 m (198 ft) total overall Module Fieldbus cabling

Connections/Interfaces

Connector Pin / Interface	Function
Primary Power Connector	Direct 24 V dc primary power input connection from FPS power supply
Secondary Power Connector	Direct 24 V dc secondary power input connection from FPS power supply
Fieldbus and Time Strobe A/B	Connections for redundant Module Fieldbus (2 Mbps) and optional time strobe signals
Dedicated FCP270 Slots	Keyed slots for fault-tolerant FCP270 control processors
Dedicated FEM100 Slots	Keyed slots for redundant FEM100 fieldbus expansion modules
Splitter/Combiner Mount	Integrated mounting provisions for FCP270 fiber optic splitter/combiners

Installation Guidelines

DIN Rail Mounting: Secure the baseplate to a non-isolated, mechanically supported vertical DIN rail using the designated fasteners.
Power Cabling: Connect primary and secondary 24 V dc feed cables from the system power supply (such as FPS400-24, FPS240-24, or FPS120-24) to the primary and secondary power terminals.
Fieldbus Interconnection: Use shielded twisted-pair cables for A/B Module Fieldbus daisy-chain connections between baseplates, maintaining a maximum total fieldbus length of 60 m (198 ft).
Clearance: Ensure adequate enclosure clearance around the mounted baseplate to accommodate module insertion, removal, and field wiring clearance.
Live Insertion: Baseplates can be connected or expanded without removing the system from service provided a redundant bus structure is in place.

Compliance and Certifications

European EMC Directive: 89/336/EEC (EN 50081-2, EN 50082-2, EN 61326 Annex A)
ISM Radio-frequency: CISPR 11 Class A
Immunity: IEC 61000-4-2 (ESD), IEC 61000-4-3 (Radiated Field), IEC 61000-4-4 (EFT/Burst), IEC 61000-4-5 (Surge), IEC 61000-4-6 (Conducted), IEC 61000-4-8 (Magnetic Field)
Product Safety: UL/UL-C listed for Class 1, Groups A-D, Division 2, T4 enclosure systems
European Low Voltage Directive: 2006/95/EC
ATEX Directive: 94/9/EC (CENELEC certified EEx n IIC for Zone 2)

Model Number / Title	Condition	Availability	Action
Foxboro IPM2-P0904HA I/A Series Industrial Power Module 2	Original New	In Stock	View Details
Foxboro P0916NK 9 Pin HDLC Base-To-Base Cable	Original New	In Stock	View Details
Foxboro P0914SV FBM203 Platinum/Nickel/Copper RTD Input Module	Original New	In Stock	View Details

Key Features:

#Expansion Baseplates #Foxboro I/A Series

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

What is the Foxboro P0973CN used for?

The Foxboro P0973CN is a 4-position vertical DIN rail mounted expansion baseplate used to host a fault-tolerant pair of FCP270 control processors and a redundant pair of FEM100 fieldbus expansion modules in the I/A Series DCS.

Which modules are supported on the P0973CN baseplate?

The module dedicated positions on the baseplate support two FCP270 field control processors and two FEM100 fieldbus expansion modules.

Does the Foxboro P0973CN require DIP switch addressing?

No. The P0973CN expansion baseplate does not feature a baseplate identification DIP switch because it does not require a hardwired address.

What power input voltage does the baseplate require?

The baseplate requires a redundant 24 V dc power supply input with a functional operating range of +5% to -10%.
