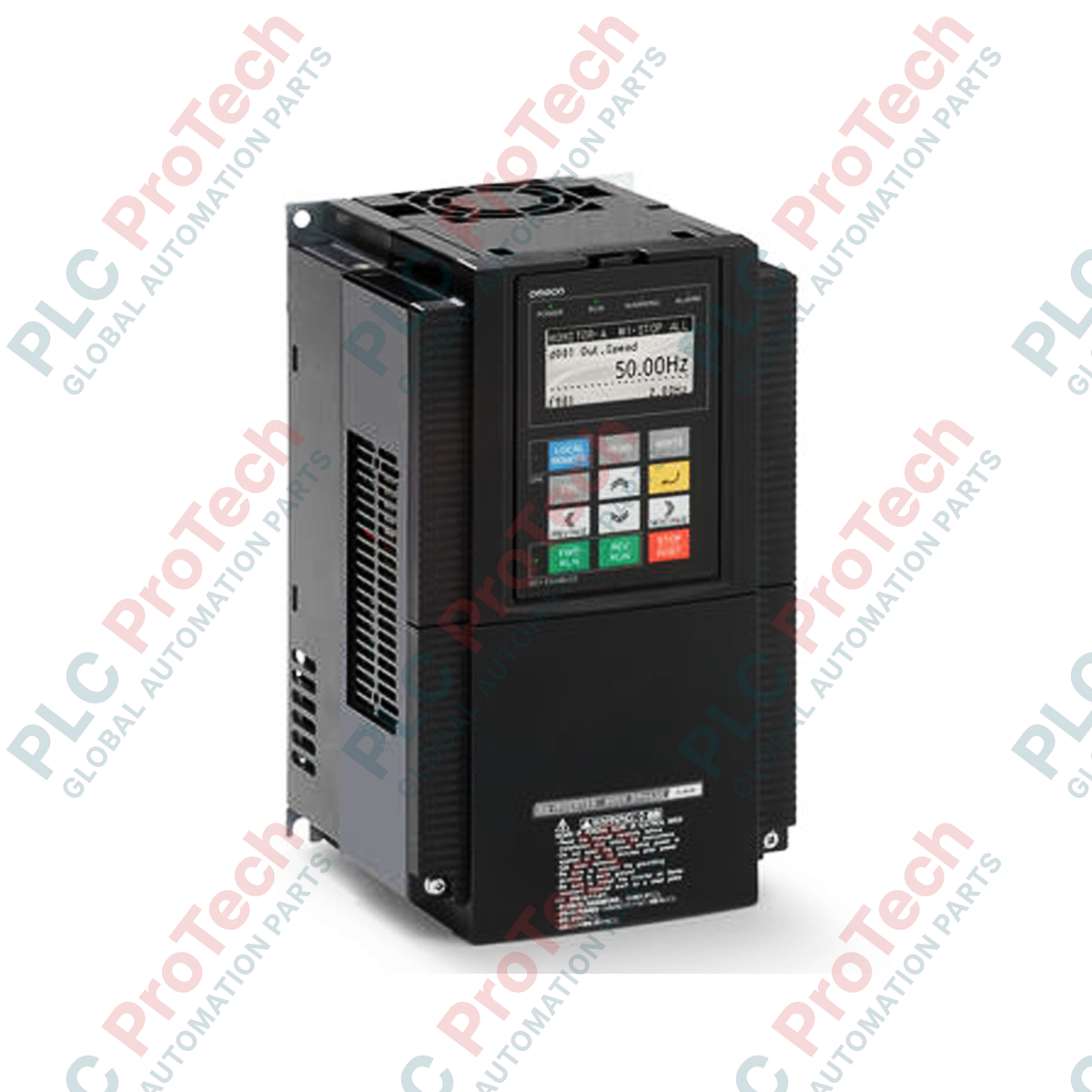

Omron 3G3MX2-A4015-V1 MX2 Variable Frequency Drive

Description

Efficient machine control and dynamic performance are delivered by the 3G3MX2-A4015-V1, a high-performance variable frequency drive engineered for precise motor control in demanding industrial automation applications. This model is part of the Omron Sysmac MX2 series, specifically designed to harmonize advanced motor and machine control. With its high starting torque and open-loop torque control capability, this drive provides operators with complete control over machine dynamics and operation.

The unit features a 3-phase input voltage range of 380 to 480 VAC and is optimized for heavy-duty applications. It incorporates a dual-rating system to support both Constant Torque (CT) and Variable Torque (VT) configurations, making it versatile enough for both high-inertia starting loads and variable-load pump or fan systems. Integrated safety functions, built-in Modbus communications, and compatibility with major industrial fieldbus networks make this variable frequency drive a highly reliable component for complex automation systems.

Features

• High Starting Torque: Delivers up to 200% starting torque at 0.5 Hz for powerful start-up performance under heavy load conditions.
• Open Loop Torque Control: Provides exceptional speed and torque regulation without the need for an external encoder.
• Integrated Safety: Features built-in safety functionality complying with ISO 13849-1 (PLd, Category 3) with dual safety inputs and an External Device Monitoring (EDM) output.
• Flexible Communications: Standard built-in RS-485 Modbus-RTU communications, with option boards available for EtherCAT, DeviceNet, Profibus, and CompoNet.
• PID Control: Built-in PID functionality enables precise process control for flow, pressure, and temperature loops.
• Harmonic Suppression Compatibility: Can be paired with optional external AC reactors or DC link choke connections to suppress harmonic currents and improve power factors.

Applications

• Conveyor and material handling systems
• Pumps, fans, and industrial blowers
• Packaging and labeling machinery
• Food and beverage processing lines
• Textile machinery and winding systems

Technical Specifications

Connections and Interfaces

Installation Guidelines

• Mounting Position: Always mount the drive vertically on a flat, non-combustible wall surface to ensure proper heat dissipation.
• Clearance Requirements: Maintain a minimum clearance of 10 cm above and below the drive, and at least 5 cm on each side to prevent overheating.
• Shielding and Grounding: Use shielded motor cables and ensure a dedicated low-impedance ground connection is established directly to the main system ground plate.
• Environmental Protection: Protect the unit from direct sunlight, high humidity, corrosive gases, and conductive dust particles.

Compliance and Certifications

• CE (Directives: 2014/35/EU, 2014/30/EU)
• UL and cUL listed
• RoHS compliant
• ISO 13849-1 (PLd, Category 3) Functional Safety
