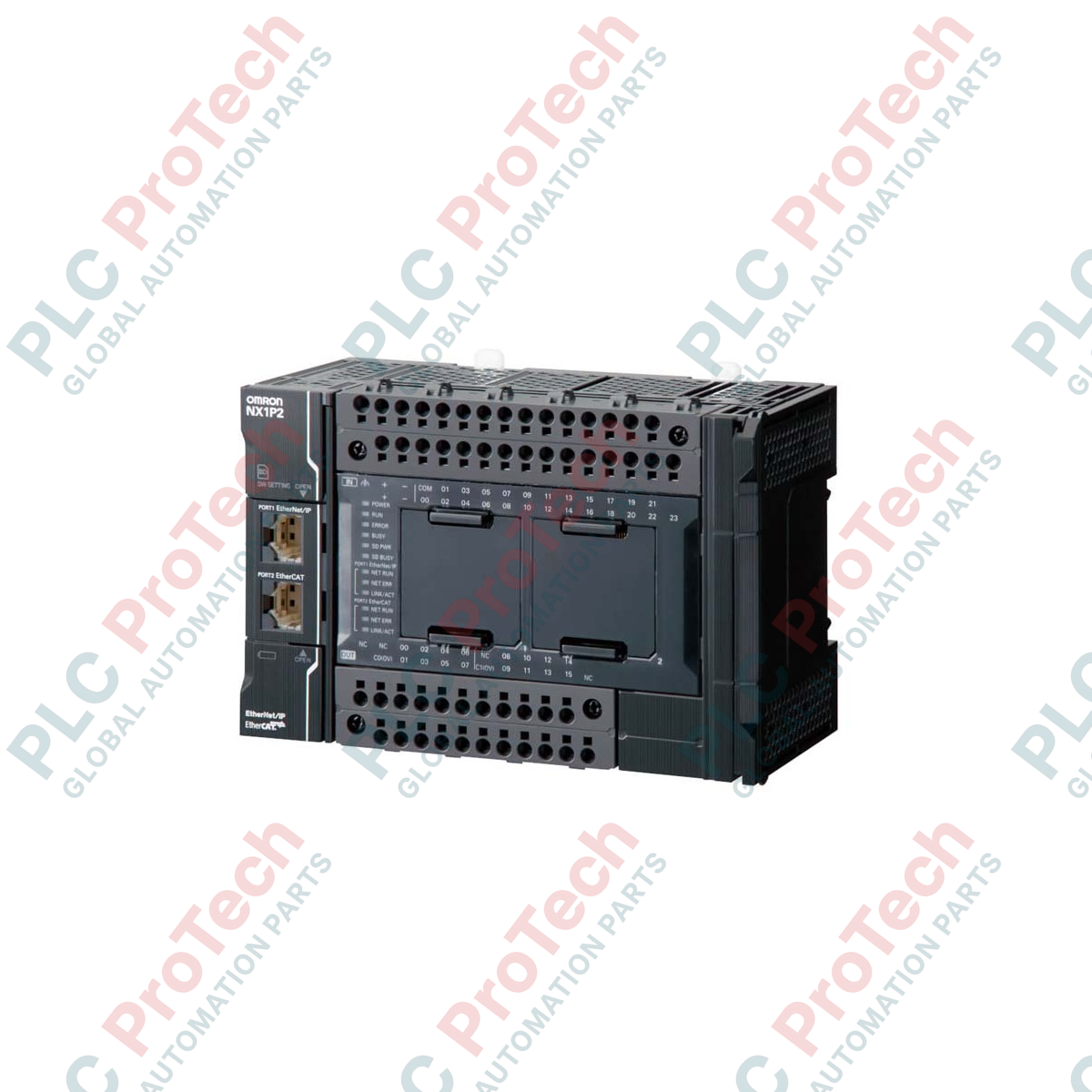

Omron NX1P2-1040DT1 Sysmac NX1P CPU

Description

Integrating logic, motion control, and database connectivity into a compact form factor, the Omron NX1P2-1040DT1 serves as a core controller within the Sysmac automation platform. Designed for small-to-medium machine automation, this Sysmac NX1P CPU provides synchronized control of all machine devices, including motion, I/O, safety, and vision. It features built-in dual industrial network ports to enable seamless vertical and horizontal integration across factory environments, ensuring reliable execution of synchronized motion control and high-speed data acquisition.

Features

• Synchronized control of motion, I/O, and safety networks under a single unified controller.
• Built-in EtherCAT master port and EtherNet/IP port for high-speed device networks and plant-level communications.
• Support for up to 4 synchronized motion control axes.
• Expandable local I/O capacity using NX-series digital, analog, and communication modules.
• Up to 1.5 MB of program memory and 2 MB of variables memory to accommodate complex logic operations.
• Secure execution with comprehensive user access management and program copy-protection.

Applications

• Packaging machinery and labeling systems.
• Material handling and conveyor sorting networks.
• Pick-and-place assembly stations.
• Automated pharmaceutical dispensing and packaging.
• Food processing manufacturing cells.

Technical Specifications

Connections and Interfaces

Installation Guidelines

• Mounting: Mount horizontally on a standard 35 mm DIN rail inside an enclosed electrical cabinet.
• Ventilation: Ensure at least 30 mm of clearance above and below the module to maintain natural convection airflow.
• Wiring: Use shielded twisted-pair (STP) Category 5e or higher cables for industrial Ethernet networks to prevent electromagnetic interference.
• Grounding: Connect the functional ground terminal to a low-impedance ground (100 ohms or less) using a dedicated wire.

Compliance and Certifications

• CE Compliant
• cULus Listed
• KC (Korean Communications Commission)
