Product Overview

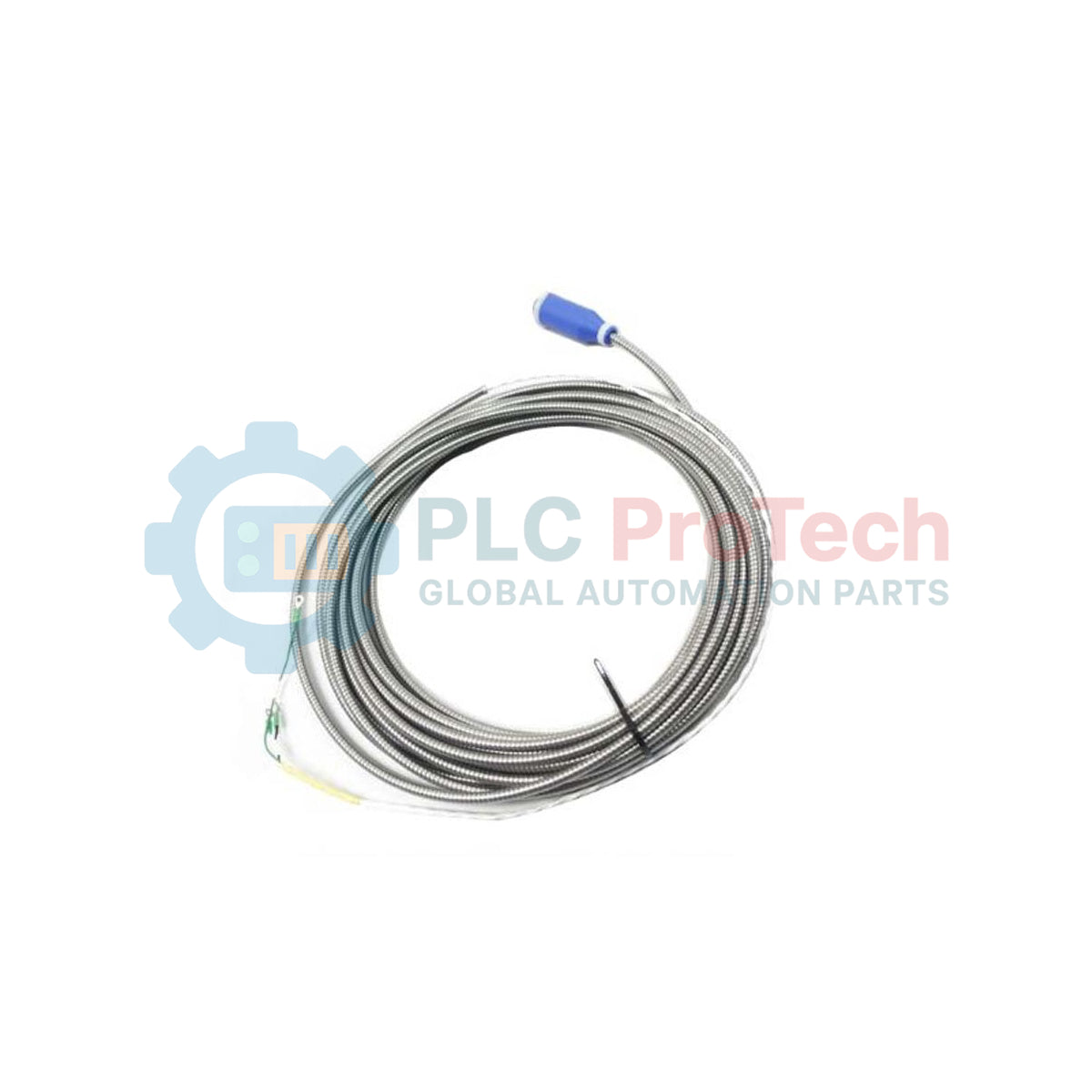

The 106765-25 is a specialized, ruggedized interconnect cable assembly designed specifically for the Bently Nevada 330525 Velomitor XA (eXtended Application) Piezo-Velocity Sensor series. In critical industrial sectors such as power generation, wastewater treatment, and offshore oil platforms, the 106765-25 serves as the vital link for transmitting high-fidelity vibration data in high-moisture and corrosive environments. By utilizing a unique weatherproof connector system, this cable allows for the direct mounting of sensors without the need for additional protective housings. This streamlined architecture significantly reduces installation complexity while ensuring maximum uptime for rotating assets by maintaining IP-65 and NEMA 4X sealing integrity under the most grueling field conditions.

Suffix Breakdown: 106765-AA

The 106765 series uses a modular suffix system to ensure the precise cable reach required for specific machine train geometries:

• 106765 Base Model: Denotes the high-performance interconnect cable assembly designed for Velomitor XA sensors, featuring 316L stainless steel hardware compatibility and weatherproof sealing.

• AA Option (Length): Defines the total cable length in meters.

• -25 Suffix: Represents a fixed length of 25 meters (approximately 82 feet).

• Ordering Logic: Standard Bently Nevada practice dictates that these specialized cables are typically engineered and ordered in 3-meter increments to maintain electrical impedance consistency across the monitoring loop.

Technical Specifications

Hardware Insights & FAQs

Is the 106765-25 compatible with the standard 330500 Velomitor?

While the internal wiring may be similar, the 106765-25 is specifically designed for the "XA" (Extended Application) version. The XA series features a unique connector intended for use without a separate housing. Using this cable on a standard 330500 may compromise the environmental seal.

How does the cable handle exposure to chemicals?

The cable jacket and connector materials are selected for high resistance to moisture and industrial contaminants. When coupled with the 316L stainless steel case of the 330525 sensor, the assembly provides superior protection against the corrosive atmospheres common in mining and chemical processing.

Does the 25-meter length affect signal accuracy?

No. Bently Nevada piezo-velocity systems are designed to drive signals over significant distances. A 25-meter run is well within the operational parameters, provided the cable is routed away from high-voltage interference sources.

Engineering & Installation Guide

Environmental Sealing and Moisture Protection

To achieve the full NEMA 4X and IP-65 rating, the connector must be properly seated and tightened. In outdoor or wash-down areas, engineers should apply a light coating of silicone lubricant to the connector threads (avoiding the pins) to ensure a gas-tight seal and prevent thread galling over time.

Routing and Mechanical Stress Relief

Given the 25-meter span, the cable must be supported in cable trays or conduits. Avoid tight bends that exceed the minimum bend radius (typically 10 times the cable diameter). At the sensor end, provide a small "drip loop" to prevent condensed moisture from traveling down the cable and pooling at the connector interface.

Electromagnetic Interference (EMI) Mitigation

Even with ruggedized shielding, the 106765-25 should be kept at least 0.3 meters (1 foot) away from high-power AC lines and Variable Frequency Drives (VFDs). If the cable must cross a power line, it should do so at a 90-degree angle to minimize the risk of signal noise.
