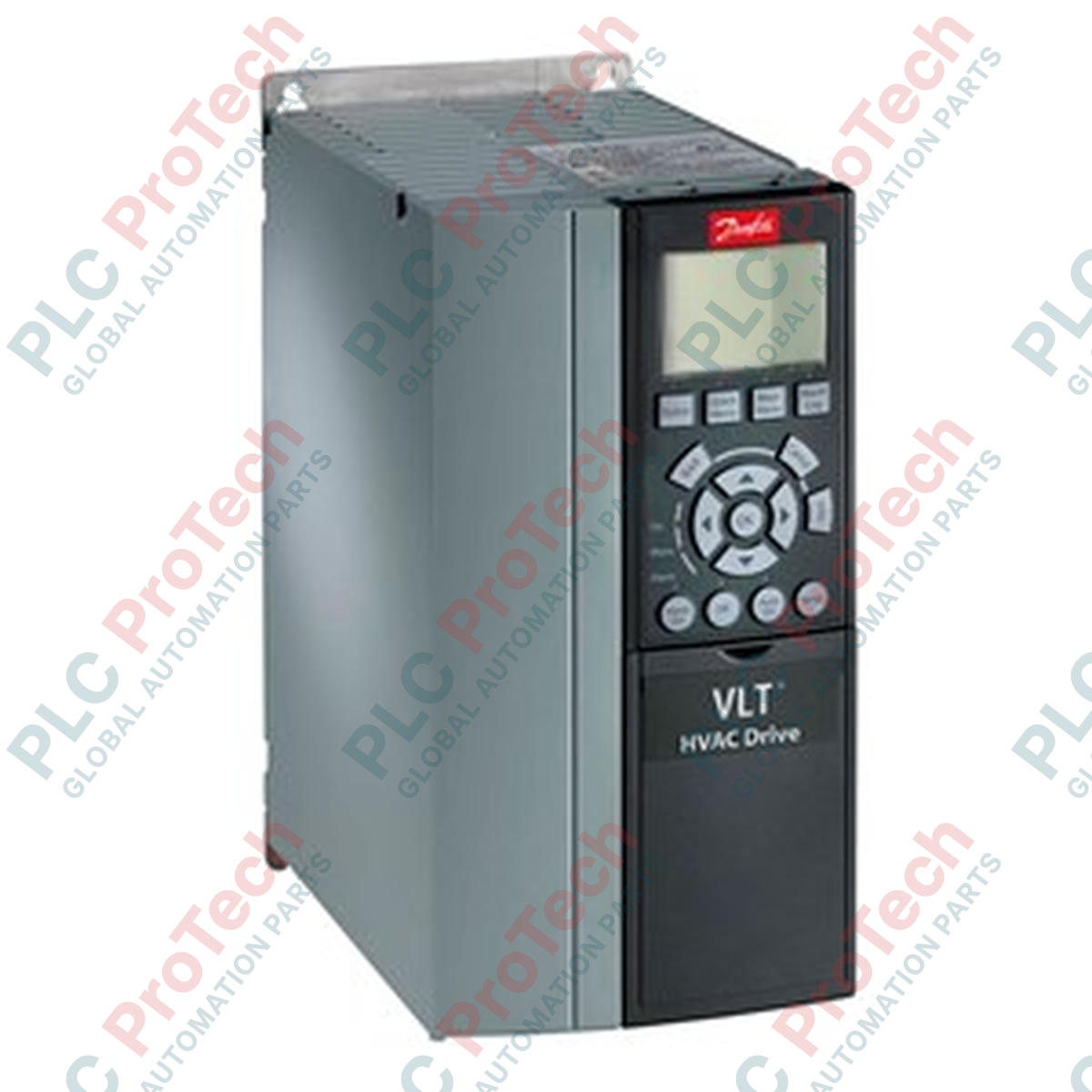

The 131B5474 (131B5474) is a premium variable frequency drive from the Danfoss VLT® HVAC Drive FC-102 series, specifically engineered for high-performance motor control in building automation systems. Delivering 7.5 kW (10 HP) of power, this drive is the industry standard for managing sophisticated HVAC infrastructures, including air handling units (AHUs), cooling towers, and centrifugal pumps. Unlike basic micro drives, the 131B5474 features advanced software functions such as the Intelligent Air Handling Unit controller and automated energy optimization (AEO), which significantly reduce the total cost of ownership. Housed in a compact IP20 enclosure, it offers seamless integration into three-phase 380-480 VAC power grids, ensuring maximum uptime and efficiency for critical climate control applications.
The model designation FC-102P7K5T4E20 identifies the specific technical build and capabilities of the unit:
FC: Part of the VLT® flagship Drive family.
102: Indicates the 102 series, a dedicated drive for advanced HVAC and refrigeration applications.
P7K5: Defines the power rating as 7.5 kW (equivalent to 10 Horsepower).
T4: Three-phase input designed for a mains voltage range of 380 - 480 VAC.
E20: Protection rating of IP20 (Chassis), optimized for installation within protected control cabinets.
| Feature | Specification |
| Model | 131B5474 |
| Brand | Danfoss |
| Product Series | VLT® HVAC Drive FC-102 |
| Power Output | 7.5 kW / 10 HP |
| Mains Voltage | 380 - 480 VAC (3-phase) |
| Enclosure Rating | IP20 / Chassis |
| Operating Temp | -10 to 50 deg C (with derating) |
| Efficiency | 98% |
| Net Weight | 6.5 kg |
| Shipping Weight | 9.0 kg |
What distinguishes the FC-102 from the FC-101 series?
The 131B5474 (FC-102) is a modular, high-end drive that supports a wider range of fieldbus options, more advanced HVAC-specific software features (like "Stairwell Pressurization Mode"), and a more robust hardware design capable of managing larger, more complex motor loads compared to the Basic FC-101 series.
Can this drive be integrated into a BACnet or LonWorks network?
Yes. The FC-102 series is designed for open communication. It supports standard HVAC protocols like BACnet (MS/TP and IP), Modbus RTU, and can be expanded with optional plug-in modules for LonWorks, Profibus, or Profinet depending on the BMS requirements.
What is the "Smart Logic Controller" in the FC-102?
The Smart Logic Controller allows the 131B5474 to perform simple PLC-like functions. It can be programmed to react to sensor inputs (e.g., temperature or pressure) and execute specific actions without needing an external controller, which is ideal for independent pump or fan control loops.
Cabinet Thermal Load: With an efficiency of 98%, the drive still generates a small amount of heat. Ensure the cabinet ventilation is sized to dissipate the thermal output of a 7.5 kW load. For the 131B5474, maintain at least 100 mm of vertical clearance above and below the chassis for unobstructed airflow through the internal heat sink.
EMC and Grounding: To minimize electromagnetic interference in building electronics, use shielded motor cables. The shield must be connected to the drive's metal decoupling plate using a 360-degree high-frequency clamp. Ensure the drive is grounded to the cabinet's main earth bar with a short, low-impedance conductor.
Harmonic Mitigation: In facilities with sensitive medical or data equipment, monitor the total harmonic distortion (THD). The FC-102 includes integrated DC-link chokes as standard, which significantly reduces harmonic interference compared to drives without built-in impedance.
Global Express Shipping
Returns & Warranty
Manufacturer: Danfoss
Product No.: 131B5474
Country of origin:United States
Product Type: FC-102P7K5T4E20
Payment: T/T, Western Union
Weight: 9000g
Shipping port: Xiamen
Warranty: 12 months
