Product Overview and Medium-Voltage Protection

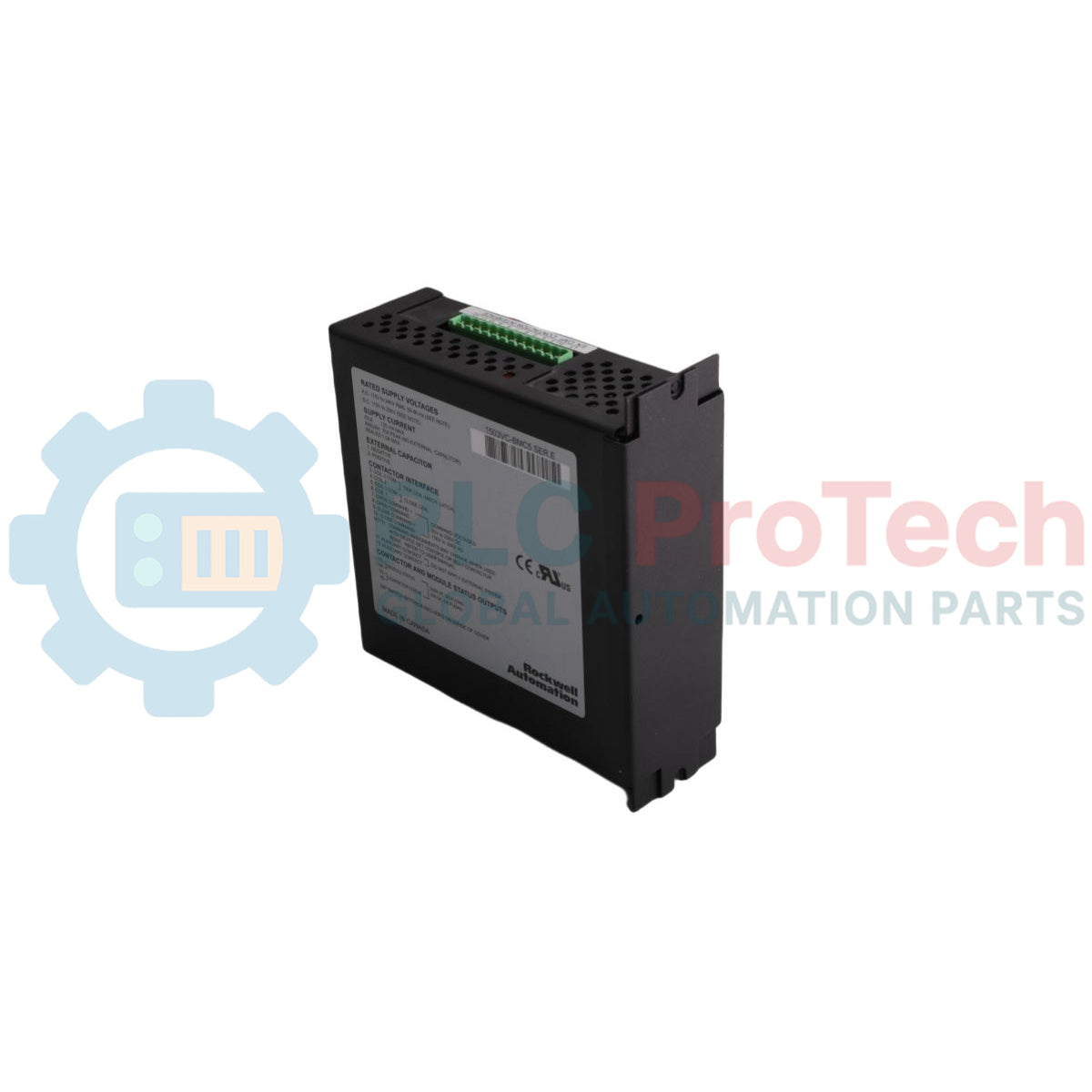

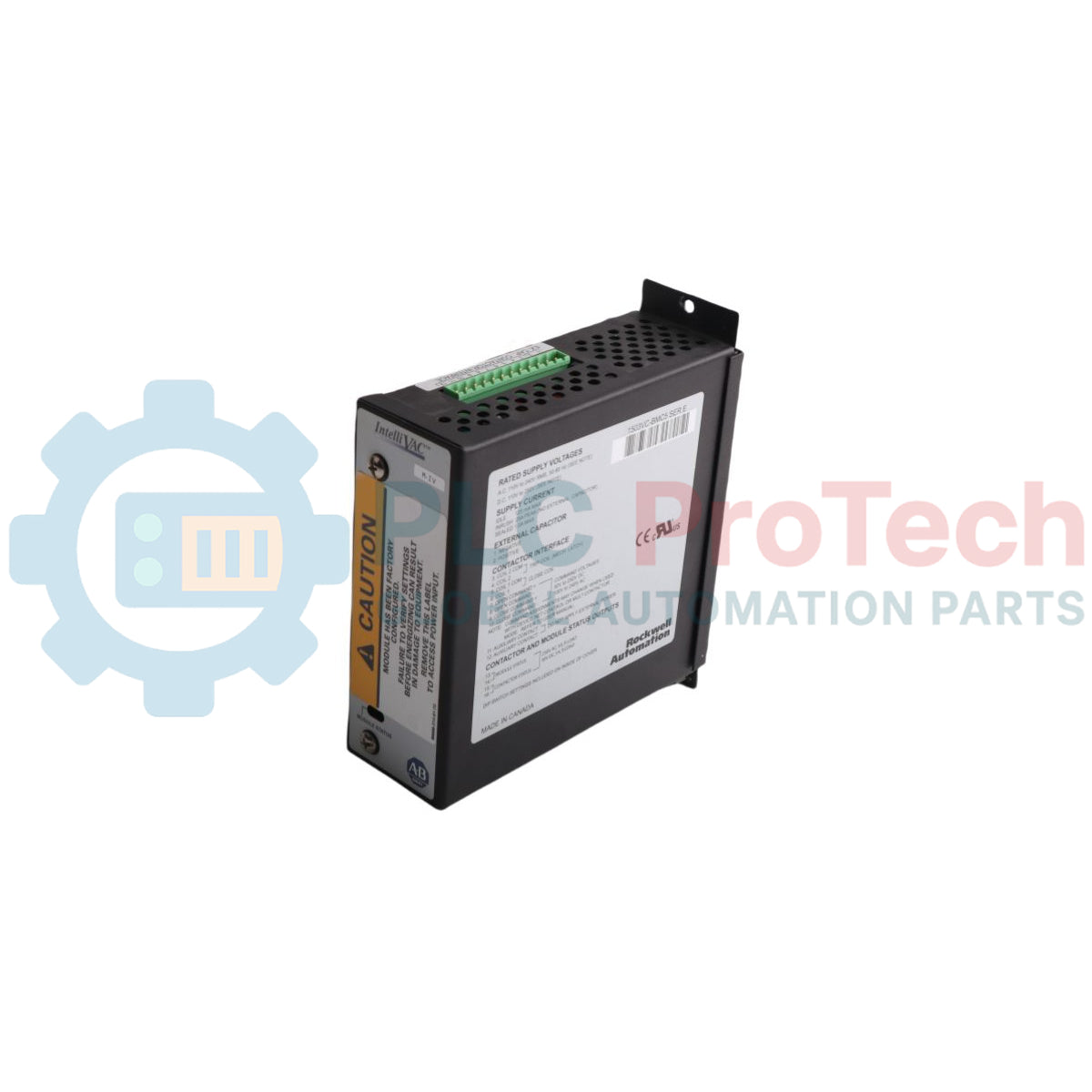

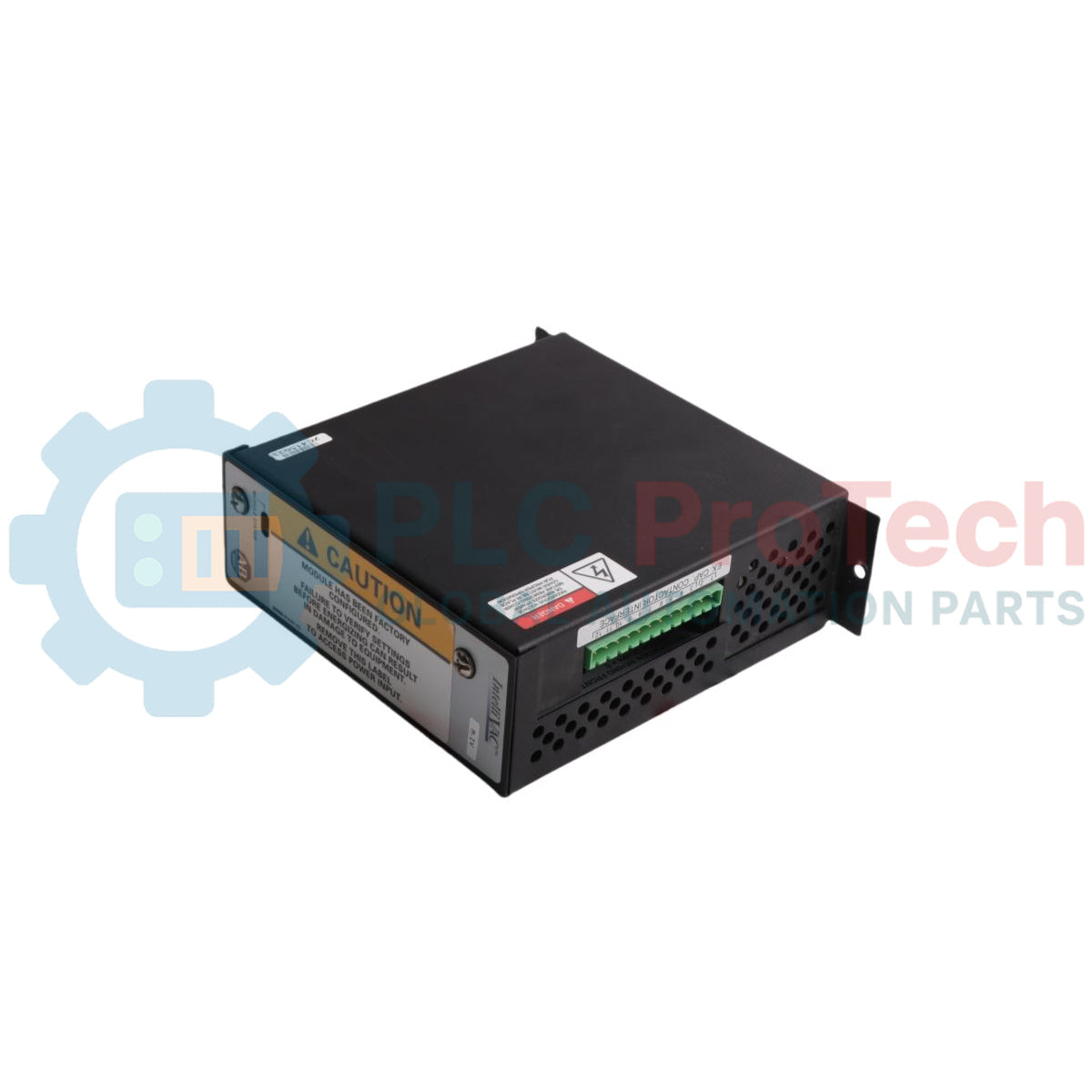

The 1503VC-BMC5 (1503VCBMC5) is a sophisticated IntelliVAC Plus vacuum controller module designed for the Bulletin 1503 medium-voltage (2.4 kV to 6.6 kV) motor control center ecosystem. This module serves as the primary intelligence for vacuum contactor control, providing specialized timing, sequencing, and diagnostic monitoring that standard PLC I/O cannot achieve at high voltage levels. The 1503VC-BMC5 is engineered to manage the precise "pick-up" and "hold" currents of the contactor coils, effectively reducing heat generation and extending the mechanical life of the vacuum bottles. With its integrated DeviceNet communication capabilities, it enables real-time monitoring of contactor health and predictive maintenance data in critical power applications.

Hardware Architecture and Control Logic

The 1503VC-BMC5 architecture is built for the high-noise environment of medium-voltage switchgear. It utilizes an internal microprocessor to manage the electrical transition between the contactor's closing and holding states.

• Pulse-Width Modulation (PWM) Control: The module uses high-speed PWM to precisely control the coil current. This ensures a strong initial magnetic pull to close the contactor, followed by a significantly lower current to hold it, preventing coil burnout and energy waste.

• Integrated Safety Interlocking: Features hard-wired inputs for emergency stops and mechanical interlocks, ensuring the vacuum contactor cannot be energized unless all safety conditions are met.

• DeviceNet Connectivity: Allows for a "Single-Wire" connection to the plant-wide control network, providing 25+ parameters including trip history, operation counts, and coil health.

• Diagnostics Suite: Monitors for "Welded Contactor" conditions, "Failed to Close" faults, and "Under-voltage" trips, providing localized LED status and remote fault reporting.

Technical Specifications

Integrated Technical FAQ

How does the 1503VC-BMC5 prevent "Contact Bounce"?

The module’s microprocessor precisely controls the timing of the coil energization pulse. By optimizing the "closing profile," it ensures that the vacuum contacts meet with the ideal force, minimizing bounce and preventing the micro-arcing that leads to premature contact erosion.

Can this module be operated without a network connection?

Yes. While DeviceNet provides superior diagnostics, the 1503VC-BMC5 can function as a standalone hard-wired controller using the standard digital inputs for Start/Stop commands.

What is the significance of the "BMC5" designation?

The "BMC5" refers to a specific hardware and firmware revision optimized for IntelliVAC Plus systems, typically featuring enhanced noise filtering and support for the latest vacuum contactor coil profiles used in Bulletin 1500 and 1503 starters.

Engineering & Installation Protocols

• Noise Mitigation: In medium-voltage cabinets, EMI is extreme. Ensure the 1503VC-BMC5 is mounted in its designated shielded sub-chassis and that all communication cables are rated for the appropriate voltage isolation and shielded correctly.

• Coil Resistance Verification: Before commissioning, measure the resistance of the vacuum contactor coil. A shorted or high-resistance coil can damage the PWM output stage of the 1503VC-BMC5.

• Air Gap Management: Ensure that the secondary wiring is routed away from the primary medium-voltage bus bars according to the clearance requirements specified in the Bulletin 1503 manual.

Engineering Advantages

The 1503VC-BMC5 is a cornerstone of Smart Switchgear. By shifting from basic relay logic to an intelligent controller, facility managers gain predictive maintenance insights. Instead of waiting for a contactor to fail, the 1503VC-BMC5 tracks the total number of operations and the electrical "wear" on the coils, allowing for planned maintenance during scheduled outages. This "Intelligence at the Source" approach significantly reduces the risk of catastrophic failure in power-critical industries like mining, oil & gas, and municipal water pumping.
