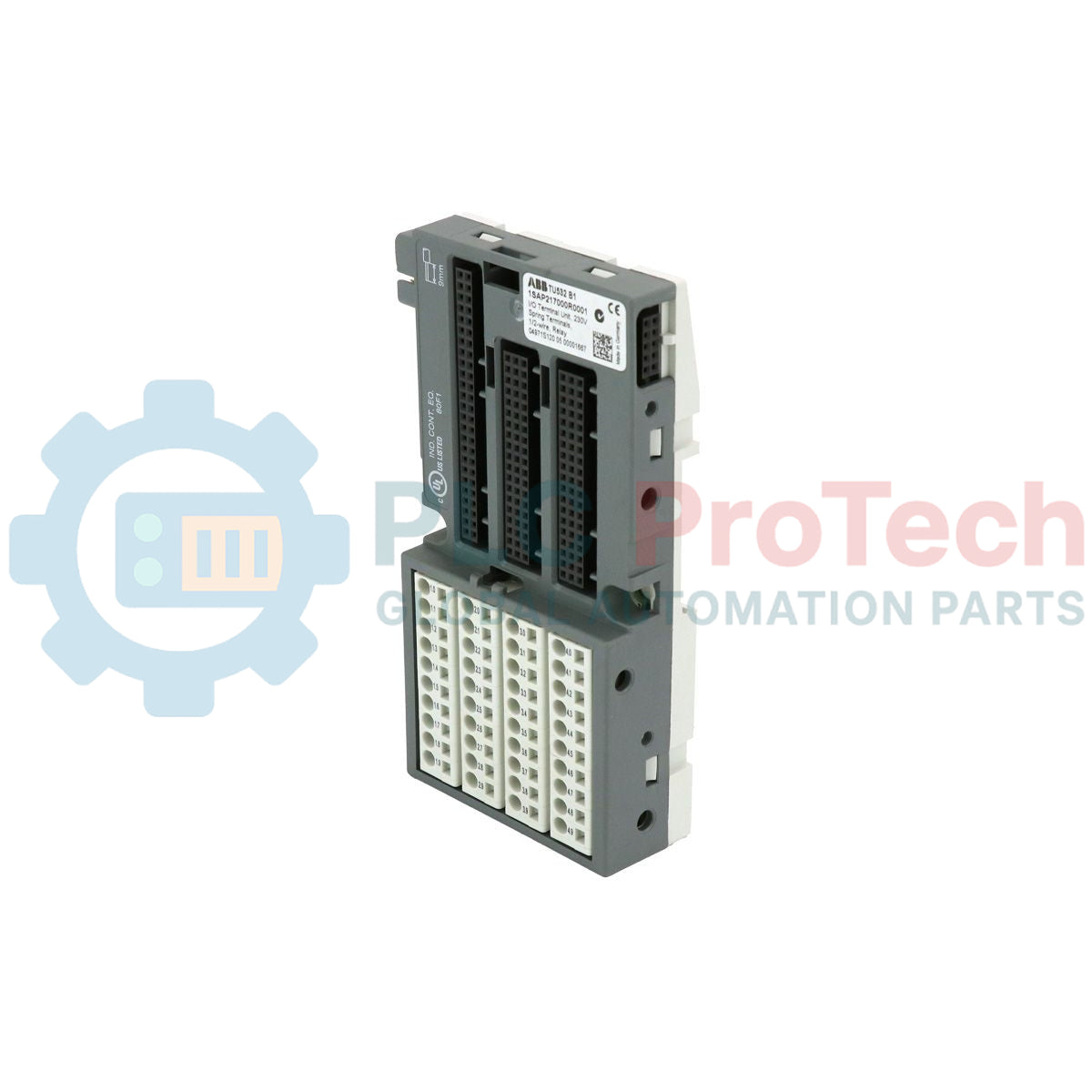

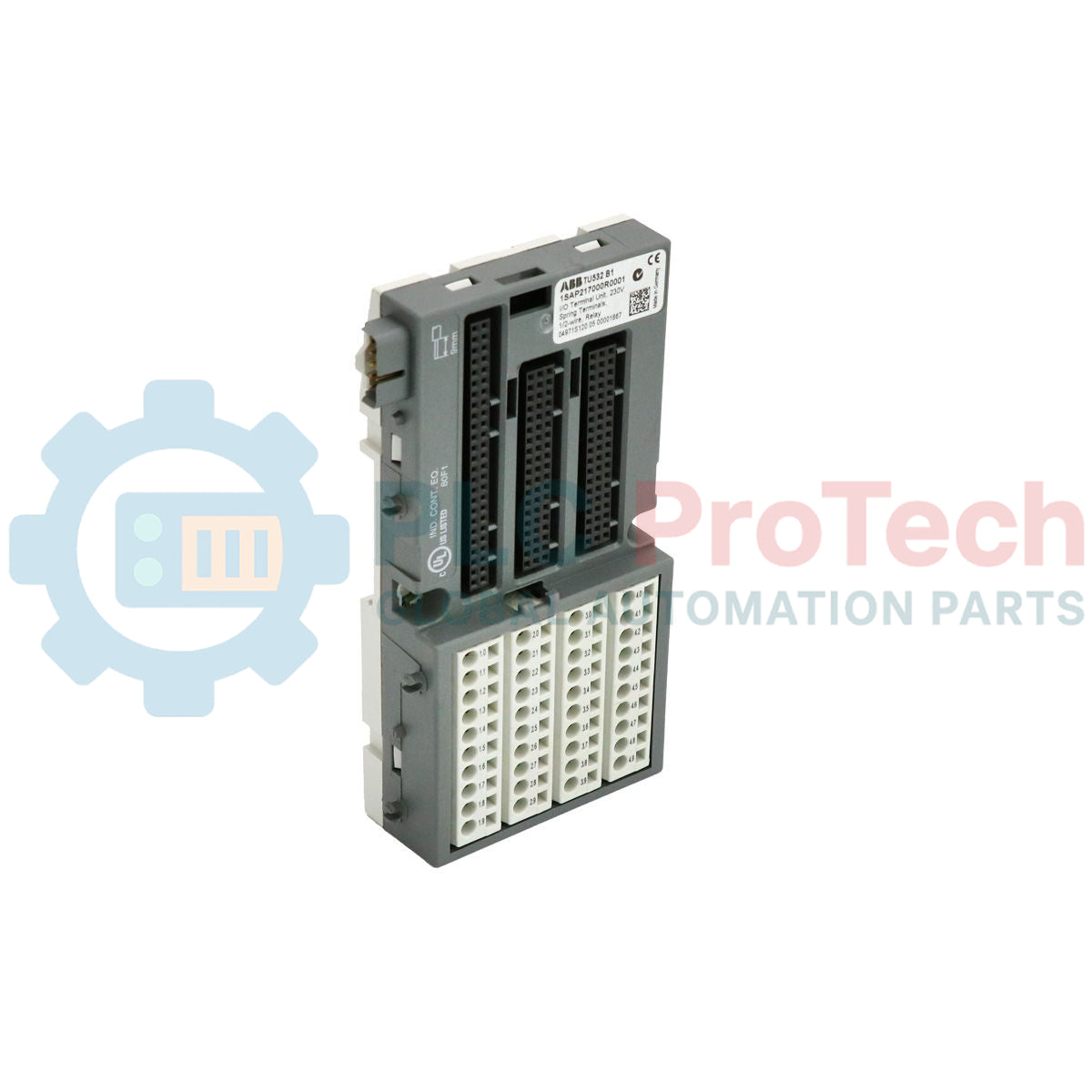

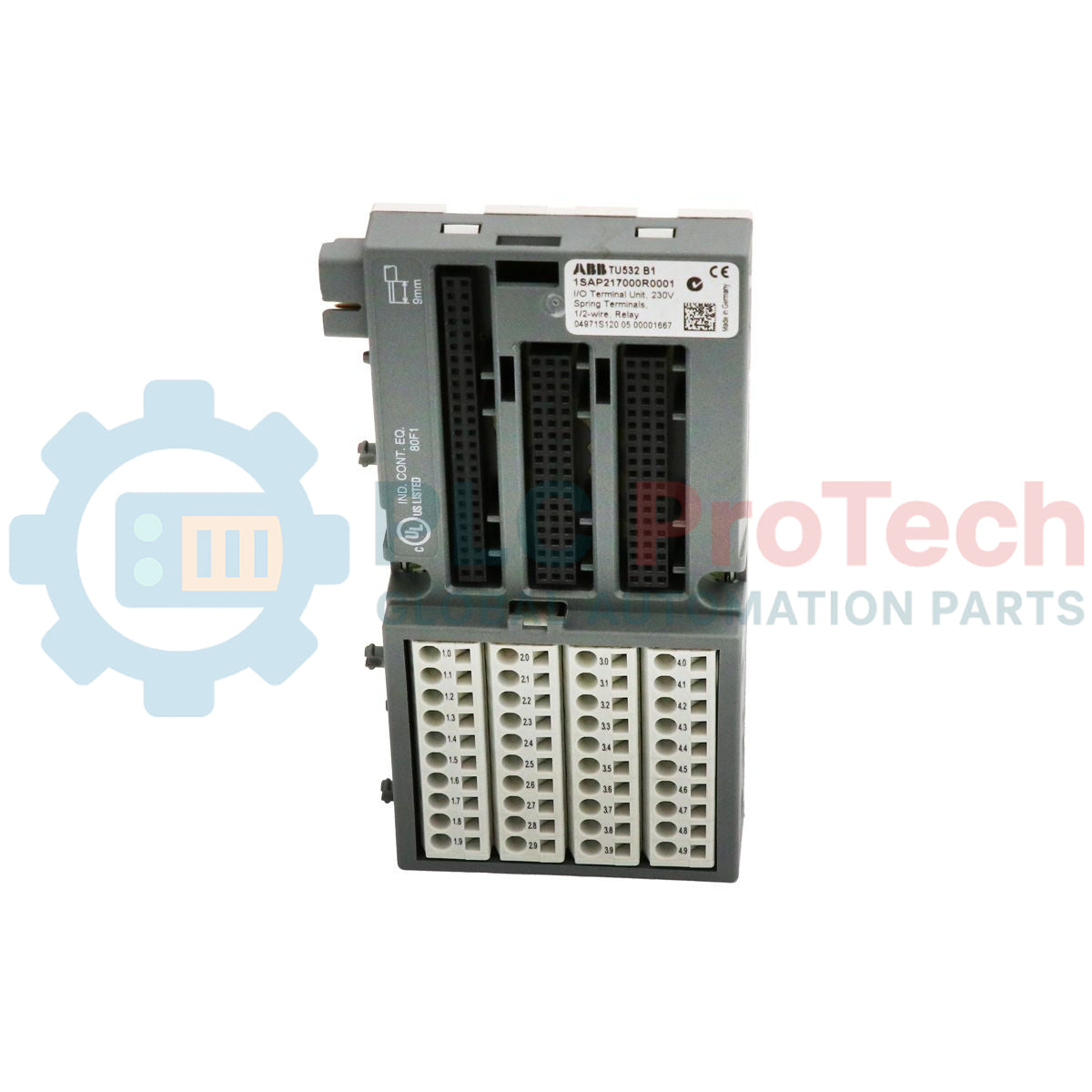

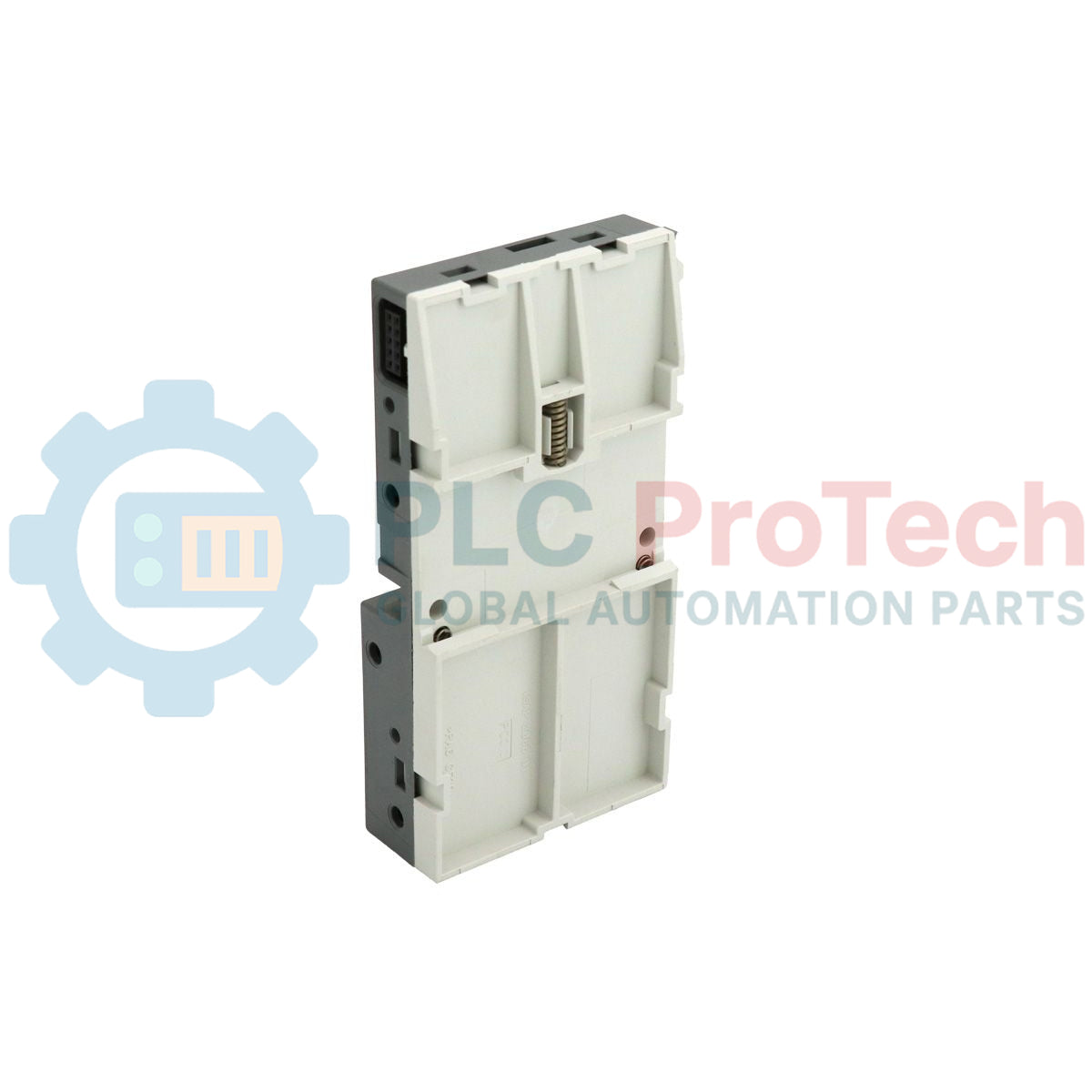

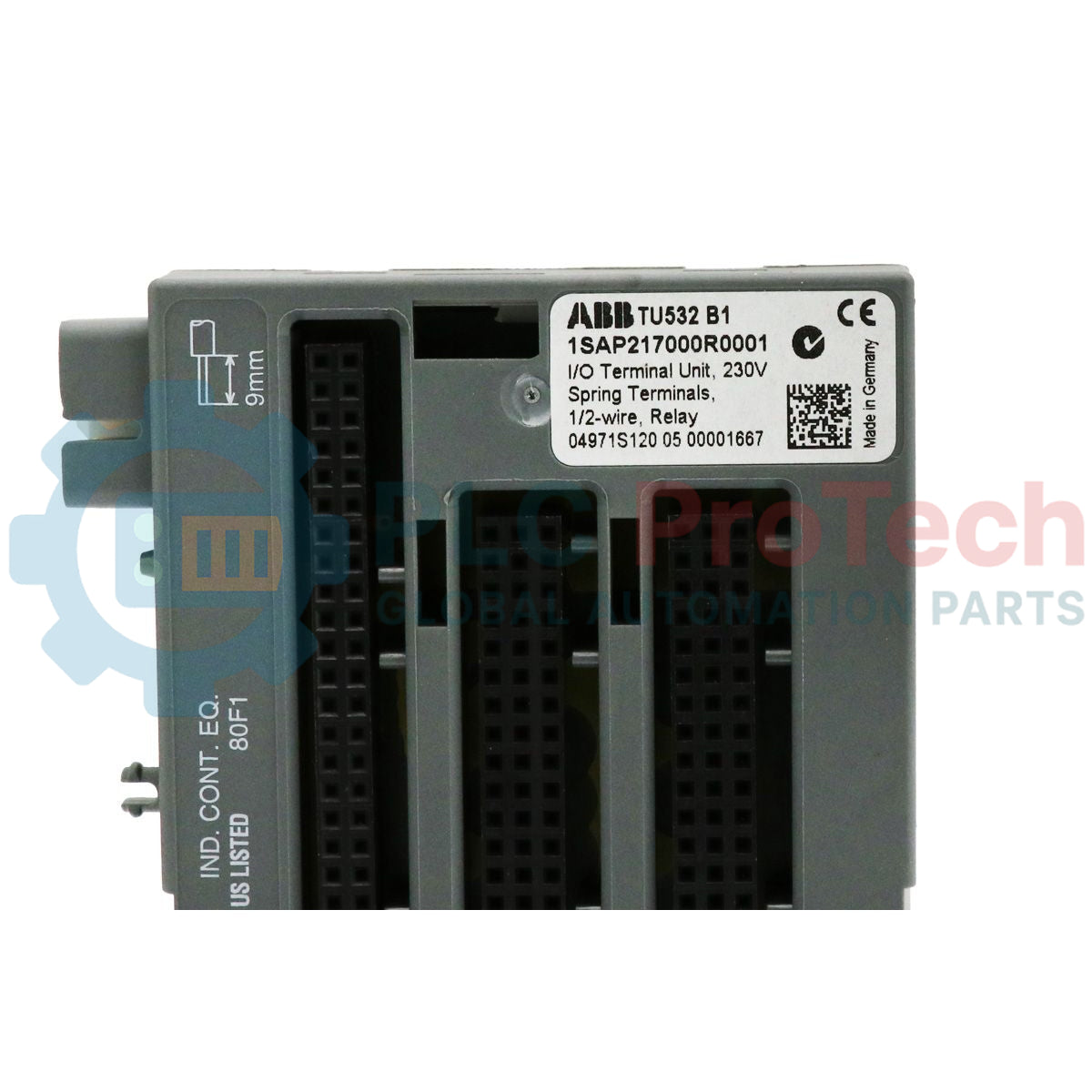

Designed to integrate high-voltage modules within the control rack architecture, the ABB 1SAP217000R0001 provides a robust mechanical and electrical connection interface for the Advant AC500 PLC platform. This TU532 unit is configured with vibration-resistant spring terminals specifically optimized for 230 VAC and relay output modules. It serves as an essential deployment base, routing field wiring securely to the internal backplane bus while allowing hot-swapping or field replacement of active electronic I/O modules without disturbing field termination lines.
| Manufacturer | ABB |
| Model Series | Advant AC500 / S500 |
| Extended Product Type | TU532 |
| Article Number (SKU) | 1SAP217000R0001 |
| Terminal Type | Spring-clamp terminals |
| Voltage Capacity | 230 VAC / Relay Module Compatible |
| Auxiliary Supply Voltage | 24 VDC |
| Degree of Protection | IP20 |
| Operating Temperature | 0 to +60 degC |
| Storage Temperature | -40 to +70 degC |
| Net Dimensions (W x H x D) | 28 x 135 x 67.5 mm |
| Net Weight | 0.164 kg |
| Gross Shipping Weight | 0.194 kg |
| Package Dimensions | 147 x 78 x 40 mm |
Alternative Models & Compatibility: The TU532 terminal unit is configured explicitly for high-voltage 230 VAC and relay-isolated cards. Do not substitute this unit with the TU512 or TU516 terminal bases, which are engineered for low-voltage 24 VDC signal modules. Doing so violates dielectric separation spacing and voids the hazardous location ratings of the S500 system architecture.
Application Pitfalls & Engineering Notes: When switching inductive AC loads (solenoids, contactor coils) through relay modules installed on the TU532, ensure external RC suppression elements are deployed across the contact terminals. Failing to suppress contact arcing can induce high-frequency EMI back into the local backplane, risking bus communication failures or unexpected state resets.
Commissioning & Wiring Tips: Stranded conductors inserted into the TU532 tension clamps require the use of properly crimped, insulated wire end ferrules. Raw, un-insulated stranded wire can easily experience splaying within the high-density terminal housing, risking phase-to-phase shorts on 230 VAC lines or grounding errors.

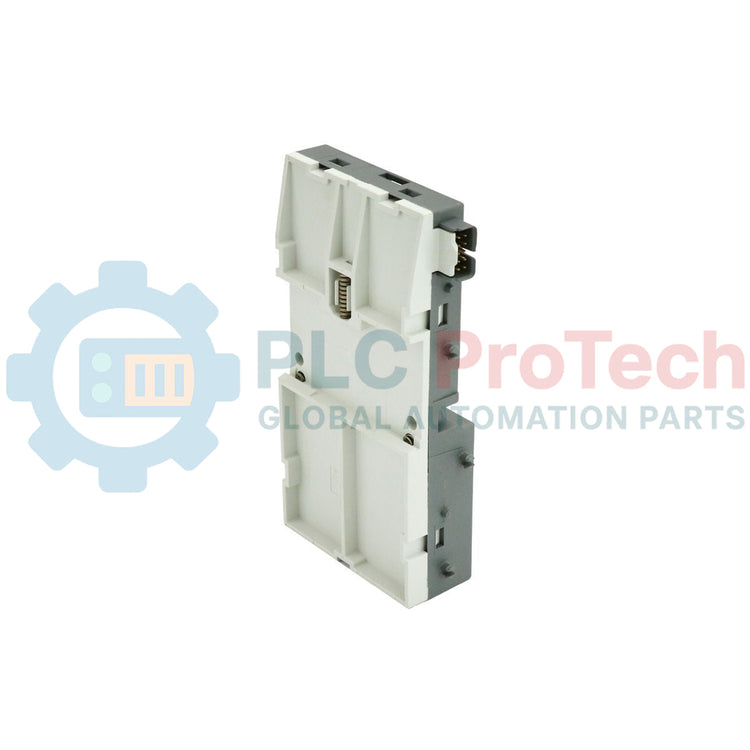

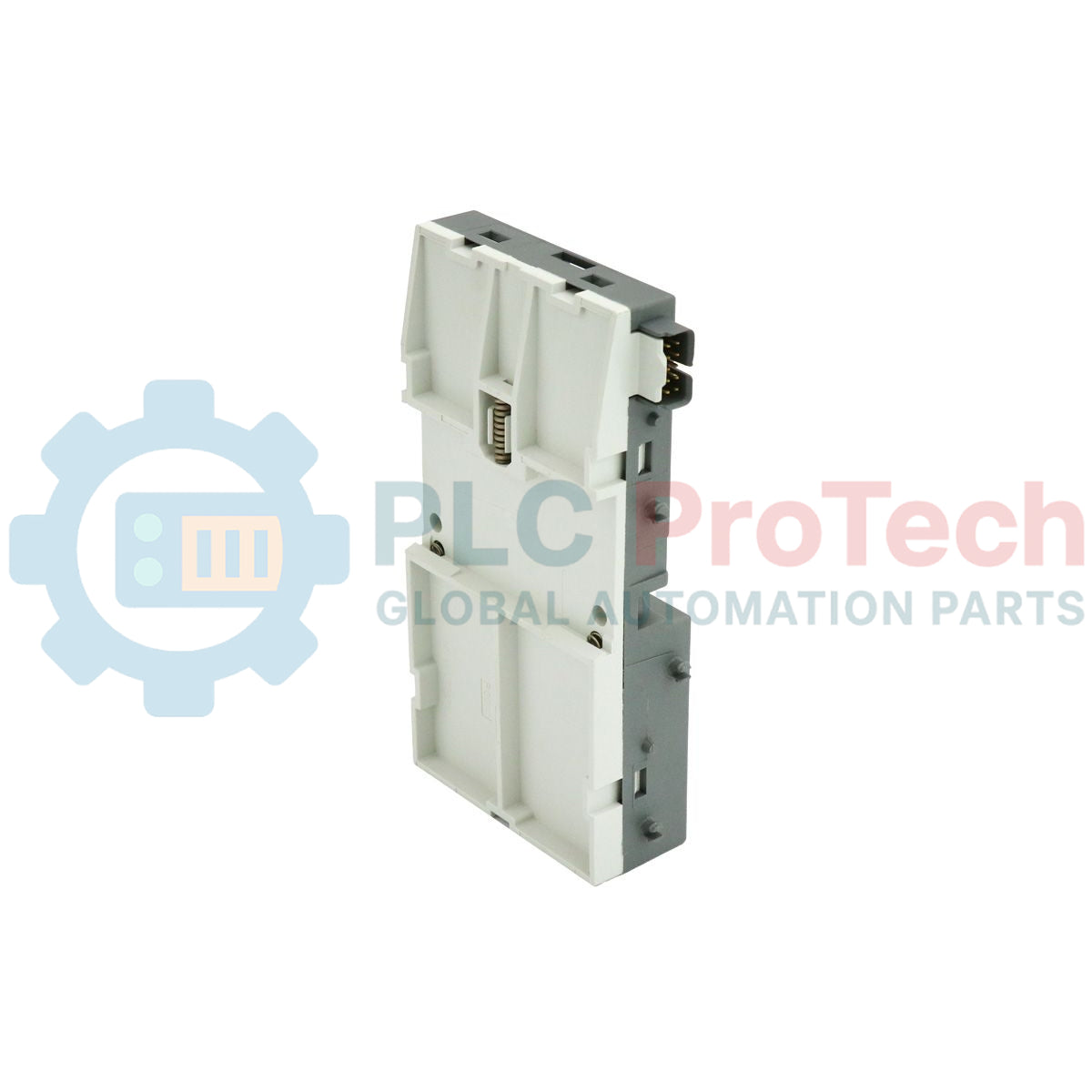

Align the upper hook of the TU532 terminal unit onto the top edge of a grounded 35 mm DIN rail.
Press the lower portion of the housing down firmly until the structural mounting latch snaps onto the rail.
Securely terminate the 230 VAC field lines and relay loops using a flat-bladed terminal screwdriver to actuate the spring-clamp mechanisms.
Verify routing and clearance of the 24 VDC auxiliary power supply connections before mounting the active I/O module onto the terminal unit interface.
