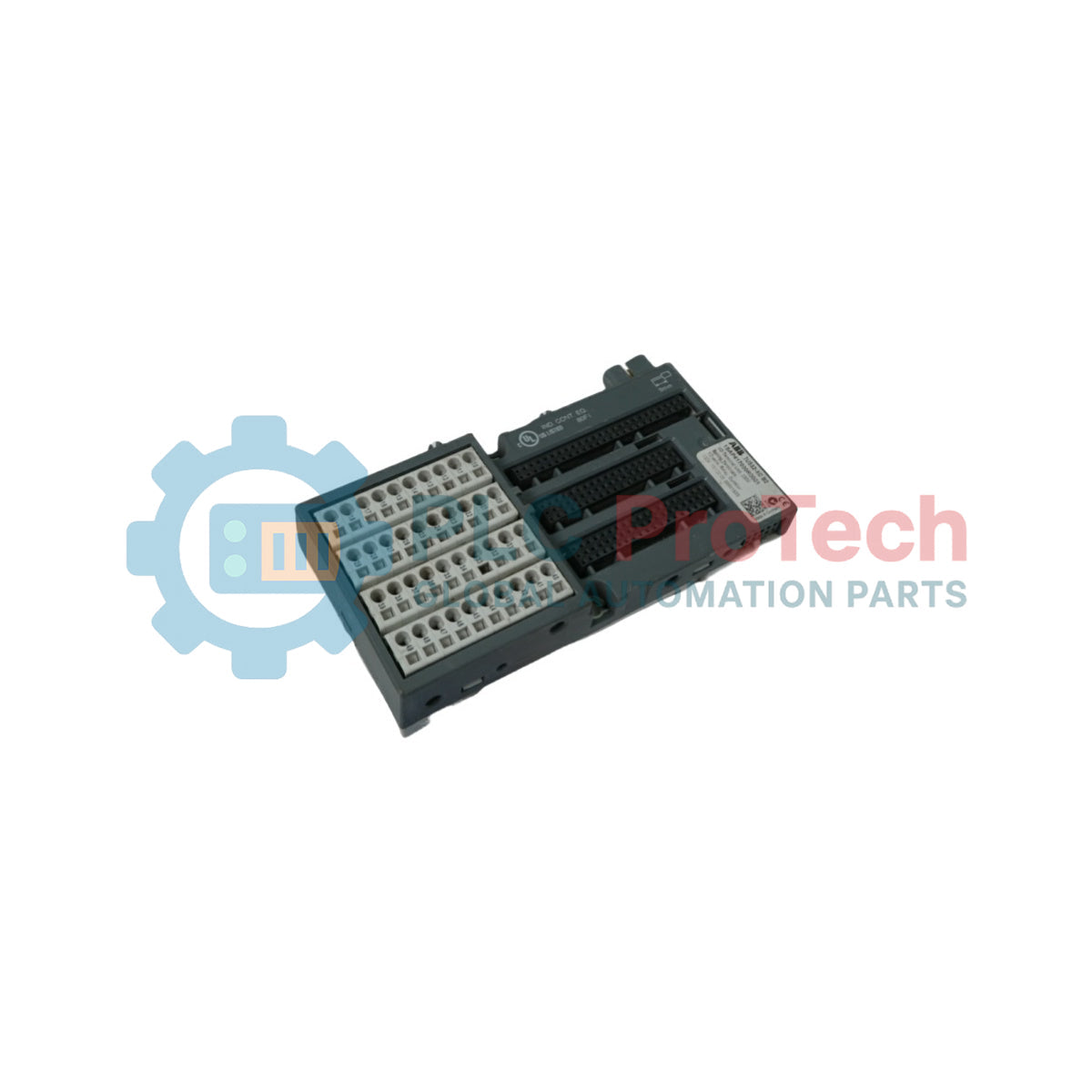

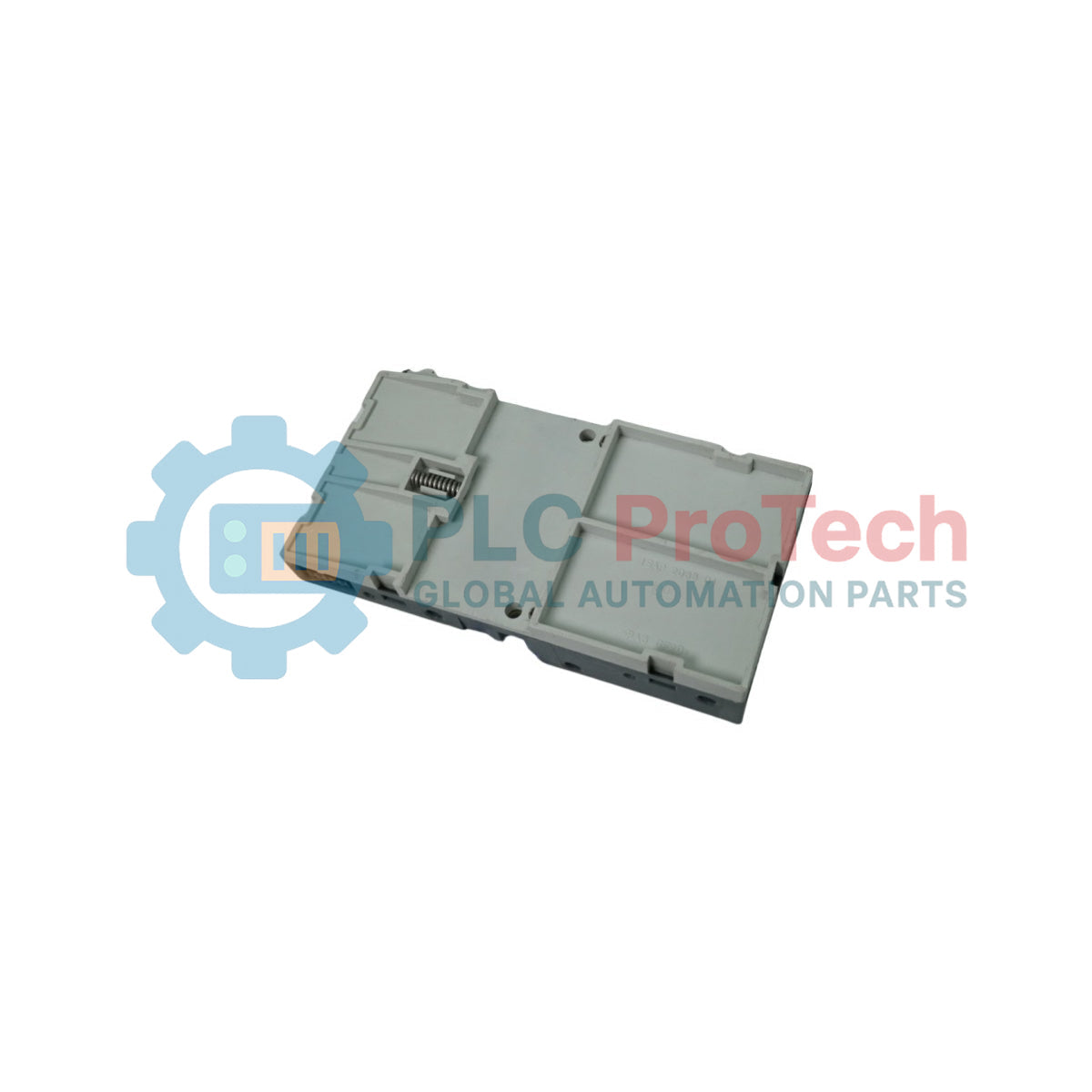

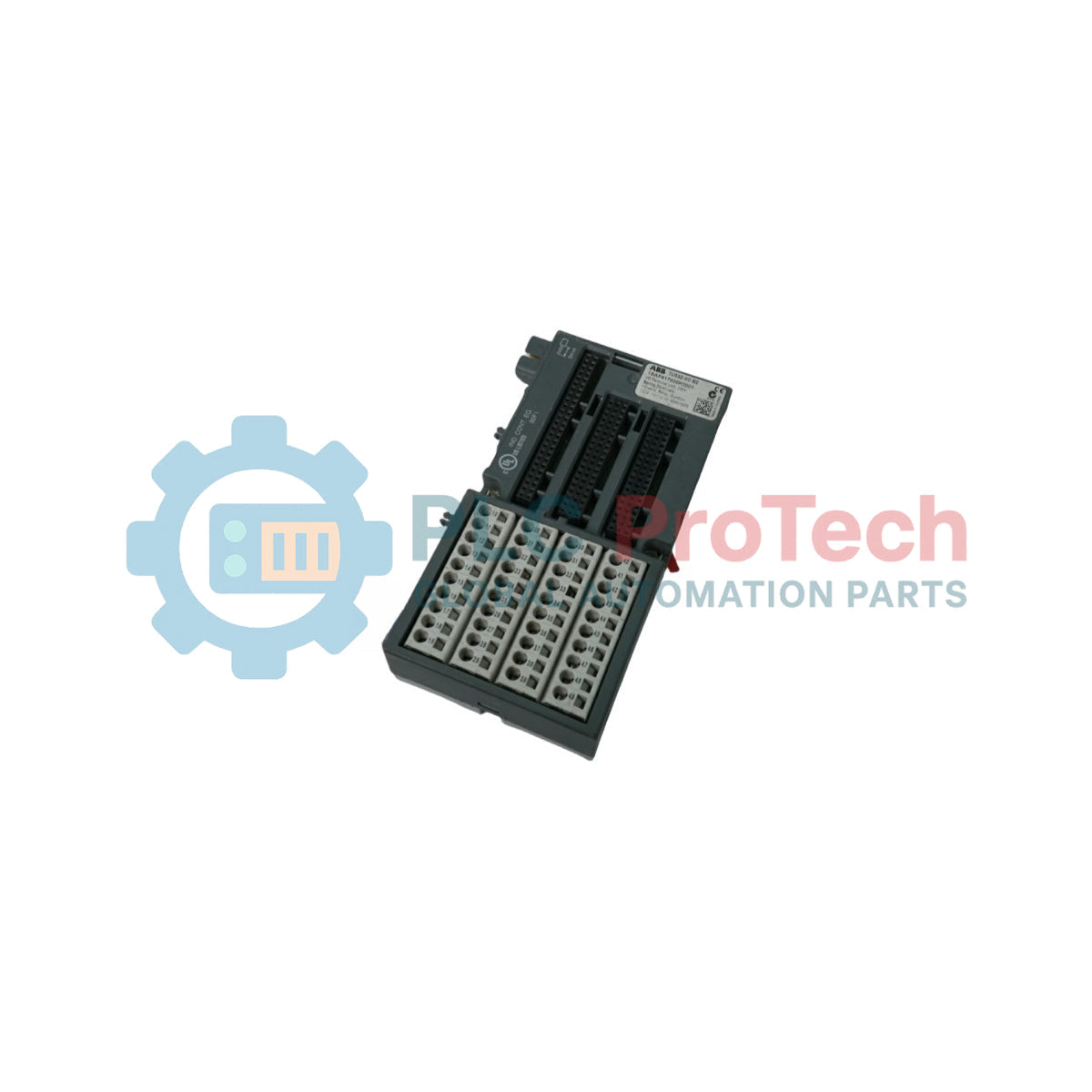

The TU532-XC is an S500 distributed I/O terminal unit designed for use with 230 VAC and relay modules in ABB AC500-XC automation systems. It provides spring terminal connectivity for industrial wiring applications operating under extended environmental conditions.
The unit supports secure field wiring connections for distributed automation architectures and is intended for integration within ABB S500-XC I/O systems. Its compact construction allows efficient DIN rail installation inside industrial control cabinets while maintaining reliable signal and power distribution for compatible modules.
Designed for harsh industrial environments, the 1SAP417000R0001 terminal unit operates across a wide ambient temperature range and supports installation in demanding automation applications requiring extended environmental tolerance.
The TU532-XC is compatible with ABB AC500-XC programmable logic controller systems and associated S500-XC relay and 230 VAC I/O modules.
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Product ID | 1SAP417000R0001 |
| Product Type | TU532-XC |
| Series | S500-XC |
| Product Name | Distributed Automation I/Os |
| Function | For 230 VAC and relay modules. Spring terminals |
| Protection Rating | IP20 |
| Mounting Type | DIN rail installation |
| Terminal Type | Spring terminals |
| Operating Temperature | -30...+70 degC |
| Storage Temperature | -40...+85 degC |
| Product Width | 67.5 mm |
| Product Height | 135 mm |
| Product Depth | 28 mm |
| Net Weight | 0.165 kg |
| Gross Weight | 0.195 kg |
| Country of Origin | Sweden |
| Selling Unit | 1 piece |
| EAN | 4016779846394 |
| ETIM 8 | EC000810 - PLC mounting rack |
| UNSPSC | 32151703 |
Install the terminal unit on a properly grounded DIN rail inside an industrial control enclosure. Maintain adequate spacing for ventilation and cable routing. Use suitable wire ferrules for spring terminal connections where required by local installation practices.
Separate high-voltage wiring from low-level signal cables to reduce electromagnetic interference. Ensure cabinet protection against moisture, dust, and vibration according to the environmental requirements of the installation site.
Verify compatibility with corresponding S500-XC relay and 230 VAC modules before system energization.
What is the primary function of the TU532-XC?
It provides terminal wiring connections for ABB S500-XC 230 VAC and relay modules.
Which PLC platform supports this terminal unit?
It is used within ABB AC500-XC automation systems.
What type of terminals are used?
The unit uses spring terminal connections.
Can the unit operate in harsh environments?
Yes. It is designed for eXtreme Conditions applications.
What is the protection rating?
The enclosure protection rating is IP20.
Is the module suitable for DIN rail installation?
Yes. The design supports standard control cabinet DIN rail mounting.
What is the operating temperature range?
The specified operating range is -30 to +70 degC.
What modules are compatible with this unit?
It is intended for 230 VAC and relay modules within the S500-XC series.
Does the unit include communication interfaces?
No communication interface information is specified for this terminal unit.
What is the storage temperature limit?
The storage range is -40 to +85 degC.
Is the product RoHS compliant?
Yes. ABB specifies compliance with EU RoHS requirements.
What is the product weight?
The net weight is 0.165 kg.
Can the unit be used in distributed I/O systems?
Yes. It is part of ABB distributed automation I/O architecture.
What cabinet environment is recommended?
Installation inside protected industrial control panels is recommended.
