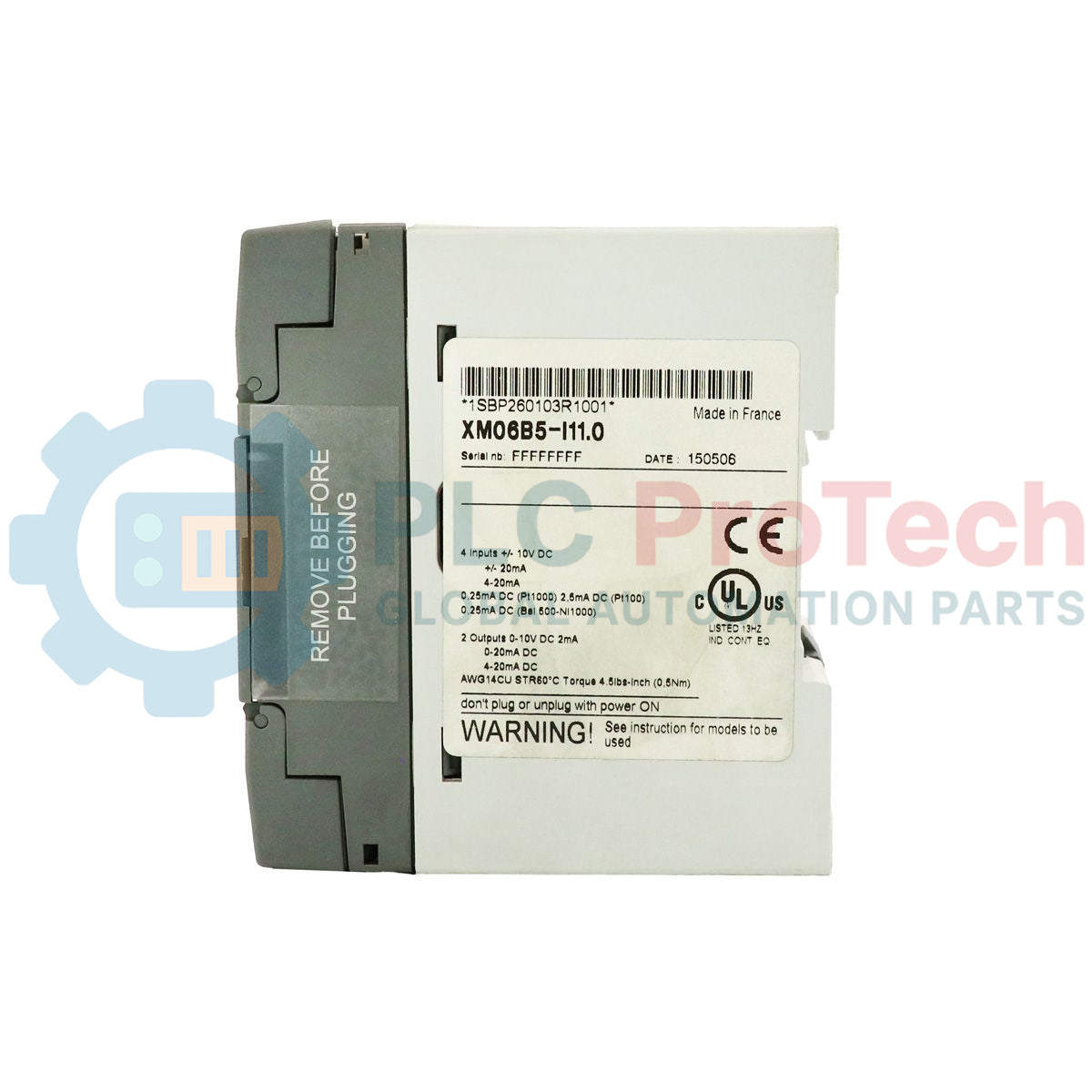

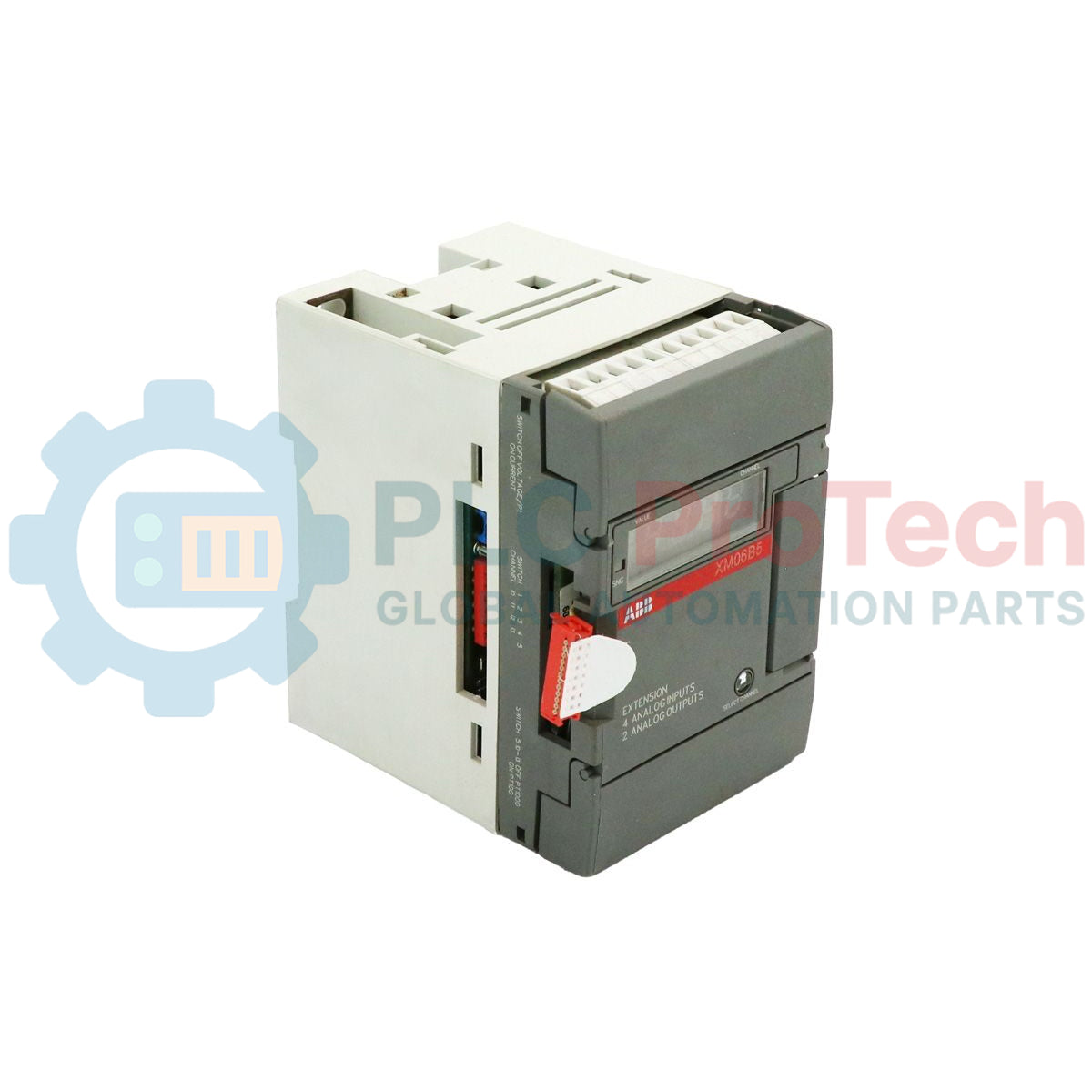

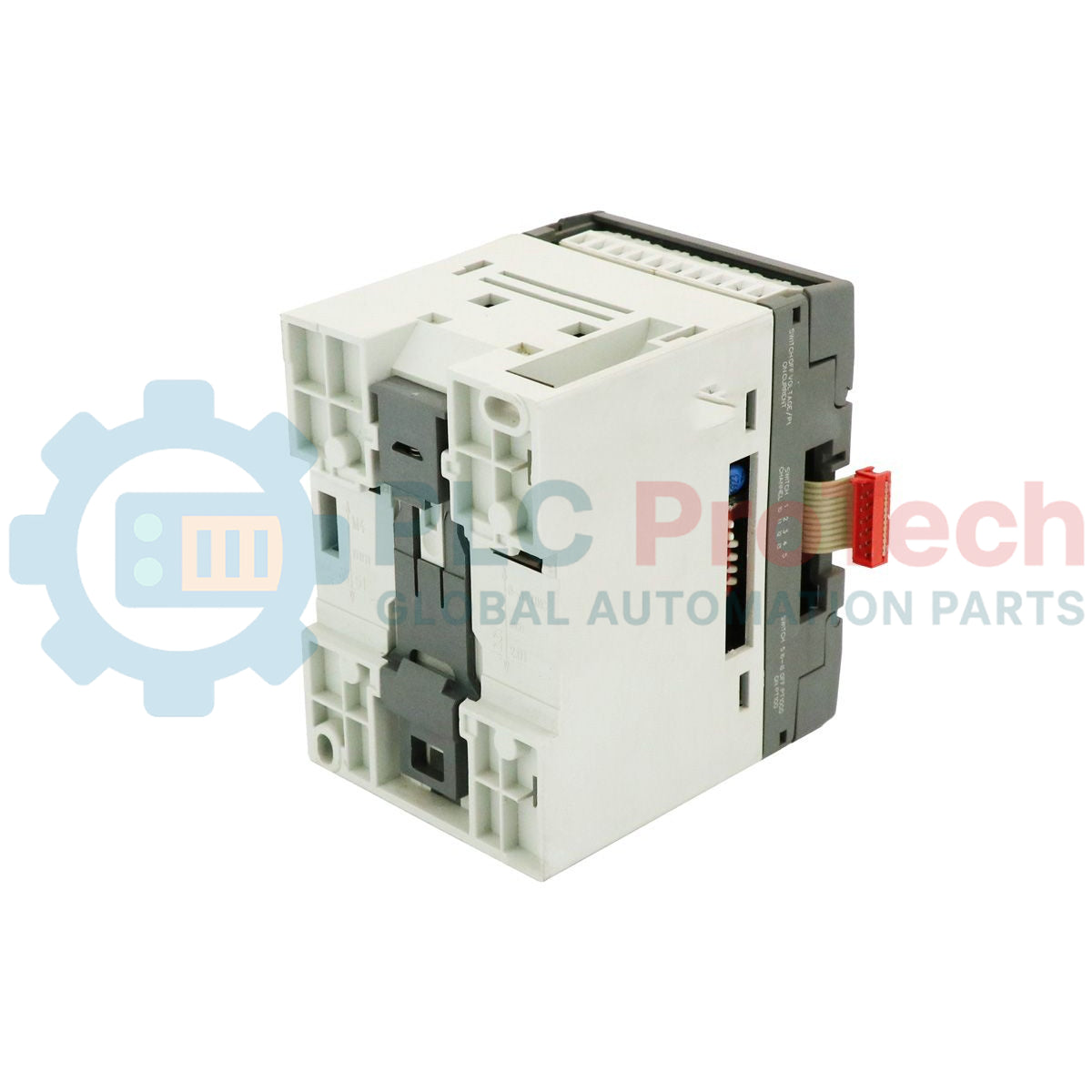

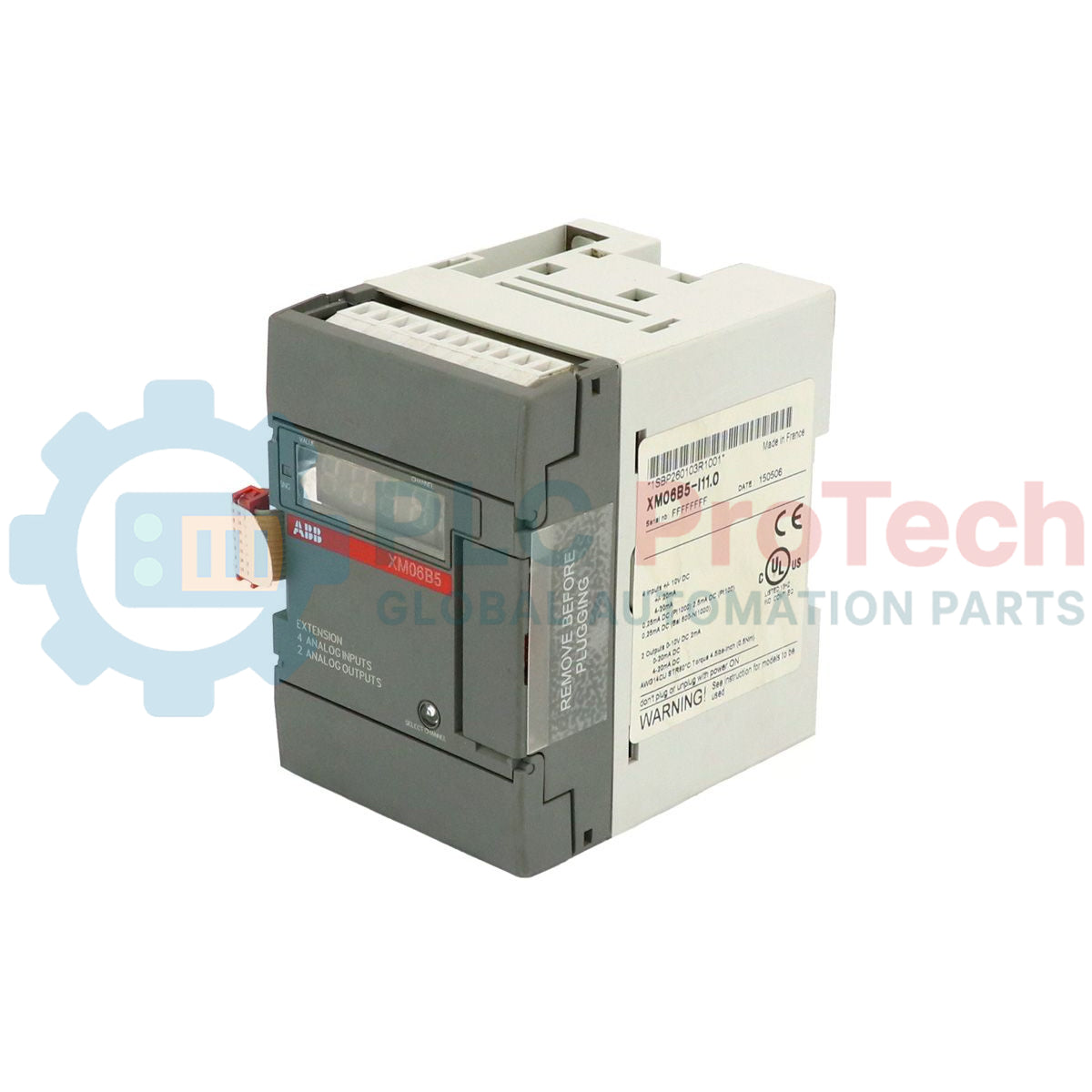

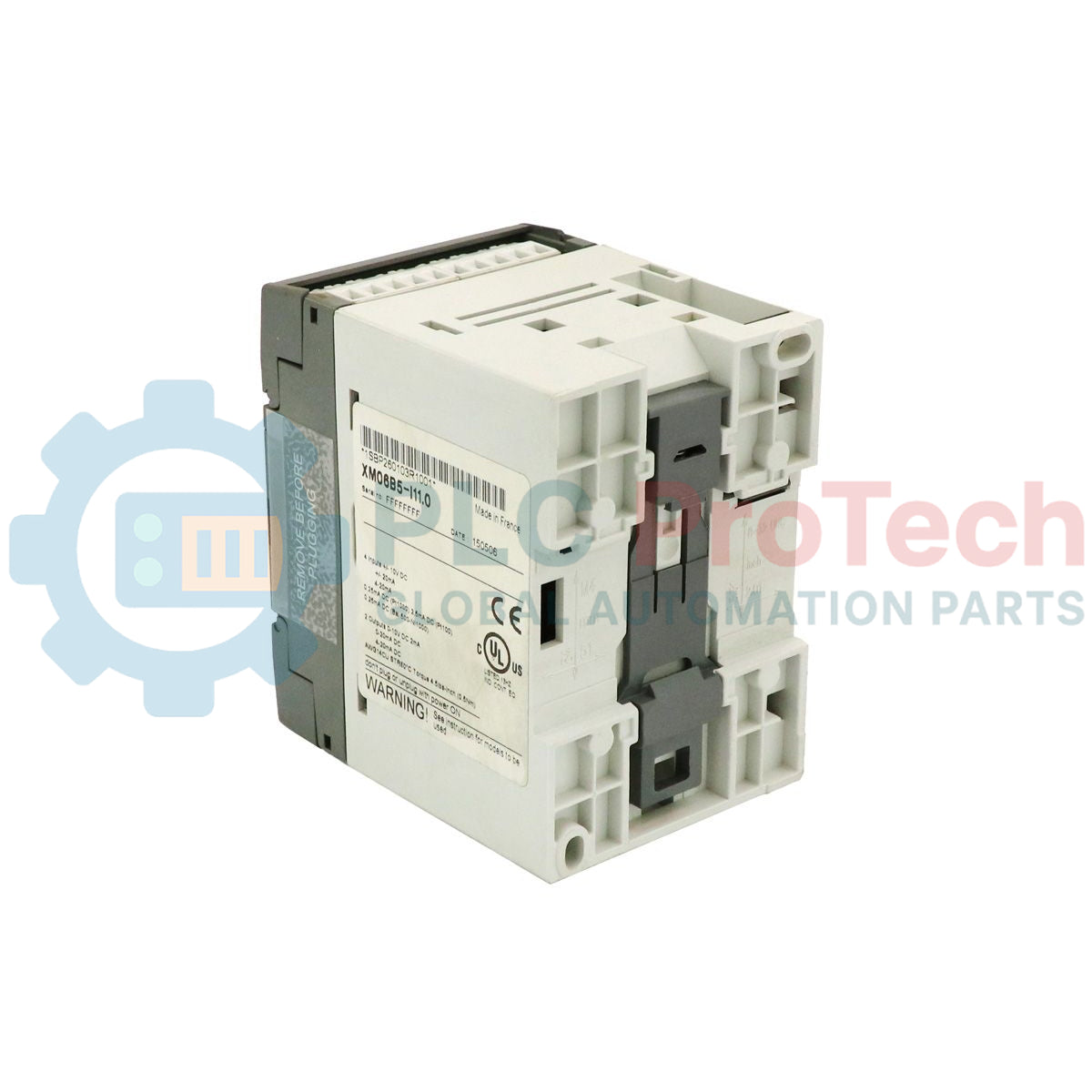

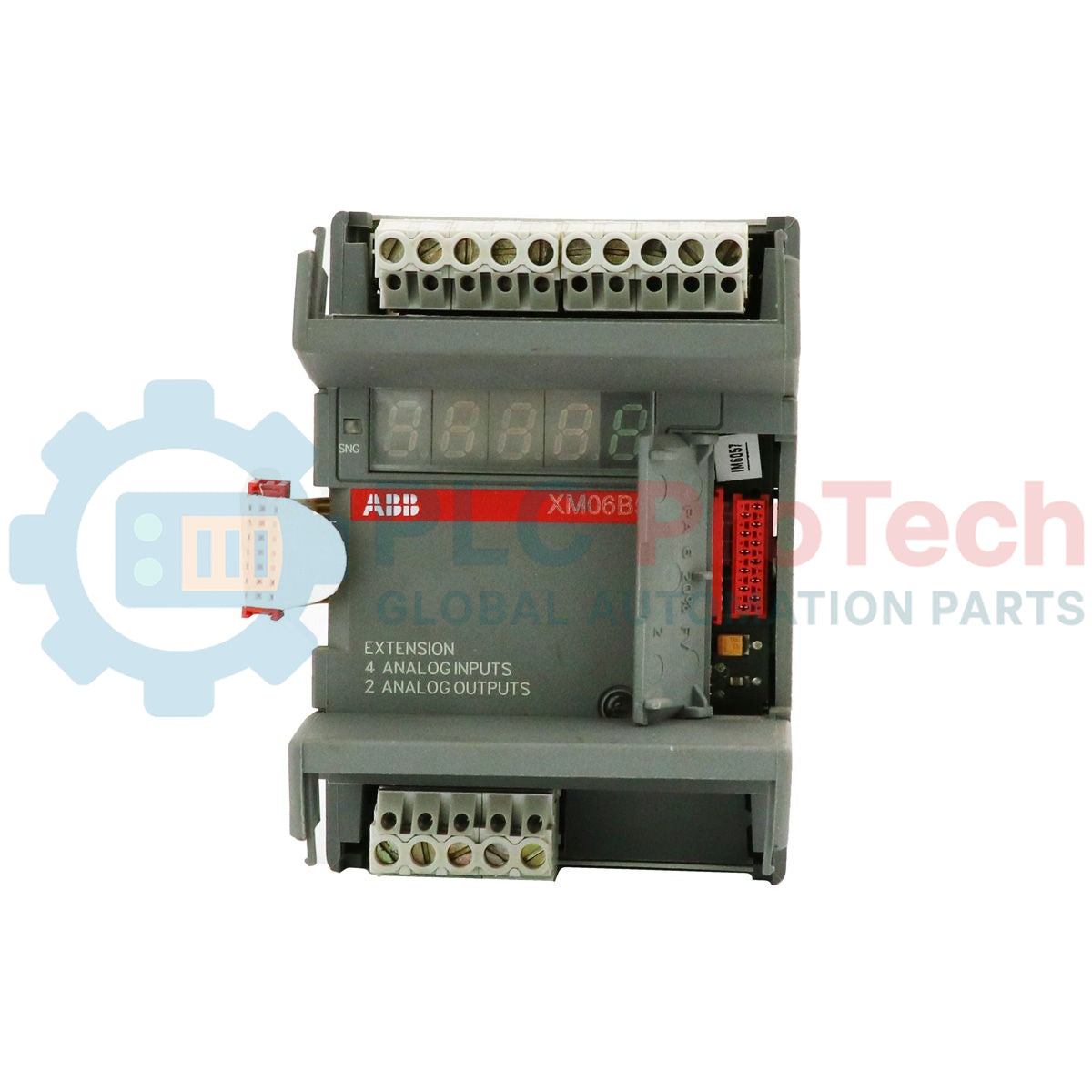

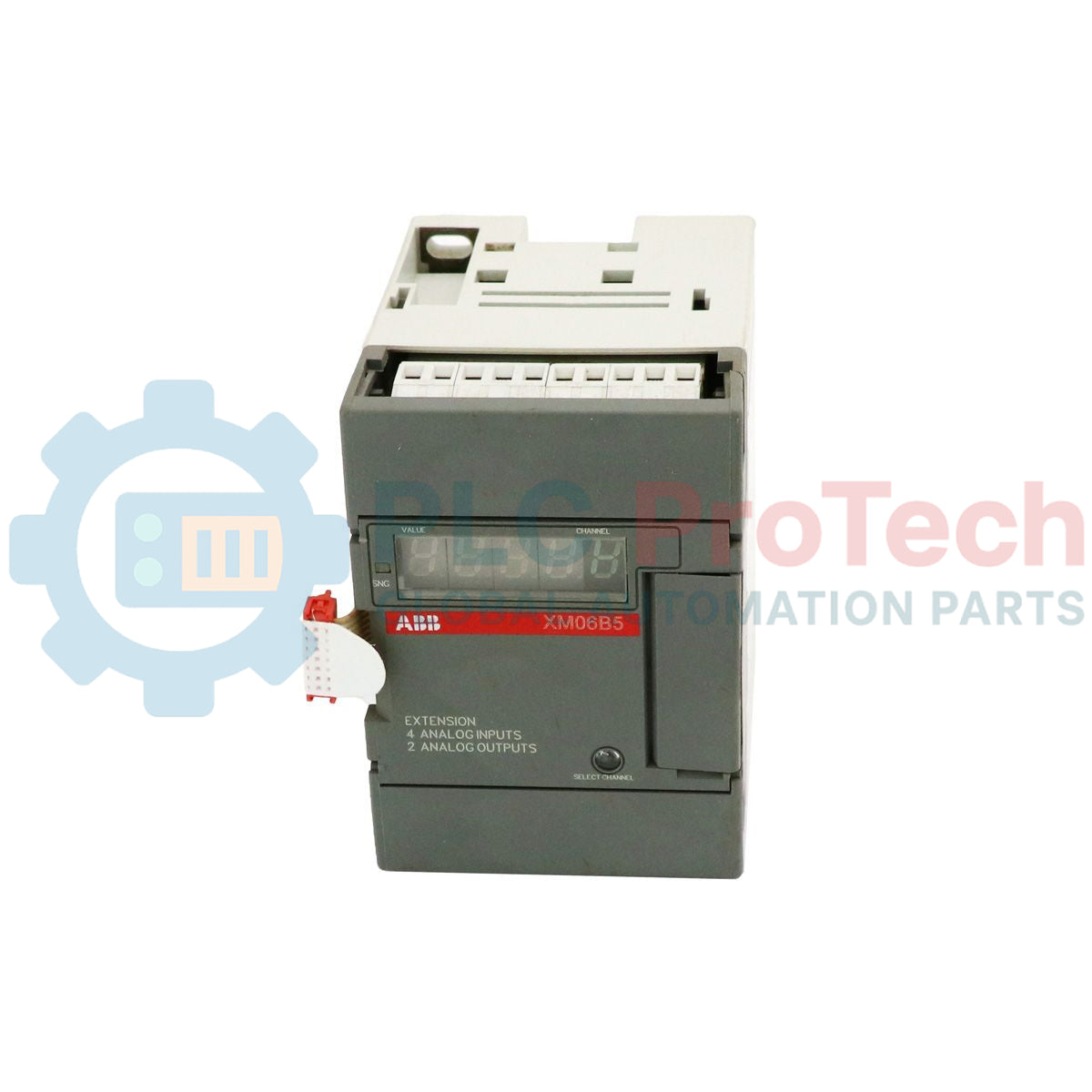

The XM 06 B5 analog extension module (1SBP260103R1001) is an I/O expansion unit used in ABB automation systems to increase analog signal handling capacity. It provides mixed analog input and output channels for process measurement, control, and signal conditioning tasks.
The module supports multiple signal types including voltage, current, and temperature sensor inputs such as Pt100 and Pt1000. It is designed to extend central controller capability by adding additional analog processing channels within modular ABB control architectures.
| Category | Value |
|---|---|
| Product Type | Analog extension module |
| Product ID | 1SBP260103R1001 |
| Model | XM 06 B5 |
| Analog Inputs | 4 |
| Analog Outputs | 2 |
| Resolution | 12 bits |
| Power Dissipation | 3 W |
| Weight | 200 g |
| Input Isolation | 500 V |
| Maximum Cable Length | 50 m (shielded) |
| Transfer Time | 120 ms (50/60 Hz filtered) / 50 ms (without filtering) |
| Parameter | Value |
|---|---|
| Input Types | Voltage, Current, Pt100, Pt1000, Ni1000, Balco500 |
| Voltage Input Range | ±10 V (max ±30 V) |
| Current Input Range | 0–20 mA / 4–20 mA (max ±25 mA) |
| Temperature Ranges | Pt100/Pt1000: -200 to +450 C Ni1000: -50 to +170 C Balco500: -30 to +120 C |
| Input Impedance | 100 kOhm (voltage/temperature), 100 ohm (current) |
| Linearization | Supported for temperature sensors |
| Full Scale Accuracy | Voltage ≤ 0.7%, Current ≤ 0.8%, Temperature ≤ 1.5 C |
| Acquisition Time | 120 ms (voltage/current), 220 ms (temperature) |
| Parameter | Value |
|---|---|
| Output Types | Voltage, Current |
| Voltage Output Range | ±10 V (max 2 mA) |
| Current Output Range | 0–20 mA / 4–20 mA (max 20 mA) |
The module should be installed in a compatible ABB modular controller rack. Proper grounding of the system backplane is required to maintain measurement stability and reduce electrical noise.
Shielded cables are recommended for all analog inputs, especially for long-distance signal transmission. Temperature sensor wiring should follow ABB recommended compensation practices to maintain accuracy.
What is the function of the XM 06 B5 module?
It expands analog input and output capacity in ABB control systems.
What types of signals can it handle?
Voltage, current, and temperature sensor signals including Pt100 and Pt1000.
Is it a standalone controller?
No, it operates as an extension module within an ABB system.
How many channels does it provide?
It provides 4 analog inputs and 2 analog outputs.
Can it be used for temperature measurement?
Yes, it supports multiple RTD sensor types with linearization.
Global Express Shipping
Returns & Warranty
Manufacturer: ABB
Product No.: 1SBP260103R1001
Country of origin:Sweden
Product Type: Analog extension
Barcode: 85371091
Payment: T/T, Western Union
Weight: 500g
Dimensions: 25cm x 12cm x 10cm
Shipping port: Xiamen
Warranty: 12 months
The XM 06 B5 analog extension module (1SBP260103R1001) is an I/O expansion unit used in ABB automation systems to increase analog signal handling capacity. It provides mixed analog input and output channels for process measurement, control, and signal conditioning tasks.
The module supports multiple signal types including voltage, current, and temperature sensor inputs such as Pt100 and Pt1000. It is designed to extend central controller capability by adding additional analog processing channels within modular ABB control architectures.
| Category | Value |
|---|---|
| Product Type | Analog extension module |
| Product ID | 1SBP260103R1001 |
| Model | XM 06 B5 |
| Analog Inputs | 4 |
| Analog Outputs | 2 |
| Resolution | 12 bits |
| Power Dissipation | 3 W |
| Weight | 200 g |
| Input Isolation | 500 V |
| Maximum Cable Length | 50 m (shielded) |
| Transfer Time | 120 ms (50/60 Hz filtered) / 50 ms (without filtering) |
| Parameter | Value |
|---|---|
| Input Types | Voltage, Current, Pt100, Pt1000, Ni1000, Balco500 |
| Voltage Input Range | ±10 V (max ±30 V) |
| Current Input Range | 0–20 mA / 4–20 mA (max ±25 mA) |
| Temperature Ranges | Pt100/Pt1000: -200 to +450 C Ni1000: -50 to +170 C Balco500: -30 to +120 C |
| Input Impedance | 100 kOhm (voltage/temperature), 100 ohm (current) |
| Linearization | Supported for temperature sensors |
| Full Scale Accuracy | Voltage ≤ 0.7%, Current ≤ 0.8%, Temperature ≤ 1.5 C |
| Acquisition Time | 120 ms (voltage/current), 220 ms (temperature) |
| Parameter | Value |
|---|---|
| Output Types | Voltage, Current |
| Voltage Output Range | ±10 V (max 2 mA) |
| Current Output Range | 0–20 mA / 4–20 mA (max 20 mA) |
The module should be installed in a compatible ABB modular controller rack. Proper grounding of the system backplane is required to maintain measurement stability and reduce electrical noise.
Shielded cables are recommended for all analog inputs, especially for long-distance signal transmission. Temperature sensor wiring should follow ABB recommended compensation practices to maintain accuracy.
What is the function of the XM 06 B5 module?
It expands analog input and output capacity in ABB control systems.
What types of signals can it handle?
Voltage, current, and temperature sensor signals including Pt100 and Pt1000.
Is it a standalone controller?
No, it operates as an extension module within an ABB system.
How many channels does it provide?
It provides 4 analog inputs and 2 analog outputs.
Can it be used for temperature measurement?
Yes, it supports multiple RTD sensor types with linearization.
