Description

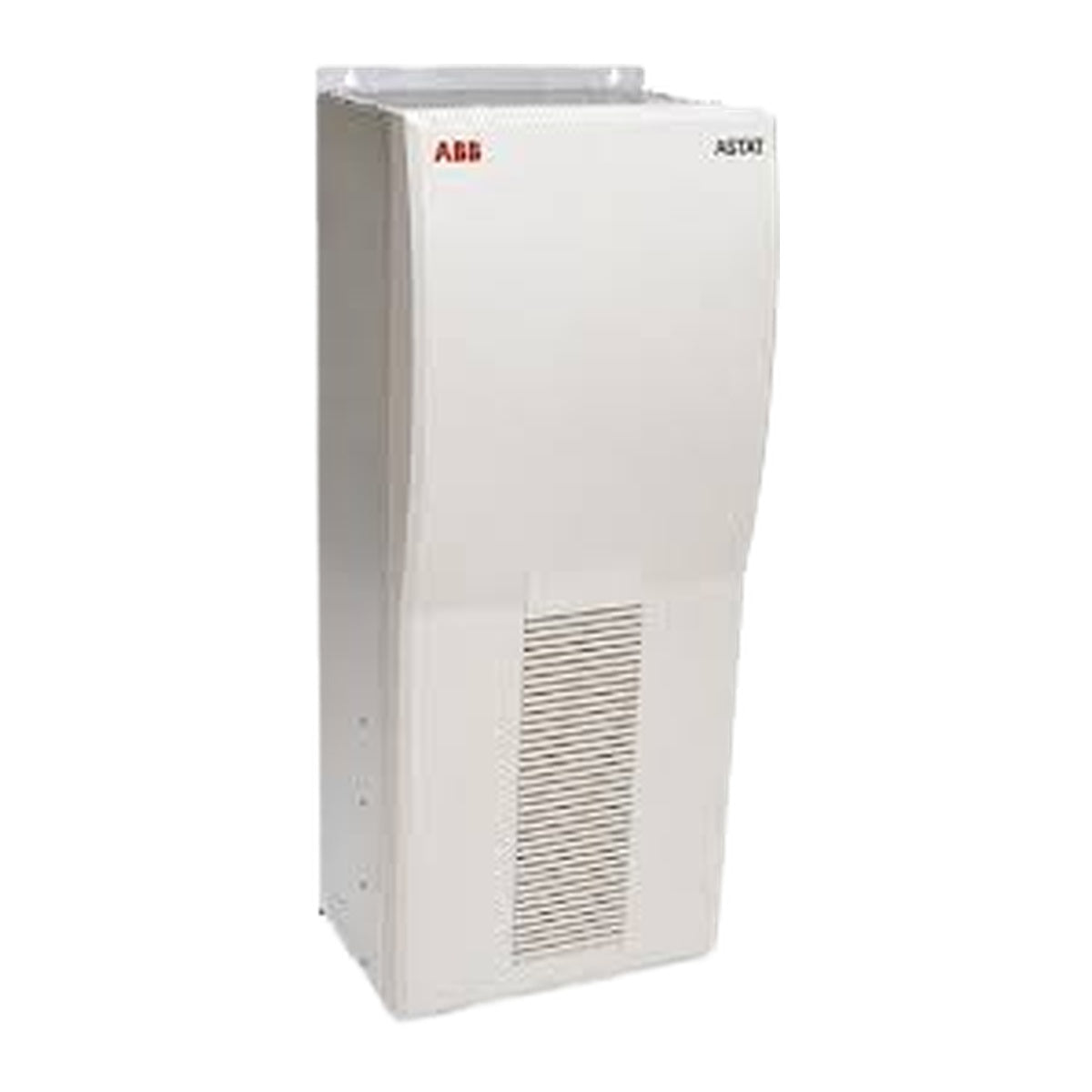

ABB 3ASC25H270 DASD 146 is a heavy-duty thyristor power module engineered for high-demand industrial AC motor speed and torque control systems. Operating within the ASTAT crane motion control platform, the module executes solid-state stator voltage regulation and dynamic phase sequence switching to control heavy industrial machinery without requiring mechanical reversing contactors.

The 3ASC25H270 DASD 146 features integrated semiconductor protection, force-cooled heat dissipation, and internal system I/O connectivity to interface directly with ASTAT control system modules via fiber-optic communication channels.

Features

• Solid-State Reversing: Integrates inverse-parallel thyristor pairs across phase connections for stepless voltage regulation and rapid torque reversal without directional contactors.
• Integrated Semiconductor Fuses: Equipped with high-speed semiconductor fuses rated up to 690 V to protect internal power components.
• High-Temperature Design: Rated for continuous operation in high-ambient industrial environments up to +55 degC.
• Forced Air Cooling: Features internal cooling fans to ensure consistent thermal management under high duty-cycle operations.
• Coated Electronics Construction: Designed with protective circuit board coating to withstand conductive dust and harsh process environments.
• Fiber-Optic Interface: Direct high-speed communication link to the DARA control system module via noise-immune fiber cables.

Applications

• Overhead Crane Hoist and Travel Drives
• Heavy Industrial Material Handling
• Steel Mill Ladle Cranes and Process Drives
• Port Machinery and Container Cranes
• Heavy Duty Machinery AC Slip-Ring Motor Control

Technical Specifications

Installation Guidelines

• Panel Layout: Install vertically within dedicated cubicles or E-room panels ensuring clear space above and below the module for unrestricted cooling airflow.
• Cooling and Ventilation: Maintain adequate enclosure air circulation to prevent ambient temperatures from exceeding the nominal reference rating of +55 degC without thermal derating.
• EMI/RFI Mitigation & Cabling: Utilize screened signal lines and route high-power motor cabling separately from fiber-optic control lines to prevent electrical interference.
• Earthing and Grounding: Ensure low-impedance protective earthing connections to the panel chassis in accordance with plant electrical safety codes.
• Overvoltage Protection: Ensure integration with an approved DASG series overvoltage protection module across the line input.
