ABB 3BHB016120R0002 5SHX 1960L0006 RC-IGCT Module with 3BHE019719R0101 GV C736 BE101 Gate Unit 91mm

SKU 3BHE019719R0101 5SHX 1960L0006

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: ABB
Product No.: 3BHE019719R0101 5SHX 1960L0006
Origin Sweden
Product Type: IGCT Module
Payment: T/T, Western Union
Weight: 3.0 kg
Shipping port: Xiamen
Warranty: 12 months

Product Description

Description

The ABB 3BHB016120R0002 (5SHX 1960L0006) is a high-power Reverse-Conducting Integrated Gate-Commutated Thyristor (RC-IGCT) module integrated with the 3BHE019719R0101 (GV C736 BE101) 91mm Gate Unit. Designed for medium-voltage industrial drive architectures, this assembly serves as a core semiconductor switching component within ABB ACS 5000 water-cooled medium voltage AC drives.

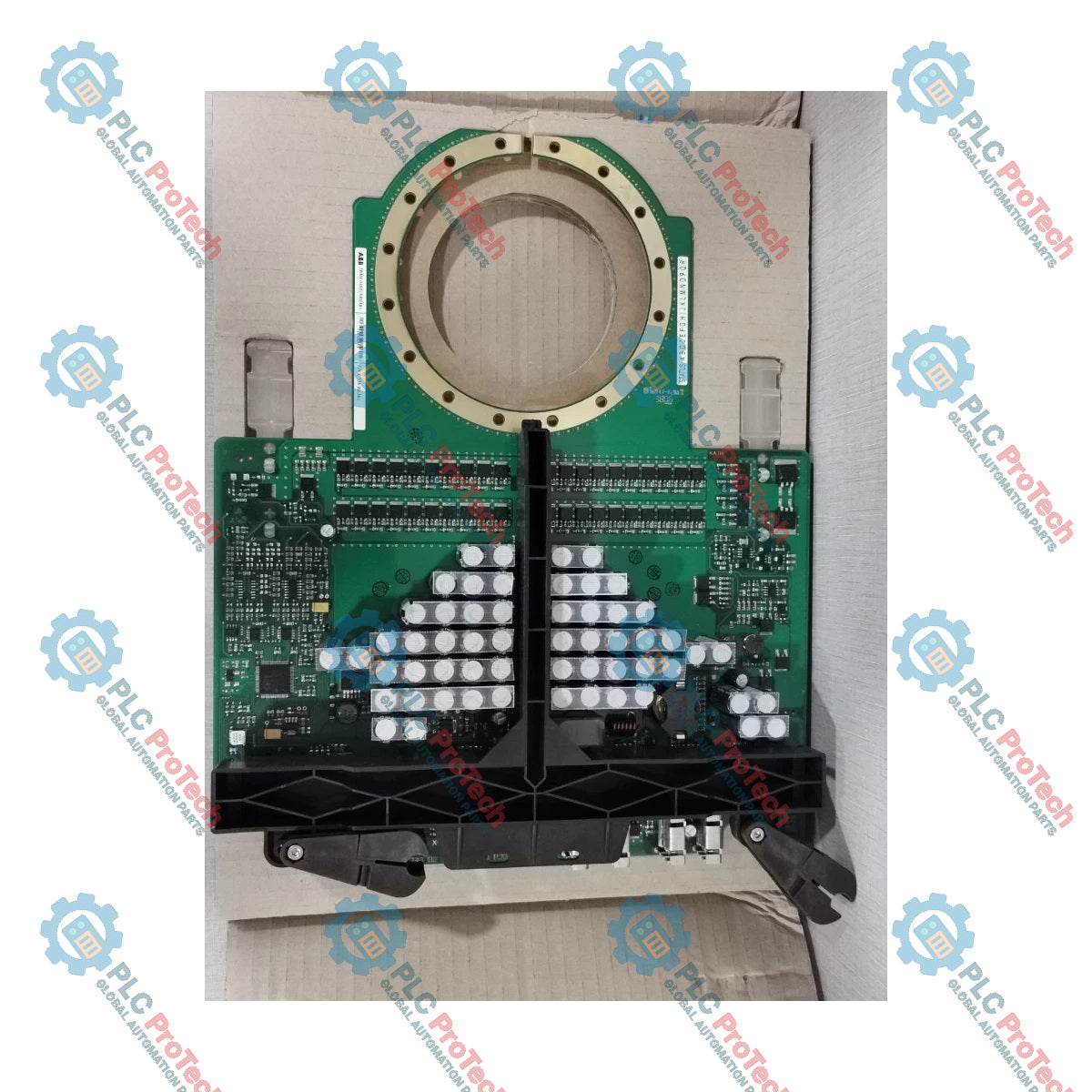

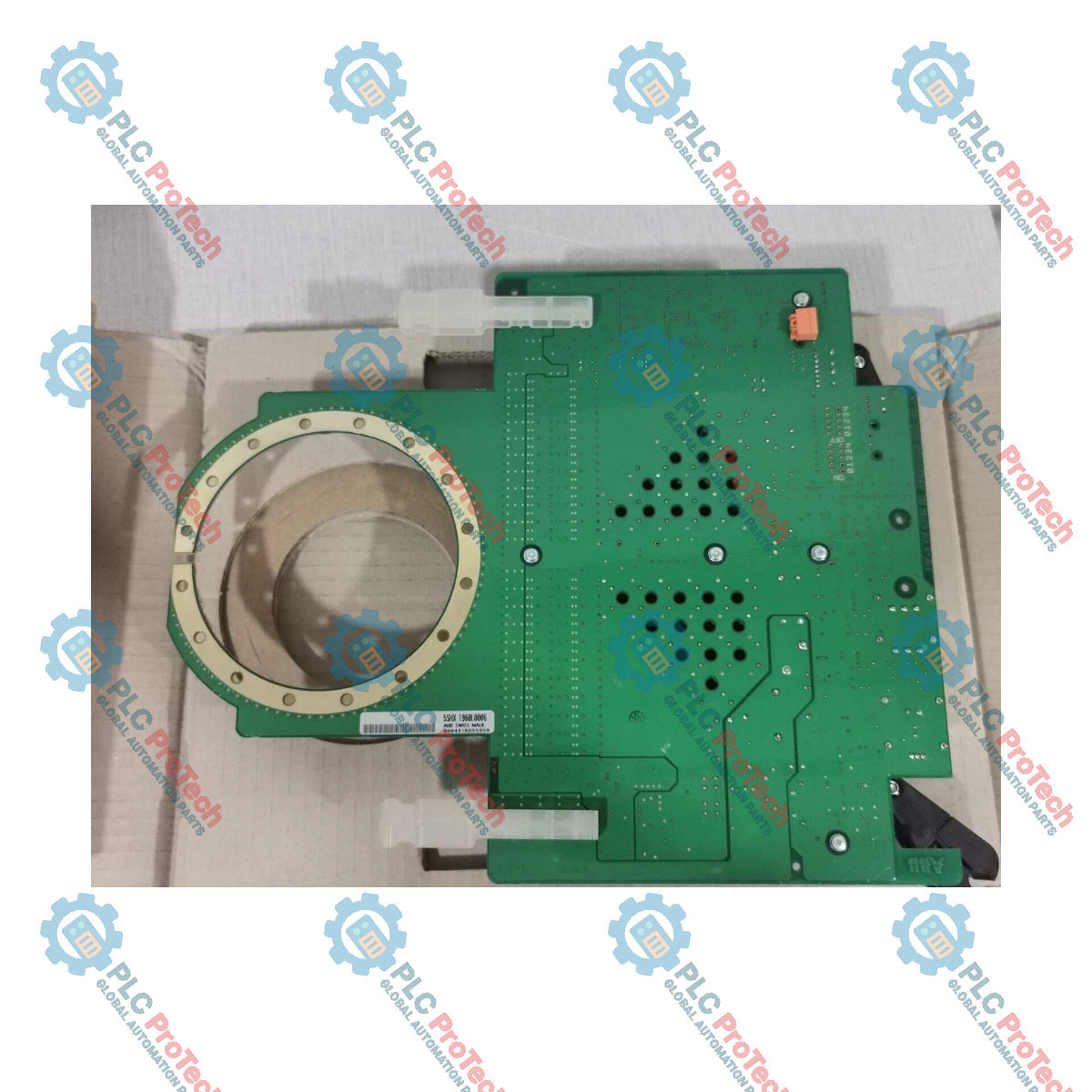

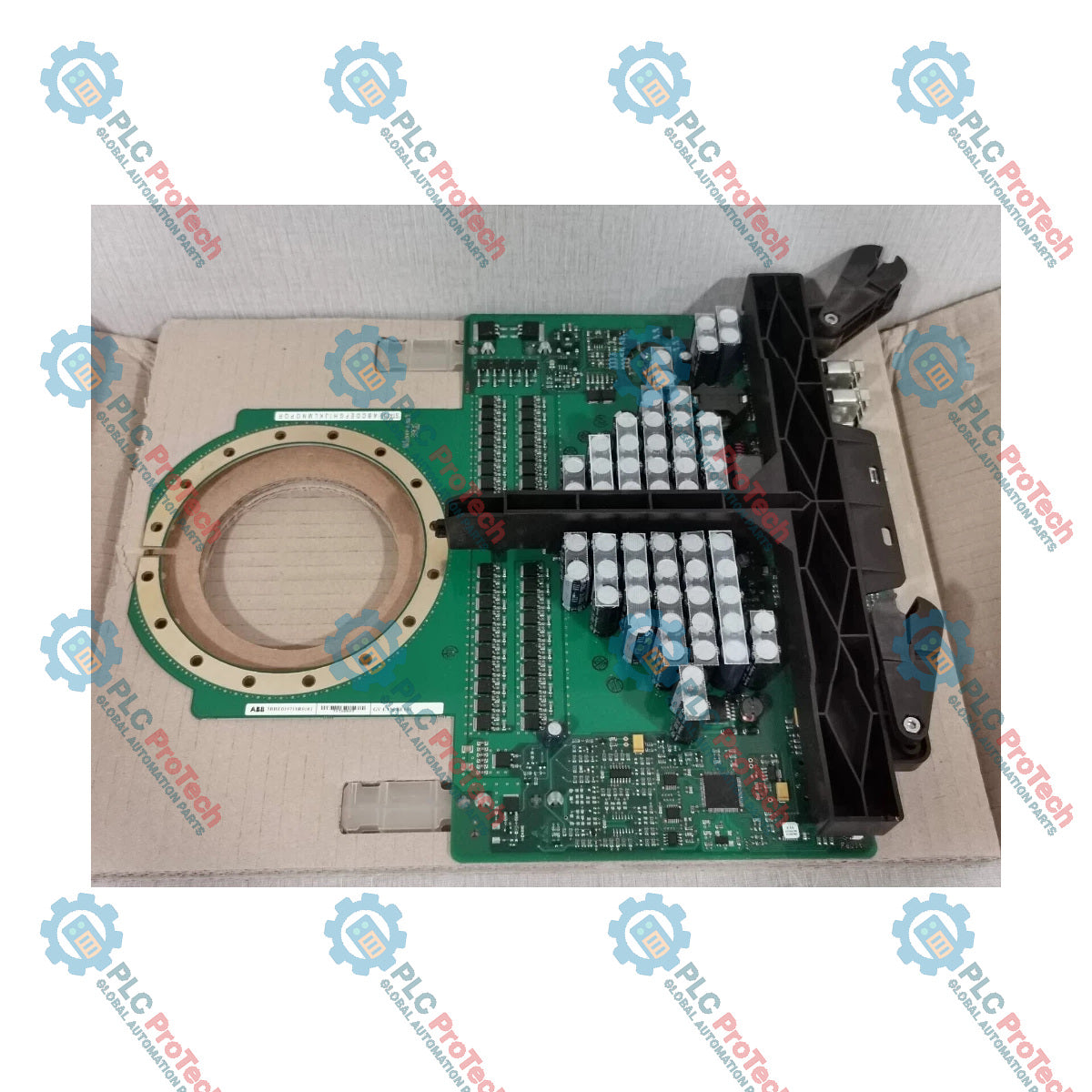

The integrated gate driver assembly circuit board directly mounts around the 91mm press-pack semiconductor wafer, establishing an extremely low-inductance connection required for high-speed gate current commutation. Combining fast switching performance with integrated reverse diode capability, the RC-IGCT assembly provides efficient power conversion, reliable switching control, and fault protection within demanding high-power drive phase legs.

Features

Integrated Reverse-Conducting IGCT (RC-IGCT) silicon wafer and fast recovery reverse diode combination
Dedicated 91mm gate unit board (GV C736 BE101 / 3BHE019719R0101) mounted directly to the semiconductor press-pack housing
Low-inductance gate circuit design engineered for high di/dt switching transitions
Designed for press-pack clamping assembly into liquid-cooled stacks inside medium voltage power converters
Fiber-optic interface points on the gate unit for noise-immune control signal transmission and status feedback

Applications

Main phase-leg power semiconductor switching in ABB ACS 5000 water-cooled medium voltage drives
High-power medium-voltage motor drives and heavy industrial variable frequency converters
Special purpose industrial drives in energy, mining, marine, and process industries

Technical Specifications

Parameter	Specification
Manufacturer	ABB
IGCT Module Product ID	3BHB016120R0002

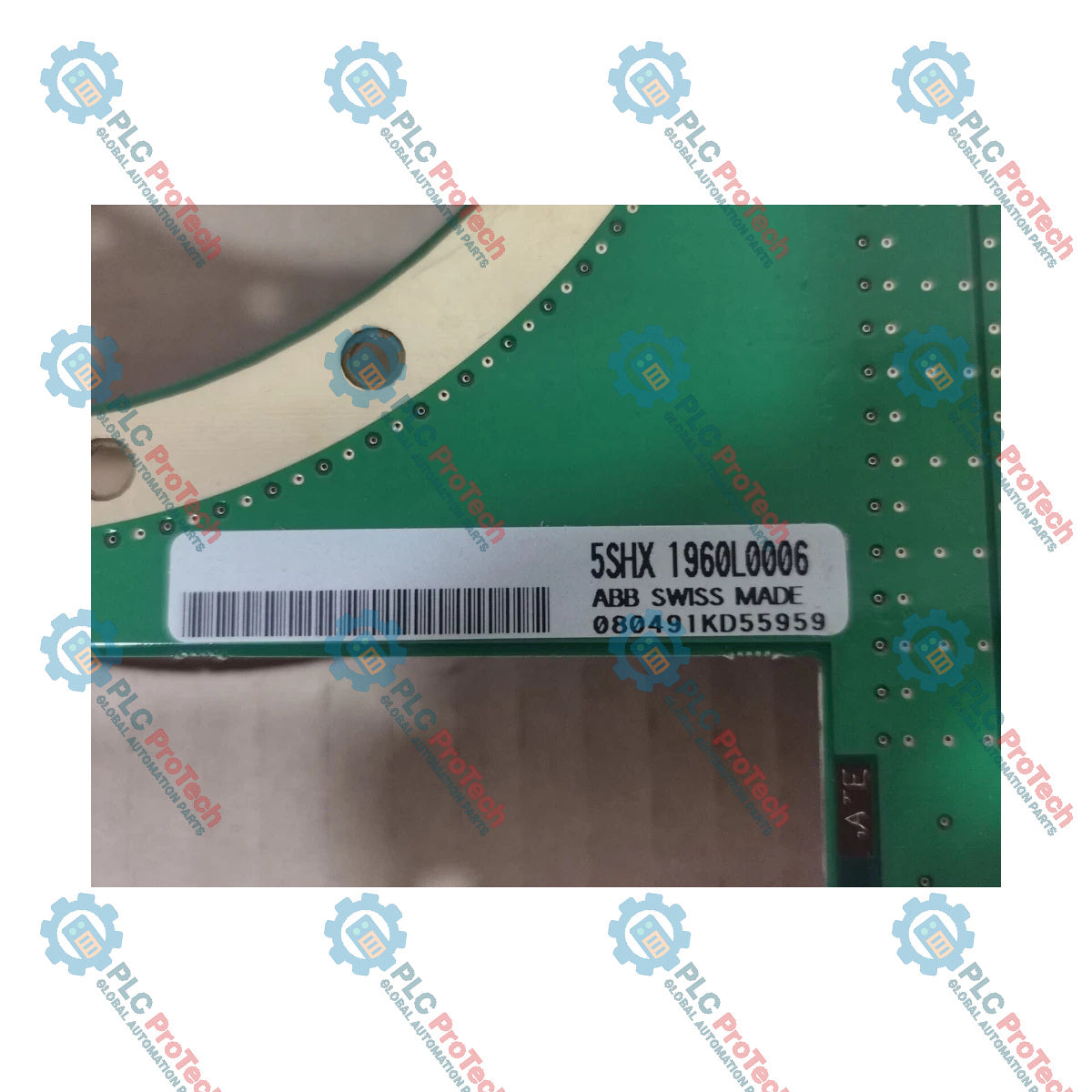

IGCT Type Designation	5SHX 1960L0006
IGCT Device Category	RC-IGCT (Reverse-Conducting IGCT)
Gate Unit Product ID	3BHE019719R0101
Gate Unit Type Designation	GV C736 BE101
Gate Unit Size	91 mm
Compatible Drive System	ACS 5000 Water Cooled
Gate Unit Net Weight	1.36 kg
IGCT Module Net Weight	3.33 kg
Gate Unit Country of Origin	China (CN)
IGCT Module Country of Origin	Switzerland (CH)

Connections / Interfaces

Interface	Function
Fiber-Optic Ports	Noise-isolated optical input/output channels for gate firing signals and module status feedback
Ring Electrode Interface	Direct low-inductance connection between gate unit PCB and IGCT gate-cathode structure
Auxiliary Power Interface	Local auxiliary power supply connections for driving the gate unit circuits

Installation Guidelines

Inspect the contact surfaces of both the press-pack semiconductor and the liquid-cooling heat sinks to ensure they are clean, dry, and free of scratches or debris.
Apply the manufacturer-specified thin layer of thermal compound evenly over the contact faces if required by the drive maintenance procedure.
Align the IGCT module accurately within the press-pack stack alignment pins.
Ensure fiber-optic control cables and auxiliary power wiring to the GV C736 BE101 gate unit are routed cleanly without tight bends or mechanical tension.
Tighten the stack clamping system evenly using a calibrated torque tool according to the specified mounting force for 91mm press-pack modules to ensure uniform contact pressure.

Replacement Recommendations

Power Isolation: Before servicing, lock out all high-voltage power feeds to the ACS 5000 drive and allow full discharge of DC-link capacitor banks.
Fiber-Optic Handling: Carefully unlock and disconnect the delicate fiber-optic links connected to the 3BHE019719R0101 gate unit to prevent damage or contamination.
Clamping Force Verification: When reinstalling or replacing the 5SHX 1960L0006 module, verify correct mechanical clamping force to prevent localized thermal hot spots or improper electrical contact.

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What system uses the ABB 3BHB016120R0002 RC-IGCT module?

The ABB 3BHB016120R0002 5SHX 1960L0006 RC-IGCT module is primarily used as a main switching power semiconductor in ABB ACS 5000 water-cooled medium voltage AC drives.

What gate unit is paired with the ABB 5SHX 1960L0006 IGCT?

The ABB 5SHX 1960L0006 IGCT module is equipped with the 3BHE019719R0101 (GV C736 BE101) 91mm gate unit board, which mounts directly around the semiconductor body.

What does RC-IGCT mean in the context of the ABB 3BHB016120R0002?

RC-IGCT stands for Reverse-Conducting Integrated Gate-Commutated Thyristor, meaning the ABB 3BHB016120R0002 module integrates both the IGCT switching element and a reverse freewheeling diode on a single silicon structure.

Are fiber-optic cables required for the 3BHE019719R0101 gate unit?

Yes, the ABB 3BHE019719R0101 gate unit relies on fiber-optic connections for control trigger signals and feedback to provide electrical isolation between high-voltage power circuits and drive control electronics.
