ABB 3BHB030310R0001 5SHY 4045L0006 PCS6000 IGCT Module

SKU 3BHB030310R0001 5SHY 4045L0006

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: ABB
Product No.: 3BHB030310R0001 5SHY 4045L0006
Origin Switzerland
Product Type: IGCT Module
Barcode: 85413000
Payment: T/T, Western Union
Weight: 3.0 kg
Dimensions: 290 mm x 240 mm x 150 mm (H x W x D)
Shipping port: Xiamen
Warranty: 12 months

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

Quantità

Call sales Contact

Product Description

Description

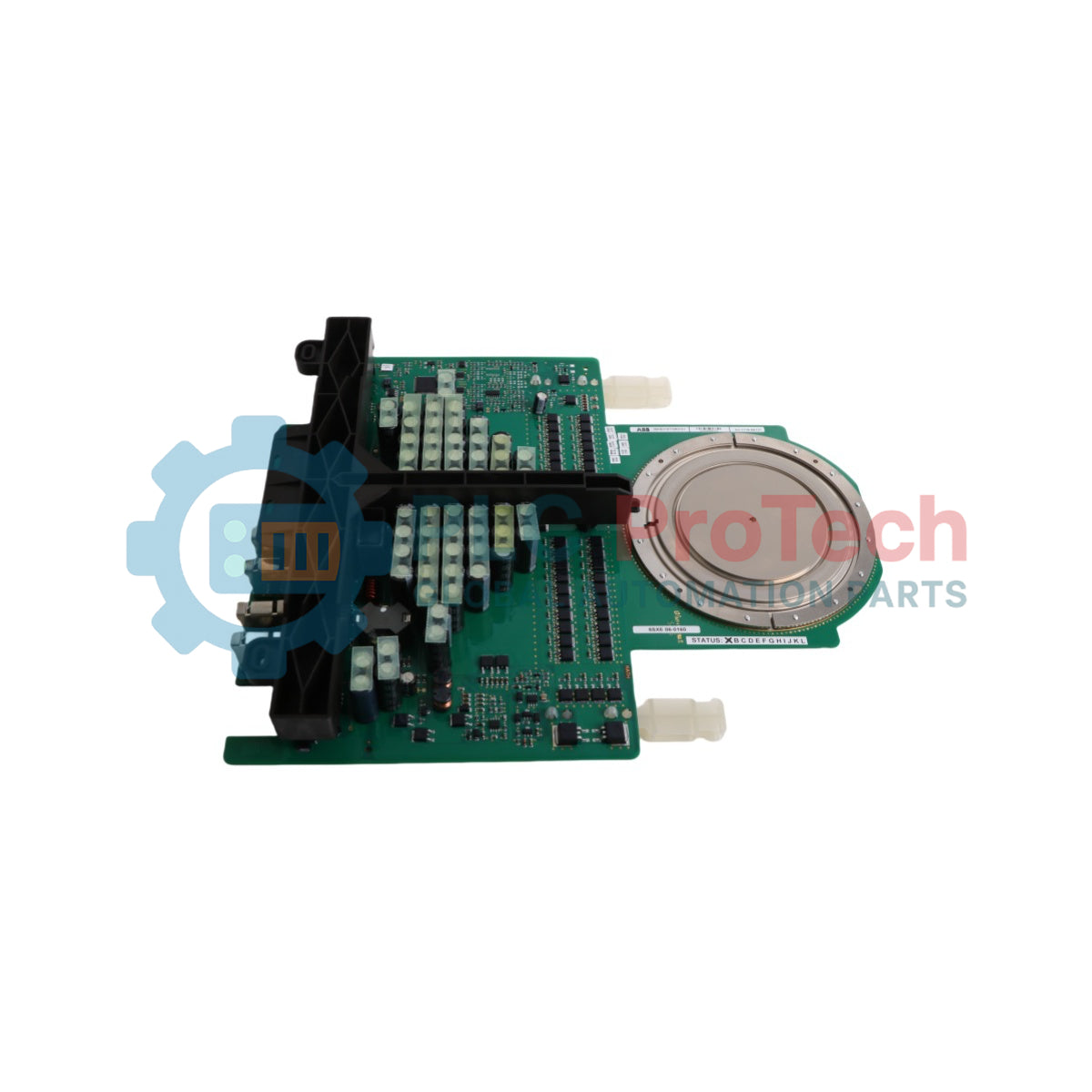

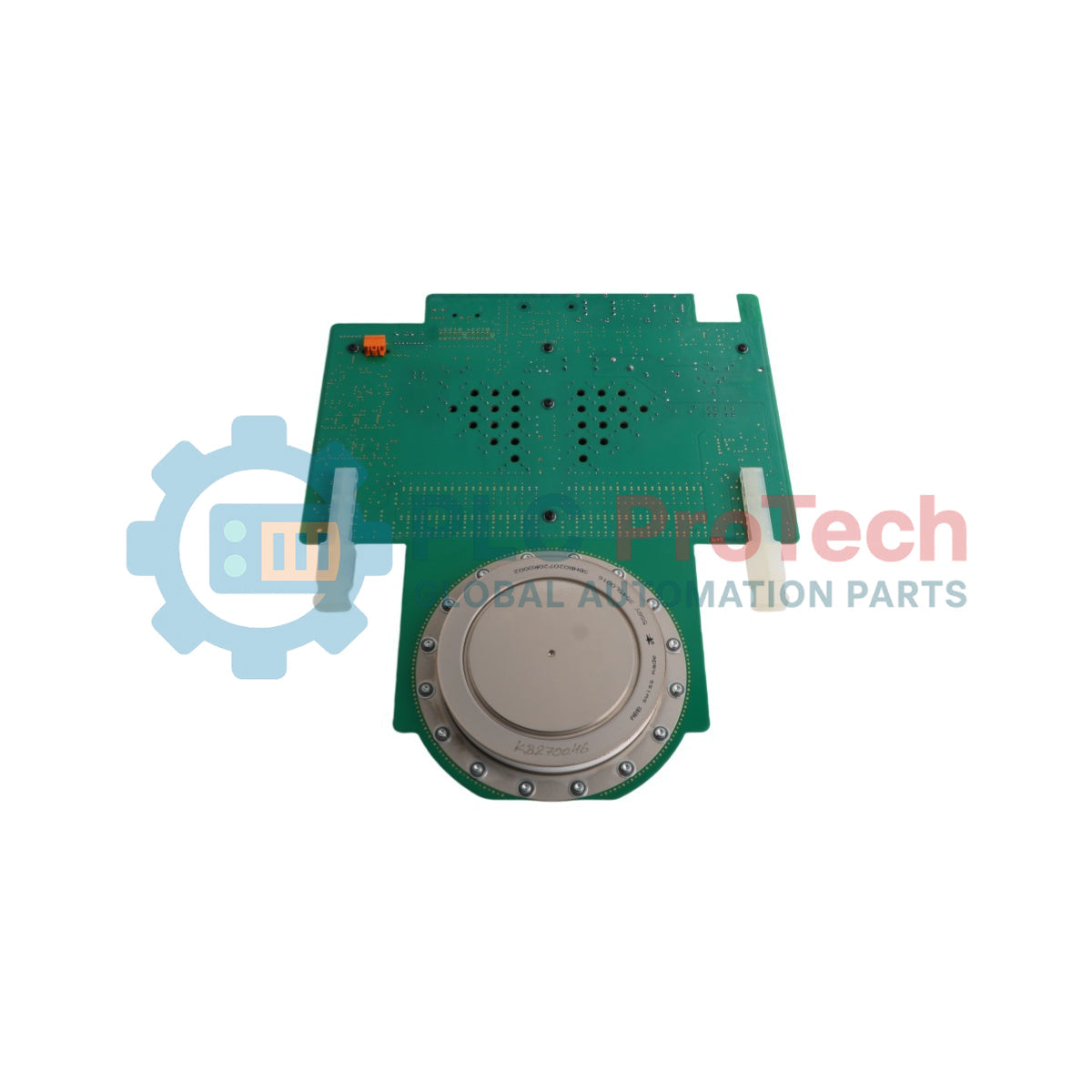

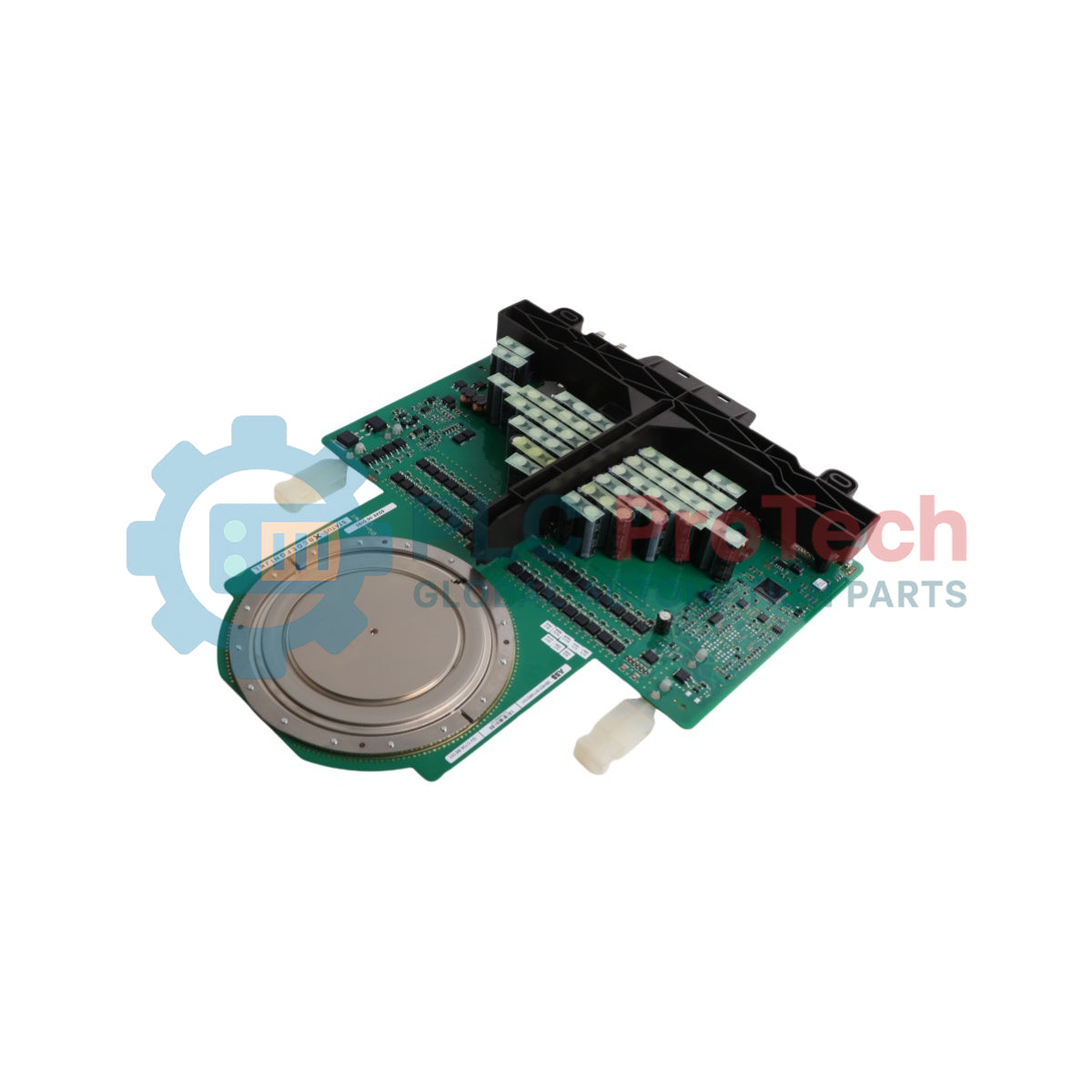

The ABB 3BHB030310R0001 5SHY 4045L0006 is an Integrated Gate-Commutated Thyristor (IGCT) semiconductor module engineered for press-pack stack mounting within ABB PCS6000 medium-voltage drive architectures. It serves as a core switching element in phase power modules (POU) and drive line units (DLU), executing high-efficiency power conversion in demanding heavy-industrial applications. The IGCT Module combines a high-voltage semiconductor switch with an integrated gate driver board, interfaced via fiber-optic connections to ensure complete electrical isolation and high electromagnetic immunity. Utilized within liquid-cooled semiconductor stack assemblies, this device supports stable switching performance in wind power generation, shore-to-ship power conversion, and medium-voltage motor control systems.

Features

Integrated gate driver board connected via fiber-optic cables for interference-free switching control.
Designed for press-pack liquid-cooled heat sink assemblies within PCS6000 power modules.
Directly compatible with FADEC 3 semiconductor inspection tools for gate-cathode and state testing.
Precision-engineered press-pack structure optimized for thermal dissipation under uniform clamping torque.
Essential switching component for medium-voltage system drive converters.

Applications

ABB PCS6000 medium-voltage system drives
Wind turbine power converter systems
Shore-to-ship static frequency converters
Medium-voltage industrial drive systems and power conversion units

Technical Specifications

Parameter	Specification
Manufacturer	ABB
Product ID	3BHB030310R0001
ABB Type Designation	4500V, 91mm, 5SHY 4045L0006
Product Type	IGCT MODULE
Voltage Rating	4500V
Wafer Diameter	91mm
Product Net Weight	3 kg
Country of Origin	United States / Czech Republic
Customs Tariff Number (HS Code)	85413000
UNSPSC	32111700
Export Control Classification	Dual-use item (ECN 3A001g2)
Replaces Product ID (OLD)	3BHB020720R0002, 3BHL000986P3105, 3BHB013085R0001
System Family	PCS6000 System Drives
Component Type	Integrated Gate-Commutated Thyristor (IGCT) Module
Control Signal Interface	Fiber-optic cable interface
Cooling Method	Liquid-cooled press-pack stack assembly
Diagnostic Device Compatibility	FADEC 3 Semiconductor Tester (3BHE043725R0001)
Service Tooling Reference	Converter Service Toolbox (3BHB008753R0002)

Connections/Interfaces

Connector / Interface	Function Description
Fiber Optic Port	Transmits gate control signals between the main controller/PECINT board and the gate unit
Gate-Cathode Connections	Internal driver interface to the semiconductor pole piece
IPS Power Interface	Auxiliary power supply connection for the integrated gate unit

Installation Guidelines

Safety Isolation: Fully de-energize the drive system and follow the standard 7 steps that save lives. Ensure all main power, external control voltages, and auxiliary supplies are isolated and tagged out.
Grounding & ESD Precautions: Connect the grounding kit (3BHE039277R0001) to phase and PE connections prior to touching internal components. Wear appropriate ESD protection when handling gate unit circuit boards.
Cooling System Preparation: Depressurize and drain the liquid cooling circuit before releasing semiconductor stack pressure to prevent coolant spills inside the cabinet.
Stack Release: Install stabilizer plates into the power module framework. Loosen clamping bolts in the specified order and apply the mechanical spreading tool (3BHE041414R0001) over the heat sinks to open the stack gap.
Module Handling: Disconnect fiber-optic cables and auxiliary wiring. Unbolt gate unit fixations and carefully extract the IGCT module without applying mechanical force to the gate board or pole surfaces.
Clamping & Alignment: Ensure heat sinks and pole pieces are properly centered during reassembly. Relieve the spreading tool and tighten clamping bolts using calibrated pressure loading gauges to achieve accurate contact force.

Compliance and Certifications

ANSI Z535.6
ISO 7010 / ISO 3864-2
EN 50110 (Electrical Work Safety)

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

How can the condition of the IGCT module be checked during maintenance?

The module can be inspected using the FADEC 3 test device or a standard multimeter to verify gate-cathode status and semiconductor health prior to re-energizing the drive.

What specialized tools are required to replace this module in a power stack?

Replacing the module requires the converter service toolbox, which includes a mechanical spreading tool, stabilizer plates, and pressure loading gauges to ensure accurate stack clamping.

What prep work is needed on the cooling circuit before stack disassembly?

The liquid cooling circuit must be depressurized and drained according to service instructions to prevent liquid leakage onto electrical components when heat sinks are spread.

How are gate signals delivered to the integrated driver board?

Gate signals are routed via fiber-optic cables to provide complete high-voltage isolation and high immunity against electromagnetic interference.
