ABB 3BHL000392R0101 5SHX1060H0001/3BHB003230R0101 5SXE05-0152

1 / 3

ABB 3BHL000392R0101 5SHX1060H0001 3BHB003230R0101 5SXE05-0152 IGCT MODULE

SKU 3BHL000392R0101

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: ABB
Product No.: 3BHL000392R0101
Origin Switzerland
Product Type: IGCT MODULE
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 1.25 kg
Dimensions: 199 mm x 238 mm x 58 mm (H x W x D)
Shipping port: Xiamen
Warranty: 12 months

Product Description

Description

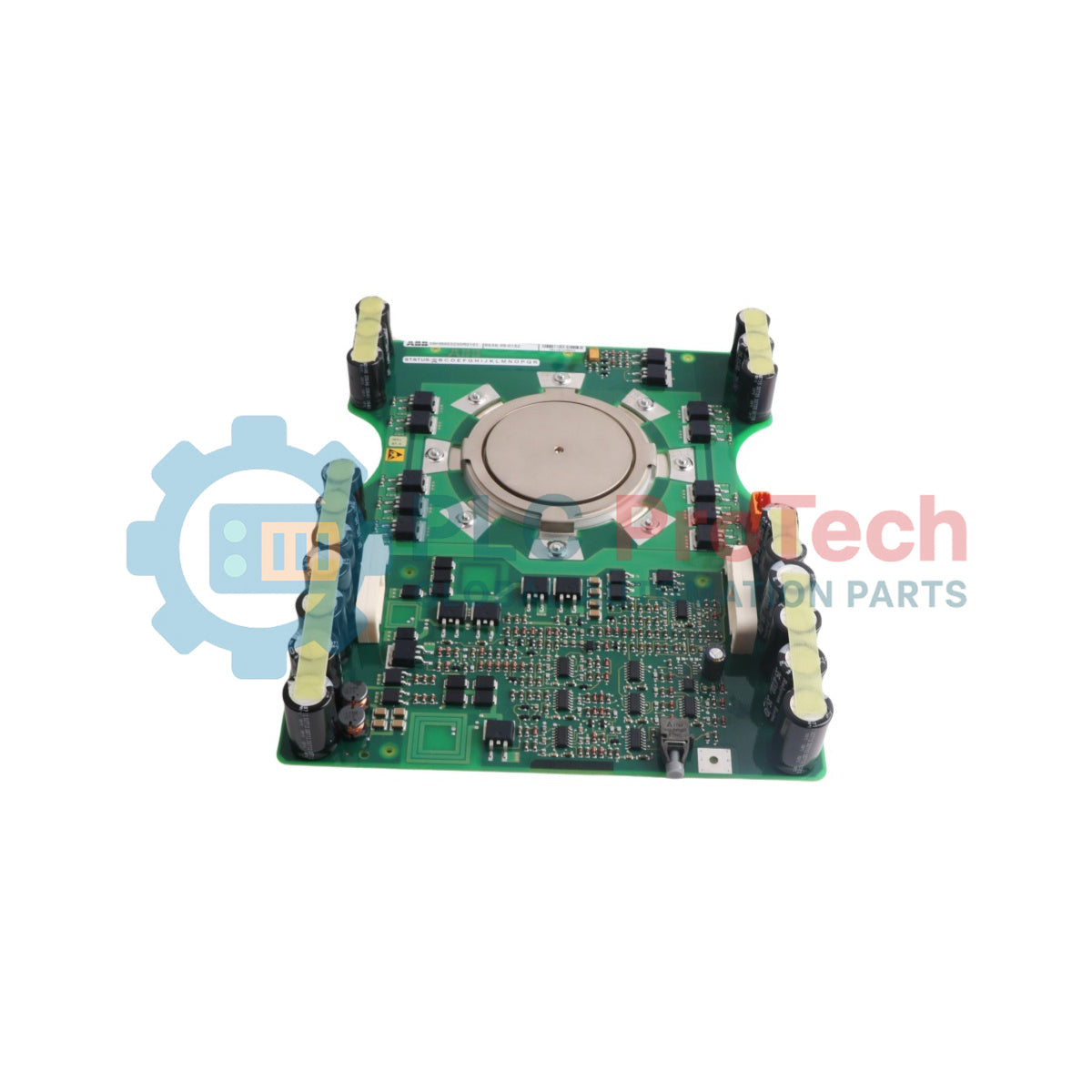

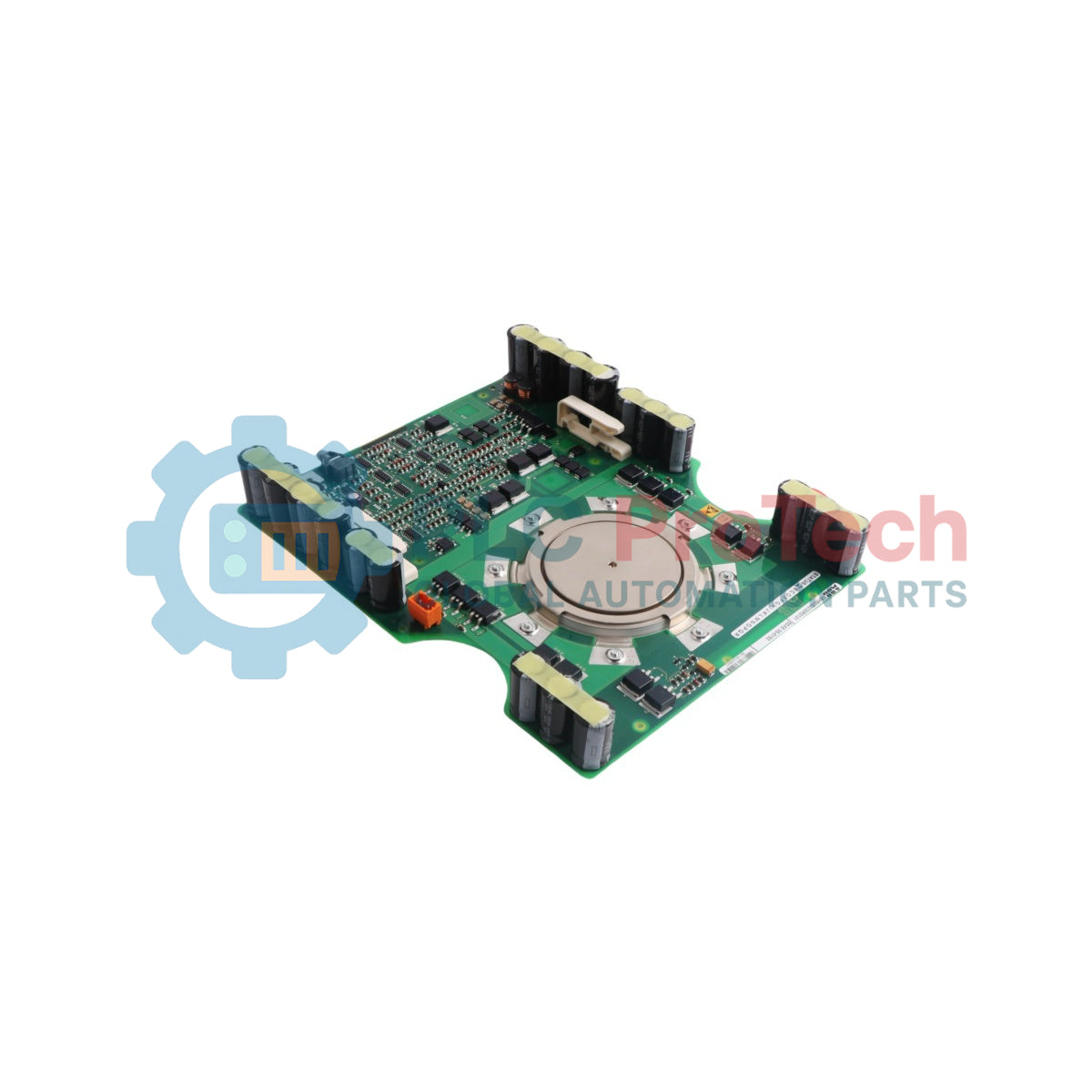

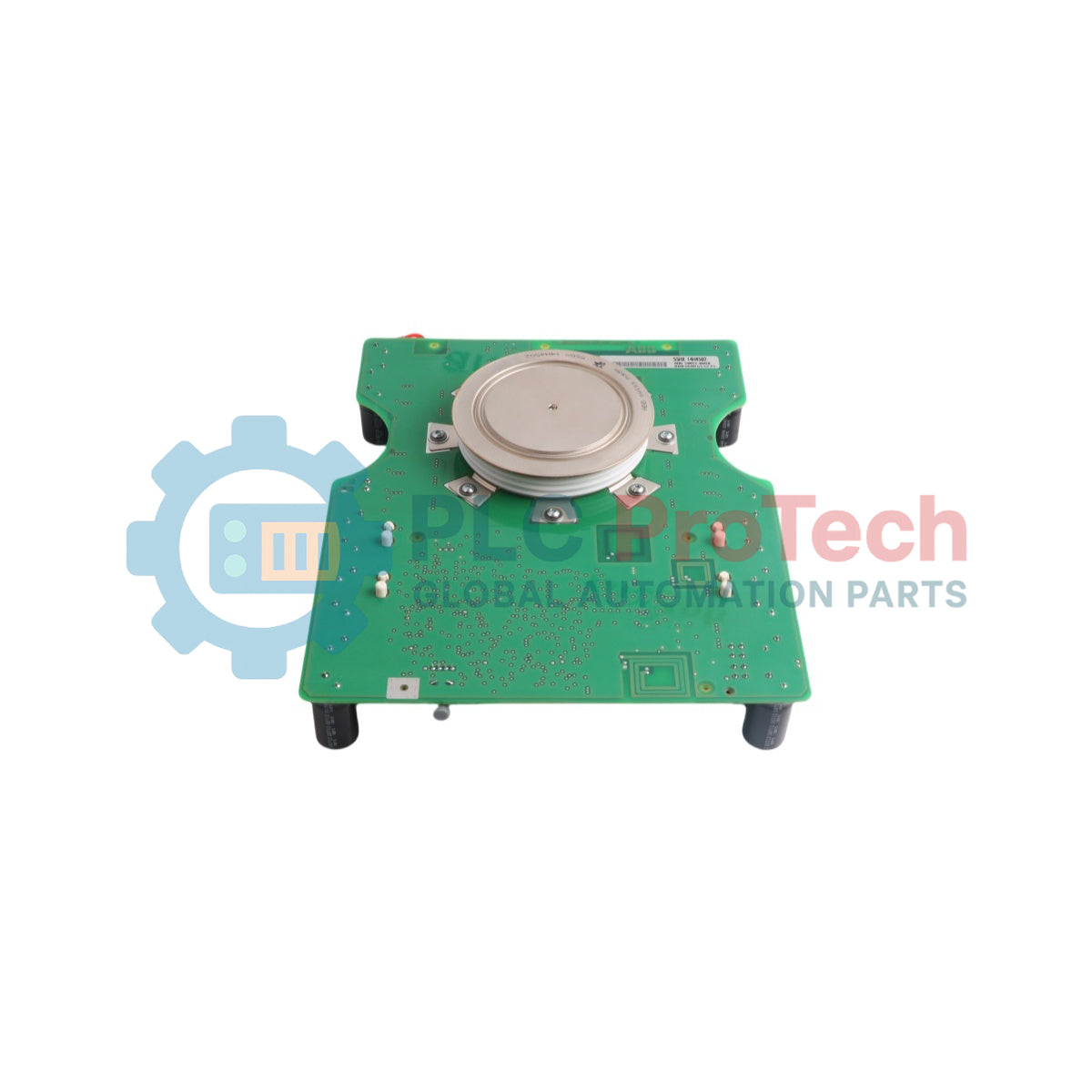

The ABB 3BHL000392R0101 5SHX1060H0001 / 3BHB003230R0101 5SXE05-0152 is an integrated high-power power semiconductor assembly configured as a unified IGCT MODULE. Designed for high-stress industrial power electronic systems, this module combines an asymmetric reverse-conducting thyristor chip (5SHX1060H0001) directly with a dedicated gate driver unit (3BHB003230R0101, type 5SXE05-0152). The device integrates fast semiconductor switching topologies to provide fast turn-off execution combined with low forward conduction losses. It operates as the core switching cell inside medium-voltage variable frequency drives, controlling power conversion pathways across large-scale industrial grids.

Features

Combined design merging an asymmetric reverse-conducting thyristor with an integrated gate drive board.
Low forward voltage conduction profile tailored for minimal thermal loading inside drive stacks.
Specialized interface circuitry engineered for switching synchronization in high dv/dt environments.

Applications

Integrated phase-leg switching blocks within medium-voltage AC motor drive cabinets.
Dynamic static var compensators and power quality grid synchronization infrastructure.
Main inverter switching stages for heavy-duty industrial processing installations.

Technical Specifications

Property	Characteristics
Manufacturer	ABB
Product Model	3BHL000392R0101 5SHX1060H0001 / 3BHB003230R0101 5SXE05-0152
Product Type	IGCT Module
Country of Origin	SWEDEN
Voltage Rating	2,000 V DC
Gate Current	60 A
Supply Voltage	+15 V DC
Turn-off Time	<= 8 us
Isolation	6 kV AC (gate-to-main circuit)
Capacitance	5 uF (+/-10%)
Thermal Resistance	0.008 K/W
Operational Junction Temperature	-40 to +125 degC
Tariff Code	8537101190
Product Net Weight	1.25 kg

Installation Guidelines

Ensure that the entire converter assembly is fully isolated from external supply grids and all local capacitance cells are fully discharged before beginning deployment.
Wear a certified grounding wrist strap within verified electrostatic safe parameters during handling to protect sensitive internal drive gates.
Mount the assembly utilizing calibrated mounting pressure plates to distribute mechanical torque uniformly across the contact faces.
Verify all control fiber connections or multi-pin terminal configurations are clear of dust and firmly aligned to prevent signal disruption.

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What is the certified isolation rating between the gate unit and main circuit?

The electrical isolation between the gate driver circuit and the main circuit is rated at 6 kV AC.

What primary operational voltage rating is specified for this module?

The module features a defined technical parameters voltage rating of 2,000 V DC.

What are the precise gate power supply specifications required by the board?

The integrated gate driver requires a nominal supply voltage of +15 V DC and delivers a 60 A gate current.
