Description

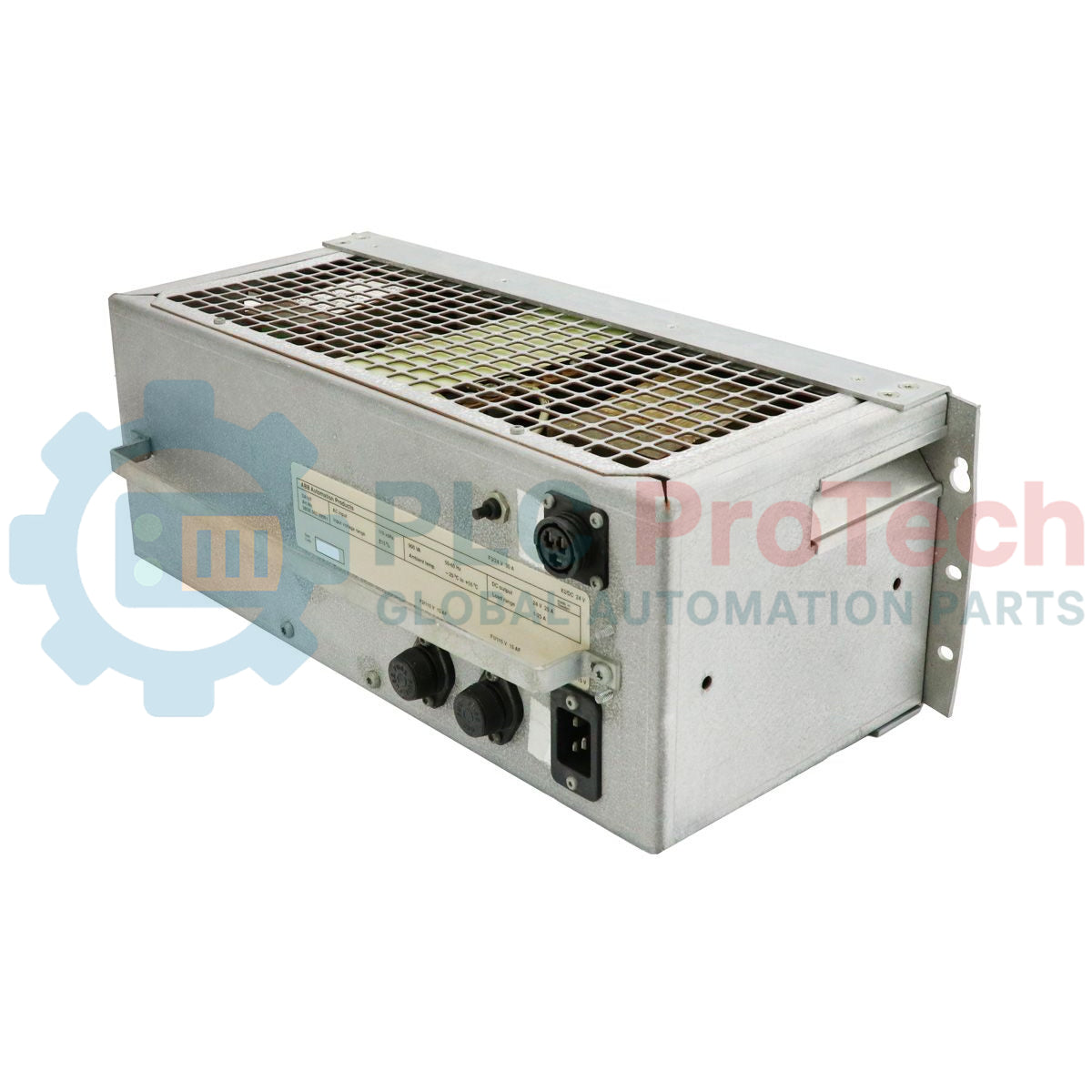

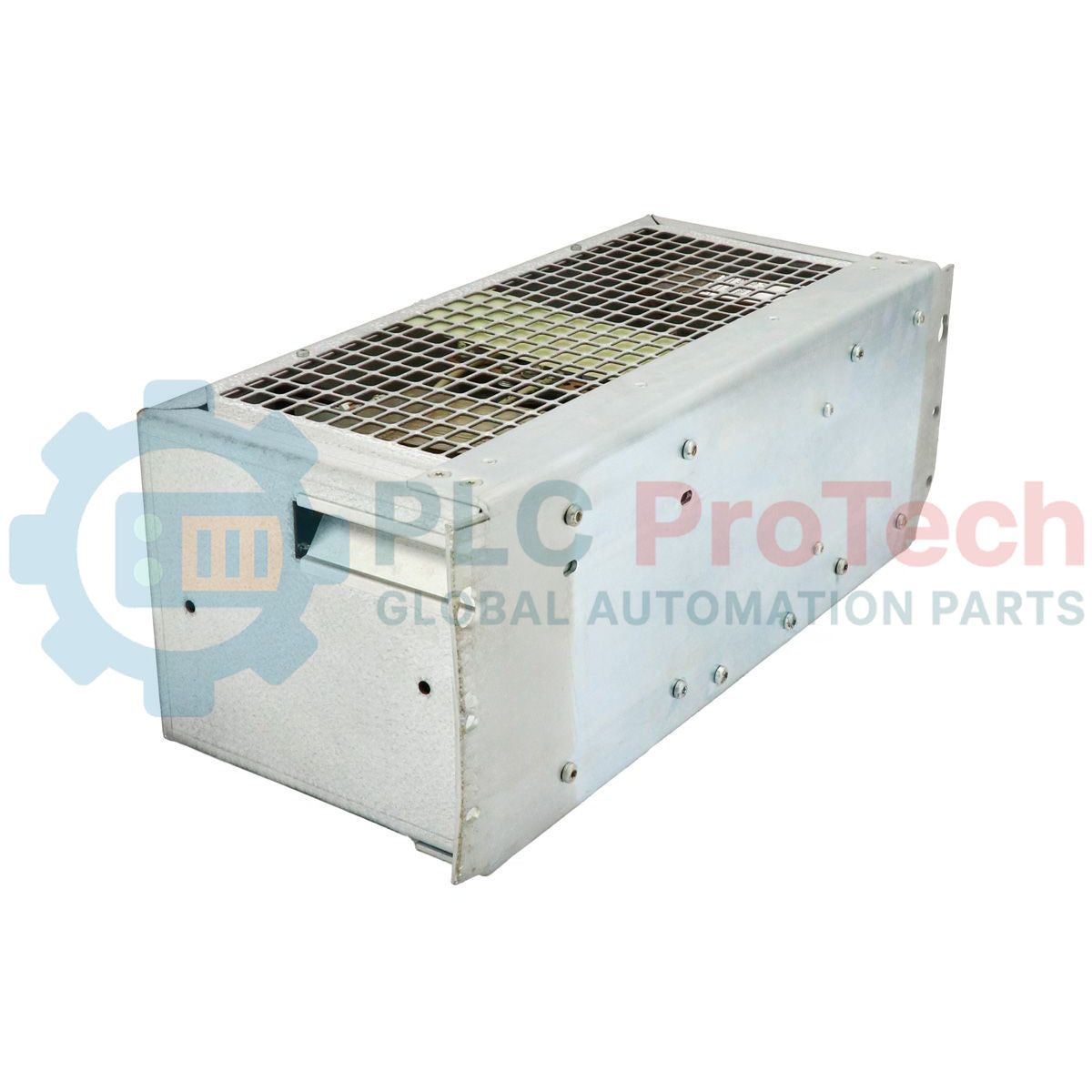

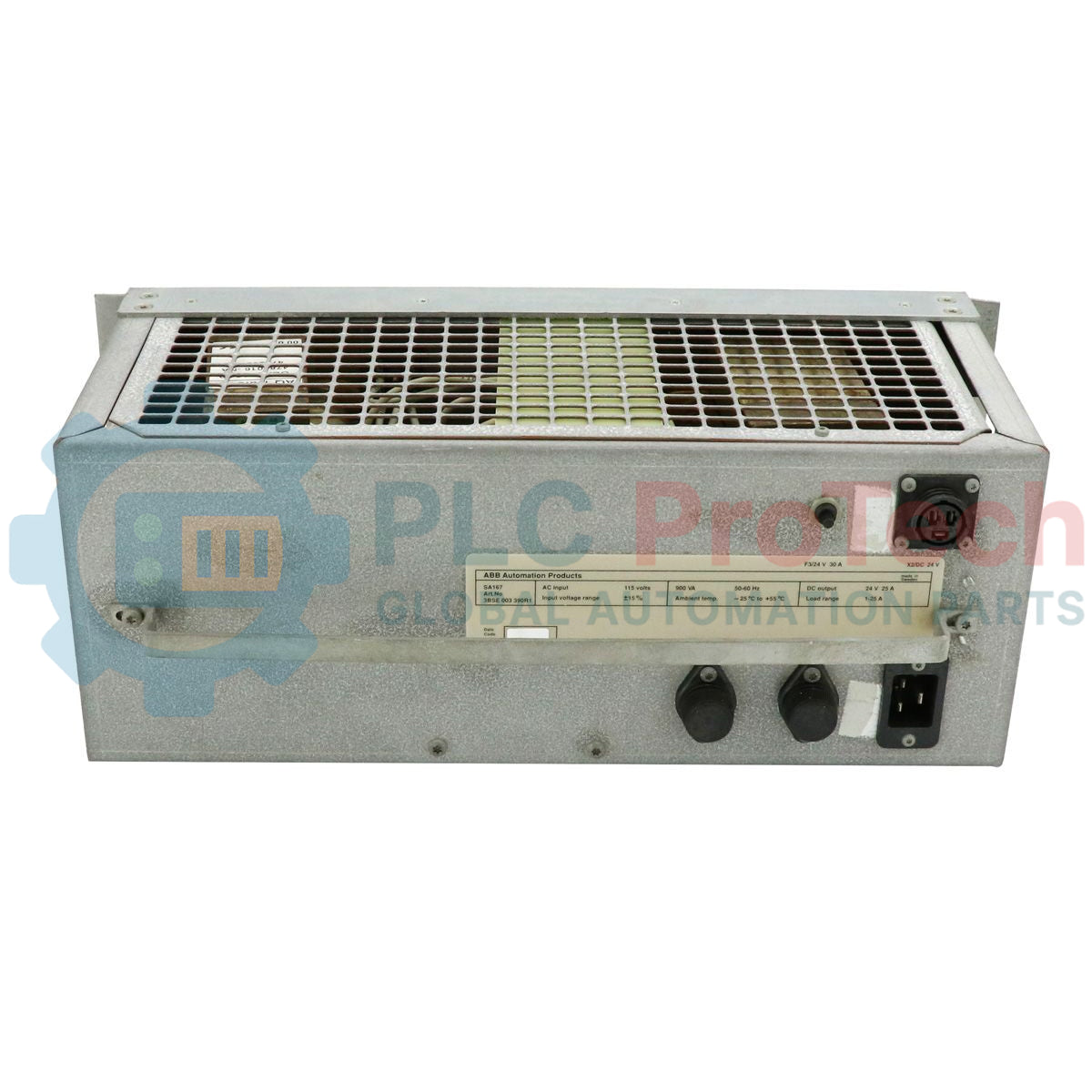

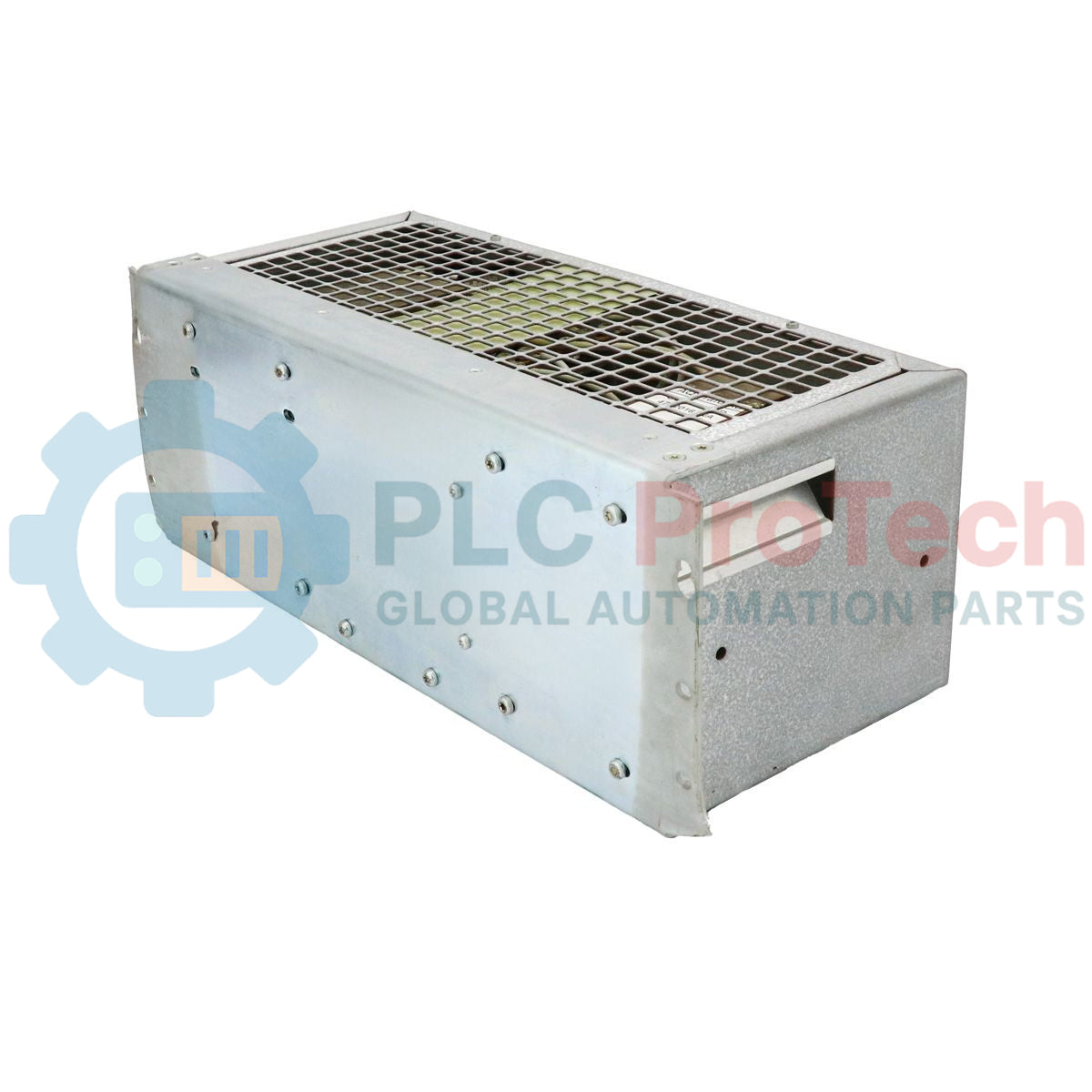

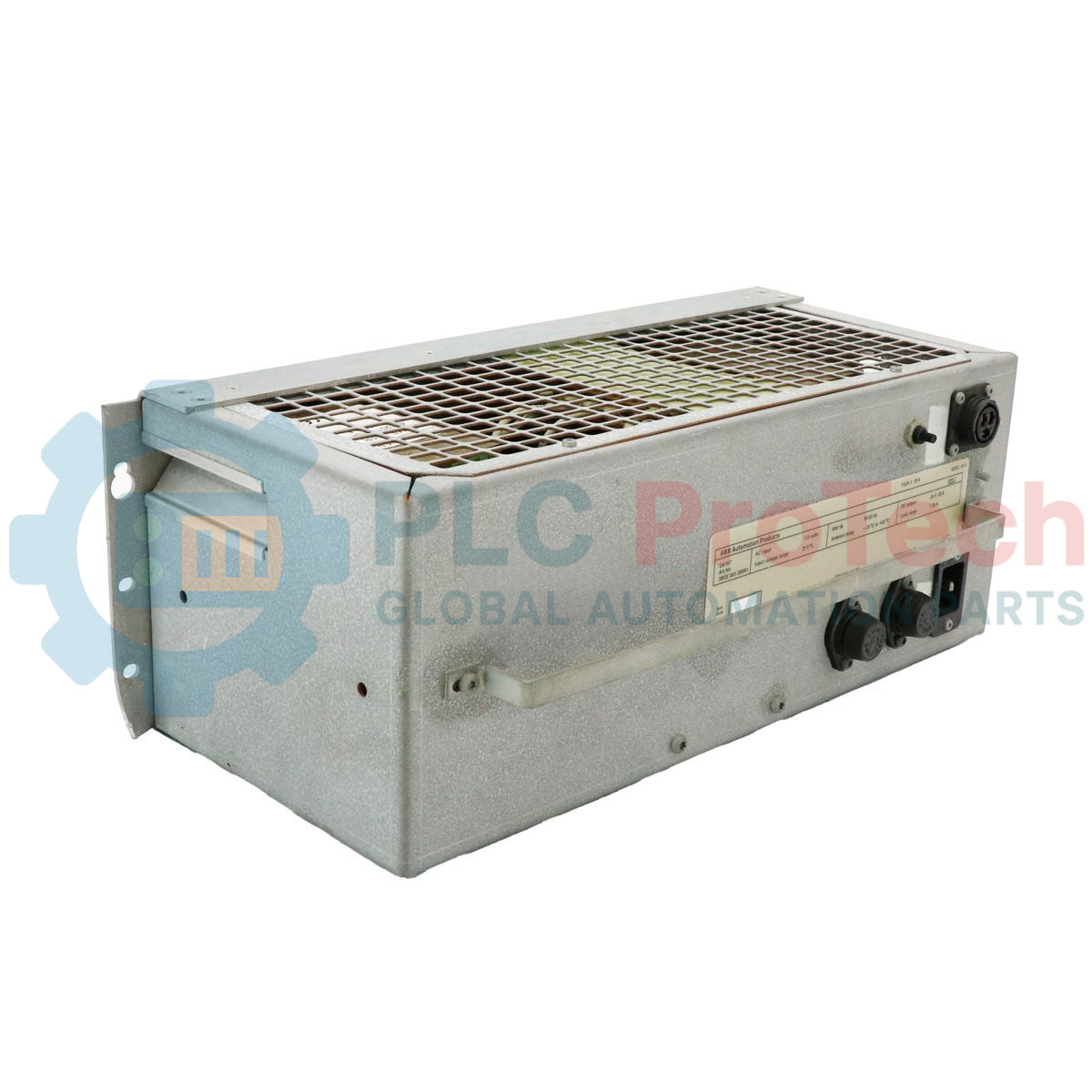

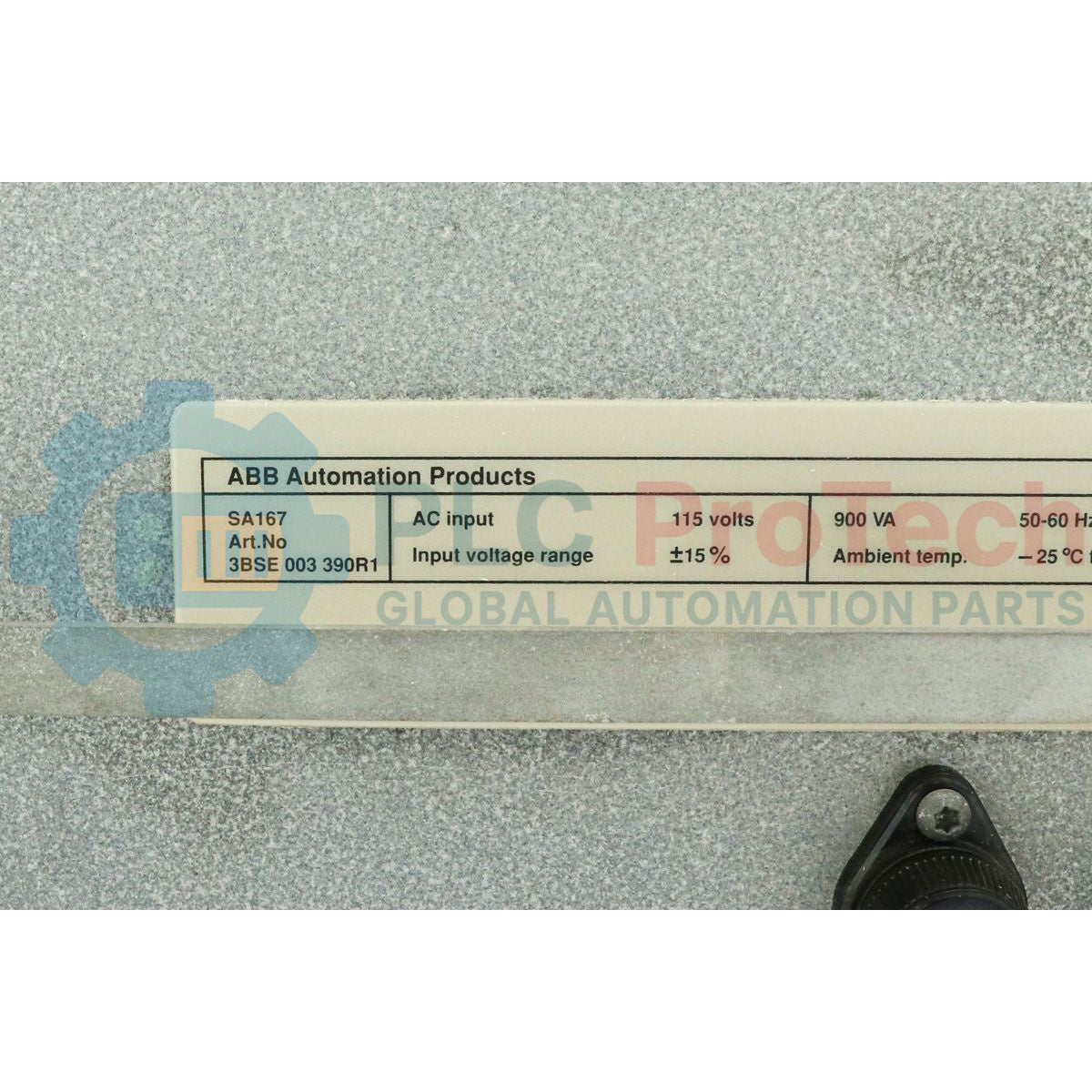

The 3BSE003390R1 SA167 is a heavy-duty power supply unit designed for the Advant OCS process control system. It functions primarily as a reliable energy source converting 115 VAC input into a stabilized 24 VDC output with a 25 A current capacity to energize core infrastructure components. Built for system compatibility, this power supply integrates directly into Advant Controller 410, Advant Controller 450, Advant Controller 450RMC, and AC460 processing hardware environments. The unit provides highly stable electrical output to field components and subracks, operating either as a standalone supply module or embedded within multiple redundant power configurations. It ensures non-disruptive logic execution and safe instrumentation operations across demanding industrial process sectors.

Features

• Delivers high-capacity electrical output rated at 24 VDC and 25 A from a standard 115 VAC input.
• Provides dedicated system protection via an integrated 15 A spare fuse (part number 5672827-15).
• Supports high-availability configurations, including basic, expansion, and fully redundant power kit schemes.
• Seamlessly integrates with the Advant Master and MOD 300 software control structures.
• Designed as a full-width chassis component with zero onboard battery dependencies to streamline long-term lifecycle maintenance.

Applications

• Distributed Control Systems (DCS) power infrastructures inside continuous process plants.
• Central processing unit and I/O subrack power provision for Advant Controller 450 systems.
• Redundant power plant control architectures utilizing Advant Master automation platforms.
• Heavy manufacturing control cabinet power conditioning and distribution networks.

Ordering Information

Technical Specifications

Installation Guidelines

• Chassis Mounting: Ensure the enclosure or rack structure has sufficient strength and depth to support the 26.6 kg net weight of the assembly. Secure the unit via its main front mounting points.
• Ventilation and Cooling: Maintain adequate clear space around the power supply unit to prevent thermal buildup and allow proper convection or airflow within the control cabinet.
• Fuse Inspection: Verify that the correct 15 A spare fuse (5672827-15) is installed and available before putting the power distribution network into service.
• Redundancy Setup: When configuring redundant layouts (such as SA167K03 or SA167K07 configurations), double-check all busbar linkages and output balance alignments according to the specific controller manual.

Compliance and Certifications

• RoHS Directive: This part is exempted from the scope of 2011/65/EU (RoHS) as provided in Article 2(4)(c), (e), (f) and (j) therein (ref.: 3BSE088609-EU Declaration of Conformity - ABB Advant Master Process Control System).
• WEEE Category: Classified under Category 5: Small Equipment (No External Dimension More Than 50 cm).
