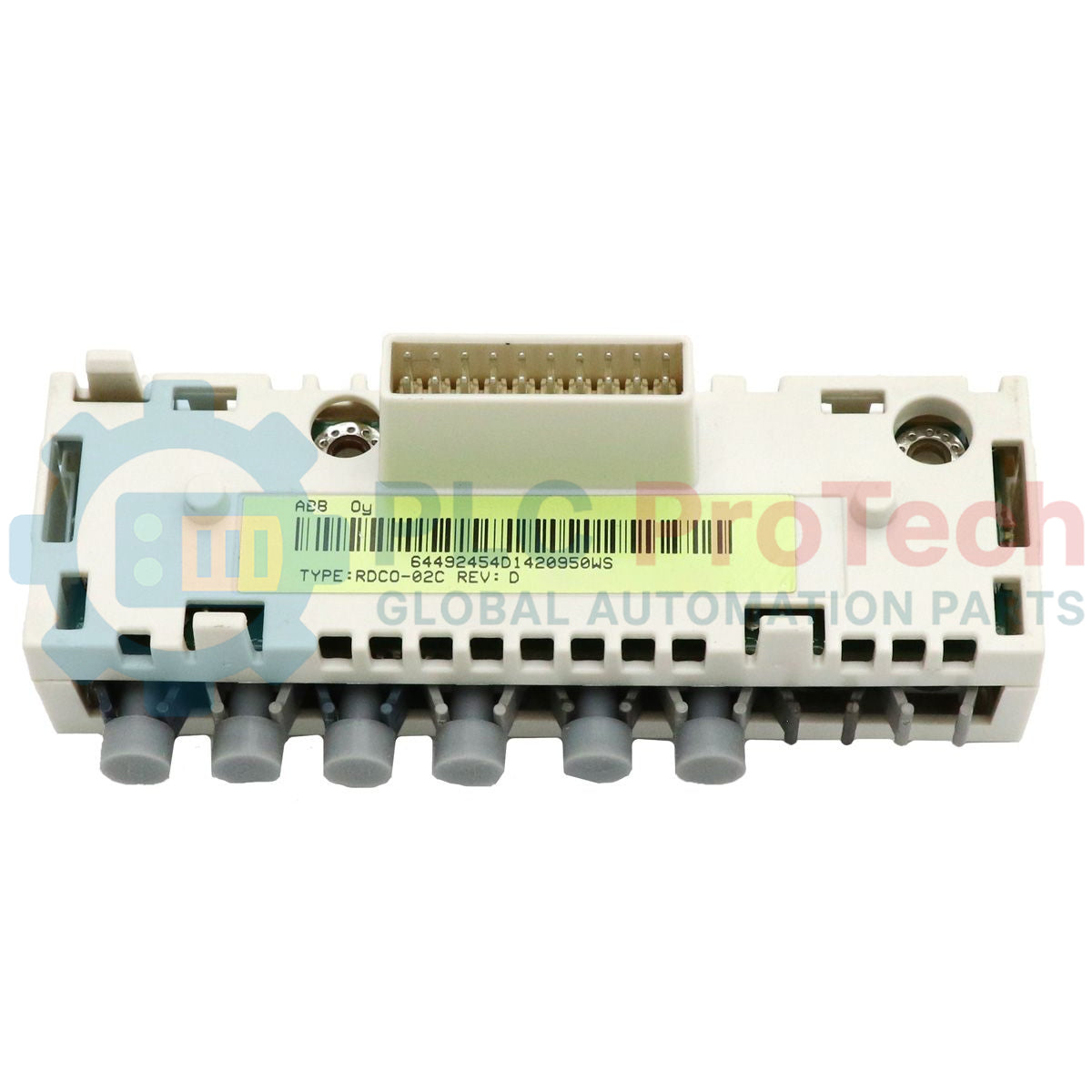

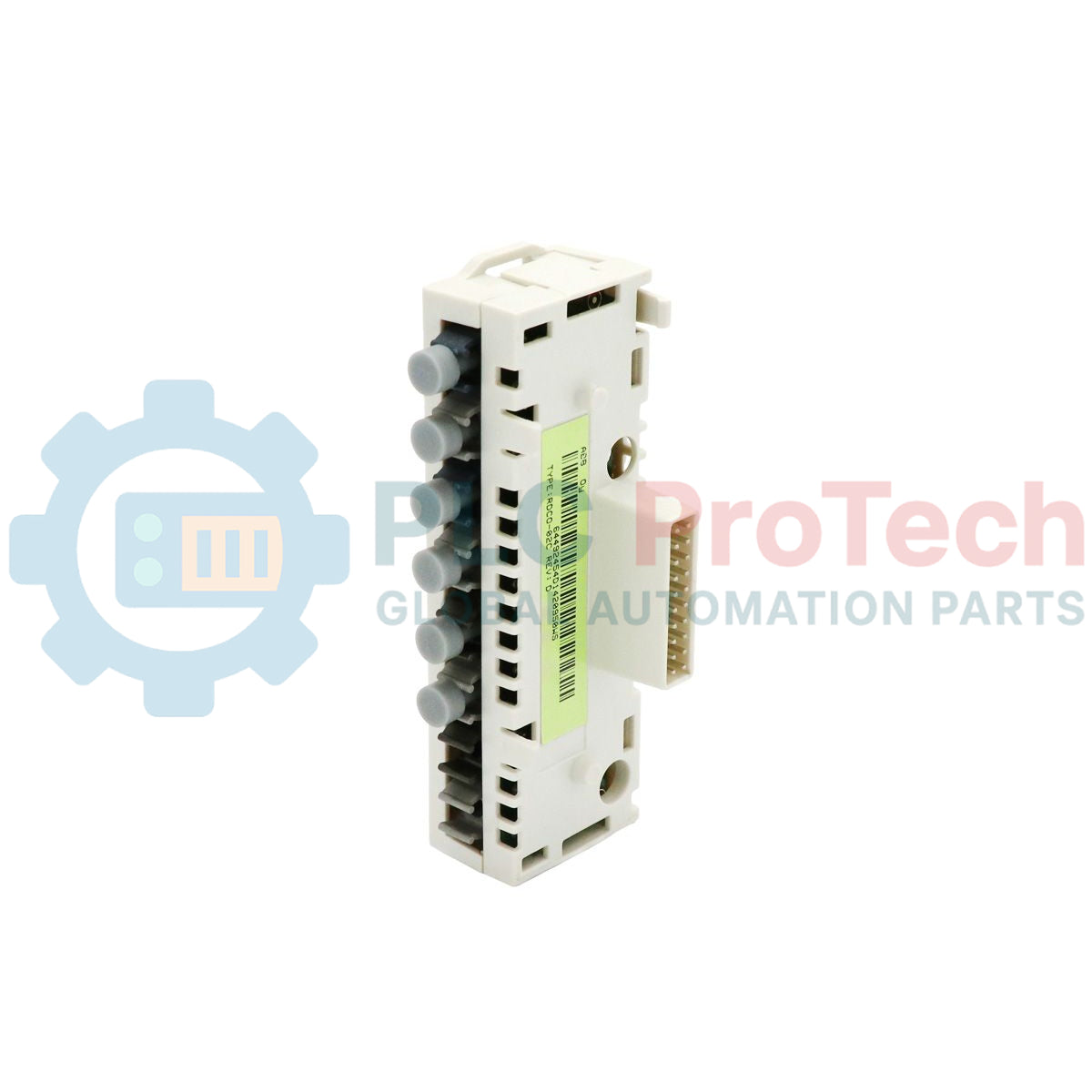

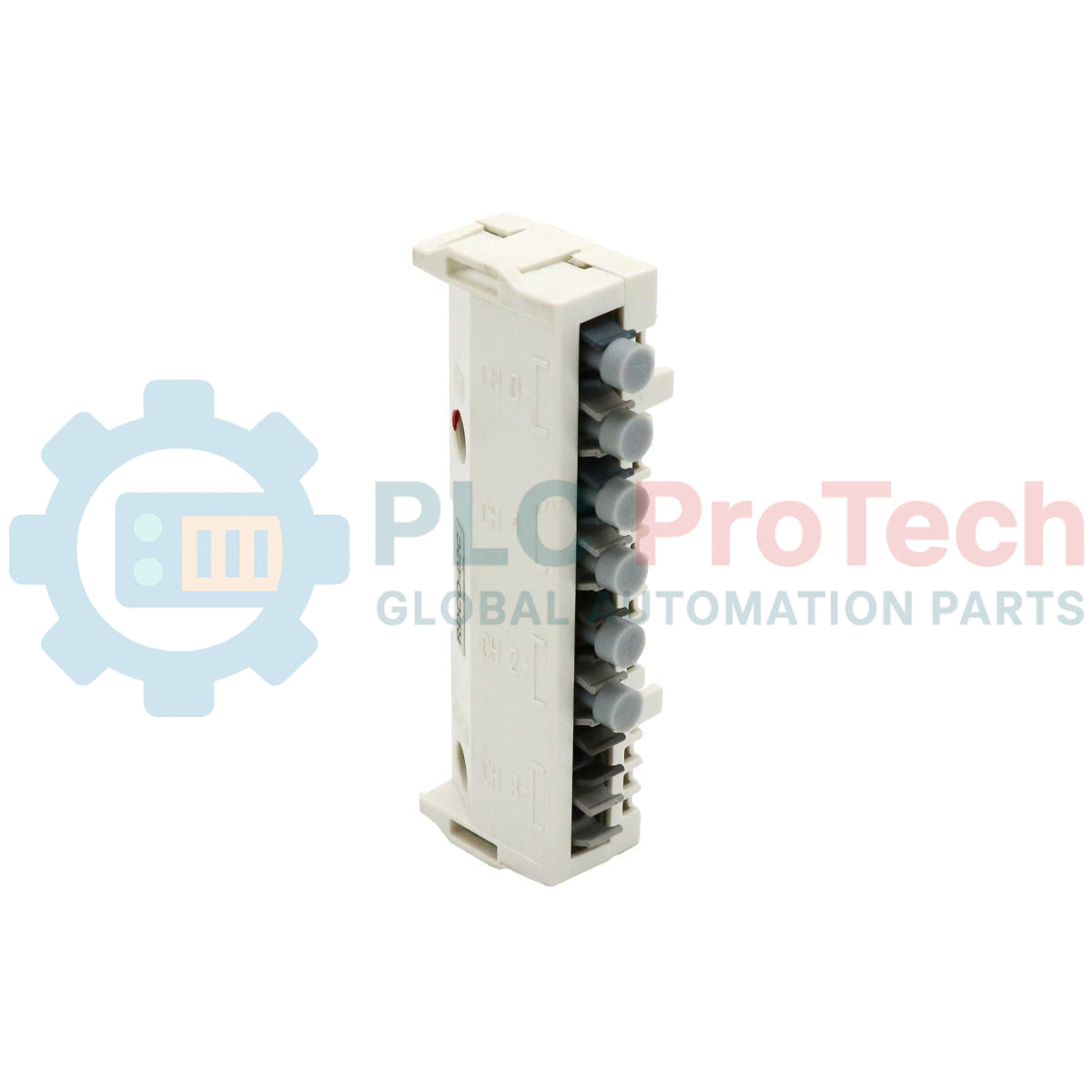

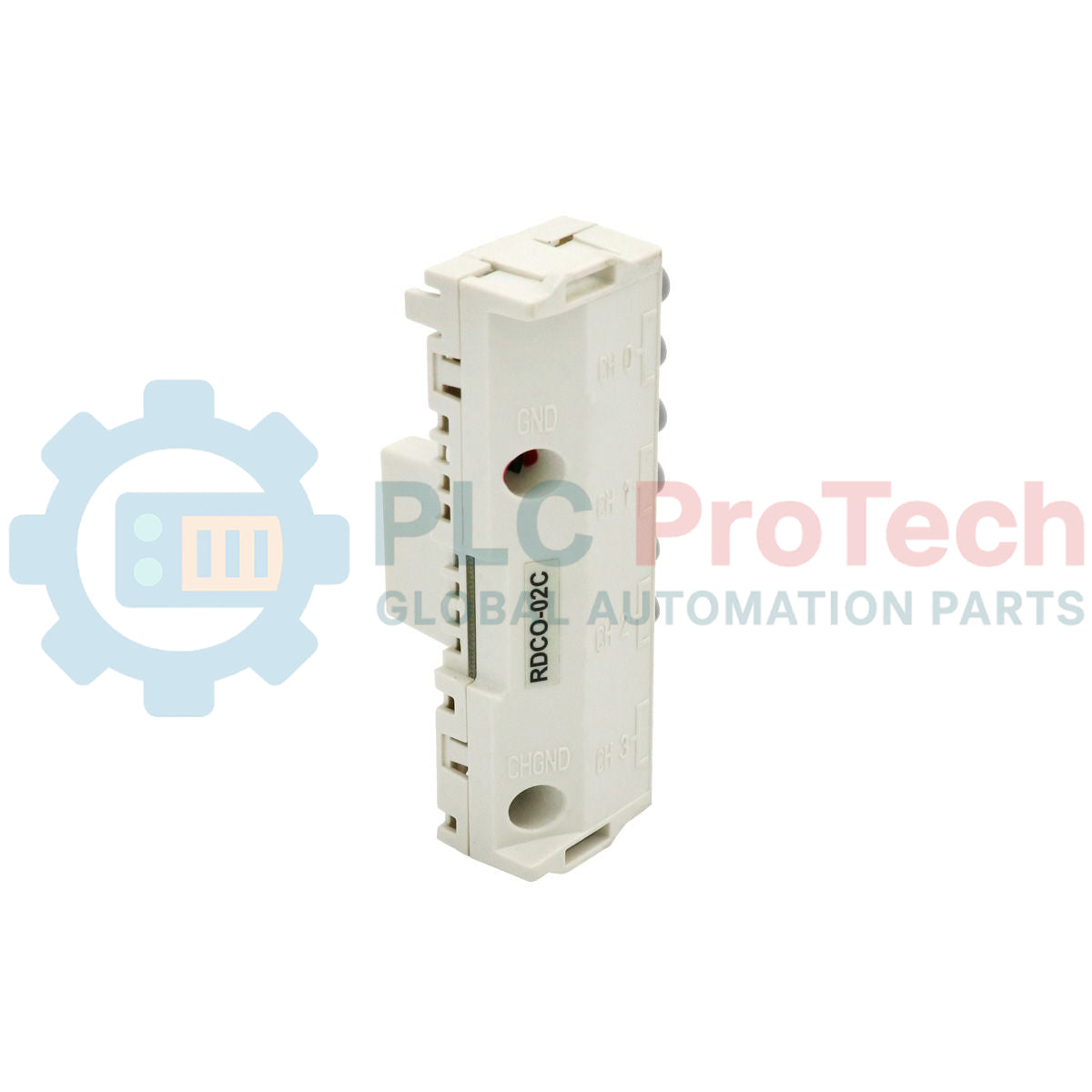

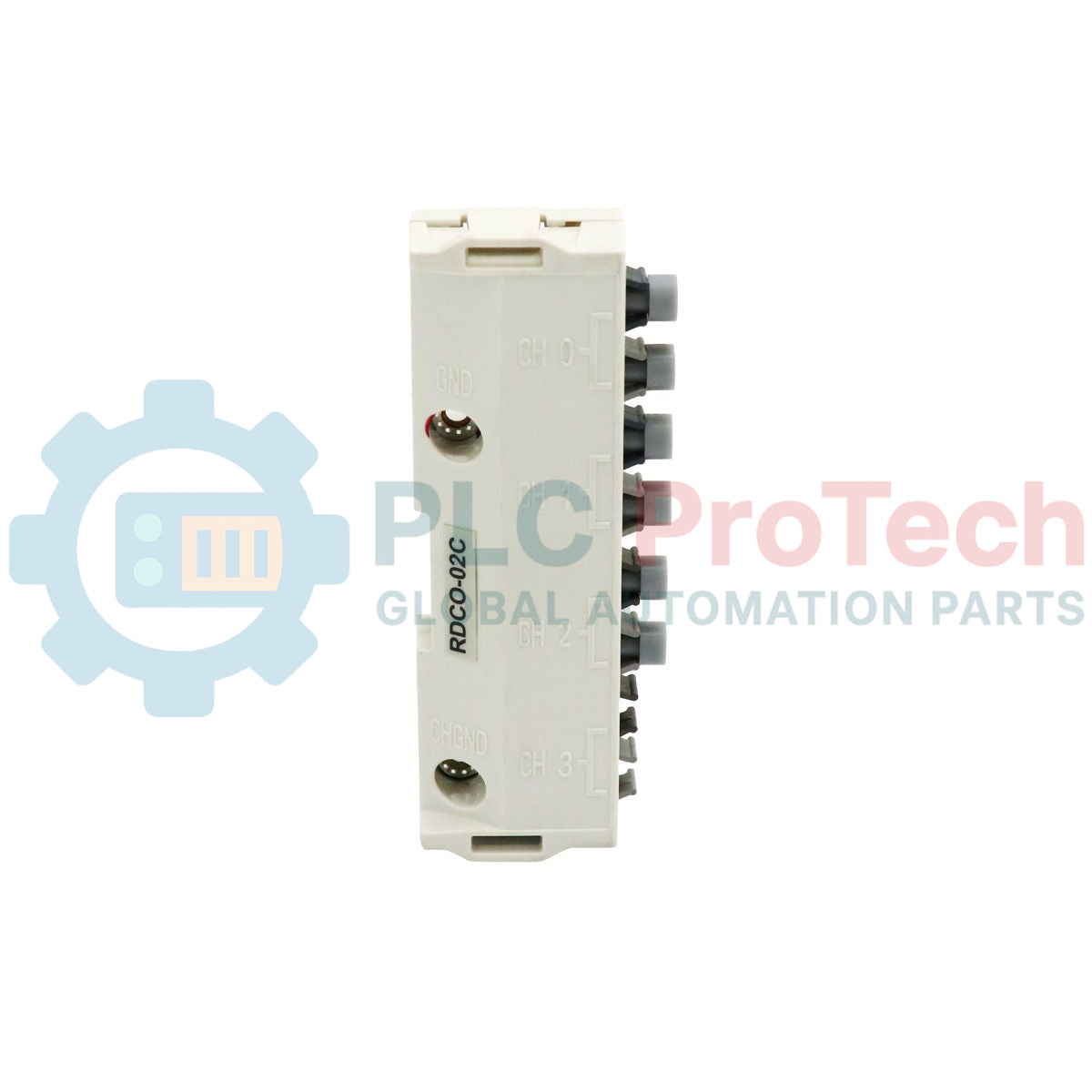

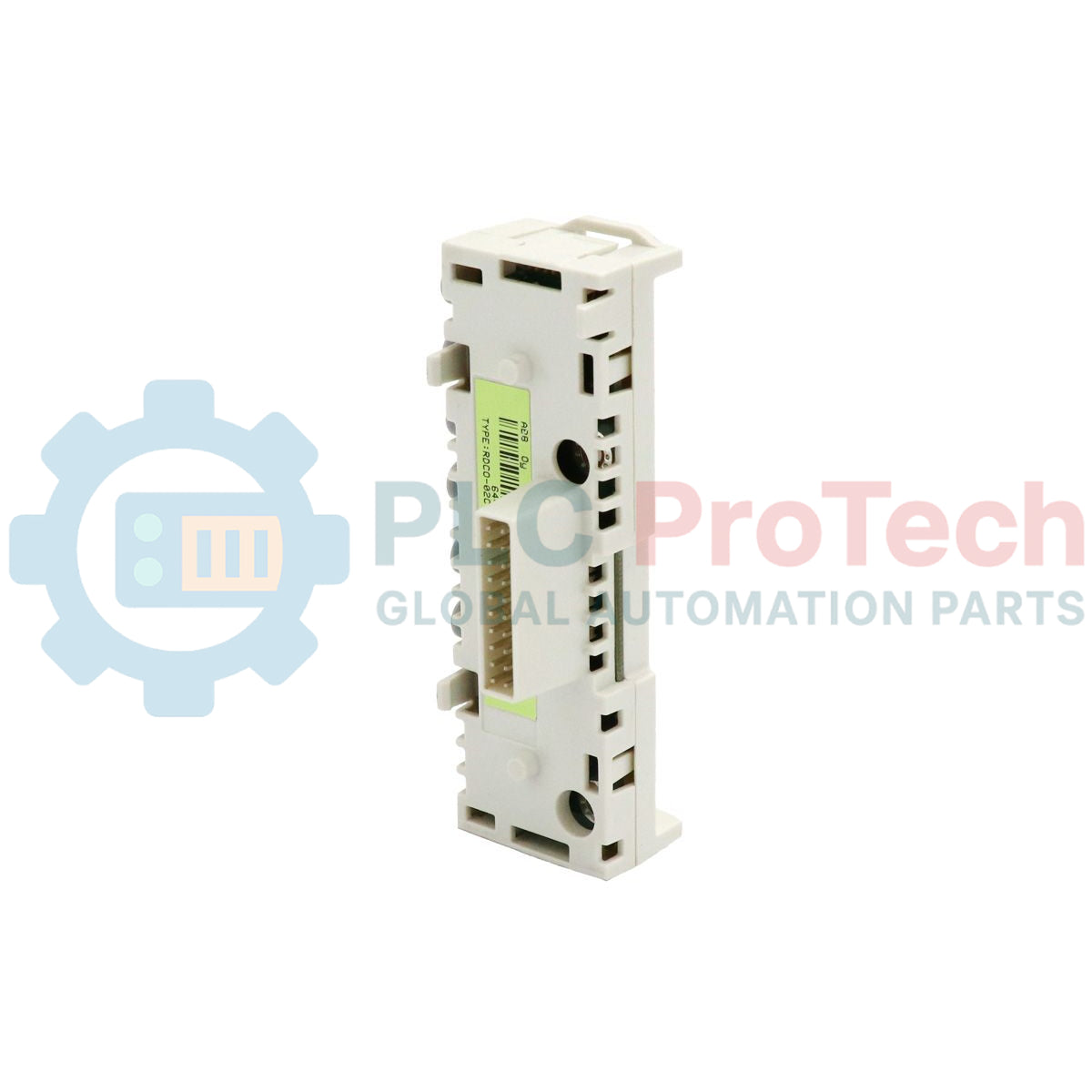

ABB RDCO-02C DDCS Communication Adapter Module

SKU RDC0-02C

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: ABB
  • Product No.: RDC0-02C
  • Origin Sweden
  • Product Type: Communication Modules
  • Barcode: 85371091
  • Payment: T/T, Western Union
  • Weight: 0.06 kg
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

Communication Modules RDCO
Quantità
Call sales Contact

Product Description

Description

Engineered for high-speed fiber optic communication, the ABB RDCO-02C DDCS communication adapter provides seamless interfacing between ACS800 frequency converters and external control systems. This module mounts directly onto the drive's control board to establish isolated optical links, ensuring noise-free data transmission in environments with high electromagnetic interference.

The RDCO-02C DDCS (Distributed Drives Communication System) board operates as an essential link for master-follower configurations, PC tool connections, and fieldbus adapter modules. By utilizing optical fiber cables, it eliminates ground loop issues and delivers high-speed, deterministic control performance across industrial drive networks.

Features

  • Direct plug-in mounting on ACS800 series drive control units (RMIO board).
  • Integrated fiber optic transmitter and receiver channels for reliable data exchange.
  • Provides galvanic isolation via optical link technology to prevent electrical interference.
  • Supports DDCS protocol communication with PLCs, drive controllers, and diagnostic software tools.
  • Lightweight and compact form factor designed for reliable long-term cabinet operation.

Applications

  • ACS800 industrial drive system communications.
  • Master-follower and drive-to-drive link configurations.
  • Interfacing drives with AC 800M and other ABB PLC control architectures.
  • High-speed process automation network installations in metals, pulp & paper, and marine industries.

Technical Specifications

ParameterSpecification
Manufacturer ABB
Part Number/Model RDCO-02C (RDC0-02C)
Product Type DDCS Communication Board / Adapter Module
Communication Protocol DDCS (Distributed Drives Communication System)
Medium Fiber Optic Cable
Logistics Weight 0.06 kg
Commodity Code / HS Code 85371091
Export Control Regulations (ECCN) N

Connections and Interfaces

Optical Channel Typical Function/Connection Target
CH0 Overriding control system (e.g., APC, AC 80, AC 800M)
CH1 I/O extension modules and fieldbus adapters
CH2 Master/Follower link for drive-to-drive communication
CH3 PC tool (Drive Window, DriveStudio) connection via optical link

Installation Guidelines

  • Ensure the drive is completely powered down and discharged before starting installation.
  • Observe strict ESD (Electrostatic Discharge) precautions while handling the RDCO-02C module.
  • Insert the adapter module carefully into its designated slot on the RMIO board and tighten the mounting screw to ensure correct mechanical grounding.
  • Verify the minimum bending radius of the fiber optic cables during routing to prevent signal degradation or physical damage to the core.

Compliance and Certifications

  • CE compliant
  • RoHS compliant
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
What is the primary function of the ABB RDCO-02C board?
The ABB RDCO-02C is a DDCS (Distributed Drives Communication System) communication adapter that provides optical fiber link channels for interfacing ACS800 drives with PLCs, master-follower networks, and PC configuration tools.
Does the RDCO-02C module require external power?
No, the RDCO-02C module is powered directly from the drive's control board (such as the RMIO board) upon mounting.
What precautions should be taken when routing fiber optic cables with this module?
Ensure the optical fibers are handled carefully, avoiding tight bends that exceed the manufacturer's specified minimum bend radius, and keep the optical connectors clean from dust and contaminants.
