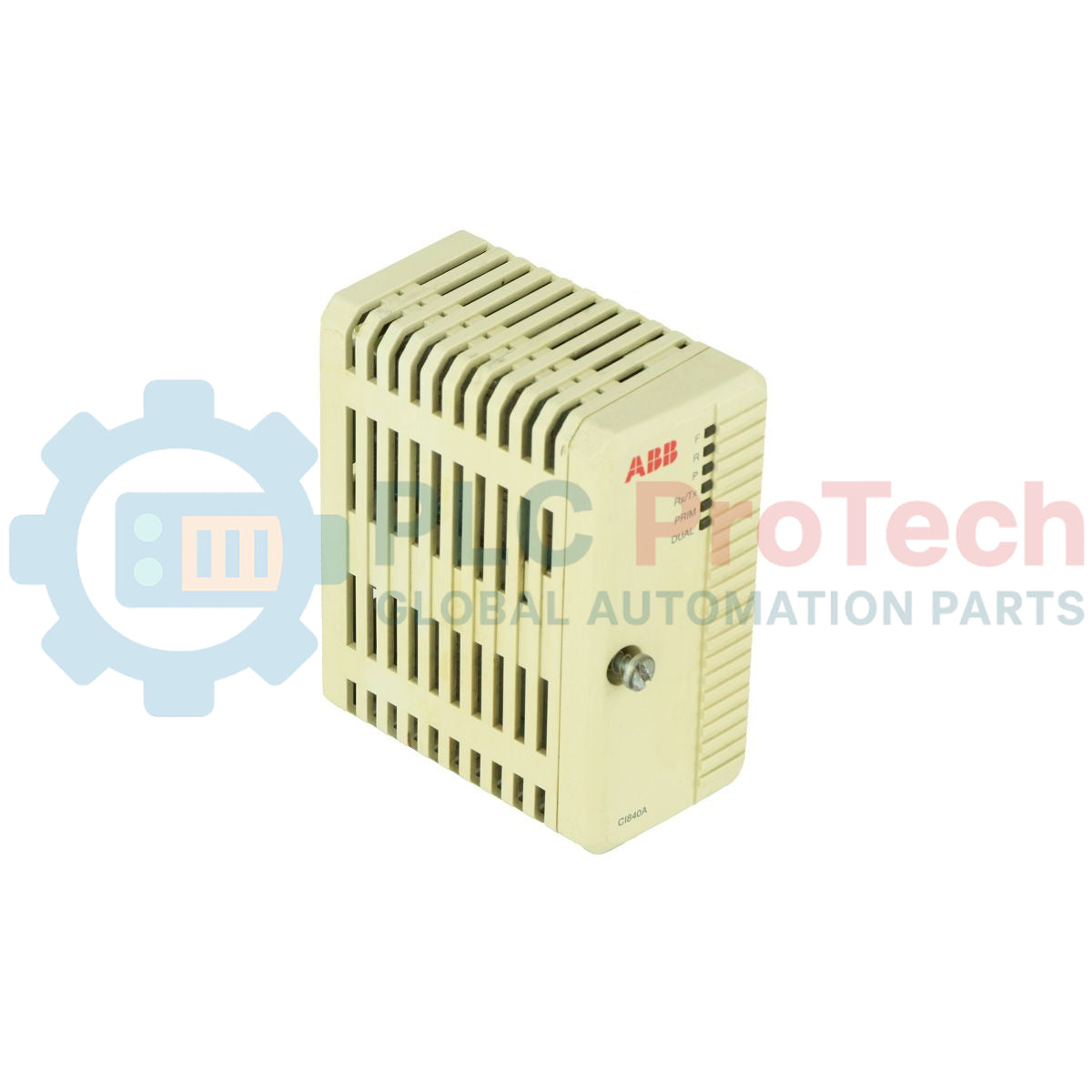

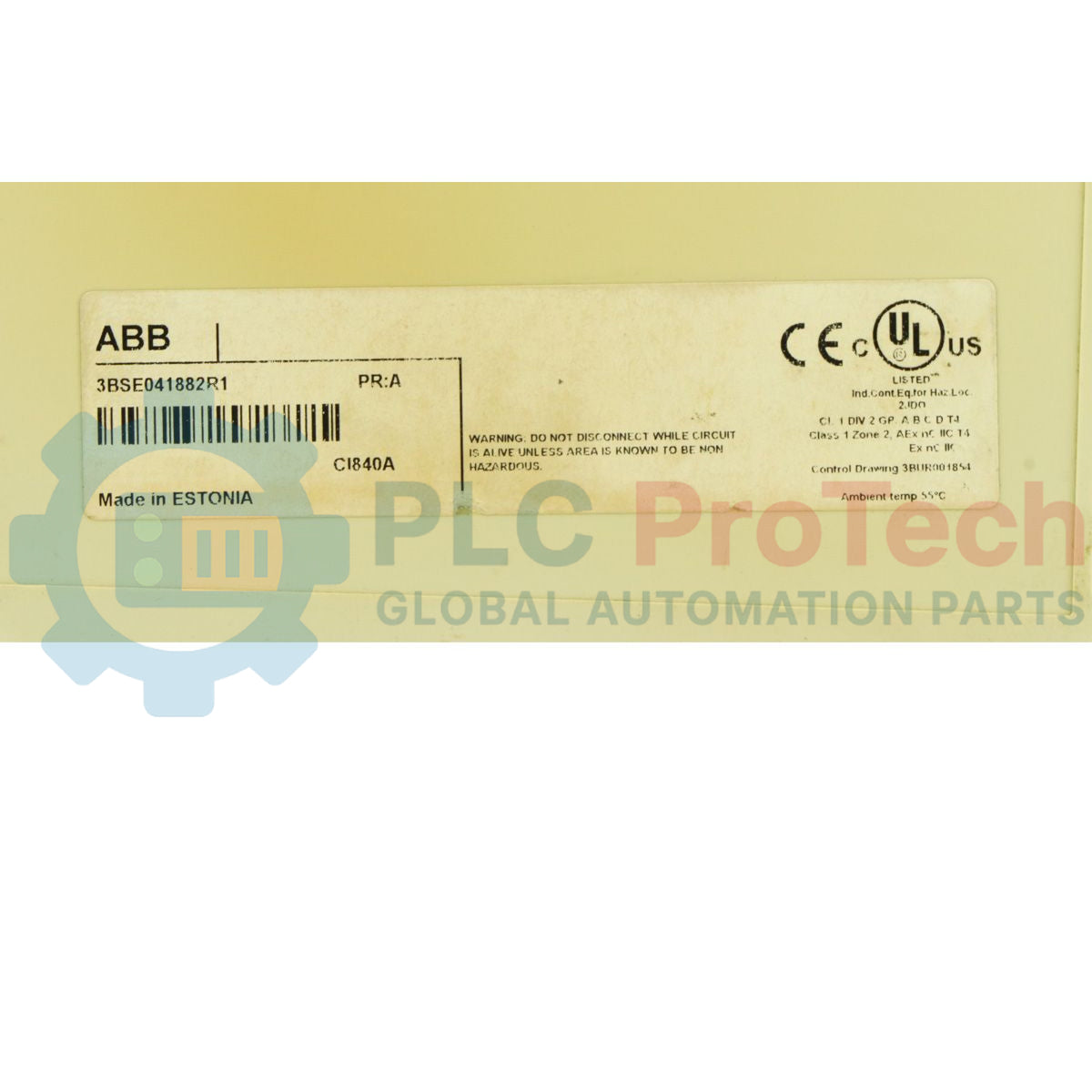

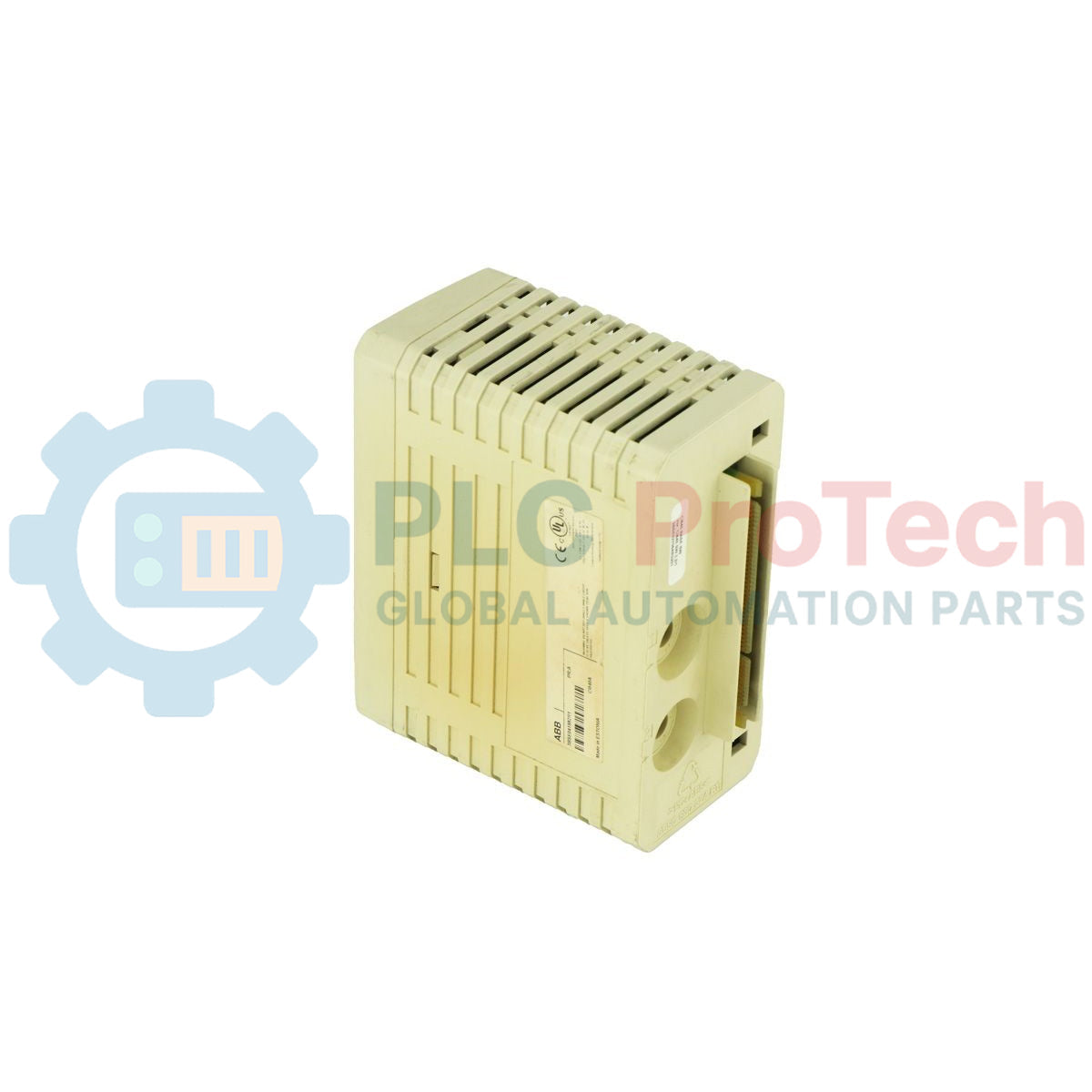

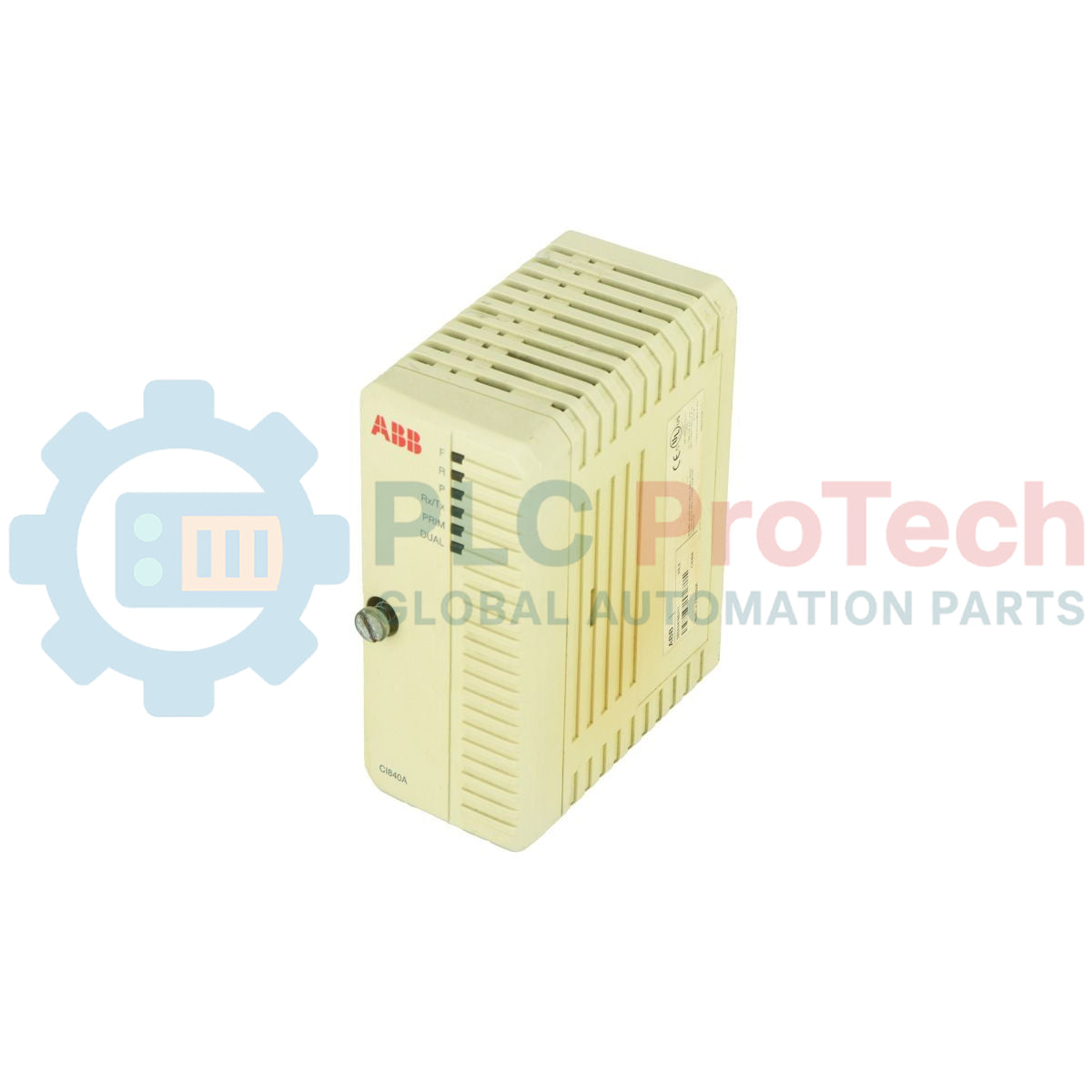

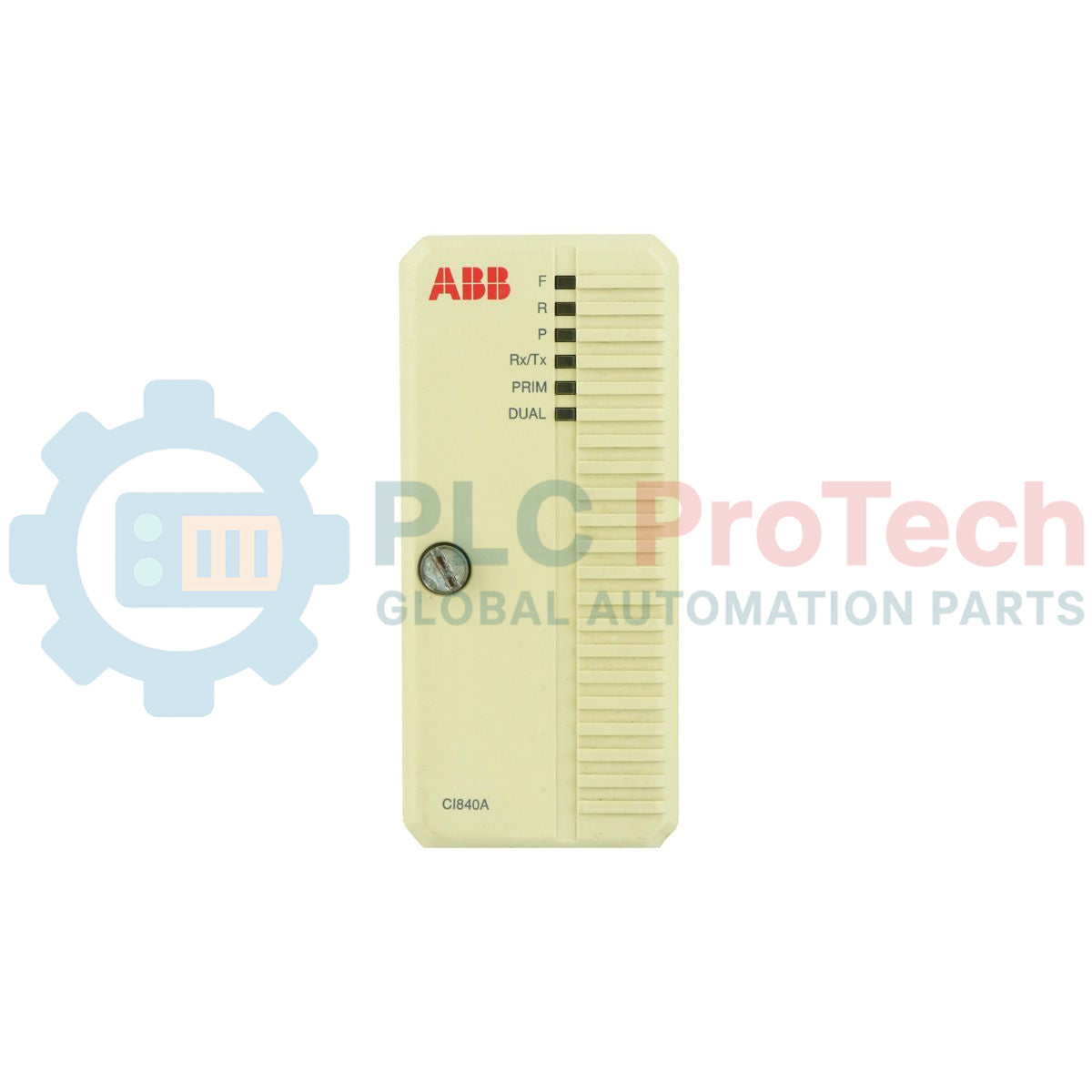

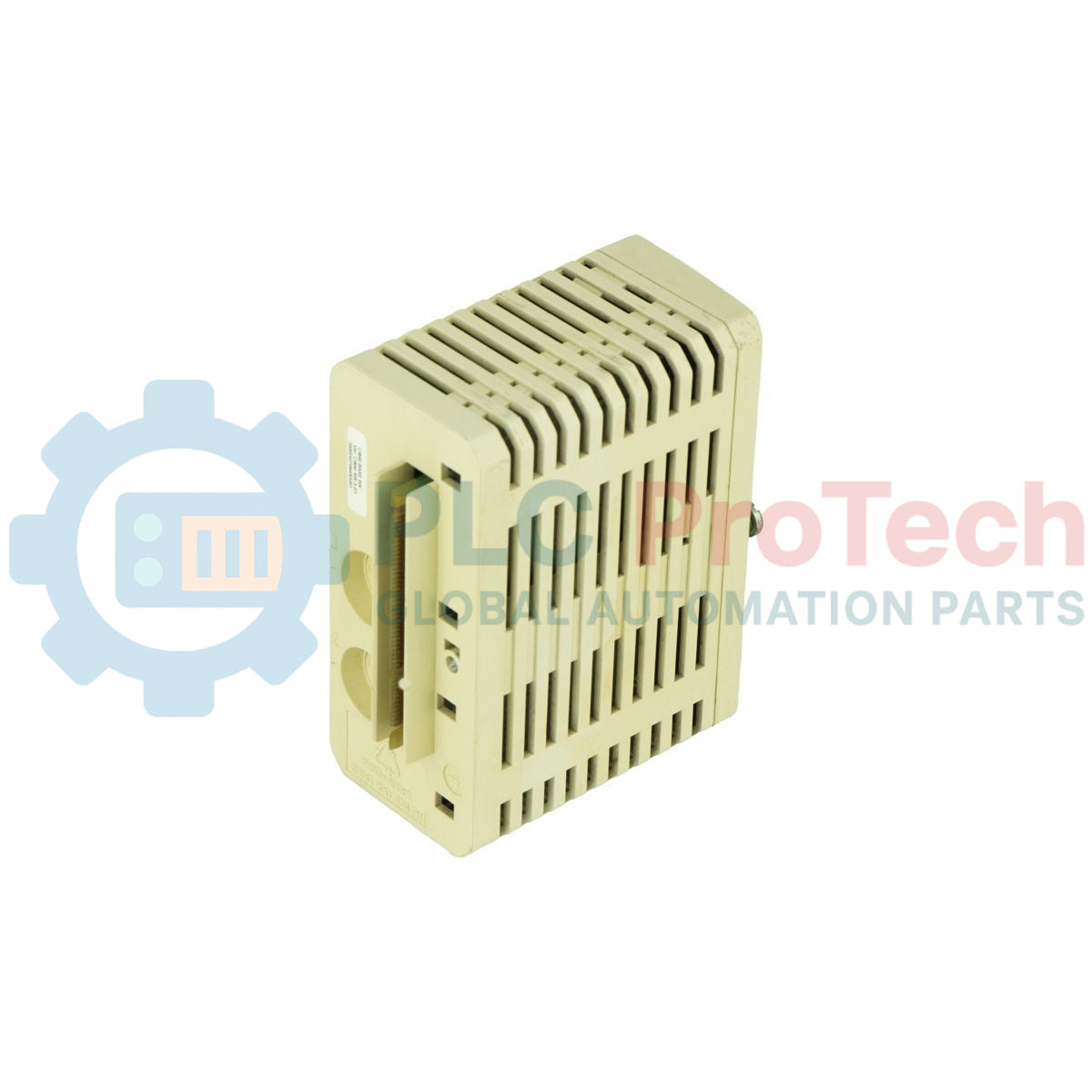

ABB 3BSE041882R1 CI840A S800 I/O PROFIBUS DP-V1 Interface

SKU 3BSE041882R1

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: ABB
Product No.: 3BSE041882R1
Origin Sweden
Product Type: PROFIBUS Communication Modules
Barcode: 85389091
Payment: T/T, Western Union
Weight: 0.5 kg
Dimensions: 96 mm x 119 mm x 54 mm
Shipping port: Xiamen
Warranty: 12 months

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

Quantità

Call sales Contact

Product Description

Description

The 3BSE041882R1 CI840A serves as a high-performance communication interface designed to manage data exchange between the S800 I/O station and a PROFIBUS DP-V1 master unit. This field communication interface handles cyclic data exchange alongside non-cyclic configuration, diagnostics, and parameter assignment tasks. Engineered for seamless deployment across industrial automation environments, it offers complete software compatibility with the ABB 800xA distributed control system and Compact Product Suite platforms. The unit acts as a crucial link for field devices, translating signals reliably while permitting the implementation of complete physical media redundancy. Operating the 3BSE041882R1 CI840A within demanding industrial plants guarantees precise, real-time control loop execution and continuous communication uptime across critical automation networks.

Features

Provides standard field bus communication interface using the PROFIBUS DP-V1 protocol.
Integrates directly into multiple generations of S800 I/O systems, including versions 4.1, 5.0, and 5.1.
Facilitates full redundancy schemes for dual interface topologies when paired with specific modular terminal units.
Features a lightweight, space-saving design optimizing DIN rail space inside standard marshalling panels.
Operates with absolute zero battery requirements, reducing routine infrastructure upkeep costs.

Applications

Distributed Control Systems (DCS) integration via PROFIBUS communication infrastructures.
Redundant field I/O data aggregation for System 800xA production networks.
Factory automation assembly interfaces using Compact Product Suite controller packages.
High-availability process lines requiring redundant communication modules on matching terminal units.

Ordering Information

Identifier	Description	Qty
3BSE041882R1	CI840A PROFIBUS DP-V1 Interface	1

Technical Specifications

Parameter	Value
Manufacturer	ABB
Product ID	3BSE041882R1
ABB Type Designation	CI840A
Product Type	Communication Module
Protocol Support	PROFIBUS DP-V1
Customs Tariff Number / HS Code	85176200
Product Net Depth / Length	96 mm
Product Net Height	119 mm
Product Net Width	54 mm
Product Net Weight	0.2 kg
Number of Batteries	0

Installation Guidelines

DIN Rail Assembly: Fit the interface module firmly onto its designated slot on the terminal base unit. Ensure the rear grounding contacts press cleanly against the DIN rail.
Redundancy Configuration: To implement a redundant communication interface, two CI840A modules must be ordered and paired with either one TU847 or one TU846 terminal unit.
Network Segment Isolation: Route the PROFIBUS DB9 network cable away from high-voltage motor starters and power lines to reduce EMI/RFI noise injection.
Module Retention: Verify the module locking latches engage properly after insertion into the base unit to withstand industrial vibration and shock.

Compliance and Certifications

RoHS Directive: Manufactured in accordance with the regulatory standards outlined in EU Directive 2011/65/EU.
WEEE Category: Classified under Category 5: Small Equipment (No External Dimension More Than 50 cm).

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What components must be ordered to set up a redundant PROFIBUS interface configuration?

For a redundant communication interface, you must order two CI840A units along with either one TU847 or one TU846 terminal base unit.

Which software versions of the S800 I/O family support this interface module?

This module is supported across S800 I/O versions 4.1, 5.0, and 5.1 within ABB 800xA and Compact Product Suite systems.

Does this communication module require any internal backup batteries?

No, the module is designed with zero battery dependencies, eliminating the need for periodic battery maintenance or replacements.
