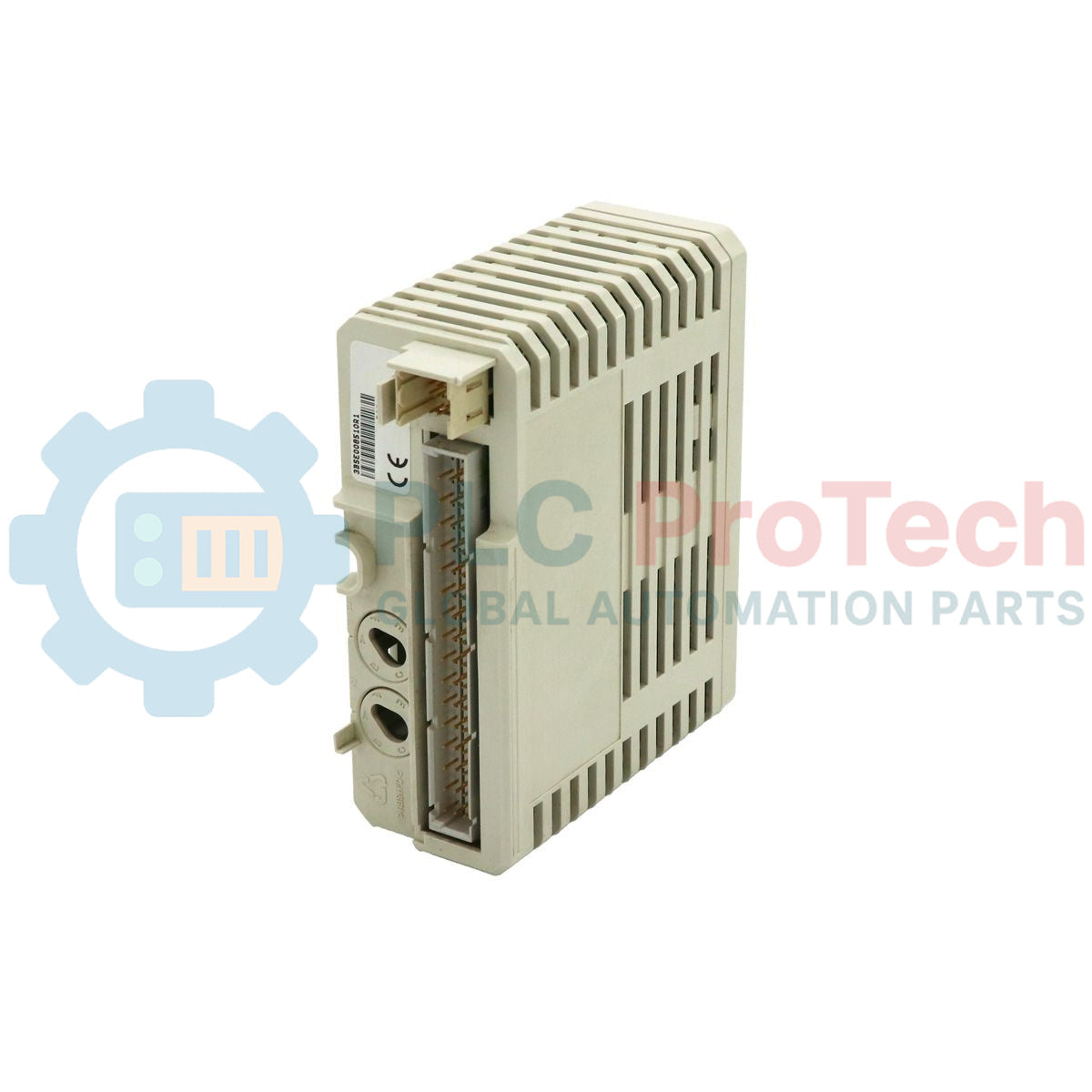

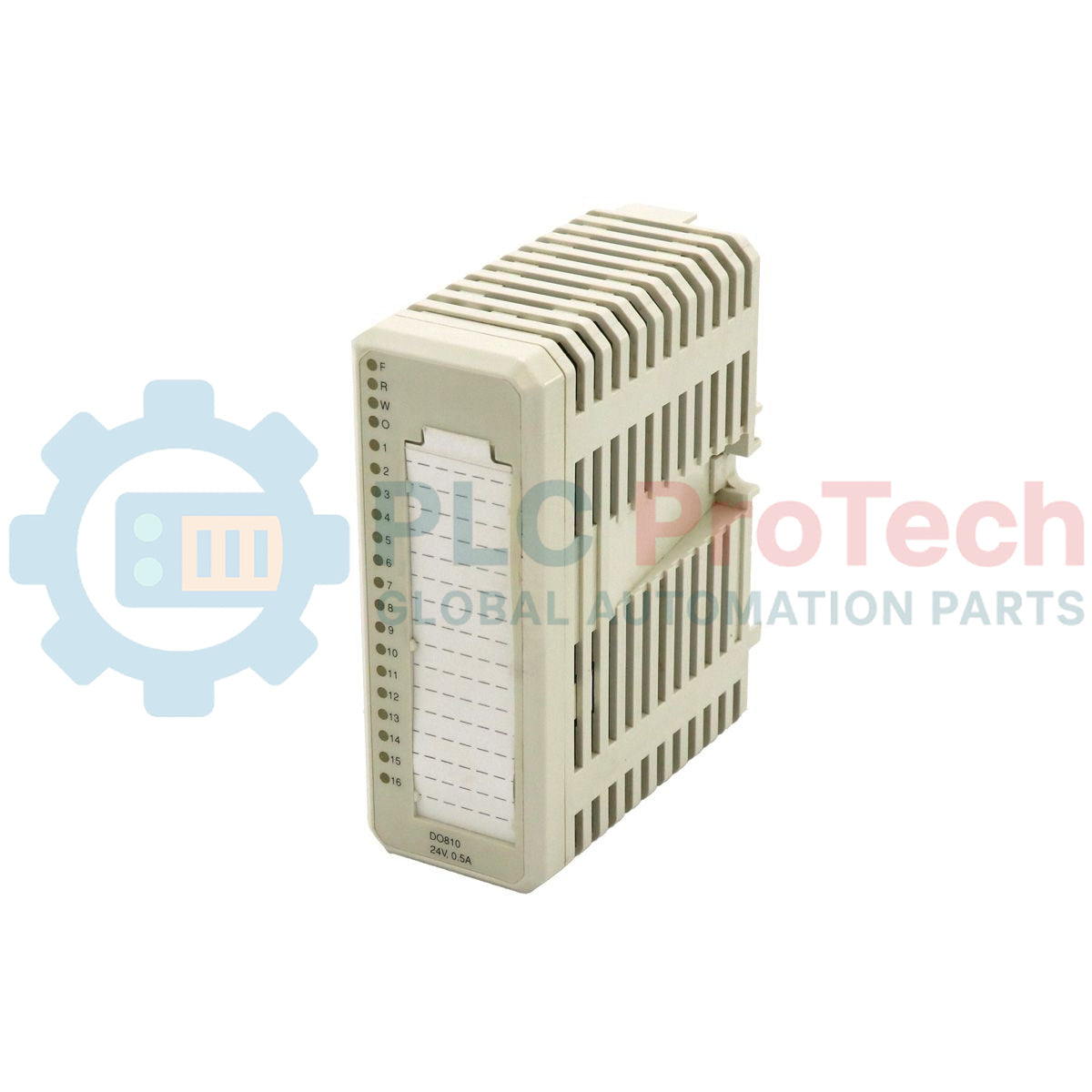

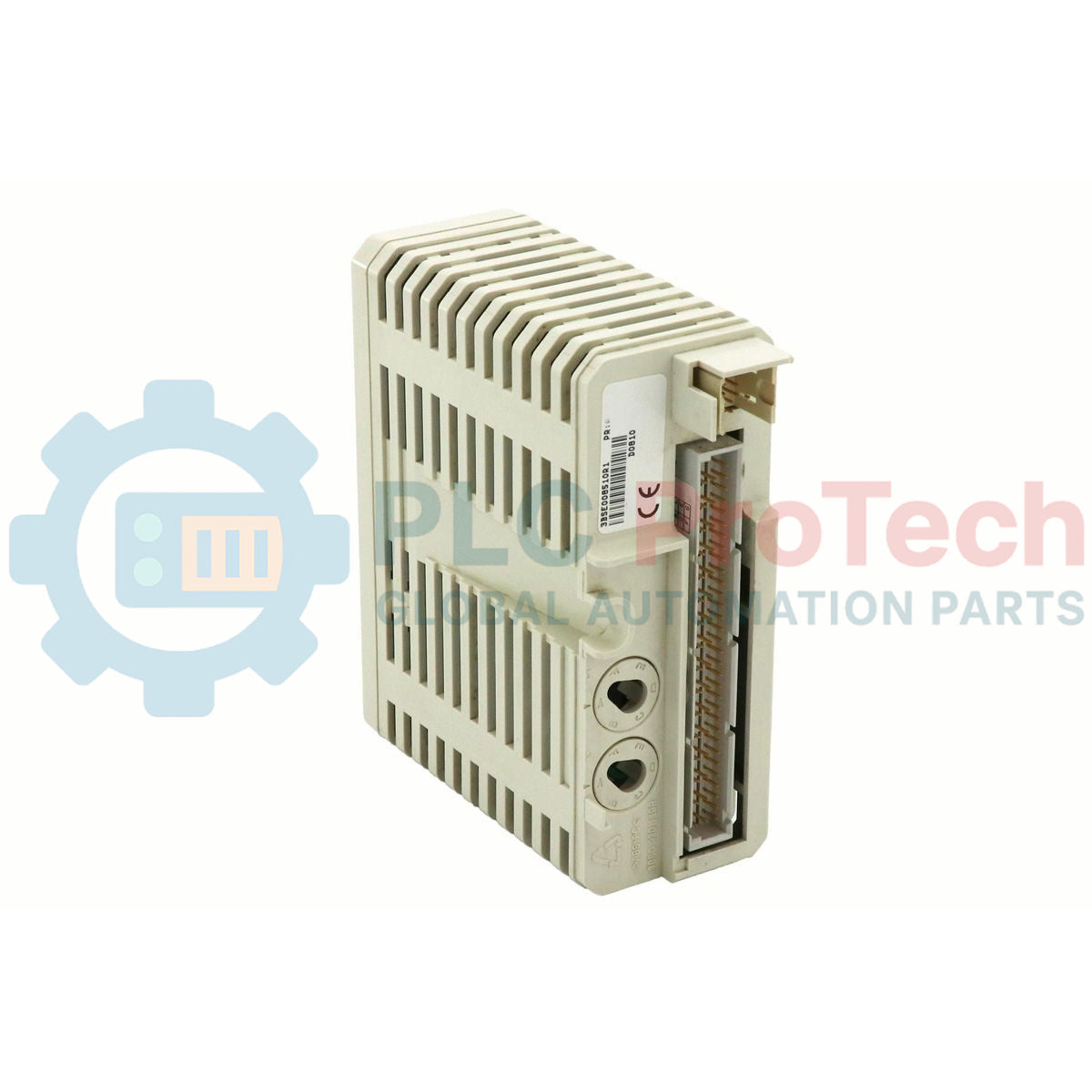

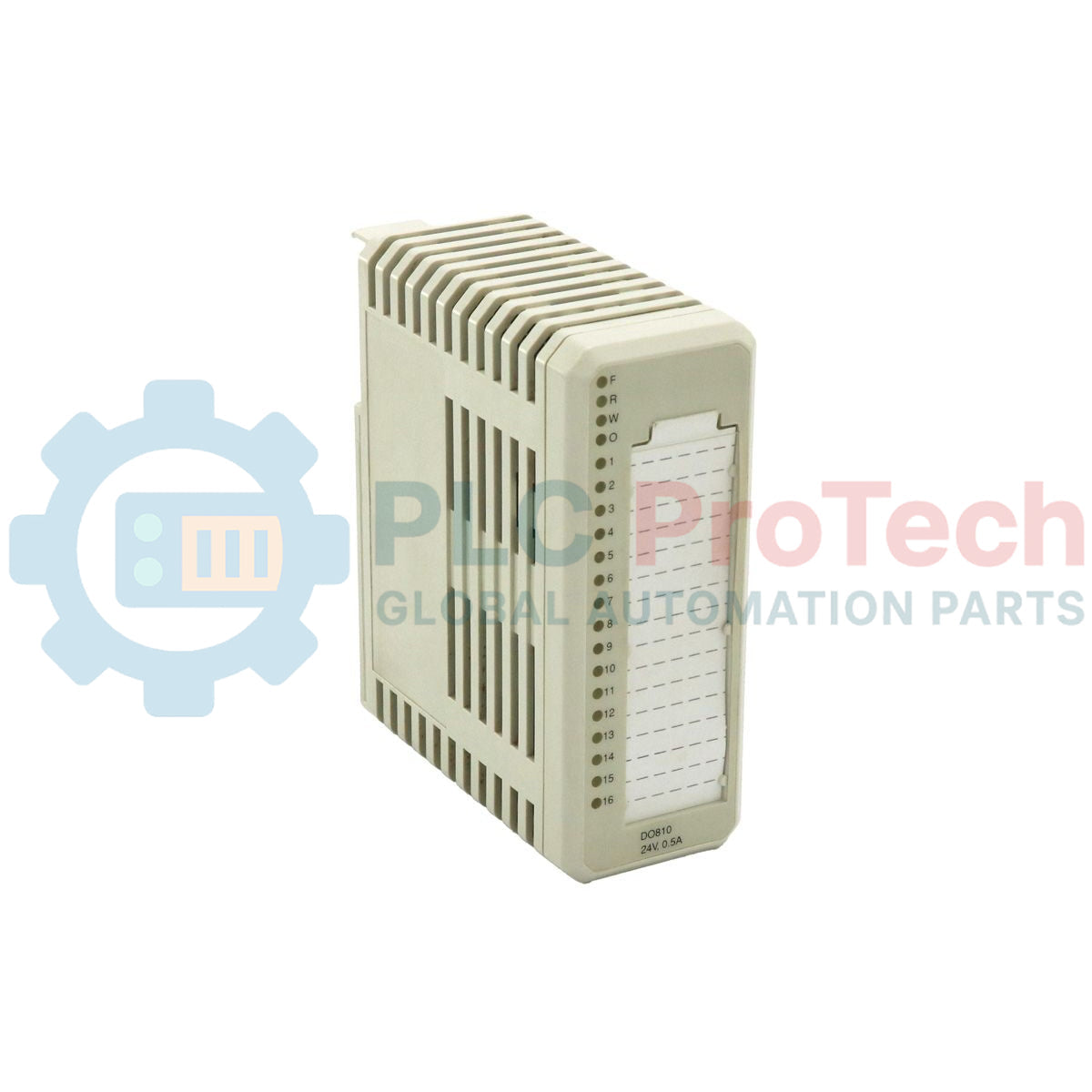

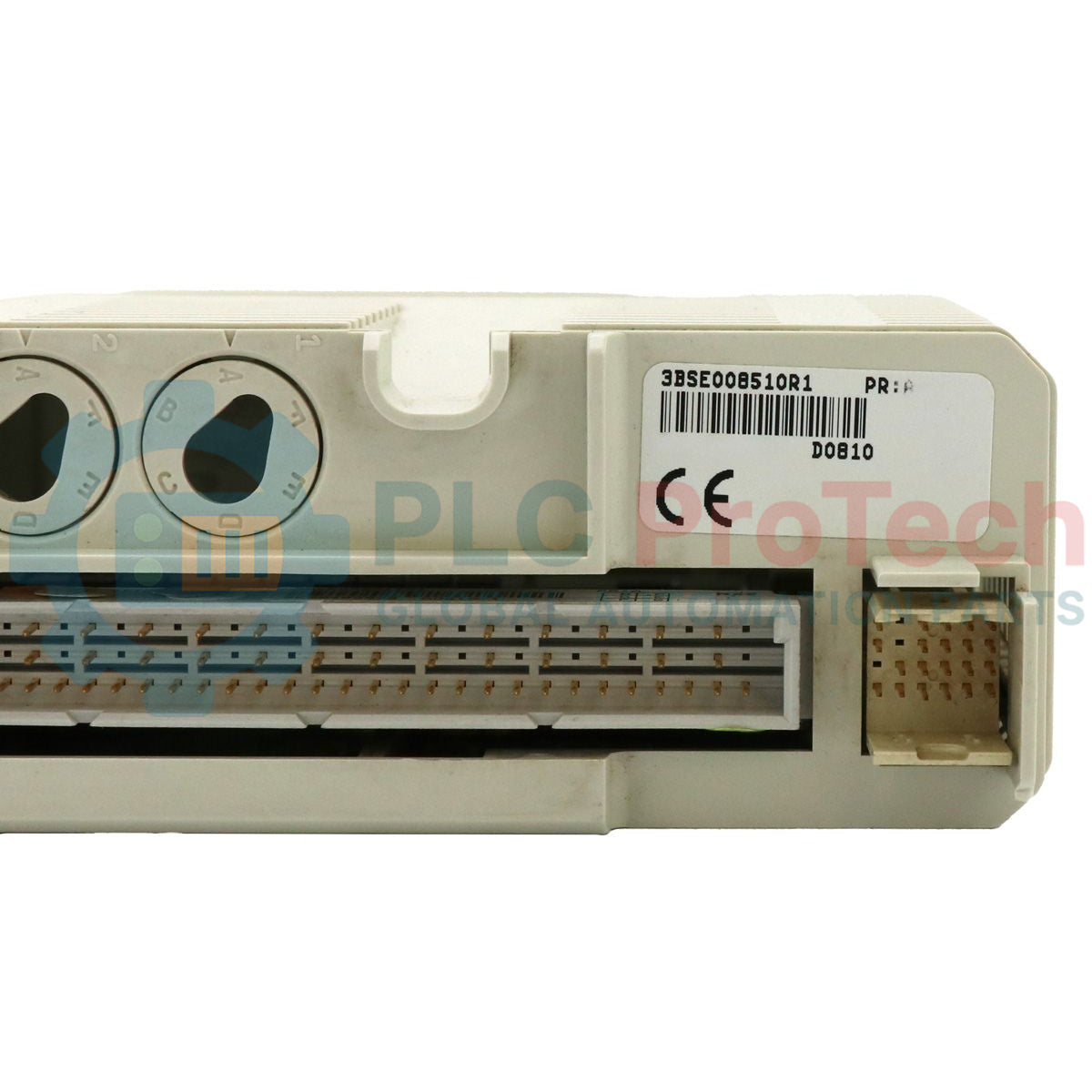

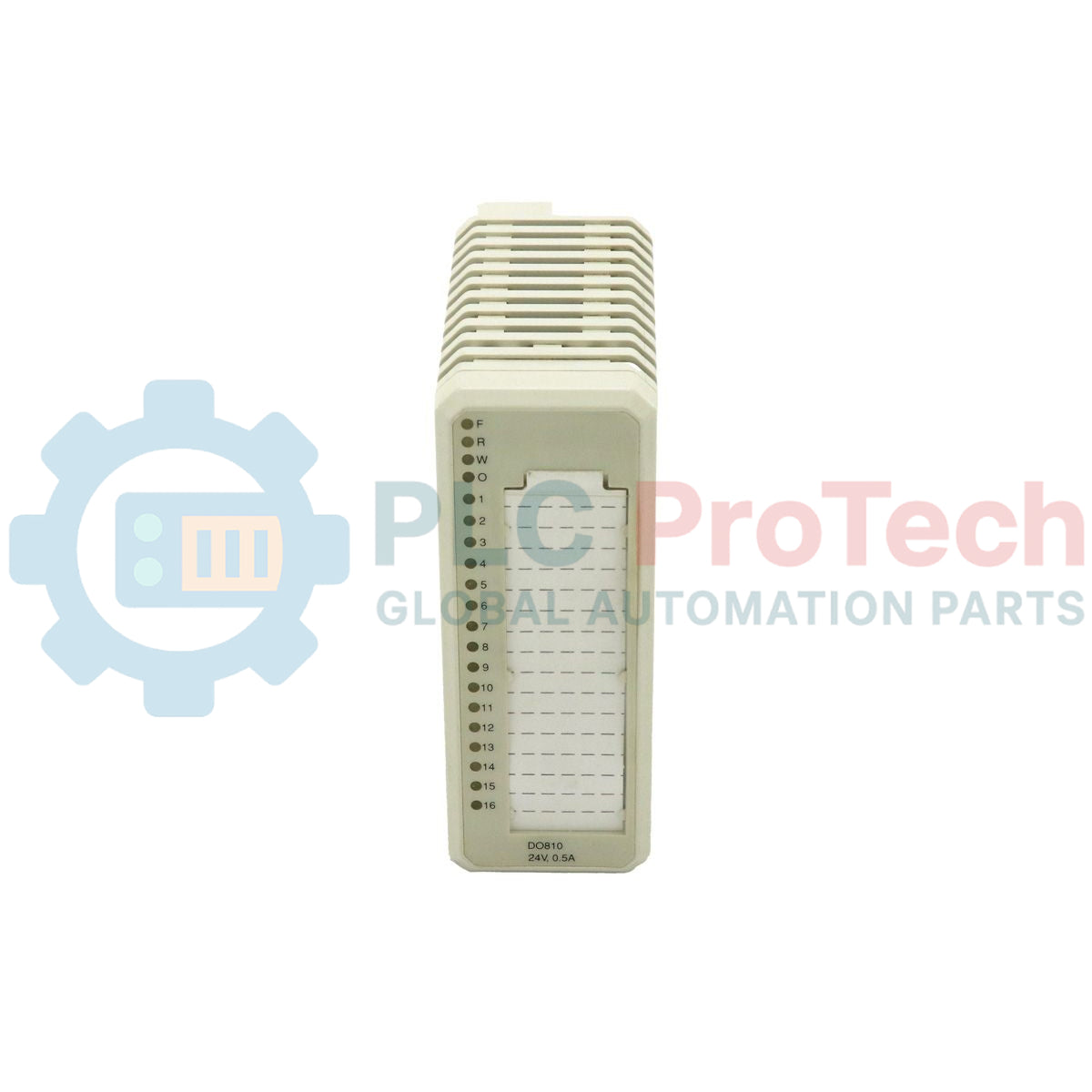

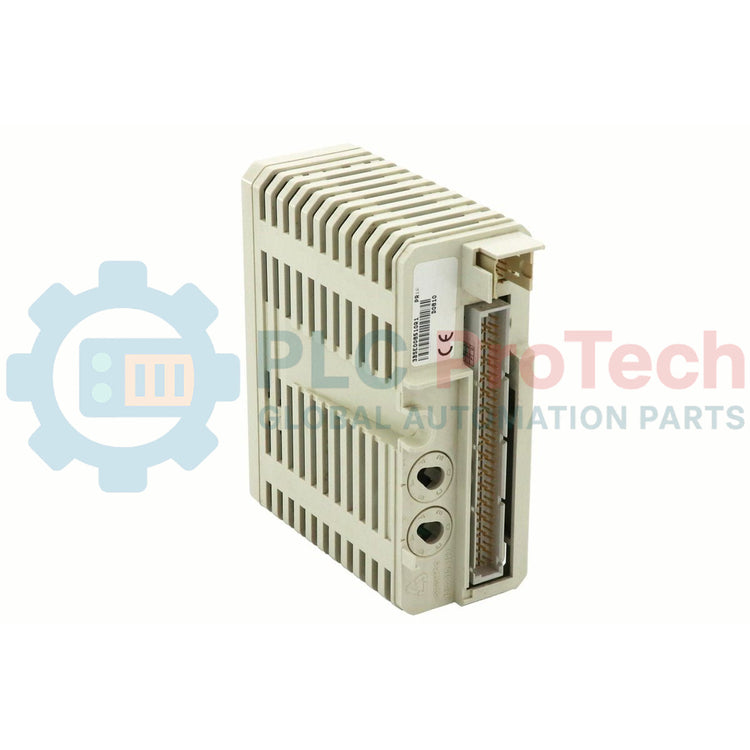

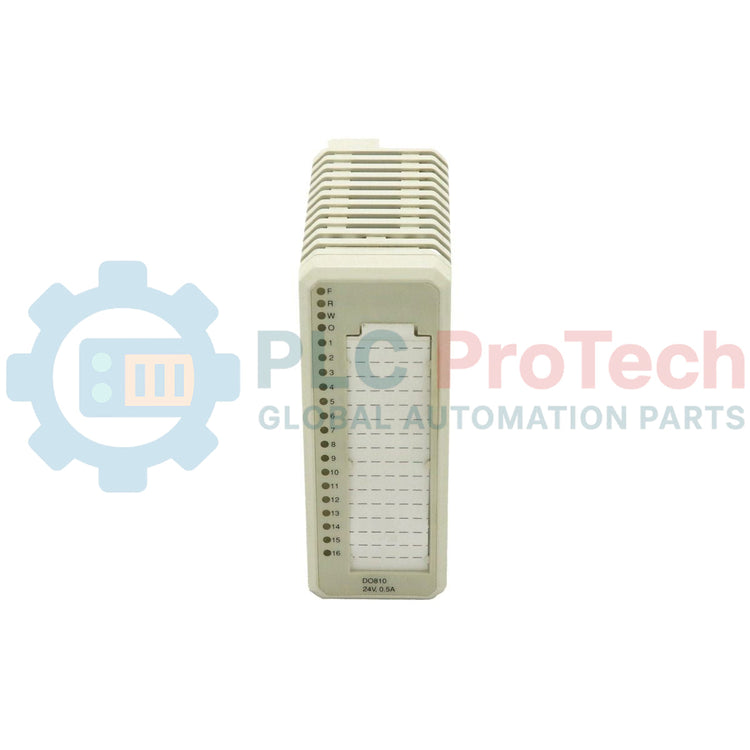

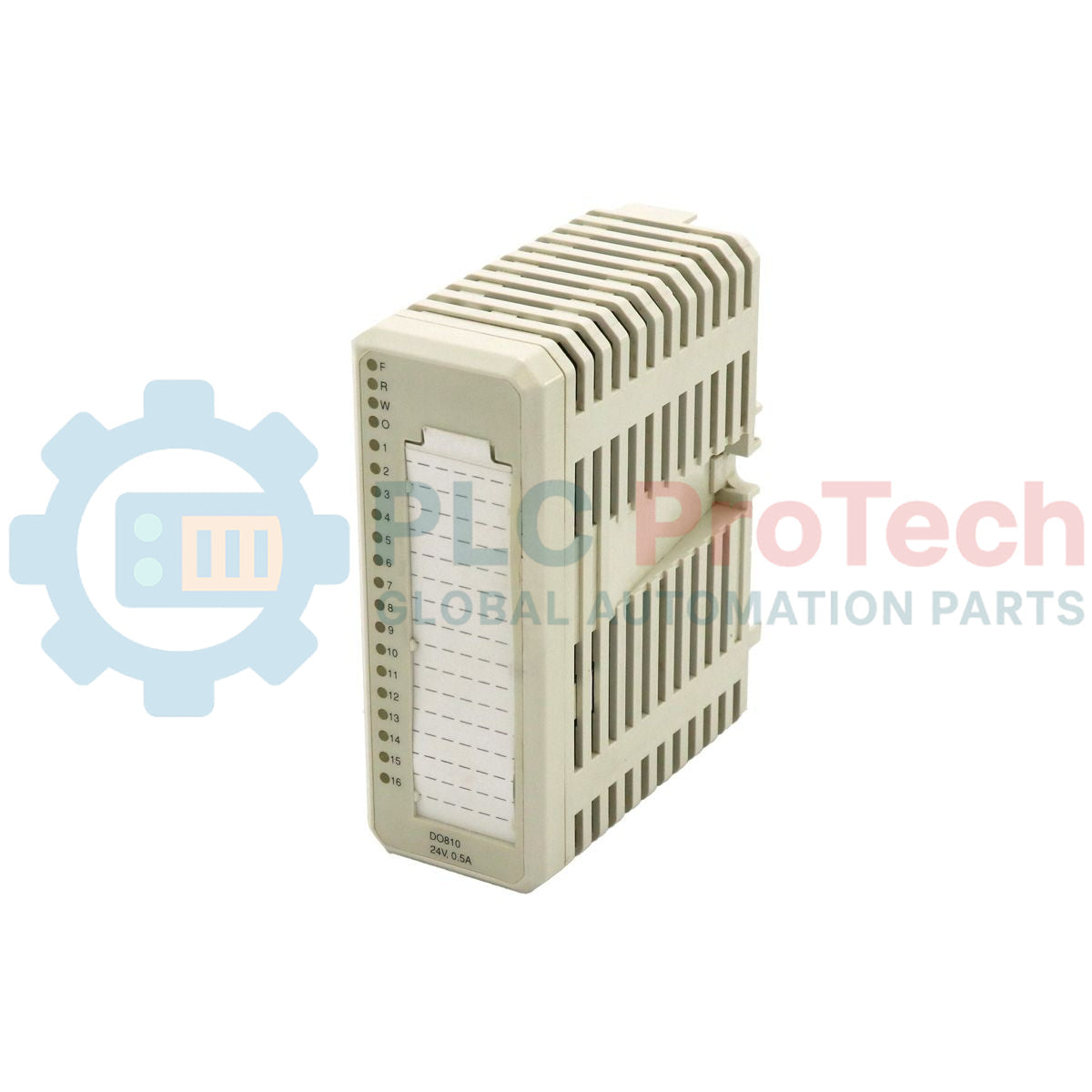

ABB DO810 3BSE008510R1 Advant S800 I/O Digital Output Module

SKU 3BSE008510R1

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: ABB
Product No.: 3BSE008510R1
Origin Sweden
Product Type: Digital Output Modules
Barcode: 85389091
Payment: T/T, Western Union
Weight: 0.5 kg
Dimensions: 25cm x 12cm x 10cm
Shipping port: Xiamen
Warranty: 12 months

Product Description

Description

Designed for seamless integration within the S800 I/O system, the ABB 3BSE008510R1 (DO810) provides reliable 24 V DC digital output control for process automation applications. This 16-channel current-sourcing module interfaces field-level actuators, relays, and indicators with the controller via the ModuleBus. Operating with high efficiency, the DO810 digital output module features electronic short-circuit protection and diagnostics to minimize system downtime in demanding industrial environments.

The module mounts directly onto a compatible Module Termination Unit (MTU), allowing for simple, tool-free field wiring. It supports hot-swapping under power, enabling swift module replacement without disrupting system operations. Galvanic isolation between the internal logic (ModuleBus) and field outputs ensures reliable signal isolation and protection of the host PLC/DCS controller.

Features

Provides 16 current-sourcing digital output channels rated at 24 V DC.
Equipped with built-in electronic short-circuit and over-temperature protection.
Provides individual channel LED status indication along with global RUN/FAULT diagnostic indicators.
Supports dynamic hot-swapping during runtime, minimizing process interruption.
Pairs with various standard S800 I/O Termination Units (MTUs) for flexible wiring configurations.
Galvanically isolated from system backplane circuitry to prevent ground loop issues.

Applications

Power generation and distribution control panels.
Petrochemical and oil and gas processing facilities.
Water and wastewater municipal treatment installations.
Pulp and paper machine controls.
General industrial factory automation systems utilizing System 800xA or Advant OCS.

Technical Specifications

Manufacturer	ABB
Part Number / Model	3BSE008510R1 / DO810
Series	Advant S800 I/O
Module Type	Digital Output Module
Number of Channels	16
Nominal Output Voltage	24 V DC
Output Current Rating	0.5 A per channel
Maximum Leakage Current	0.5 mA (off-state)
Short-Circuit Protection	Electronic, thermal current limitation
Galvanic Isolation	Yes (tested at 50 V DC to system backplane)
Power Dissipation	Typically 4.5 W at nominal operation
Operating Temperature	0 to 55 degC (vertical mounting), 0 to 40 degC (horizontal mounting)
Storage Temperature	-40 to 85 degC
Relative Humidity	5% to 95% non-condensing
Approximate Weight	0.50 kg

Installation Guidelines

To ensure optimal performance and safe operation of the DO810 digital output module, adhere to the following installation instructions:

Mounting: Ensure the Module Termination Unit (MTU) is securely latched to the standard DIN rail before inserting the DO810 module. Do not force alignment pins during insertion.
Wiring: Route all field digital output cables away from high-voltage AC lines or power distribution cables to minimize electromagnetic interference.
Grounding: Connect the DIN rail to a low-impedance safety ground system. Proper grounding of the MTU is required for robust functional earth (FE) protection.
Ventilation: Maintain standard clearance gaps above and below the module assembly to allow natural convective cooling. Do not exceed the rated maximum operating temperature of 55 degC.

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What is the channel count of the ABB DO810 digital output module?

The ABB DO810 module provides 16 digital output channels, configured as current-sourcing outputs.

Does the DO810 module support hot-swapping?

Yes, the DO810 module supports hot-swapping, allowing you to replace the module while the rest of the S800 I/O system remains powered and operational.

What type of protection is built into the DO810 module outputs?

Each output channel on the DO810 is electronically protected against short circuits and over-temperature occurrences.

Which system series is the 3BSE008510R1 compatible with?

The 3BSE008510R1 DO810 is part of the S800 I/O family and is compatible with ABB System 800xA, Advant OCS, and other systems utilizing ModuleBus communication.
