Description

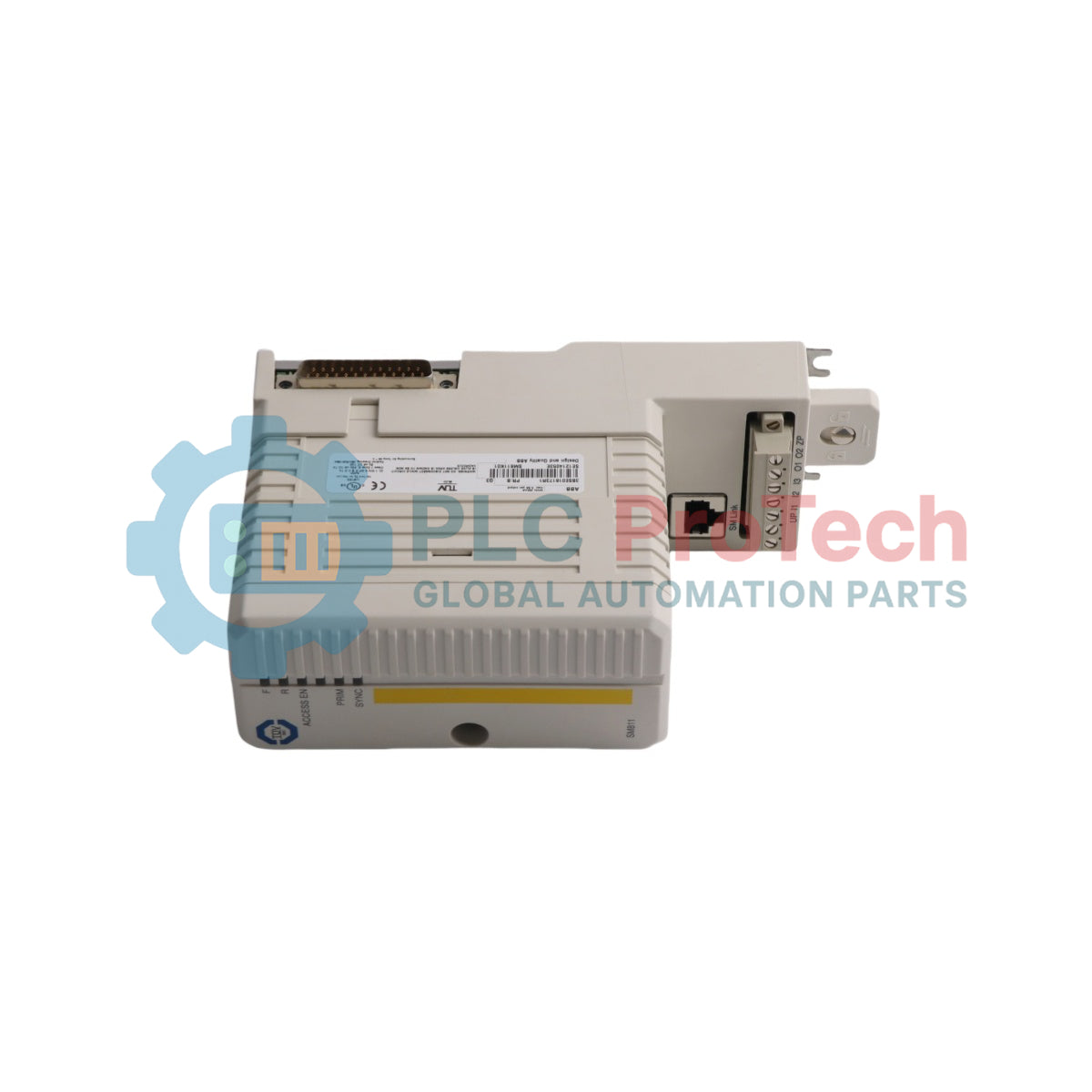

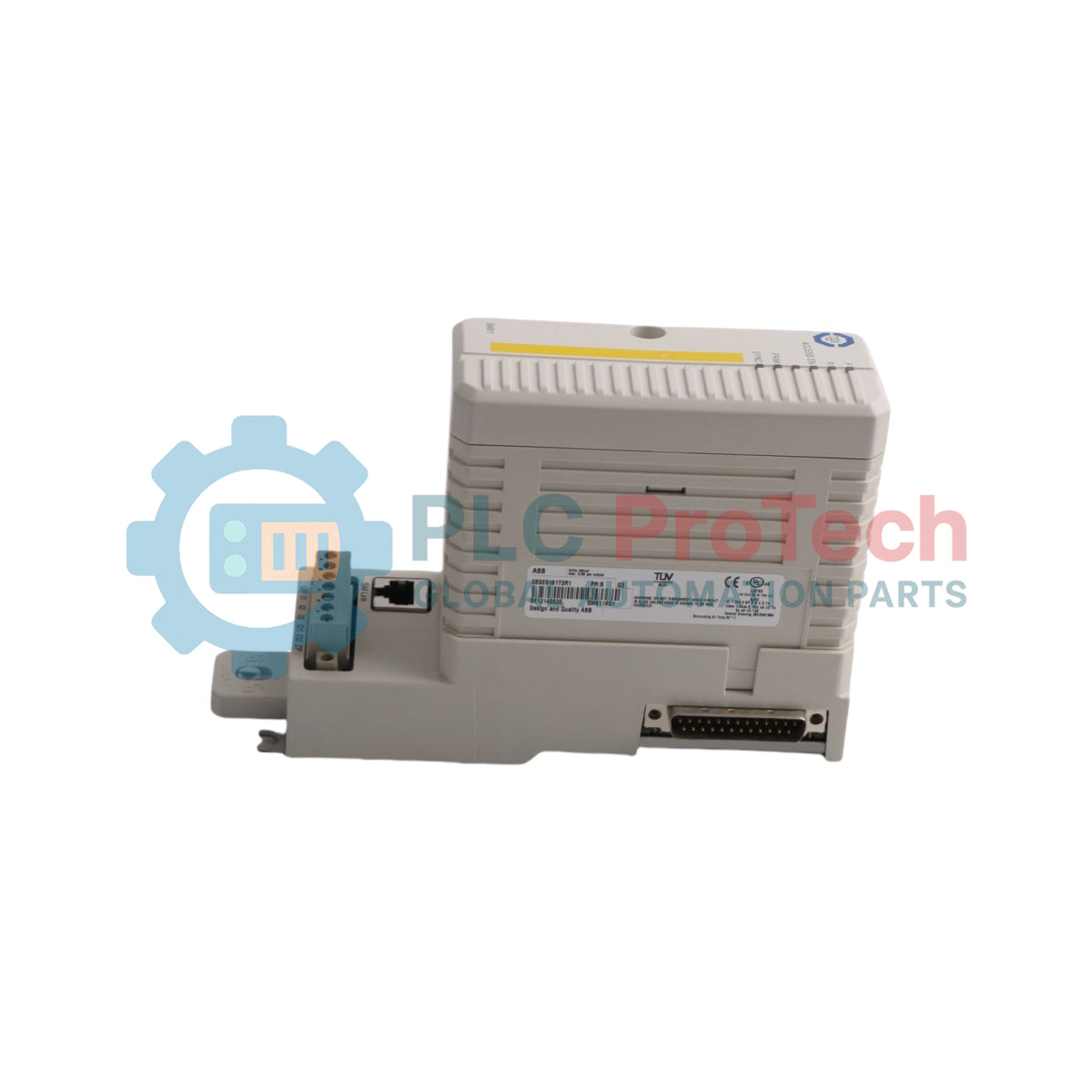

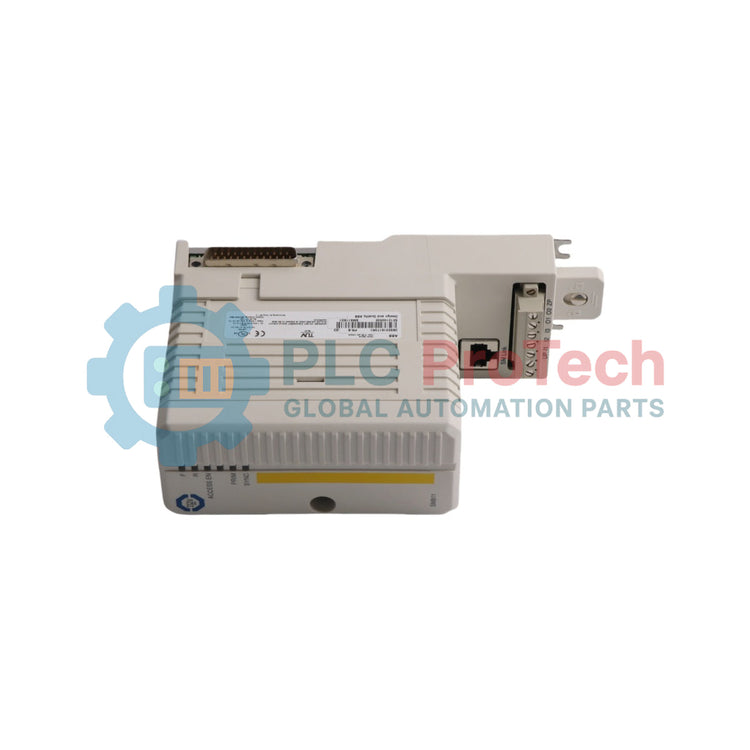

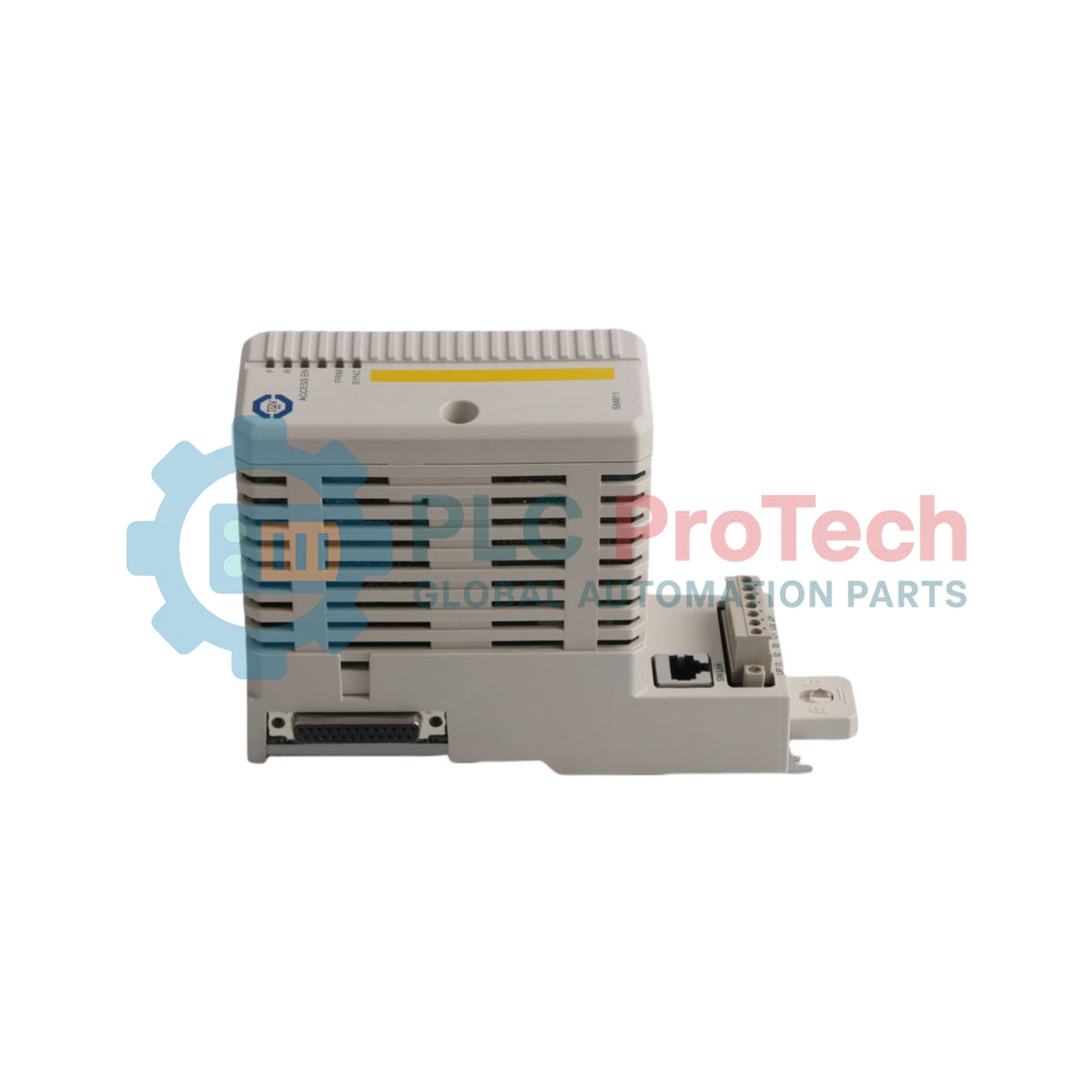

The SM811K01 is a high-integrity processing component designed to execute functional safety applications within specialized distributed control frameworks. Operating as a dedicated safety CPU module, this device provides diverse logical execution paths and extensive internal hardware diagnostics to protect complex industrial processes from critical failure states.

This unit is certified for use in safety loops up to SIL3 (Safety Integrity Level 3) according to IEC 61508, enforcing strict adherence to emergency shutdown logic and burner control parameters. To maintain standard system validation, the module must be configured in strict accordance with the official Safety Manual. The hardware package is delivered as a complete execution kit containing the SM811 processing module, a TP868 horizontal termination baseplate, and a TK852V10 high-speed synchronization link cable to handle real-time mirror processing vectors.

Regulatory Note: This specific hardware design is not RoHS 2 (2011/65/EU) compliant. It serves exclusively as an original spare part for legacy infrastructures placed on the market prior to July 22, 2017, and is intended solely for repair, functional updating, or capacity maintenance loops. For new greenfield installations, the RoHS-compliant SM812K01 sub-assembly must be specified instead.

Features

• High-Integrity Functional Safety: Certified up to SIL3 thresholds to process safety interlocks, emergency shutdowns, and critical process mitigation loops.
• CEX Bus Communication Path: Establishes a secure connection to the communication extension bus interface directly after a BC810 CEX bus interconnection box.
• Complete Replacement Kit: Ships standard with the SM811 module, TP868 baseplate, and TK852V10 synchronization link cable for legacy rack maintenance.

Applications

• Emergency Shutdown Systems (ESD) deployed within legacy oil, gas, and petrochemical process control environments.
• Burner Management Systems (BMS) requiring diverse logical redundancy and validated interlock execution.
• High Integrity Pressure Protection Systems (HIPPS) requiring rapid, deterministic safety loop processing.

System Compatibility

The processing architecture limits direct physical and software coupling to the following approved system combinations:

• Approved Primary Controller: Collaborates natively alongside the PM865 master processor unit.
• Bus Interface Unit: Connects to the primary system line via the BC810 CEX bus interconnection box.

Technical Specifications

Installation Guidelines

• Complete Rack De-energization: Completely isolate and lock out all auxiliary power lines supplying the rack baseplate before installing or adjusting the module framework. Verify zero electrical potential on the bus rails before inserting hardware.
• Continuous ESD Grounding Protocol: This high-integrity card houses low-power static-sensitive components. Maintenance engineers must remain bonded to a verified earth ground via an approved anti-static wrist strap throughout physical handling loops.
• Bus and Termination Layout: Securely mount the TP868 baseplate to the standard rail, establishing clean physical alignment with adjacent extensions. Run the TK852V10 synchronization link cable evenly between the dedicated bus sockets, confirming the locking couplers engagement to stabilize data mirroring.
• CEX Interconnection Requirements: Ensure that the module bus interface maps correctly behind the BC810 CEX bus interconnection box to isolate safety communication from normal process line disturbances.

Compliance and Certifications

• SIL3 certified for execution in functional safety architectures under IEC 61508 criteria.
• Regulatory Constraint Notice: Not RoHS 2 (2011/65/EU) compliant. Restricted strictly to repair and maintenance loops for legacy systems placed on the market prior to July 22, 2017.
