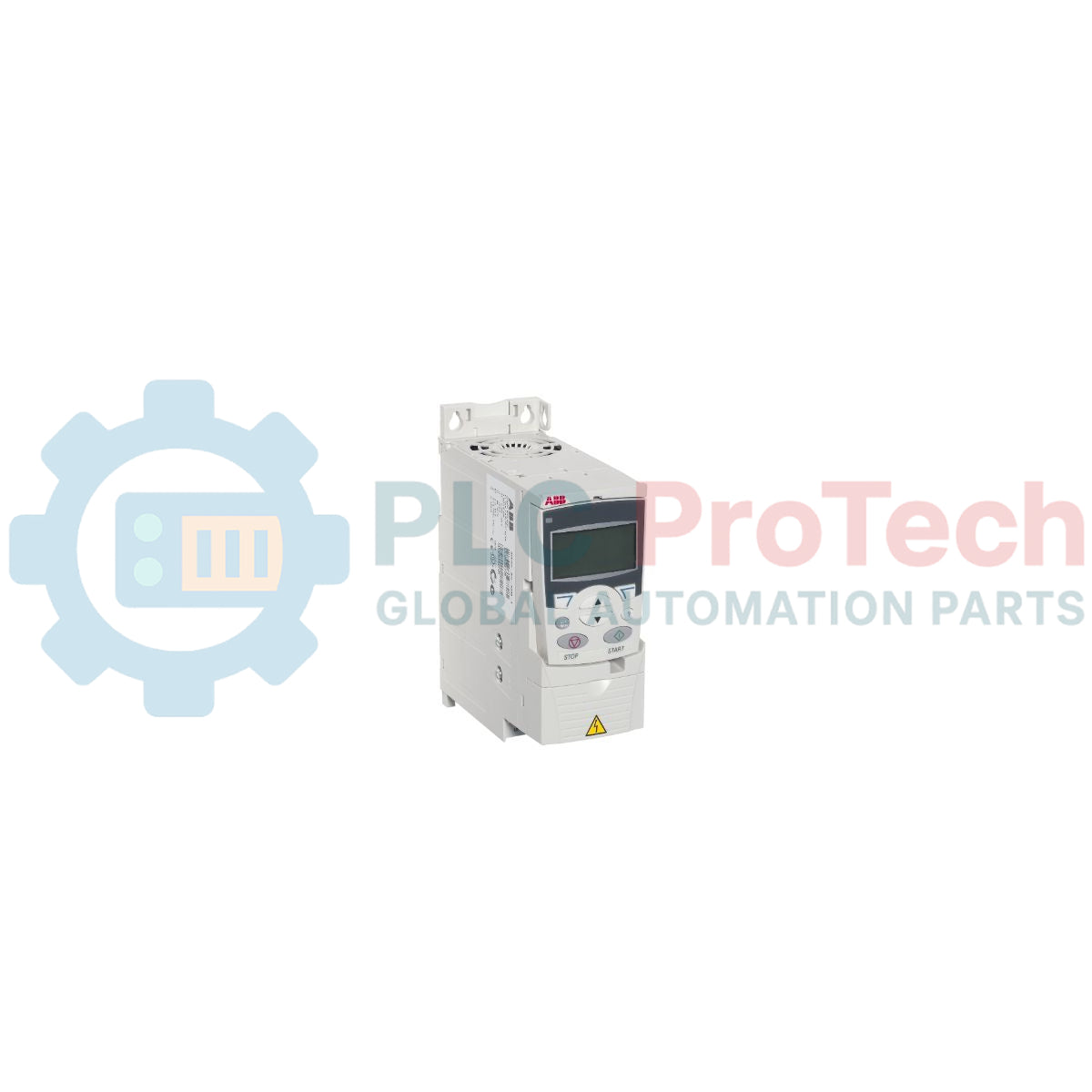

Engineered for rapid integration and precise motor control, the ACS355-03E-04A1-4 variable speed drive delivers high-performance speed and torque regulation for low-power industrial machinery. As part of the globally recognized ACS355 micro drive series, this compact three-phase controller is optimized for cabinet-mounting configurations where space efficiency and functional safety are critical system requirements.
The ACS355-03E-04A1-4 operates on a 380 to 480 V input range, supplying a rated output current of 4.1 A to drive induction and permanent magnet motors up to 1.5 kW (2 HP). Standard built-in features, including a Safe Torque Off (STO) functional safety loop and an integrated braking chopper, eliminate the need for redundant external components, simplifying installation architecture and reducing overall cabinet footprint.
| Manufacturer | ABB |
| Part Number / Model | ACS355-03E-04A1-4 |
| Product Series | ACS355 |
| Input Voltage Range | 380 V to 480 V AC (+/- 10%) |
| Number of Phases | 3-phase input / 3-phase output |
| Output Current (Normal Use) | 4.1 A |
| Motor Power Rating | 1.5 kW (2 HP) |
| Enclosure Protection Class | IP20 / UL Open Type |
| Frame Size | R1 |
| Control Methods | Scalar, Vector (Open Loop and Closed Loop) |
| Integrated Safety | Safe Torque Off (STO) - dual channel |
| Product Weight | 1.2 kg |
| Dimensions (H x W x D) | 169 mm x 70 mm x 161 mm |
| Terminal Category | Interface Capability |
|---|---|
| Analog Inputs | 2 bipolar inputs (voltage or current selectable) |
| Analog Outputs | 1 output (0 to 20 mA) |
| Digital Inputs | 5 programmable inputs (PNP/NPN, pulse train capability) |
| Digital Outputs | 1 auxiliary digital output (transistor type) |
| Relay Outputs | 1 form C SPDT relay output (250 V AC / 30 V DC) |
| Safe Torque Off | Dual-channel STO connections |
| Fieldbus Interface | Modbus RTU via RS-485 (optional extension modules available for EtherCAT, PROFINET, DeviceNet, and CANopen) |
Global Express Shipping
Returns & Warranty
Manufacturer: ABB
Product No.: ACS355-03E-04A1-4
Country of origin:Sweden
Product Type: Variable Frequency Drives
Barcode: 85044095
Payment: T/T, Western Union
Weight: 1200g
Dimensions: 169 mm x 70 mm x 161 mm
Shipping port: Xiamen
Warranty: 12 months
