Description

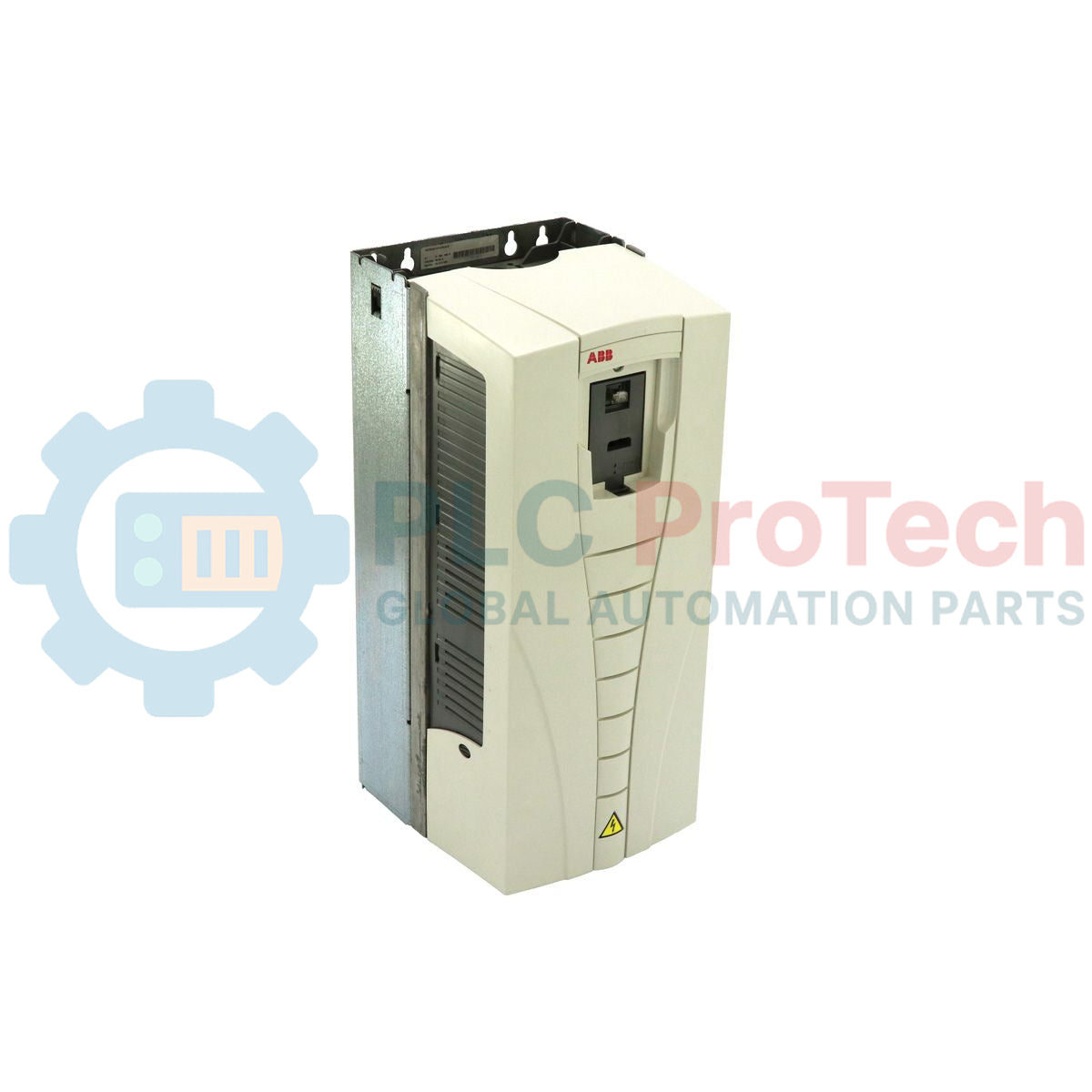

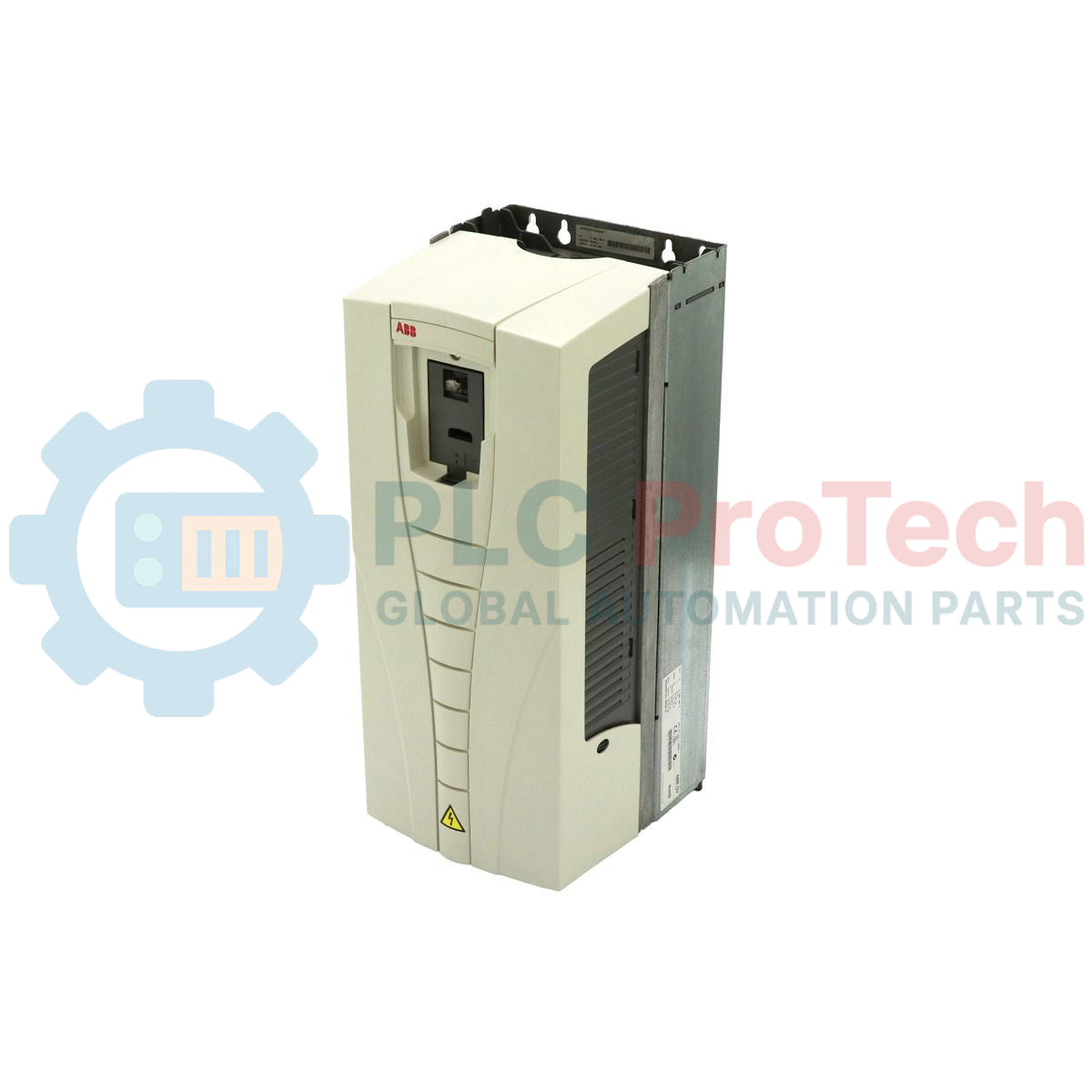

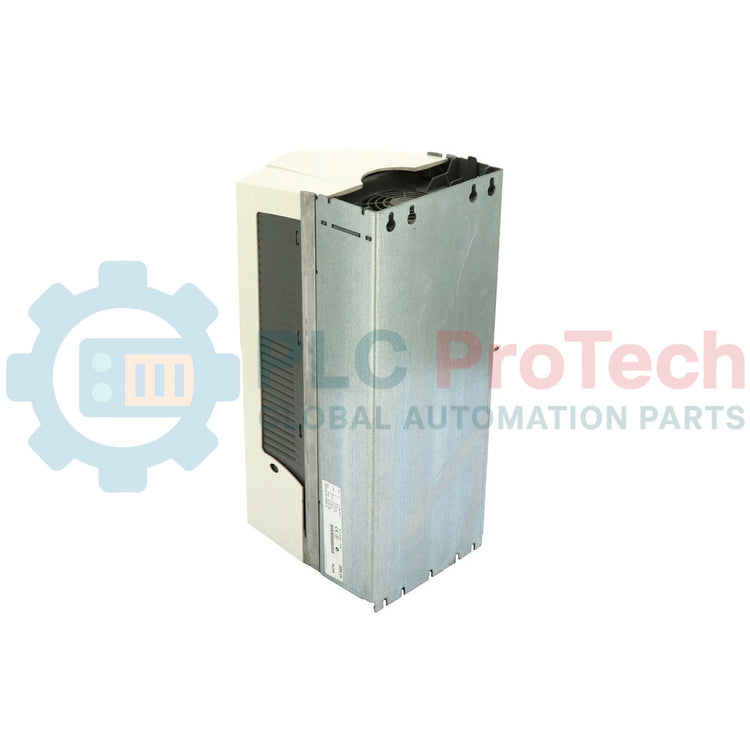

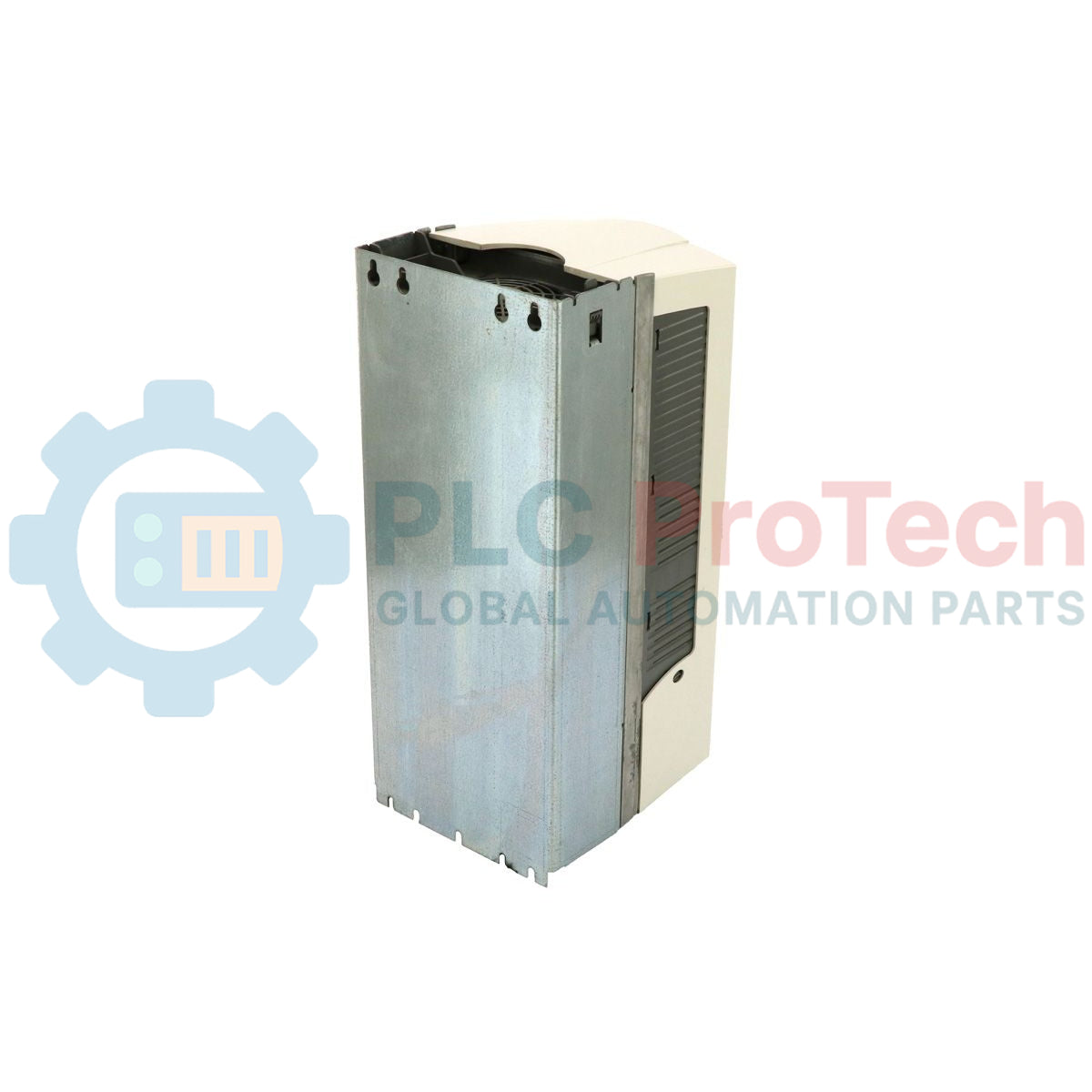

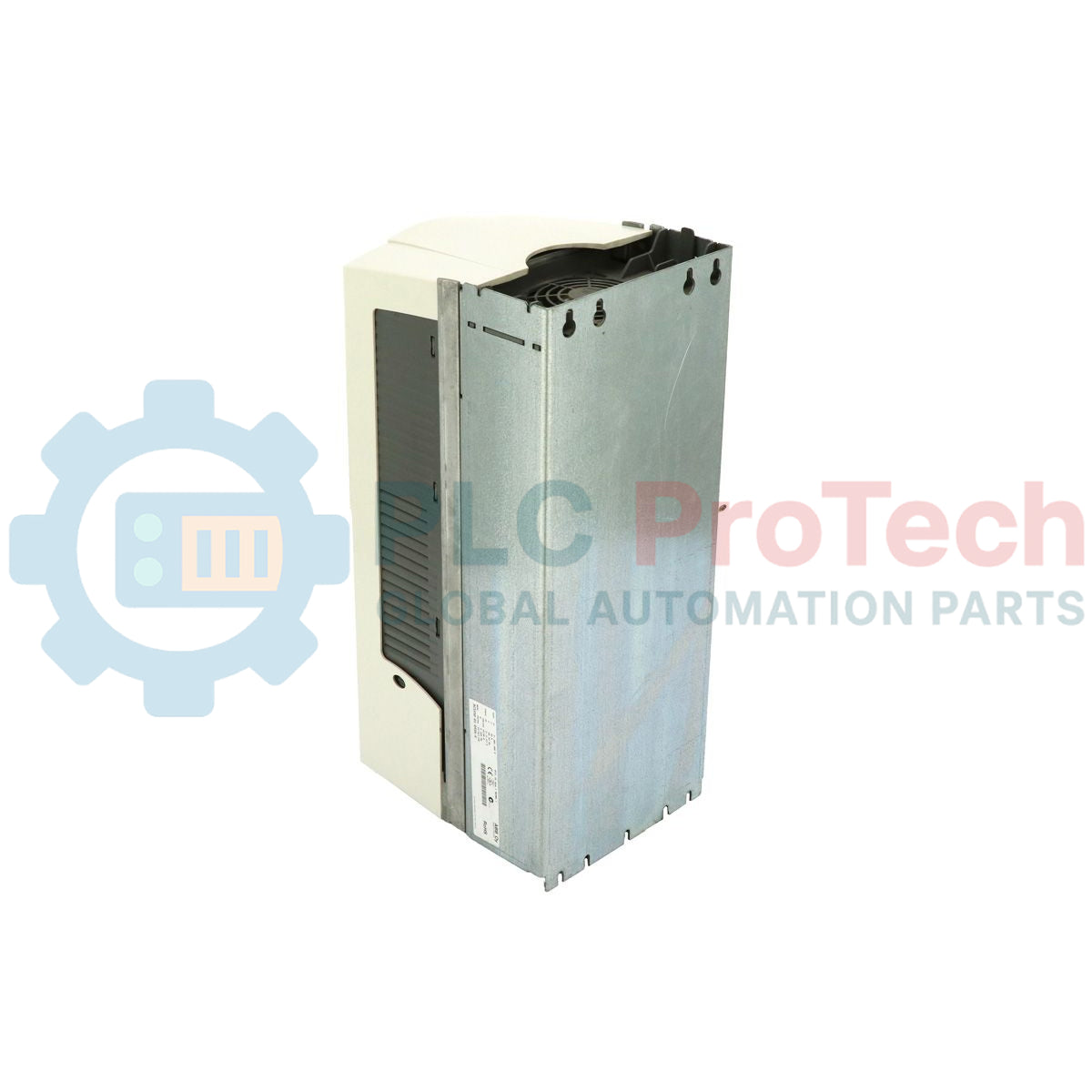

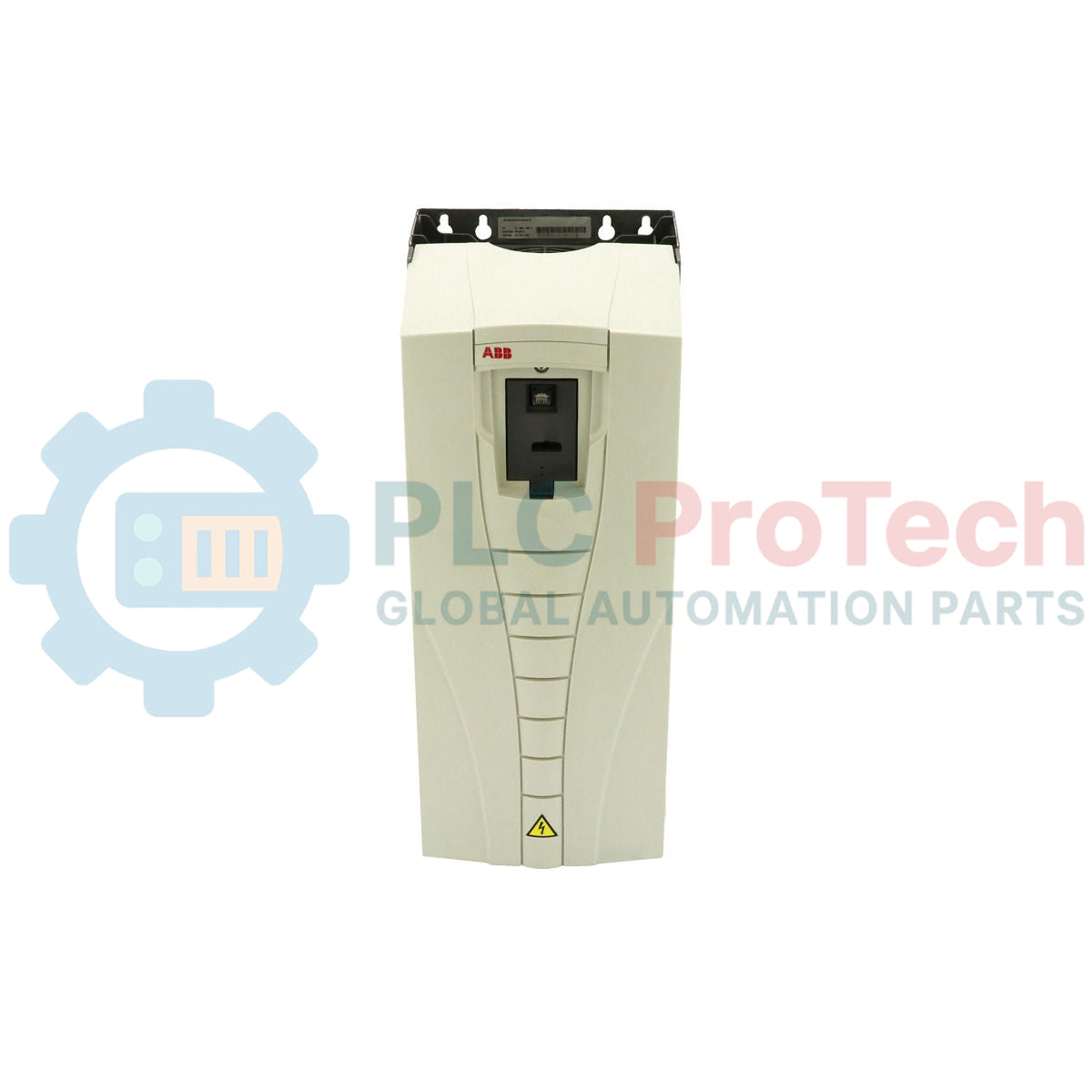

The ABB ACS550-01-045A-4 (Product ID: 3AUA0000012789-D) is a wall-mounted low voltage AC variable frequency drive engineered for controlled speed and torque regulation of three-phase electric motors. Designed for standard industrial applications, this R3 frame size drive operates across a nominal input supply voltage range of 380 V to 480 V at 47.5 Hz to 63 Hz. It delivers robust motor control capabilities suitable for both variable torque and constant torque loads across diverse processing environments.

Engineered with an IP21 / NEMA Type 1 protective enclosure, the ABB ACS550-01-045A-4 accommodates normal duty output currents up to 45 A (22 kW output power) and heavy-duty output currents up to 38 A (18.5 kW output power). Its efficient power conversion performance features an IE2 efficiency rating, supporting optimized energy consumption across varying operating load profiles.

As an essential component of ABB's general-purpose drive family, the ABB ACS550-01-045A-4 3AUA0000012789-D facilitates dependable speed control in industrial automation systems. It integrates smoothly into motor control centers and machine panels, providing consistent performance and system protection for industrial machinery.

Features

• Dual Duty Ratings: Supports normal use output ratings of 45 A / 22 kW and heavy-duty output ratings of 38 A / 18.5 kW to fit diverse motor startup and load requirements.
• Wide Input Voltage Range: Operates on standard 3-phase AC line supplies ranging from 380 V to 480 V at a frequency range of 47.5 Hz to 63 Hz.
• Energy-Efficient IE2 Class Performance: Features optimized power distribution with low relative operating losses across partial and full load states.
• Compact R3 Frame Size: Space-saving wall-mounted physical design enables straightforward cabinet installation or direct wall mounting.
• Standard Environmental Enclosure: Constructed with an IP21 / NEMA Type 1 rating for protection against vertical water drops and solid objects in typical industrial indoor environments.

Applications

• Centrifugal Pumps and Fans: Regulates flow rates dynamically, reducing power consumption during off-peak operations in industrial HVAC and fluid transfer systems.
• Conveyors and Material Handling: Supplies smooth acceleration and speed control to handle continuous product movement and reduce mechanical stress.
• Compressors and Mixers: Delivers steady motor torque control under heavy-duty loading requirements.

Technical Specifications

General

Electrical

Performance and Efficiency

Mechanical and Environmental

Installation Guidelines

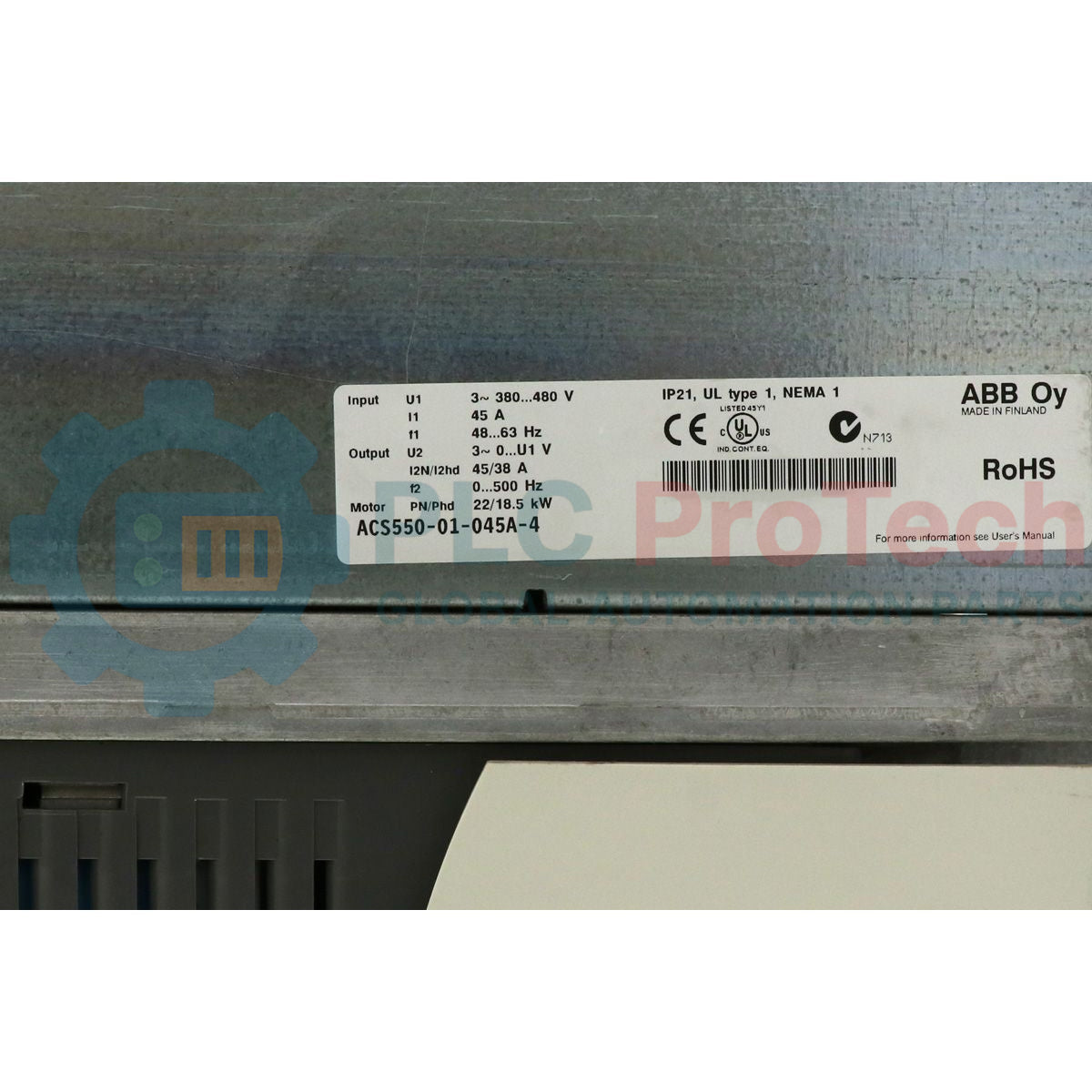

1. Pre-installation Verification: Inspect the drive rating plate to ensure the voltage rating (380 V–480 V) and current capacity match the local power supply and motor specifications.
2. Mounting: Mount the unit vertically on a smooth, solid, non-flammable surface in an IP21 / NEMA Type 1 clean indoor environment.
3. Airflow Considerations: Maintain adequate vertical clearance above and below the R3 frame enclosure to ensure unrestricted cooling airflow.
4. Power Wiring: Wire the 3-phase main power supply and motor connections using correctly sized cables and appropriate protective fuses or circuit breakers. Ensure protective earth (PE) connections are grounded securely.
5. Control and Signal Connections: Separate control, analog signal, and communication cables from high-voltage power wiring to avoid electromagnetic interference.

Configuration and Commissioning

• Parameter Backup: Before replacing an existing drive, back up or document all custom parameter settings from the control panel.
• Basic Setup: Configure key motor nameplate parameters including nominal voltage, current, frequency, speed, and power ratings.
• I/O Configuration: Set digital and analog inputs for start/stop control signals and speed references according to control system wiring.
• Operational Checks: Perform an initial uncoupled motor rotation check to confirm correct output phase rotation and direction before operating under full load conditions.
