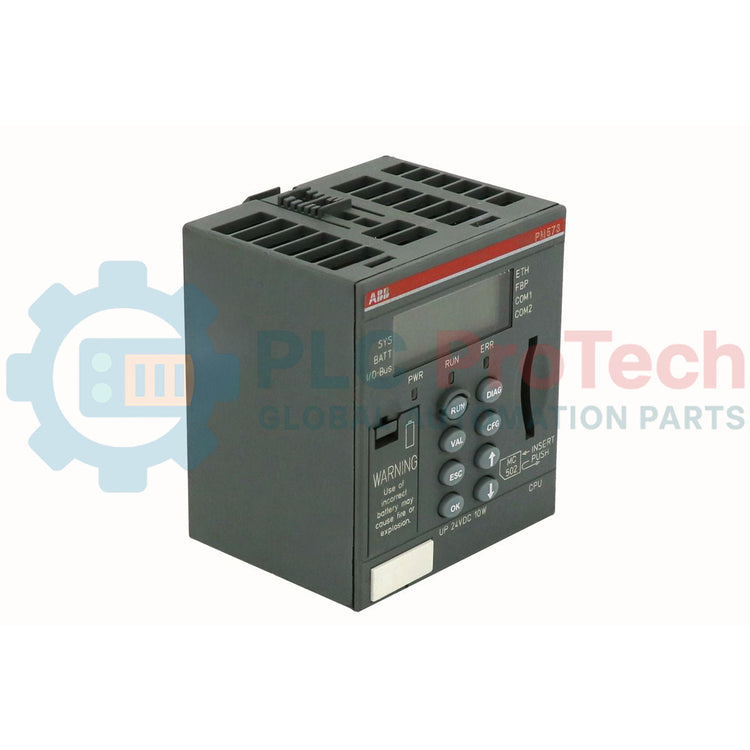

ABB PM573-ETH 1SAP130300R0271 AC500 Controller Module

SKU 1SAP130300R0271

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: ABB
  • Product No.: 1SAP130300R0271
  • Origin Sweden
  • Product Type: Controller Modules
  • Barcode: 85371091
  • Payment: T/T, Western Union
  • Weight: 0.66 kg
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

AC500 Series Controller Modules
Quantità
Call sales Contact

Product Description

Description

Engineered for demanding industrial automation applications, the PM573-ETH (part number 1SAP130300R0271) serves as a high-performance central processing unit within the ABB AC500 PLC platform. This robust controller is designed to manage complex logic processes, offering a 512 KB program memory capacity and seamless system expandability.

The unit features native Ethernet connectivity for efficient factory networking and remote monitoring, alongside two serial interfaces configurable for RS232 or RS485 communication protocols. A dedicated FieldBusPlug (FBP) slot allows for flexible fieldbus integration, while the integrated front-panel LCD display provides direct, real-time diagnostic feedback and configuration options. For reliable data logging, program transfer, and firmware updates, the controller is equipped with an easily accessible SD card slot.

Features

  • 512 KB of onboard program and data memory for processing control logic.
  • Integrated RJ45 Ethernet interface supporting standard industrial network protocols.
  • Dual serial ports configurable for RS232 or RS485 serial communication.
  • Dedicated FieldBusPlug (FBP) port for versatile fieldbus adapter connections.
  • Front-panel LCD screen for localized status diagnostics and parameter configuration.
  • Integrated SD card slot for secure configuration backup and data storage.
  • Powered by a standard industrial 24 VDC supply voltage.

Applications

  • Water and wastewater management systems.
  • Power generation and auxiliary control systems.
  • Factory automation and machine-level control.
  • HVAC and building infrastructure control systems.

Technical Specifications

Manufacturer ABB
Model / Article Number PM573-ETH / 1SAP130300R0271
Series AC500
Product Type Programmable Logic Controller CPU
Program Memory 512 KB
Supply Voltage 24 VDC
Communication Interfaces 1x Ethernet (RJ45), 2x Serial (RS232/RS485), 1x FBP (FieldBusPlug)
Storage Slot SD Card Slot
Display Integrated LCD Display
Weight 0.66 kg
Commodity Code 85371091

Installation Guidelines

  • Mounting: Install the CPU module securely onto the designated AC500 terminal base on a standard DIN rail.
  • Wiring: Ensure all power connections use a stabilized 24 VDC source with appropriate overcurrent protection.
  • Grounding: Connect the functional earth connection on the terminal base directly to the system's low-impedance ground bus.
  • Ventilation: Maintain standard clearance distances above and below the module to permit natural convection cooling and prevent thermal buildup.
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
What is the memory size of the ABB PM573-ETH controller?
The PM573-ETH (1SAP130300R0271) features 512 KB of dedicated program and data memory.
What communication ports are built into the 1SAP130300R0271 module?
The controller contains one RJ45 Ethernet port, two serial ports configurable for RS232 or RS485 communication, and one FieldBusPlug (FBP) connection interface.
Does this controller support local program storage and backups?
Yes, the front panel includes an integrated SD card slot designed for program storage, data logging, configuration backups, and firmware loading.
What power supply is required for the PM573-ETH?
The controller requires a standard industrial 24 VDC power supply connected through the compatible AC500 terminal base.
