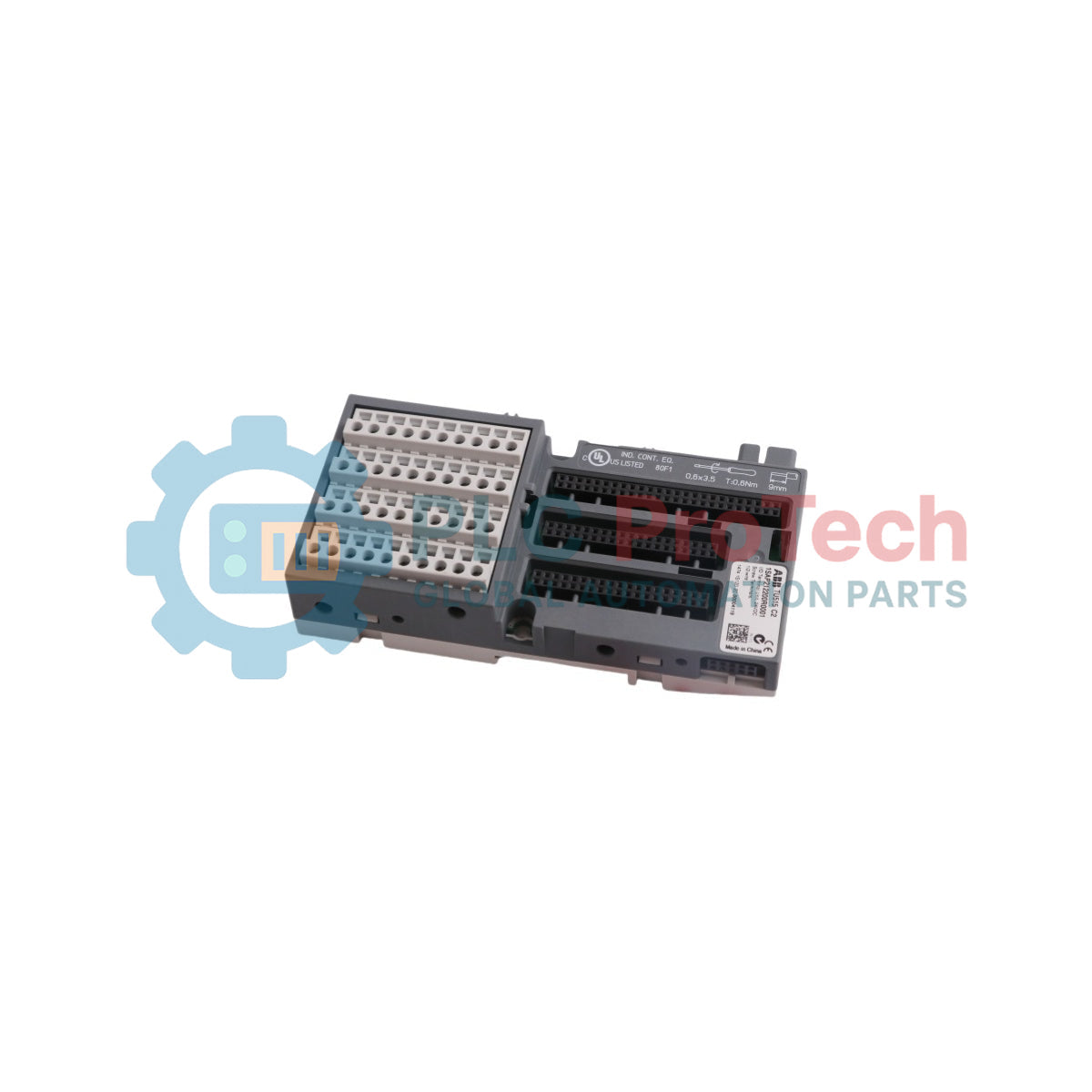

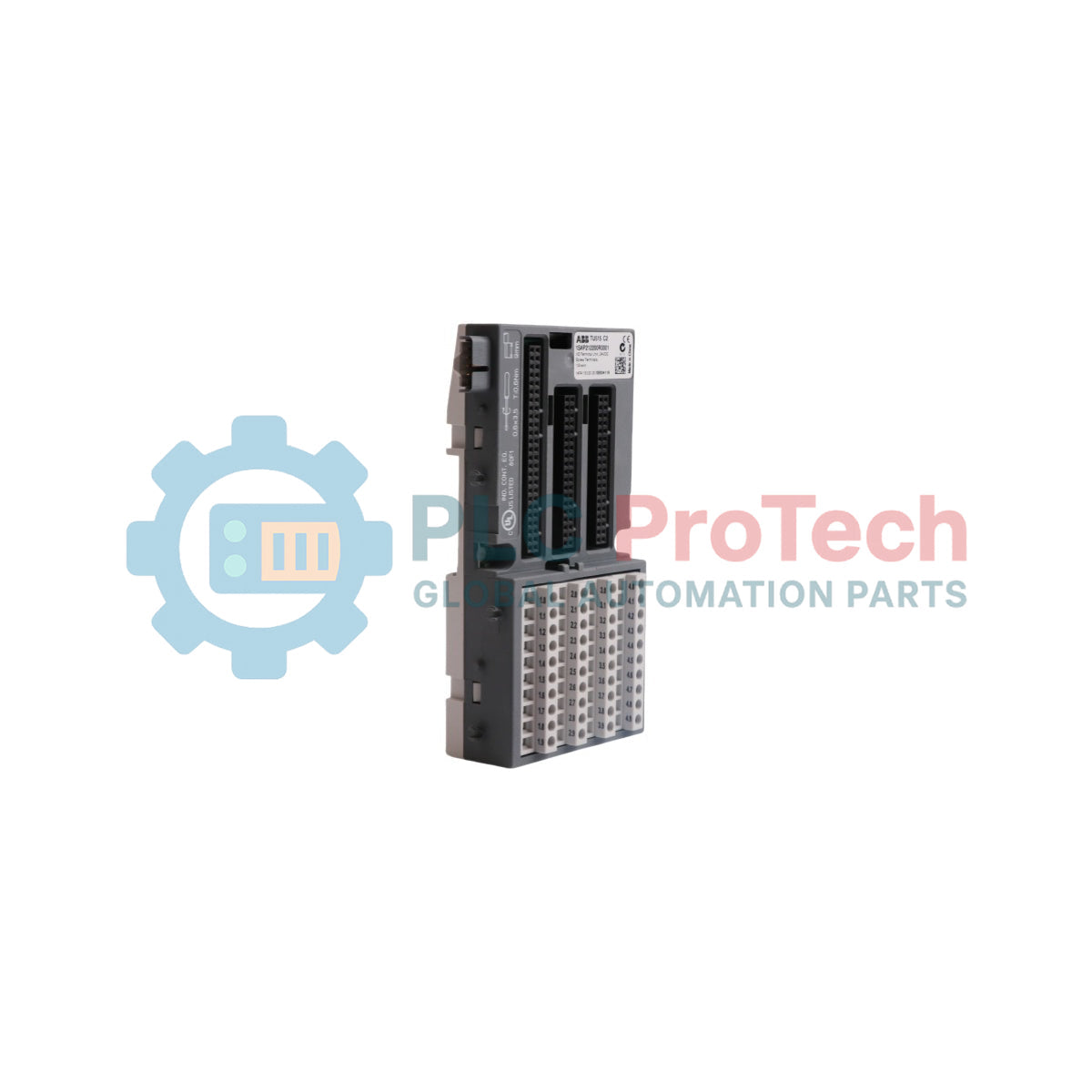

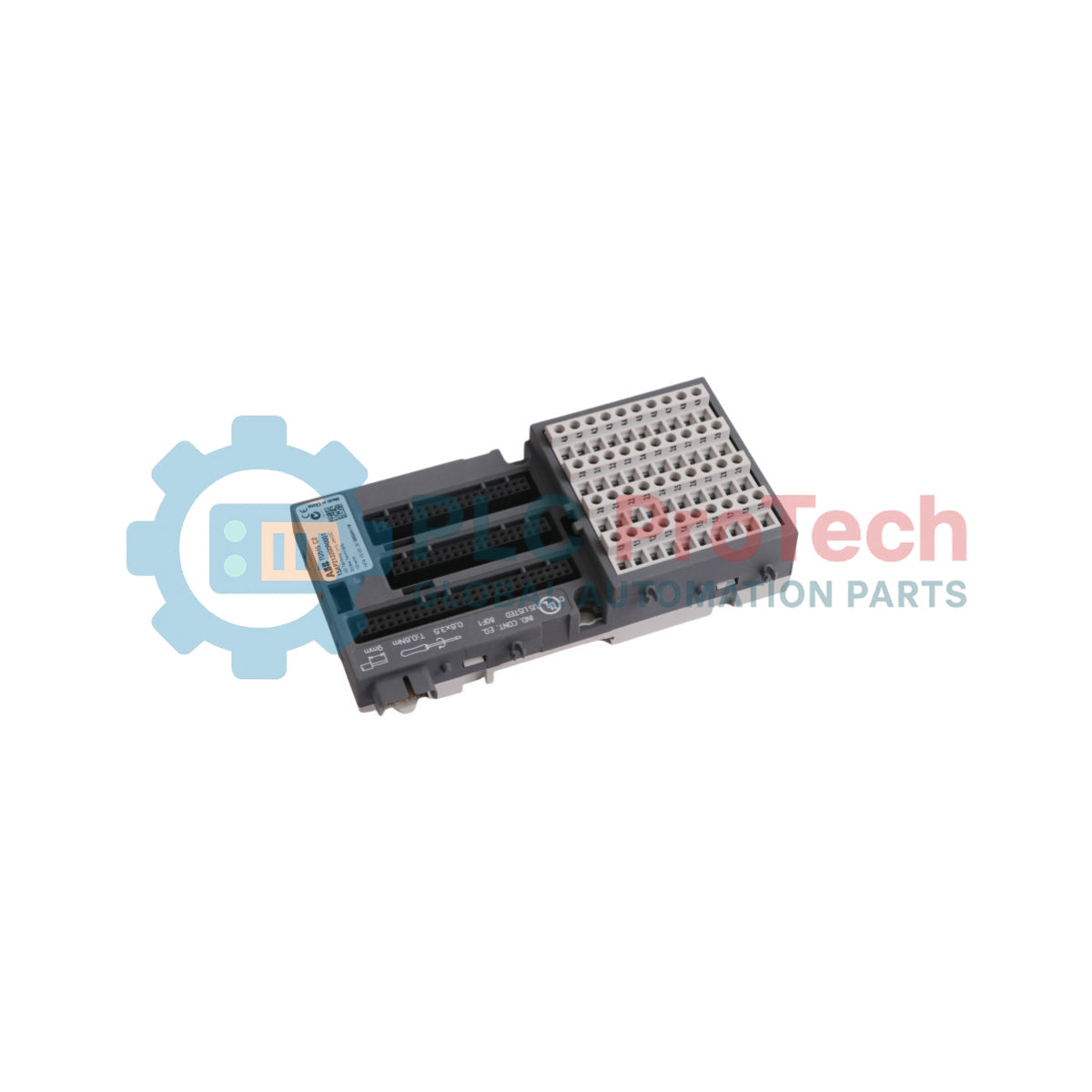

The TU515 is an S500-eCo I/O terminal unit designed for analog and 24 VDC digital modules in ABB distributed automation systems. It provides screw terminal connections for field wiring integration within PLC and process control applications.
The unit supports reliable signal termination for S500-eCo I/O assemblies and is intended for use with ABB analog and digital modules operating at 24 V DC. The 1SAP212200R0001 terminal unit is suitable for industrial cabinet installations requiring compact DIN rail-mounted wiring infrastructure.
Its screw terminal design allows secure field cable connections for distributed I/O architectures. The TU515 is used in ABB PLC automation environments where organized signal routing and modular I/O expansion are required.
The terminal unit is designed for industrial automation systems including machine control, process monitoring, and distributed control applications.
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Product ID | 1SAP212200R0001 |
| ABB Type Designation | TU515 |
| Product Main Type | TU515 |
| Series | S500-eCo I/O |
| Product Name | Distributed Automation I/Os |
| Function | For analog and 24 VDC digital modules. Screw terminals |
| Terminal Type | Screw terminals |
| Supply Voltage | 24 V DC |
| Number of Analog Configurable I/Os | 0 |
| Degree of Protection | IP20 |
| Operating Temperature | 0 ... +60 degC |
| Storage Temperature | -40 ... +70 degC |
| Product Width | 67.5 mm |
| Product Height | 135 mm |
| Product Depth | 28 mm |
| Net Weight | 0.232 kg |
| Gross Weight | 0.262 kg |
| EAN | 4016779649223 |
| CN8 | 85389091 |
| eClass | 27-24-22-92 |
| ETIM 8 | EC000810 - PLC mounting rack |
| UNSPSC | 32151703 |
| Selling Unit | piece |
Install the terminal unit on a grounded DIN rail inside an industrial control cabinet. Maintain sufficient clearance for cable routing and ventilation around adjacent I/O modules.
Separate signal wiring from high-voltage power cables to reduce electromagnetic interference. Ensure screw terminals are properly tightened according to field wiring practices to maintain stable electrical connections.
Verify compatibility with associated S500-eCo analog and 24 VDC digital modules before commissioning the system.
What is the function of the TU515?
It provides field wiring termination for analog and 24 VDC digital modules.
Which ABB I/O platform supports this terminal unit?
It is designed for ABB S500-eCo I/O systems.
What terminal type is used?
The unit uses screw terminal connections.
What supply voltage is specified?
The specified supply voltage is 24 V DC.
Can the unit be installed on a DIN rail?
Yes. It is intended for DIN rail cabinet installation.
What protection rating is provided?
The terminal unit is rated IP20.
Is the unit suitable for analog modules?
Yes. It supports analog module applications.
Can it be used with digital modules?
Yes. It supports 24 VDC digital modules.
What is the operating temperature range?
The operating range is 0 to +60 degC.
What is the storage temperature specification?
The storage temperature range is -40 to +70 degC.
What is the net weight of the module?
The net weight is 0.232 kg.
Is the unit intended for industrial automation systems?
Yes. It is used in distributed automation and PLC environments.
Does the module include communication functionality?
No communication interface is specified for this terminal unit.
What type of applications commonly use this unit?
It is commonly used in process control and machine automation systems.
Global Express Shipping
Returns & Warranty
Manufacturer: ABB
Product No.: TU515 1SAP212200R0001
Country of origin:Sweden
Product Type: Terminal Unit
Barcode: 85389091
Payment: T/T, Western Union
Weight: 262g
Dimensions: 67.5 mm x 135 mm x 28 mm
Shipping port: Xiamen
Warranty: 12 months
