Description

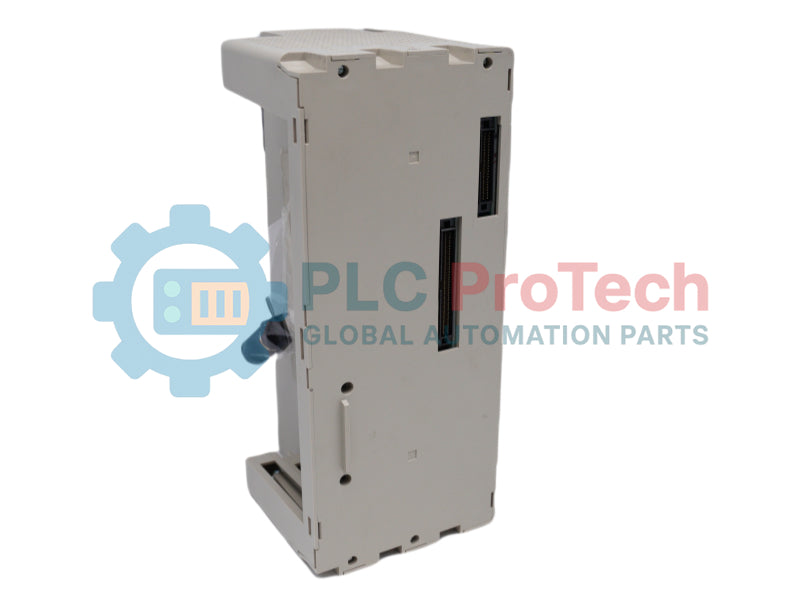

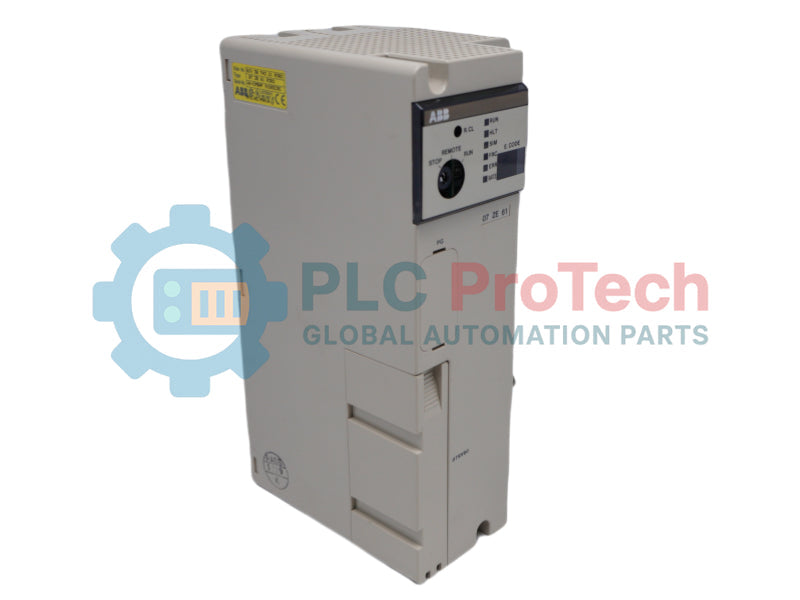

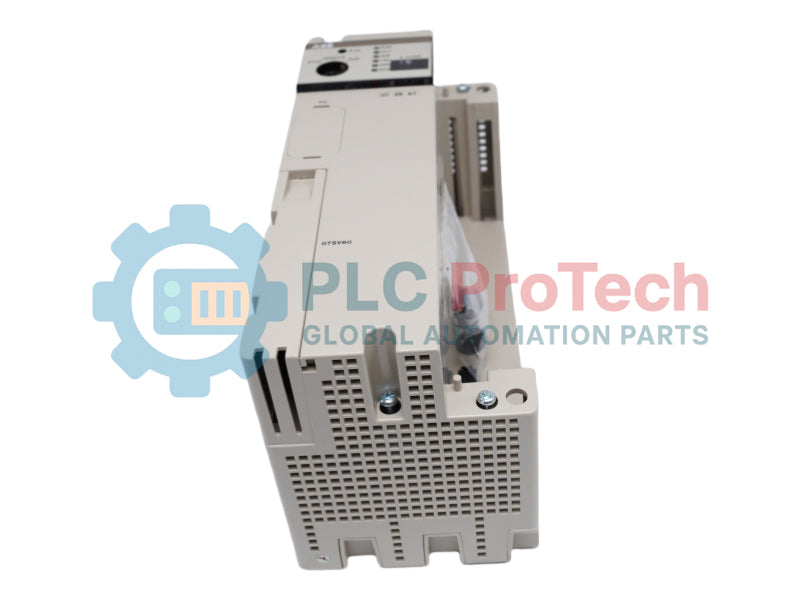

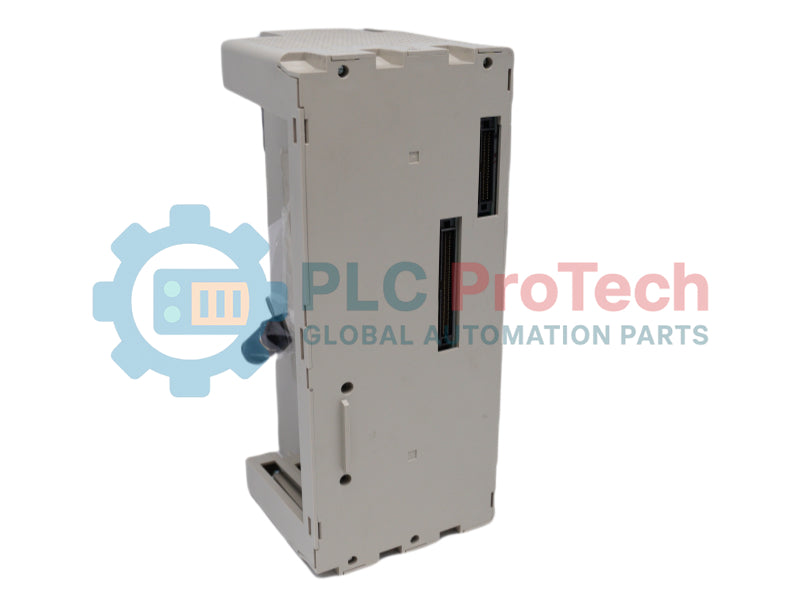

The 07 ZE 61 R302 (Order Number: GJV3074321R302) serves as the primary processing engine and central coordination driver for the ABB Procontic T200 programmable logic control platform. This hardware functions as the core system processor, managing high-speed program execution, arithmetic logic computation, and real-time data table updating across a centralized or distributed backplane network.

The central architecture provides an extensible physical infrastructure, capable of directly addressing a maximum of 2 subracks containing up to 18 I/O slots when deployed in a centralized localized expansion setup utilizing 1 expansion subrack. For complex plant configurations or wide-area installation environments, the interface supports additional remote I/O expansion protocols. This capability allows the subsystem to integrate distributed field modules and remote communications racks into its active scanning loop, maintaining unified deterministic processing, diagnostic oversight, and synchronous synchronization across extensive automated manufacturing networks.

Features

• Houses the primary central processing architecture designed exclusively for the ABB Procontic T200 platform footprint.
• Architected to support configuration arrays of a maximum of 2 subracks during centralized layout implementations.
• Governs up to 18 discrete hardware I/O slots over a single central expansion rack interface.
• Features specialized data links accommodating additional remote I/O expansion infrastructures to capture decentralized field telemetry.
• Integrates seamlessly into standard T200 system backplanes via dedicated high-density multi-pin bus connectors.

Applications

• Main control processing unit for medium-to-high capacity machinery automation, complex material distribution networks, and processing environments.
• Centralized master controller interfacing with distributed remote multi-rack I/O frameworks across heavy industrial facilities.
• Legacy system maintenance, hardware retrofits, and operational spare replacements for active Procontic T200 automation lines.

Ordering Information

Technical Specifications

Installation Guidelines

• Dedicated Chassis Positioning: Mount the central processor hardware exclusively into the designated ZE (Central Unit) slot framework positioned on the primary base subrack assembly.
• Backplane Engagement Verification: Slide the module evenly along the subrack guide tracks until the heavy-duty multi-pin rear connectors seat firmly into the backplane, securing all integrated locking screws tightly to prevent contact displacement from ambient vibration.
• Expansion Cable Run Management: When linking the secondary centralized rack or deploying remote I/O extensions, utilize certified high-shielded communication cables routed through separate wiring troughs to isolate data paths from high-voltage motor power lines.
• Enclosure Cooling Spacing: Ensure that the 165 mm deep hardware profile matches the minimum internal enclosure clearance boundaries, preserving unobstructed vertical path alignment beneath the subrack assembly to permit steady ambient convection cooling air movement.

FAQ

• What is the structural slot consumption profile of the 07 ZE 61 R302 processor within the primary rack assembly?

  The unit features a broad mechanical footprint that occupies a dedicated 106.5 mm slot block, matching the standardized dual or triple-width space allocation required for Procontic T200 central processing engines.

• How are the 18 I/O slots allocated when using the centralized expansion option?

  The main rack connects directly across the subrack expansion plane to 1 expansion subrack, which provides up to 18 integrated slots to distribute input, output, or specialized communication modules under direct local execution.

• Can this specific controller card be used to manage distributed field devices located at a long physical distance?

  Yes, while the primary central rack expansion handles adjacent slots, this card is built with dedicated remote I/O capability, allowing it to govern network links out to distant decentralized instrument blocks.

• Is it permissible to pull the processor unit out of the backplane rack for inspection while the power supply is active?

  No, always turn off the system power supply unit before performing any extraction or insertion of the central module to protect the internal data bus registries and electronic circuits from permanent damage or corruption.
