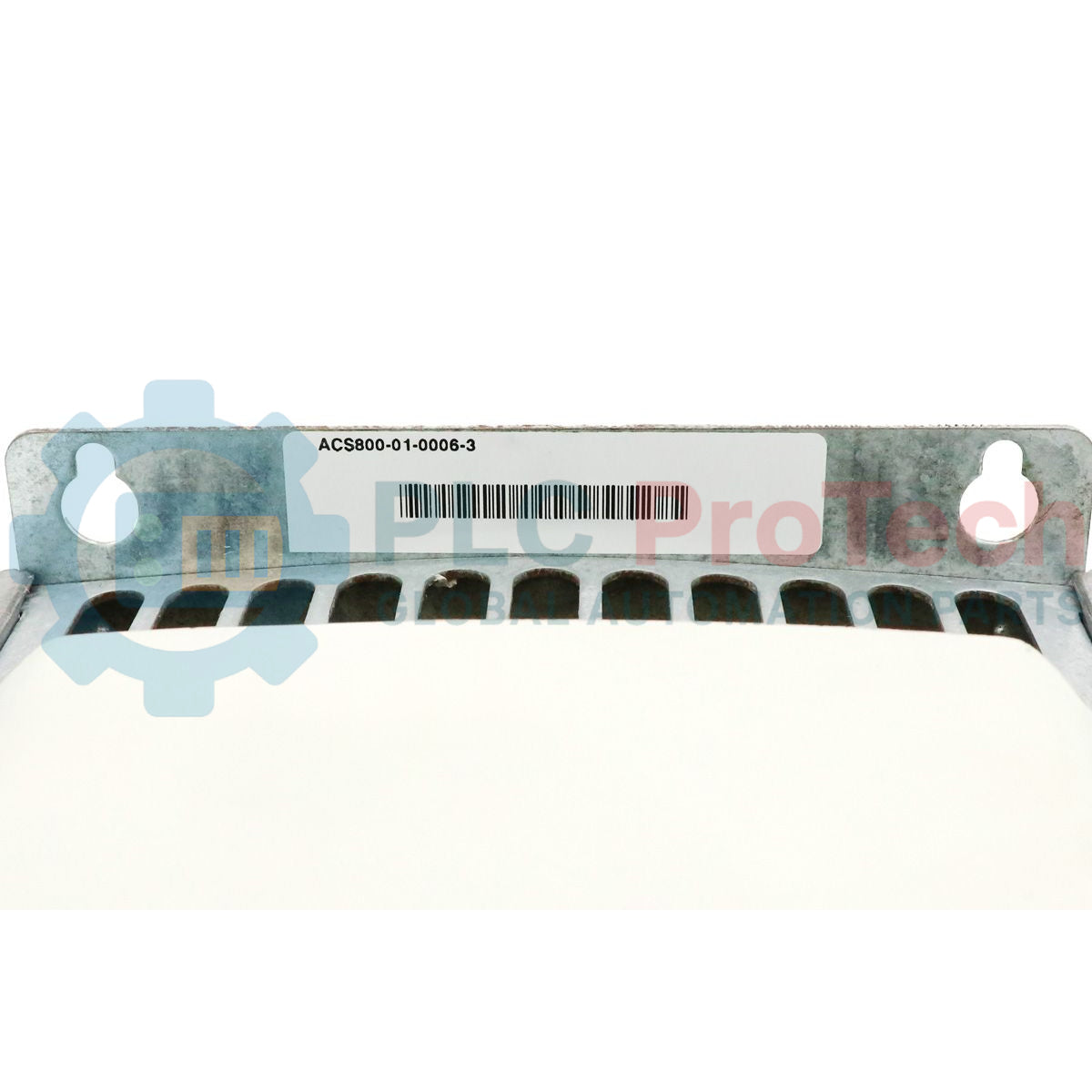

The ABB ACS800-01-0006-3 is a wall-mounted industrial drive for precise motor control.
It delivers 4 kW nominal power (3 kW heavy-duty) with 3-phase 380–415 V operation.
Moreover, it features Direct Torque Control (DTC), integrated brake chopper, and IP21 protection for reliable industrial use.
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Product Type | Wall-Mounted Industrial Drive |
| Model / Type Designation | ACS800-01-0006-3 |
| Frame Size | R2 |
| Input Voltage | 3-phase 380 / 400 / 415 V AC |
| Normal Duty Power (PN) | 4 kW (10.2 A) |
| Heavy Duty Power (Phd) | 3 kW (7.5 A) |
| Max Output Current (Imax) | 13.8 A |
| Cooling Air Flow | 35 m³/h |
| Heat Dissipation | 160 W |
| Protection Degree | IP21 / UL Type 1 |
| Control Panel | CDP 312R (Removable) |
| Brake Chopper | Internal (standard for R2) |
| Compatible Brake Resistor | SACE08RE44 (44 Ω) |
| Recommended Fuse | 16A (OFAF000H16 / IEC Size 000) |
| Mechanical Configuration | Wall-mounted, built-in cable connection box |
| Key Features | Direct Torque Control, integrated diagnostics, optional fieldbus adapters |
<ul> <li>Fans, pumps, and conveyor motor control</li> <li>Industrial machinery requiring precise speed and torque</li> <li>Light-overload and heavy-duty operations</li> <li>Systems requiring integrated brake chopper and thermal management</li> <li>Applications needing reliable energy-efficient motor performance</li> </ul>
Global Express Shipping
Returns & Warranty
Manufacturer: ABB
Product No.: ACS800-01-0006-3
Country of origin:Sweden
Product Type: Wall-Mounted industrial Drive
Barcode: 85044095
Payment: T/T, Western Union
Weight: 9000g
Dimensions: 16.50cm x 40.50cm x 22.60cm
Shipping port: Xiamen
Warranty: 12 months
