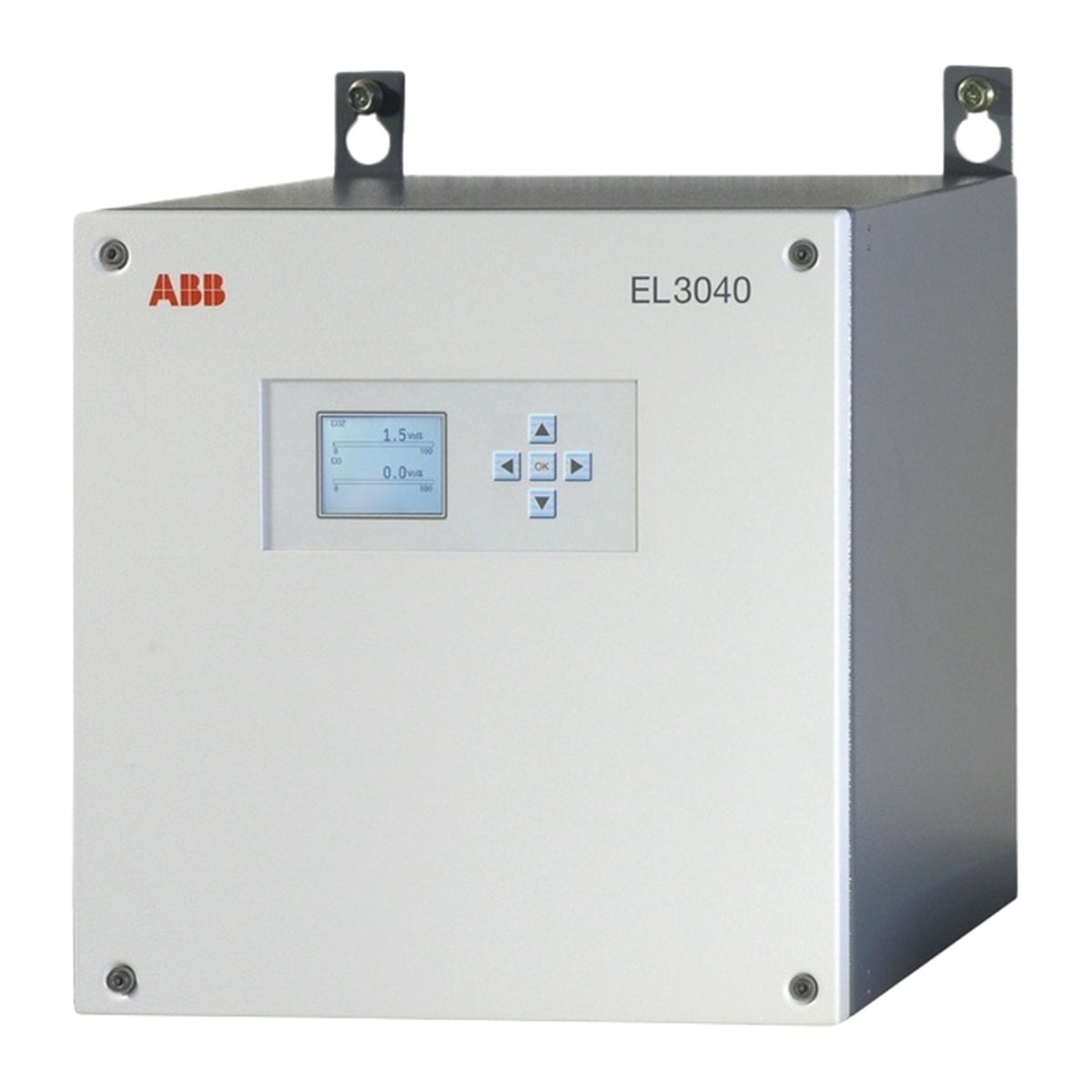

ABB EL3040 EasyLine EL3000 Series Continuous Gas Analyzer

SKU EL3040

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: ABB
Product No.: EL3040
Origin Switzerland
Product Type: Continuous Gas Analyzer
Payment: T/T, Western Union
Weight: 21.0 kg
Dimensions: 366 mm x 480 mm x 230 mm (H x W x D)
Shipping port: Xiamen
Warranty: 12 months

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

Quantità

Call sales Contact

Product Description

Description

ABB EL3040 EasyLine EL3000 Series Continuous Gas Analyzer is a wall-mount continuous gas analyzer designed for industrial process monitoring and emission measurement applications. The EL3040 provides continuous measurement of up to five gas components depending on the integrated analyzer module, including photometer, paramagnetic, electrochemical, thermal conductivity, and zirconium dioxide sensors. Built in an IP65 wall-mountable housing, the EL3040 supports customizable analog outputs (0/4-20 mA), digital inputs/outputs, and serial communications via Modbus, Profibus, or standard Ethernet interfaces.

Features

Wall-mount housing design rated to IP65 degree of protection
Measures up to five gas components per gas analyzer
Supports automatic calibration including control of pumps and solenoid valves
Integrated Ethernet-10/100BASE-T interface for configuration, software updates, and optional QAL3 data transfer
Optional QAL3 monitoring functionality according to EN 14181 with internal data storage up to 1 year
Backlit graphics display with 240x160-pixel resolution and menu-driven 5-key user interface
Compatible with Uras26, Limas23, Magnos206, Caldos27, ZO23, and electrochemical oxygen sensor modules
Version available for measurement of flammable gases in general purpose environments with housing purge
Version with protection type II 3G for installation in hazardous locations measuring non-flammable gases

Applications

Industrial process gas monitoring
Continuous emission monitoring systems (CEMS)
Measurement of oxygen in pure gases (nitrogen, carbon dioxide, argon)
Hydrogen-cooled turbogenerator monitoring
Flue gas and combustion control applications

Technical Specifications

Parameter	Specification
Manufacturer	ABB
Model	EL3040
Series	EasyLine EL3000 Series
Device Type	Wall-mount Continuous Gas Analyzer
Housing Material	Galvanized sheet steel / Stainless steel 1.4016 (SAE 430)
Ingress Protection Rating	IP65
Dimensions	366 mm x 480 mm x 230 mm (H x W x D)
Weight	Approx. 13-21 kg
Power Supply Input Voltage	100-240 V AC (-15 / +10%), 50-60 Hz (±3 Hz)
Power Consumption	Max. 187 VA
Display	Backlit graphics display, 240 x 160 pixels
User Interface	5 keys (cursor cross and OK), menu-driven
Operating Temperature	+5 to +45 degC (General); +5 to +40 degC (Uras26 combined / Limas23)
Storage Temperature	-25 to +65 degC
Relative Humidity	< 75%, slight condensation allowed
Installation Altitude	Max. 2000 m above sea level
Ethernet Interface	10/100BASE-T, 8-pin RJ45 plug
Analog Outputs	2-way or 4-way modules, 0/4-20 mA, max. load 750 Ohm, 16 bit
Digital Inputs/Outputs	4 digital inputs (optocouplers, 12-24 VDC), 4 digital outputs (floating contacts max. 30 VDC / 1 A)
Fieldbus Modules	Modbus (RS232 / RS485), Profibus (RS485 / MBP)

Connections/Interfaces

Modbus Module Interface

Connector Pin	Function
RS232 Pin 2	RxD
RS232 Pin 3	TxD
RS232 Pin 5	GND
RS485 Pin 2	RTxD-
RS485 Pin 3	RTxD+
RS485 Pin 5	GND

Profibus Module Interface

Connector Pin	Function
RS485 Pin 2	M24 (24 V output ground, max. 0.2 A)
RS485 Pin 3	RxD/TxD-P (Receive/transmit data plus, B-line)
RS485 Pin 5	DGND (Data transmission potential)
RS485 Pin 6	VP (Supply voltage plus, 5 V)
RS485 Pin 7	P24 (24 V output voltage plus)
RS485 Pin 8	RxD/TxD-N (Receive/transmit data N, A-line)
MBP Terminal 1	+
MBP Terminal 2	Shield

Analog Output Module

Connector Pin	Function
Terminal 1	AO1+
Terminal 2	AO1-
Terminal 3	AO2+
Terminal 4	AO2-
Terminal 5	AO3+ (4-way module only)
Terminal 6	AO3- (4-way module only)
Terminal 7	AO4+ (4-way module only)
Terminal 8	AO4- (4-way module only)

Cable Gland Assignment (Model EL3040 Base)

Connector Pin	Function
M20	Power supply connection (5-13 mm cable diameter)
M25	Modbus / Profibus (8-17 mm cable diameter)
M25	Network / Ethernet (8-17 mm cable diameter)
M25	Analog outputs (8-17 mm cable diameter)
M32	Digital inputs / outputs (12-21 mm cable diameter)

Installation Guidelines

Mounting: Wall-mount housing requires a clearance of 360 mm to allow the front door to swing open completely.
Housing Purging: Housing purge is mandatory when measuring flammable gases in model EL3040. Purge gas flow rate must be maintained between 10 l/h and 20 l/h at a purge pressure of 2-4 hPa.
Electrical Isolation: The main power supply is galvanically isolated from other circuits by reinforced/double insulation (PELV on low-voltage side). Connect main power using the supplied 3-pin plug per EN 60320-1/C14.
Cable Wiring: Maximum terminal capacity for stranded or solid conductors is 1 mm2 (17 AWG). Use wire end ferrules with a maximum conductor cross-section of 0.5 mm2 crimped via Weidmuller PZ 6/5.
Grounding: Potential compensation connection supports a maximum wire size of 4 mm2.

Compliance and Certifications

CE Conformity: 2006/95/EC Low Voltage Directive (EN 61010-1:2001), 2004/108/EC EMC Directive (EN 61326-1:2006, EN 61000-3-2:2006, EN 61000-3-3:1995+A1:2001+A2:2005), 94/9/EC ATEX Directive (EN 60079-15:2005)
ATEX / Hazardous Locations: II 3G Ex nAC II T4 X (Category 3G for measurement of non-flammable gases and vapors)
CSA Approval (USA/Canada): Certified for general purpose environment (CAN/CSA-C22.2 No. 61010-1-04, UL Std. No. 61010-1 2nd Edition, Certificate No. 1714030)
NEPSI (China): Certified for hazardous locations, Ex nAC II CT4 (Certificate No. GYJ101401X)
GOST-R (Russia): Certificate No. POCC DE.HO03.B03490, Rostekhnadzor PPC 00-39671, Pattern approval DE.C.31.004.A No. 37984
Performance Testing: EN 15267, EN 14181 (QAL1), EN ISO 14956, 27th/30th BImSchV, and TA-Luft

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What protection class is the housing on the device?

The wall-mount housing of the device provides an IP65 degree of protection.

What power supply voltage is required for operating the device?

The device operates on an input voltage of 100-240 V AC (-15/+10%) at 50-60 Hz (±3 Hz).

What is the maximum number of gas components the device can measure?

The device is capable of measuring up to five gas components simultaneously depending on the selected analyzer modules.

Is housing purging required for measuring flammable gases?

Yes, housing purge with nitrogen (or air for ZO23) at a flow rate of 10 to 20 l/h is mandatory when measuring flammable gases with this housing model.
