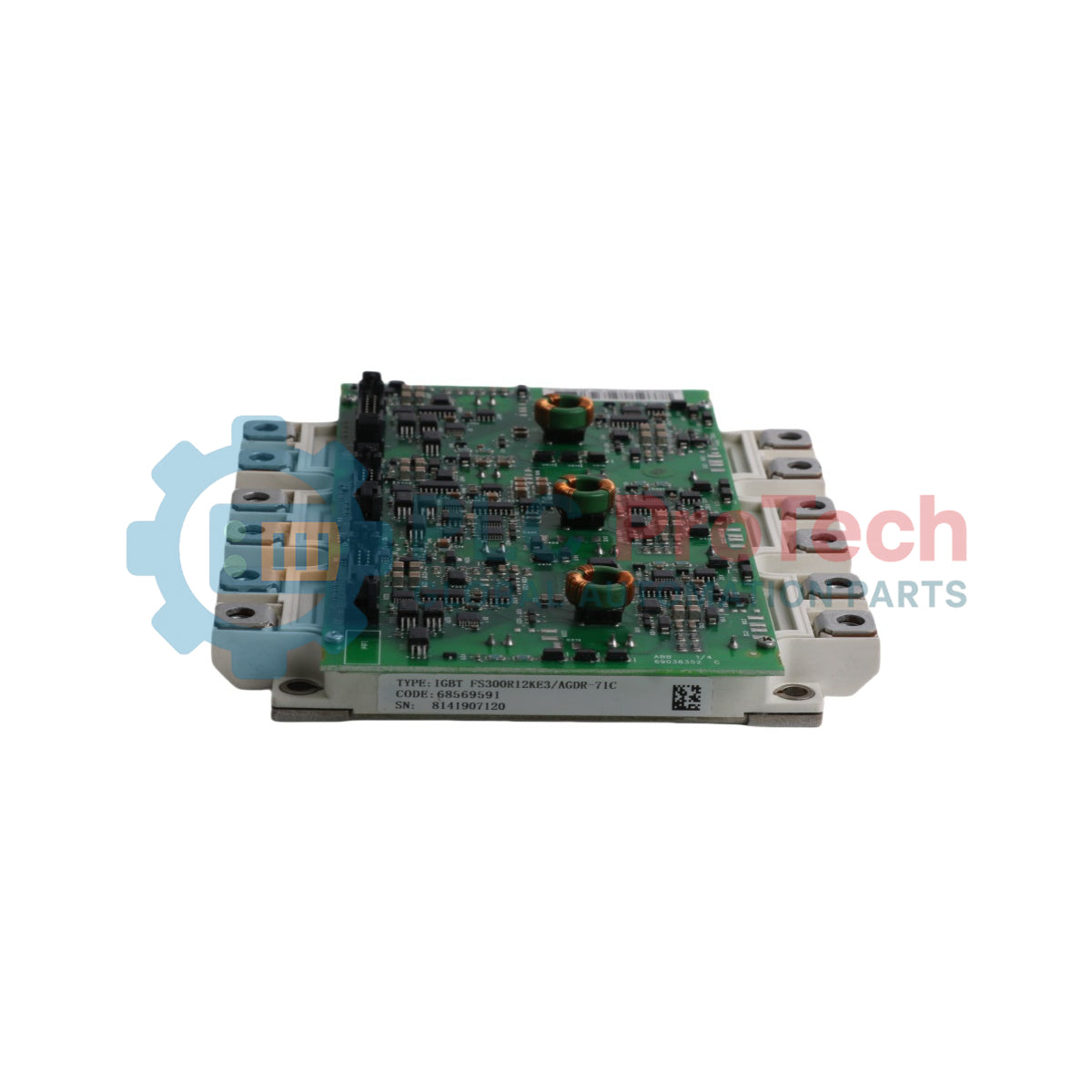

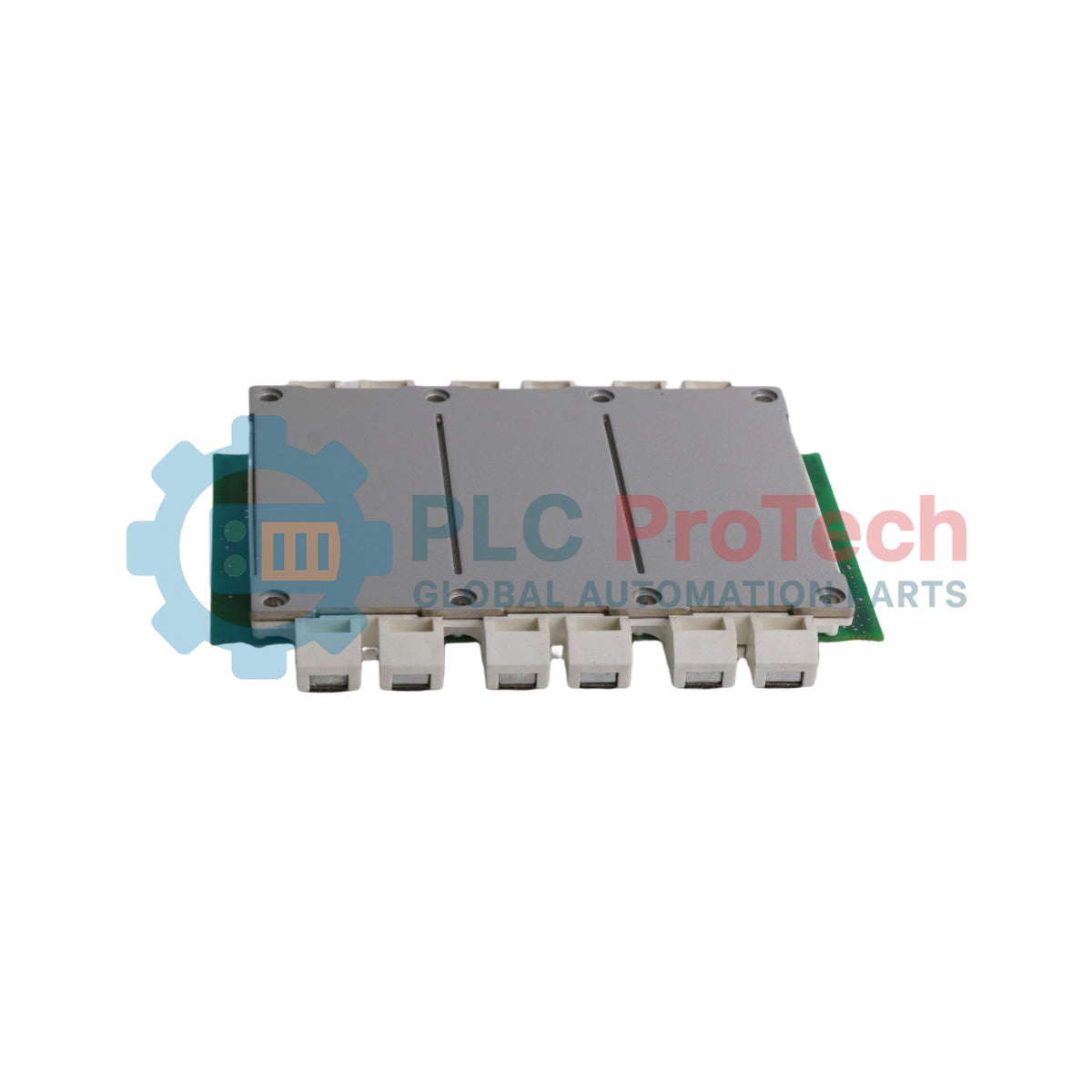

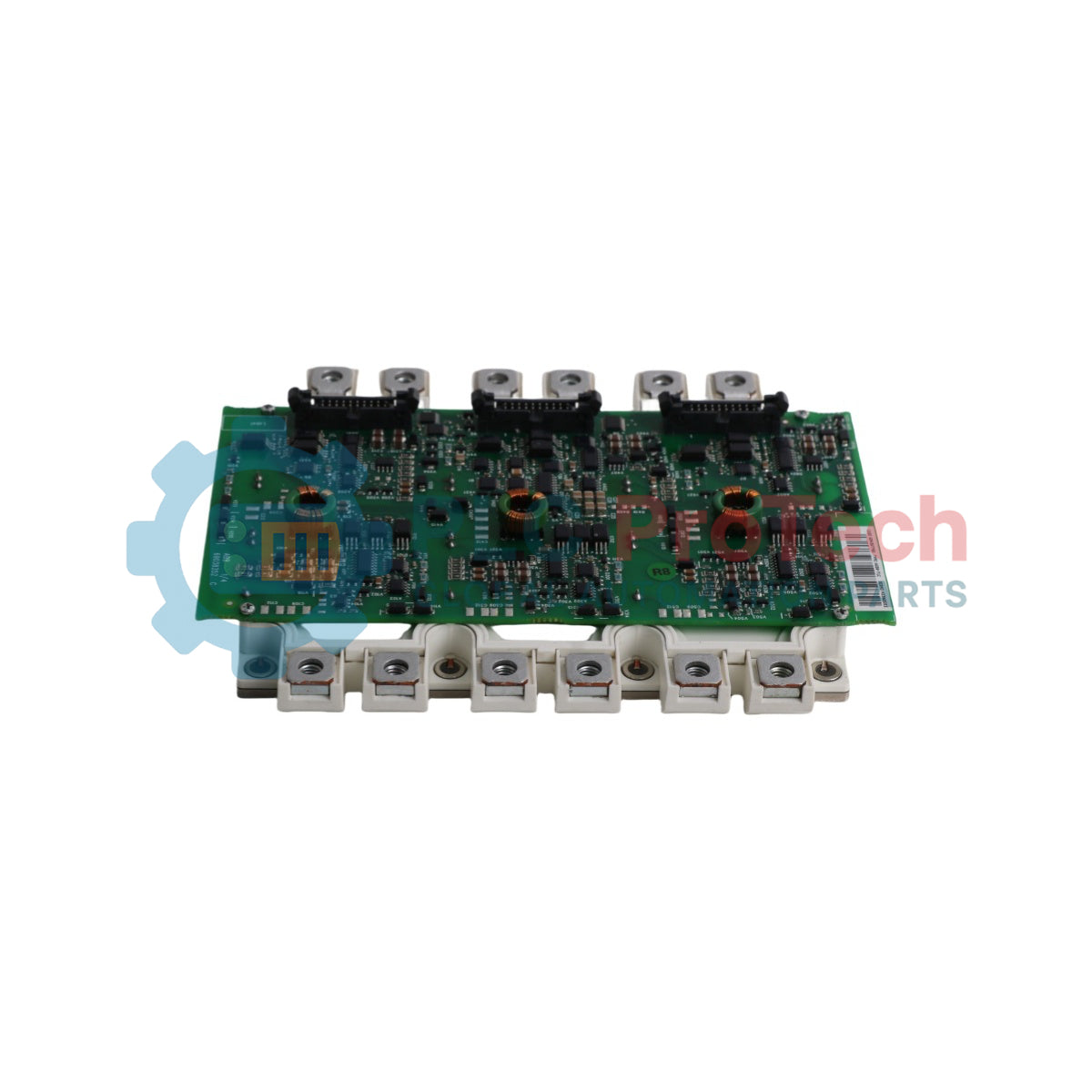

ABB FS300R12KE3/AGDR-71CS (Product ID: 68569346) is an IGBT power module and gate driver board kit used in ABB industrial drive systems. It combines the FS300R12KE3 IGBT module with the AGDR-71C driver board as a matched assembly.
The kit is commonly used in ABB ACS800 series drives. It is designed for inverter switching applications such as PWM control in variable speed motor systems.
The driver board connects directly to the EconoDUAL 3 power module structure, providing stable electrical connection between control and power stages.
| Parameter | Specification |
|---|---|
| Brand | ABB |
| Model | FS300R12KE3/AGDR-71CS |
| Product ID | 68569346 |
| Product Type | IGBT Module + Gate Driver Board Kit |
| IGBT Module | Infineon FS300R12KE3 (TRENCHSTOP IGBT3) |
| Driver Board | ABB AGDR-71C (PCB 69038352A) |
| Voltage Rating | 1200 V DC |
| Current Rating | 300 A (Tc = 80°C) |
| Housing | EconoDUAL 3 |
| Protection | Desaturation detection, UVLO |
| Weight | 1.05 kg |
| Origin | Estonia / Germany |
| Compatible Drives | ACS800-02, ACS800-04, ACS550-02 |
This kit is used in ABB drive repair and replacement applications. It is important to match the correct frame size and inverter configuration before installation.
Replace ribbon cables when installing a new module. Old cables may cause unstable gate signals.
Clean the heatsink surface before mounting. Apply thermal paste evenly and tighten mounting screws in a cross pattern.
Ensure DC bus voltage is fully discharged before installation. Use proper ESD protection when handling the driver board.
Which drives is it used for?
It is used in ABB ACS800 series drives and some ACS550 configurations with matching inverter frames.
What protections are inside the driver board?
It includes desaturation protection and under-voltage lockout to protect the IGBT module during faults.
Can the driver board be used separately?
It is matched with the IGBT module at factory level. Mixing parts is not recommended.
