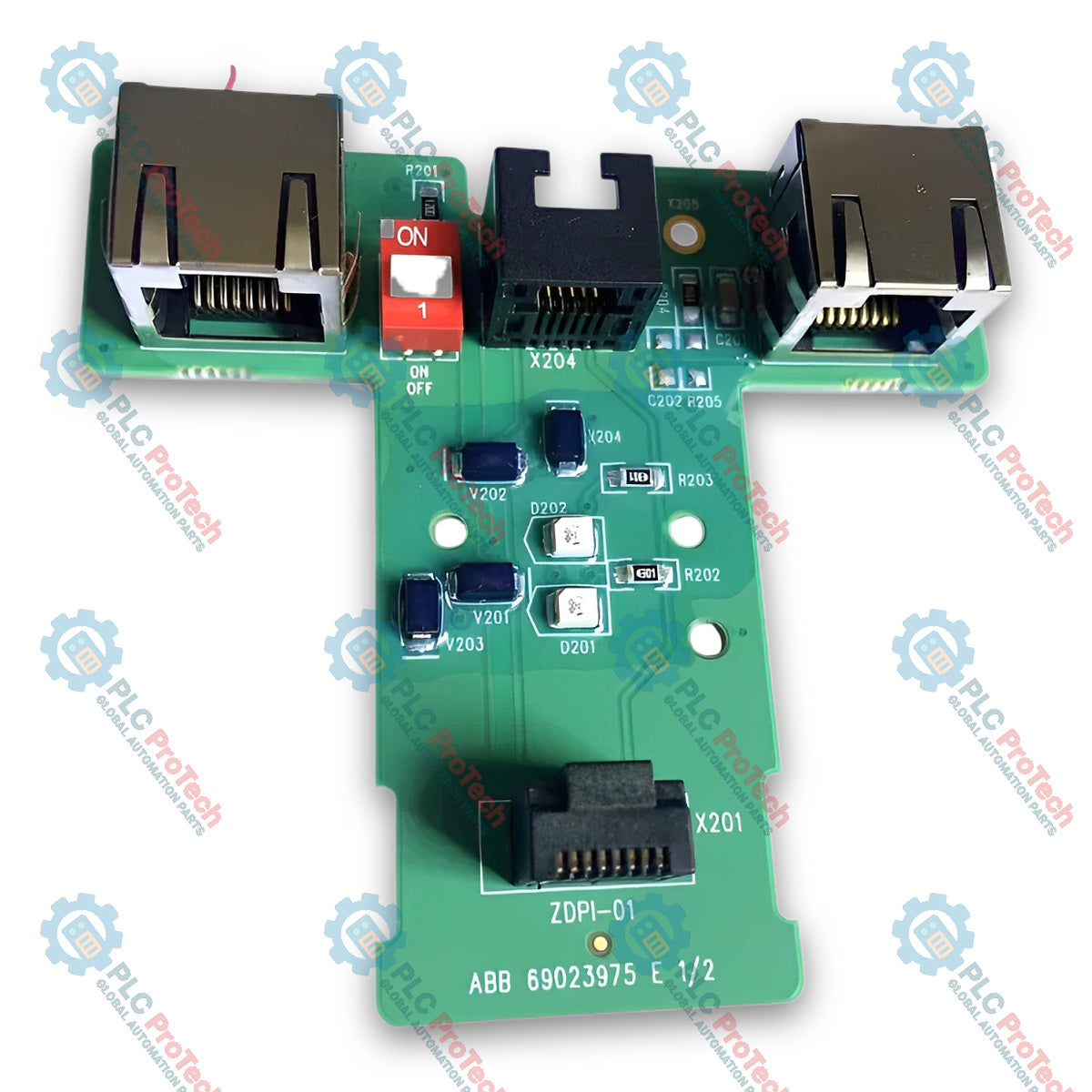

ABB ACS880 ZDPI-01 3AUA0000058712 Adapter Board

SKU ZDPI-01 3AUA0000058712

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: ABB
Product No.: ZDPI-01 3AUA0000058712
Origin Finland, China
Product Type: Adapter Board
Barcode: 85049099
Payment: T/T, Western Union
Weight: 5.0 kg
Shipping port: Xiamen
Warranty: 12 months

Product Description

Description

The ABB ZDPI-01 3AUA0000058712 is a panel interface adapter board used in ABB drive systems.

ABB documentation shows the ZDPI-01 as part of the control-panel communication architecture. The board enables construction of a panel bus, allowing multiple compatible drive or inverter units to be operated from a single control panel.

In ACS880 documentation, the ZDPI-01 is used together with the FDPI-02 panel and diagnostic interface. Multiple ZDPI-01 boards can be connected in a daisy-chain arrangement for multi-drive panel communication.

The same ABB architecture also documents the ZDPI-01 as a panel interface board supplied with certain inverter module configurations. Its function is specifically related to the control-panel bus rather than motor power or drive I/O processing.

Features

ABB panel interface adapter board
Type designation ZDPI-01
Product ID 3AUA0000058712
Enables panel-bus communication
Supports multi-drive control-panel architectures
Used with ABB FDPI-02 panel and diagnostic interface
Supports daisy-chain connection between compatible drive units
RJ45-based panel bus connection architecture
Used in ABB ACS880 drive systems
Designed for control-panel communication rather than power conversion

Applications

Multi-drive control-panel communication
ABB ACS880 drive panel-bus expansion
Control-panel daisy-chain configurations
Drive cabinet maintenance
Replacement of installed ZDPI-01 boards
Centralized operator-panel access to multiple drive units

Technical Specifications

Parameter	Specification
Manufacturer	ABB
Product ID	3AUA0000058712
Type Designation	ZDPI-01
Product Type	Adapter Board
Primary Function	Control-panel bus interface
Associated Platform	ABB ACS880
Panel Interface Architecture	Panel bus
Multi-drive Use	Supported
Associated Interface	FDPI-02
Connection Architecture	Daisy-chain panel bus
Product Net Weight	0.01 kg
Country of Origin	Finland / China
Customs Tariff Number	85049099
Part Type	New

The exact ABB product identity is consistently listed as ZDPI-01; ADAPTER BOARD, Product ID 3AUA0000058712. ABB product-database mirrors list a net weight of 0.01 kg and countries of origin Finland and China.

Connections / Interfaces

Interface	Function
X202	Panel-bus connection
X203	Panel-bus connection
X204	Panel-bus / daisy-chain connection

ABB's ACS880-34 manual shows ZDPI-01 boards connected through X202, X203, and X204 in the panel-bus topology used with FDPI-02.

Panel Bus Configuration

For a multiple-drive installation, the ZDPI-01 boards are connected in sequence between drive units.

The FDPI-02 provides the panel and diagnostic interface, while ZDPI-01 boards extend the control-panel bus across additional drives.

This arrangement allows one operator panel to access multiple compatible units without installing a dedicated panel for every drive. ABB specifically describes the panel bus as enabling control of several inverter units from one control panel.

Installation Guidelines

Verify both ZDPI-01 and 3AUA0000058712 before replacement.
Record the existing X202, X203, and X204 connections before removing the board.
Confirm the installed drive uses the ABB panel-bus architecture.
Verify the associated FDPI-02 or control-panel interface arrangement.
Preserve the existing daisy-chain order in multi-drive installations.
Isolate the drive control circuits before replacing the adapter board.
Check panel communication with each connected drive after installation.

Replacement Notes

Match the exact ZDPI-01 product identity during replacement.
Do not treat the board as a generic RS-485 or fieldbus adapter.
The ZDPI-01 specifically serves the ABB control-panel bus architecture.
Preserve the original panel-bus topology and drive order during replacement.

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What is the ABB ZDPI-01 3AUA0000058712?

The ABB ZDPI-01 3AUA0000058712 is an adapter board used to create a control-panel bus in compatible ABB drive systems.

What does the ABB ZDPI-01 do in an ACS880 system?

The ABB ZDPI-01 3AUA0000058712 extends the control-panel communication bus so multiple compatible drive or inverter units can be accessed from a single operator panel.

Is the ZDPI-01 used with the ABB FDPI-02?

The ABB ZDPI-01 3AUA0000058712 is shown in ABB ACS880 documentation working with the FDPI-02 panel and diagnostic interface in single-drive and multi-drive panel-bus configurations.

Can multiple ZDPI-01 boards be connected together?

The ABB ZDPI-01 3AUA0000058712 can be connected in a daisy-chain panel-bus arrangement for multiple compatible drives, using the documented X202, X203, and X204 connections.

Is the ABB ZDPI-01 a fieldbus communication module?

The ABB ZDPI-01 3AUA0000058712 is a control-panel interface adapter board rather than a general-purpose industrial fieldbus module.

What should be checked before replacing a ZDPI-01 board?

The ABB ZDPI-01 3AUA0000058712 replacement should preserve the existing panel-bus topology, connector assignments, drive order, and associated FDPI-02 or operator-panel arrangement.
