ABB

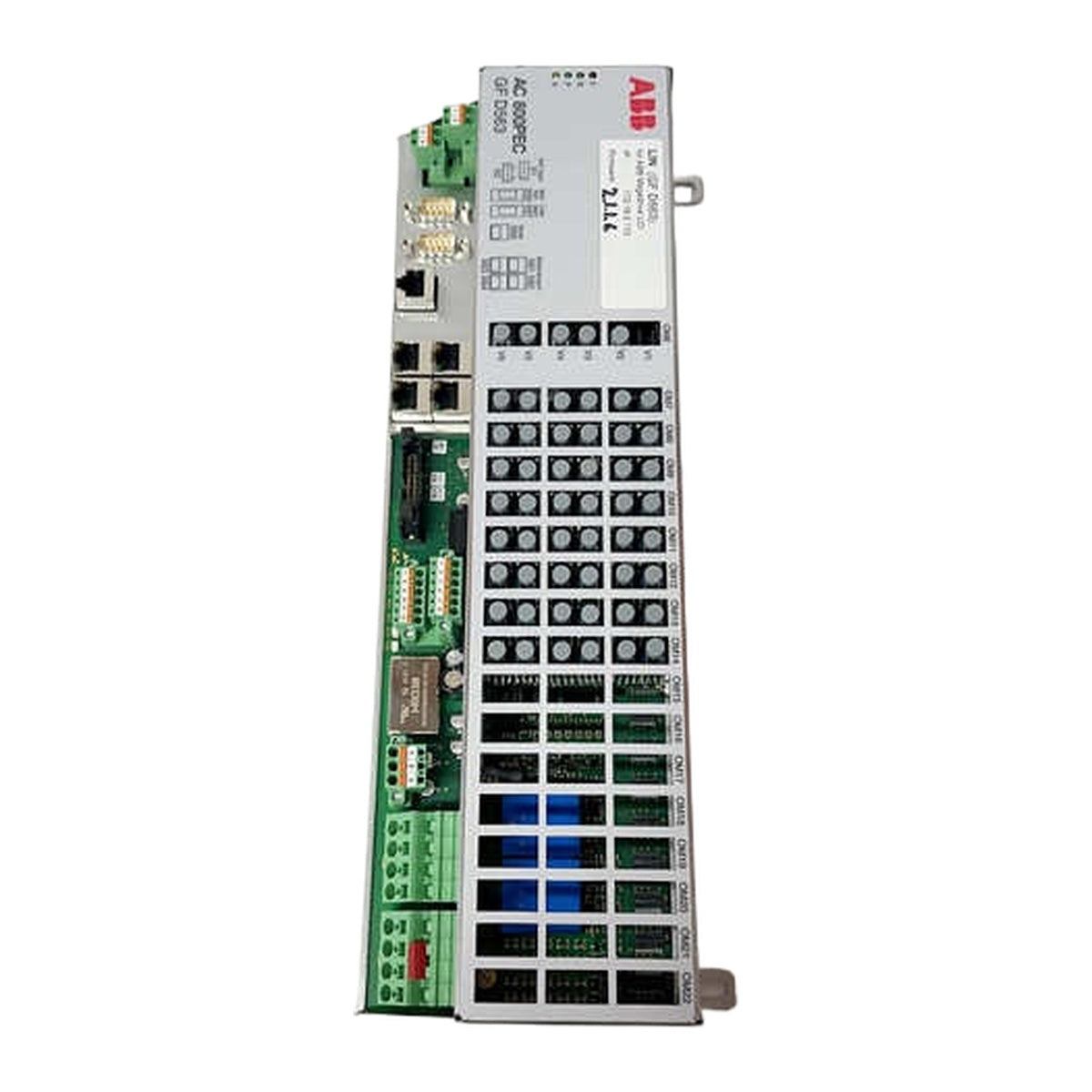

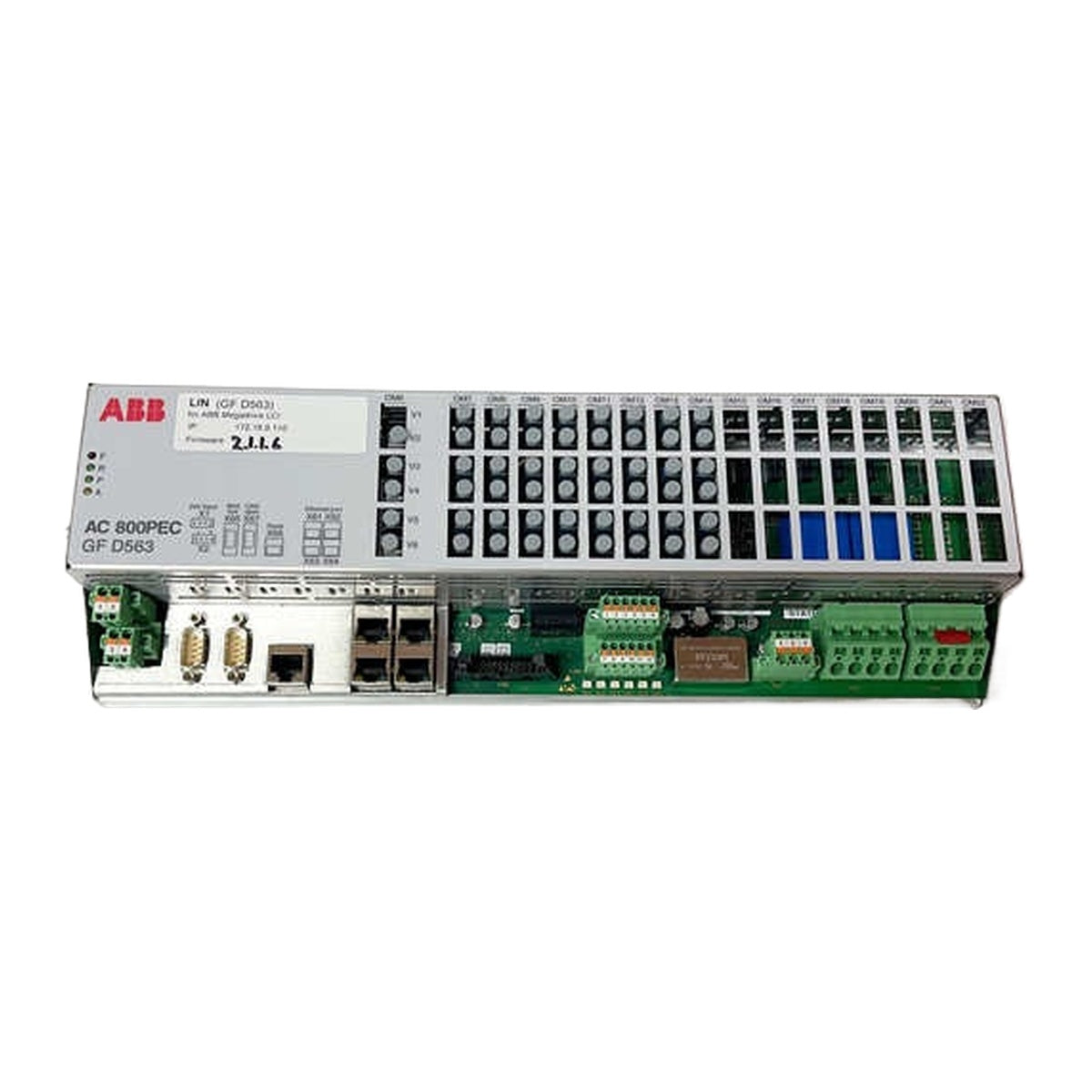

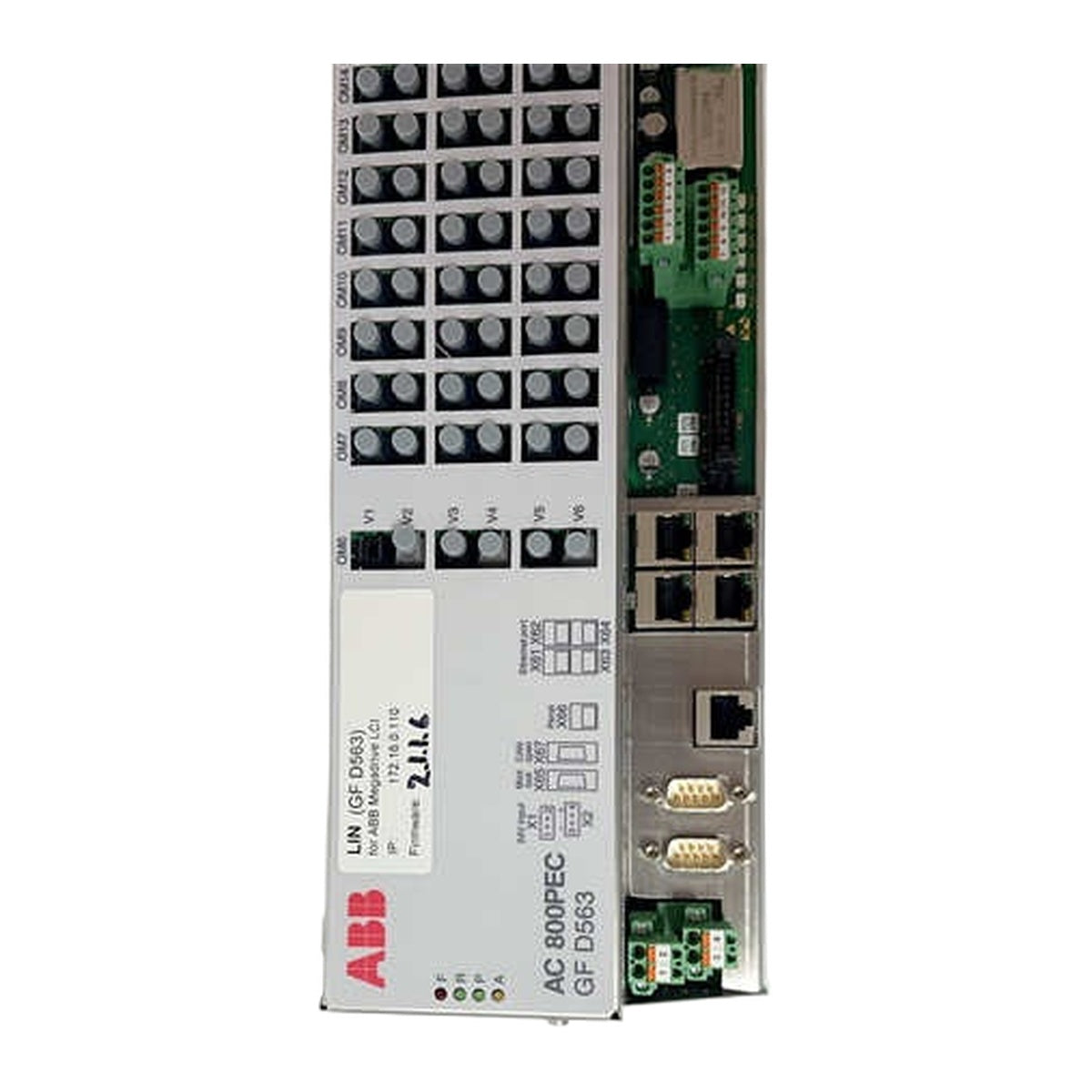

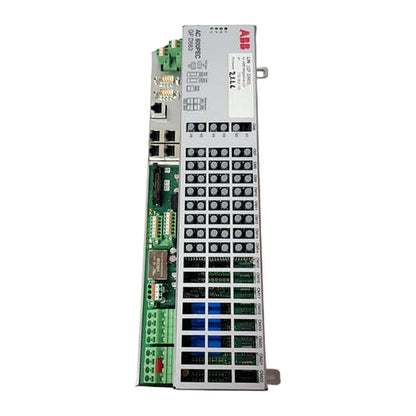

ABB GF D563 A102 3BHE046836R0102 LCI Converter Interface Module

SKU 3BHE046836R0102 GFD563A102

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: ABB
  • Product No.: 3BHE046836R0102 GFD563A102
  • Origin Finland, China
  • Product Type: Converter Interface Modules
  • Barcode: 85371000
  • Payment: T/T, Western Union
  • Weight: 5.0 kg
  • Dimensions: 230 mm x 160 mm x 30 mm (H x W x D)
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

Converter Interface Modules Drives

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

Technical Datasheet

ABB GF D563 A102 3BHE046836R0102 LCI Converter Interface Module

Download Open in new tab
Quantità
Call sales Contact

Product Description

Description

The ABB GF D563 A102 3BHE046836R0102 is a Load Commutated Inverter (LCI) converter interface board configured without firmware (without FW). Designed as a primary communication and signal interface within ABB large drive systems, the GF D563 A102 facilitates control and feedback signaling across converter assemblies. This module replaces the legacy product ID 3BHE022294R0102.

Features

  • Load Commutated Inverter (LCI) converter interface board (LIN) without firmware
  • Directly replaces former product ID 3BHE022294R0102
  • Hardware variant compatible with firmware variant 3BHB036470R0041

Applications

  • ABB LCI drive control systems
  • Medium-voltage drive converter assemblies
  • Large AC motor drive power conversion systems

Technical Specifications

Parameter Specification
Manufacturer ABB
Model / Product Name GF D563 A102
Product ID 3BHE046836R0102
Catalog Description GF D563 A102: LCI CONV. INTERFACE (LIN) without FW
Replaced Product ID 3BHE022294R0102
Firmware Variant Reference 3BHB036470R0041 (variant with FW)
Country of Origin Finland / China
Customs Tariff Number 85371000

Installation Guidelines

  • Firmware Flashing: Ensure appropriate application firmware is installed onto the board prior to system commissioning, as this unit is supplied without firmware.
  • ESD Protection: Use proper electrostatic discharge (ESD) wrist straps and grounded working surfaces during handling and installation.
  • Power Isolation: Ensure drive system power sources and control circuits are fully isolated and de-energized before mounting or servicing the board.
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
Does this interface board come with pre-installed firmware?
No, this unit is supplied without firmware (without FW).
Which legacy part number does this module replace?
This module replaces the legacy product ID 3BHE022294R0102.
What is the equivalent variant that includes firmware?
The variant supplied with firmware corresponds to part number 3BHB036470R0041.
