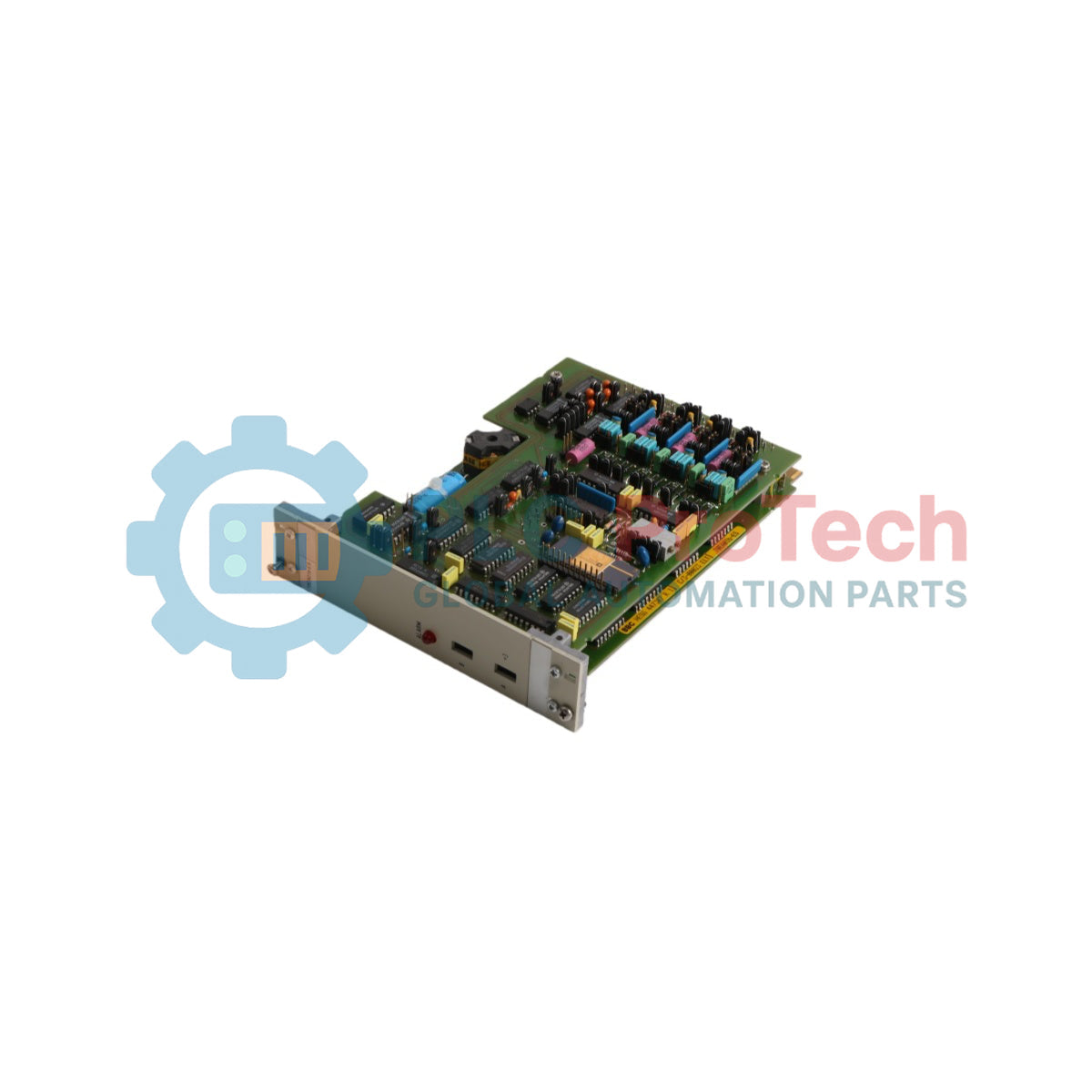

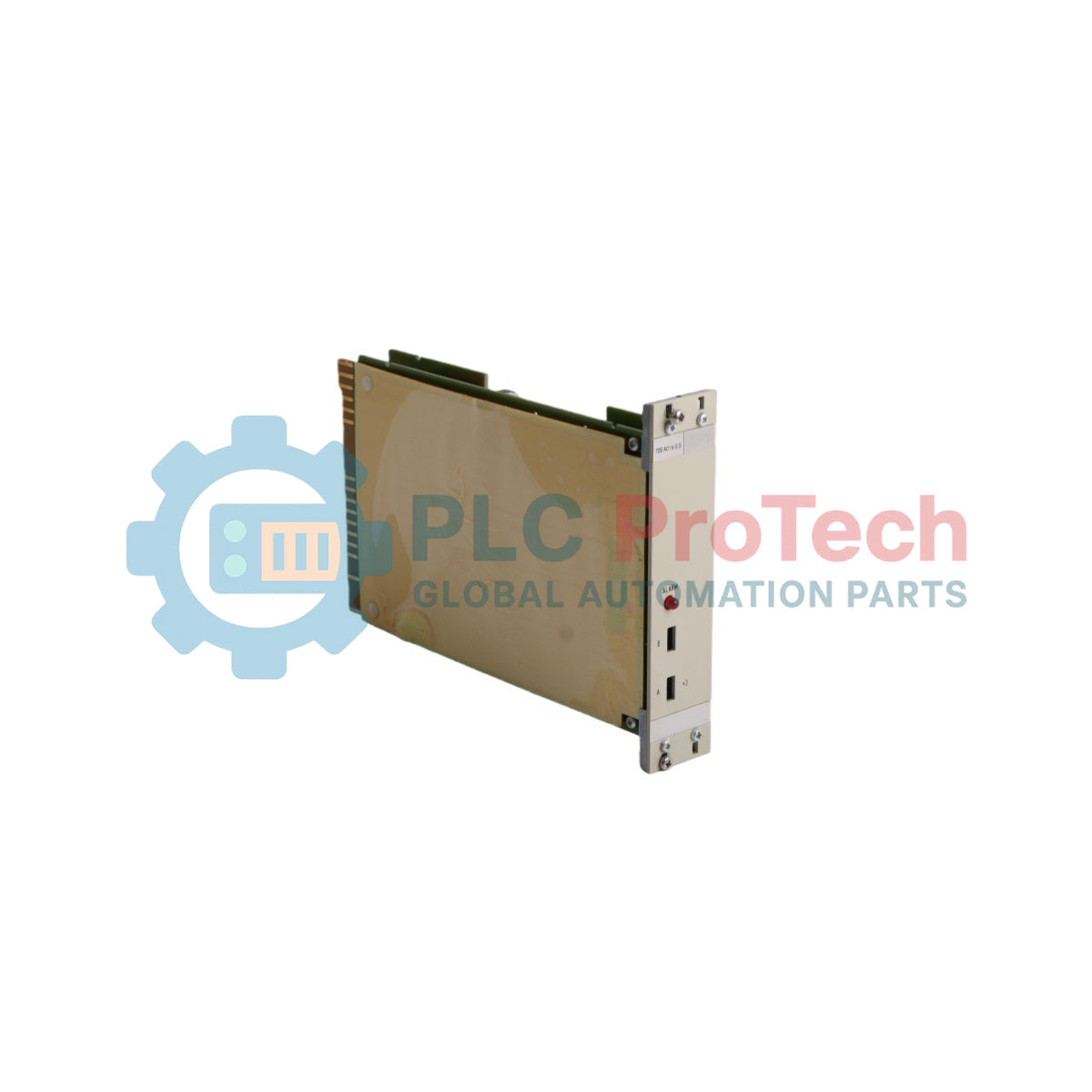

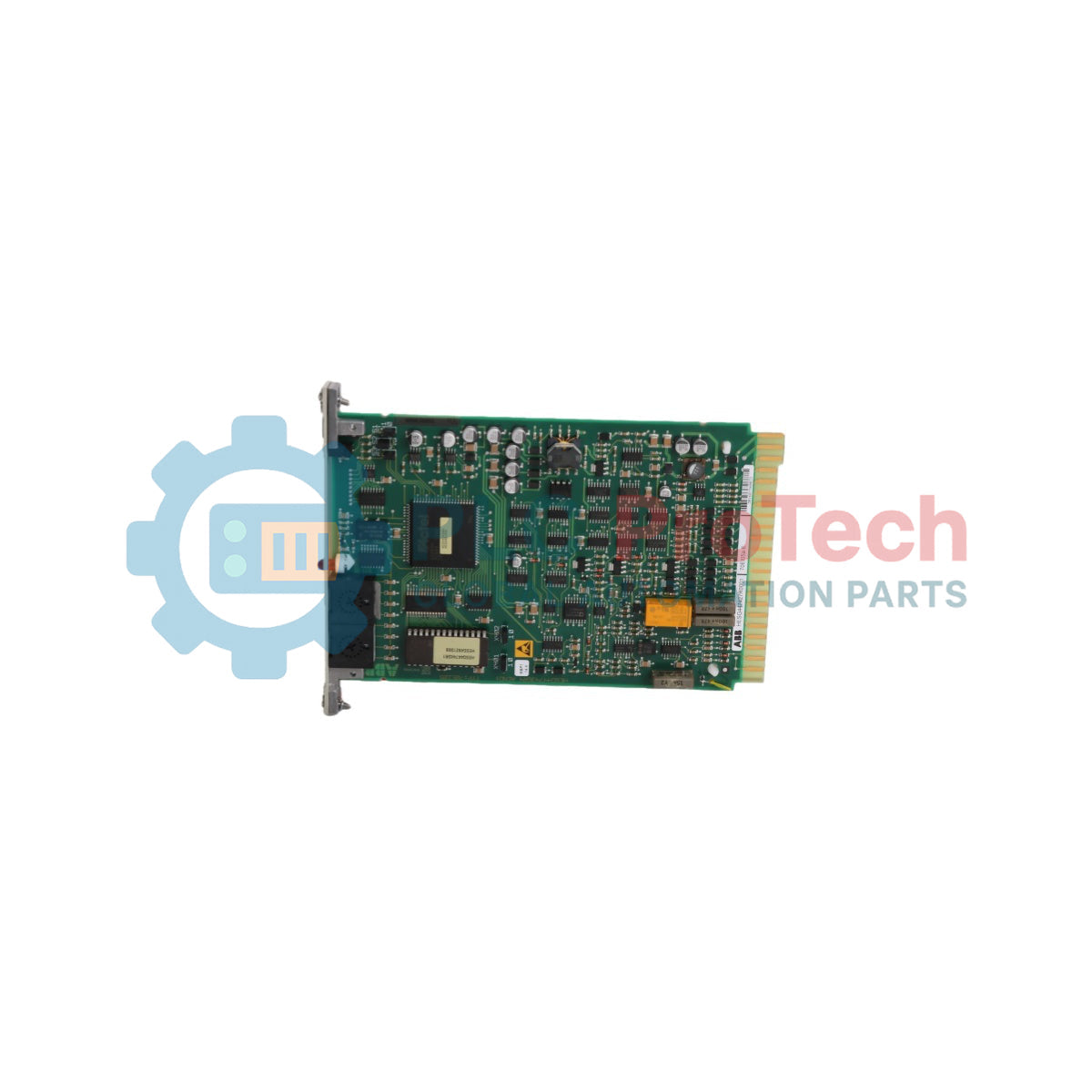

ABB HESG447005R2 70EB01B-E Procontrol P13 Digital Input Module

SKU HESG447005-R2 70EB01B-E

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: ABB
Product No.: HESG447005-R2 70EB01B-E
Origin Sweden
Product Type: Digital Input Module
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 1.22 kg
Dimensions: 1.6 x 20 x 14.7 cm
Shipping port: Xiamen
Warranty: 12 months

Product Description

Description

The ABB HESG447005R2 70EB01B-E is an industrial contact card and interface module designed for signal acquisition within the ABB Procontrol P13 automation system. Serving as an essential interface for field devices such as actuators and sensors, the HESG447005R2 70EB01B-E processes digital signals from 2-wire logic connections and 2, 3, or 4-wire binary proximity sensors. It converts incoming 24Vdc digital states into a 16-bit binary word for logic processing, featuring a 50us data update rate and diagnostic reporting to mobile or desktop interfaces.

Features

16 (8) channel capacity for 24Vdc logic signals
Compatibility with 2-wire logic signals and 2, 3, 4-wire binary proximity sensors
Fast data update rate of 50us with 22Hz input response
Integrated diagnostic interface for mobile device or desktop evaluation
16-bit binary word output data format

Applications

Field device input interfacing for sensors and actuators
Industrial process automation within ABB Procontrol P13 systems
Signal acquisition for binary binary proximity sensors and contact inputs

Technical Specifications

Parameter	Specification
Manufacturer	ABB
Product Model	70EB01B-E
Spare Model	HESG447005R2
Product Parameters	70EB01b-E Digital Input Module
Tariff Code	8537101190
Country of Origin	SWEDEN
Place of Shipment	Xiamen, China
Estimated Shipping Size	1.6 x 20 x 14.7 cm
Weight	0.2 kg
Number of Channels	16 (8)
Input Types	24Vdc
Resistance	15k ohm to 'Z' ground
Connection Types	2-wire logic signal, 2, 3, 4-wire binary proximity sensors
Logic '0' Level	-30Vdc to +3Vdc
Logic '1' Level	+11.2Vdc to +30Vdc
Data Update Rate	50us
Input Response	22Hz
Output Format (Data)	16bit Binary Word

Installation Guidelines

Verify field device wiring configurations (2-wire logic or 2/3/4-wire proximity sensors) prior to landing field connections.
Ensure power supply voltages remain within the specified ranges for correct logic detection (-30Vdc to +3Vdc for Logic '0' and +11.2Vdc to +30Vdc for Logic '1').
Align card edges correctly with backplane connectors during insertion into the Procontrol P13 rack assembly.
Maintain proper grounding protocols to uphold the 15k ohm to 'Z' ground resistance requirements.

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What sensor types can be connected to this module?

The module supports 2-wire logic signals as well as 2-wire, 3-wire, and 4-wire binary proximity sensors.

What are the voltage thresholds for logic states on the inputs?

Logic '0' level is defined from -30Vdc to +3Vdc, while Logic '1' level is defined from +11.2Vdc to +30Vdc.

What is the data update rate for the input channels?

The module processes incoming field data with a update rate of 50us and an input response frequency of 22Hz.
