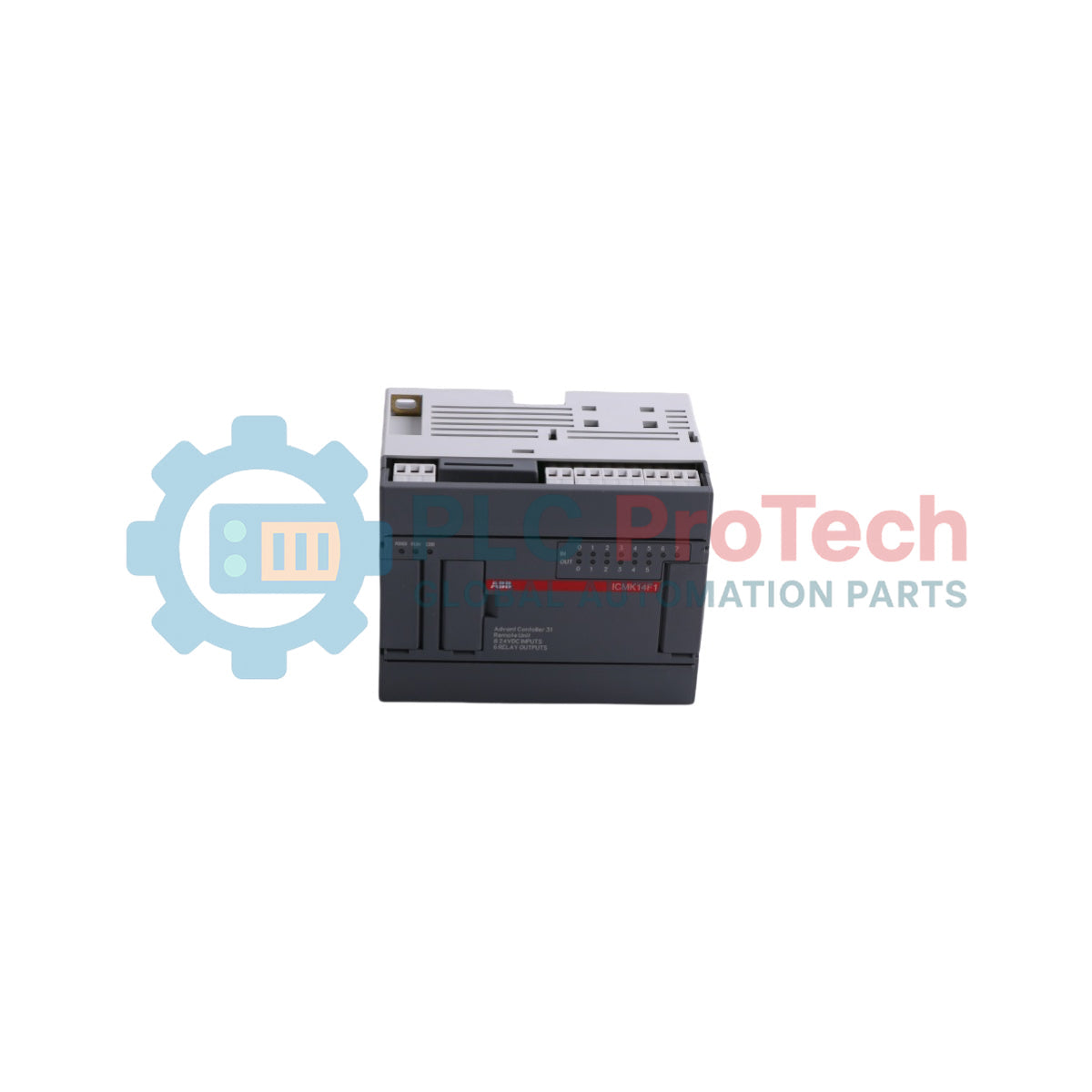

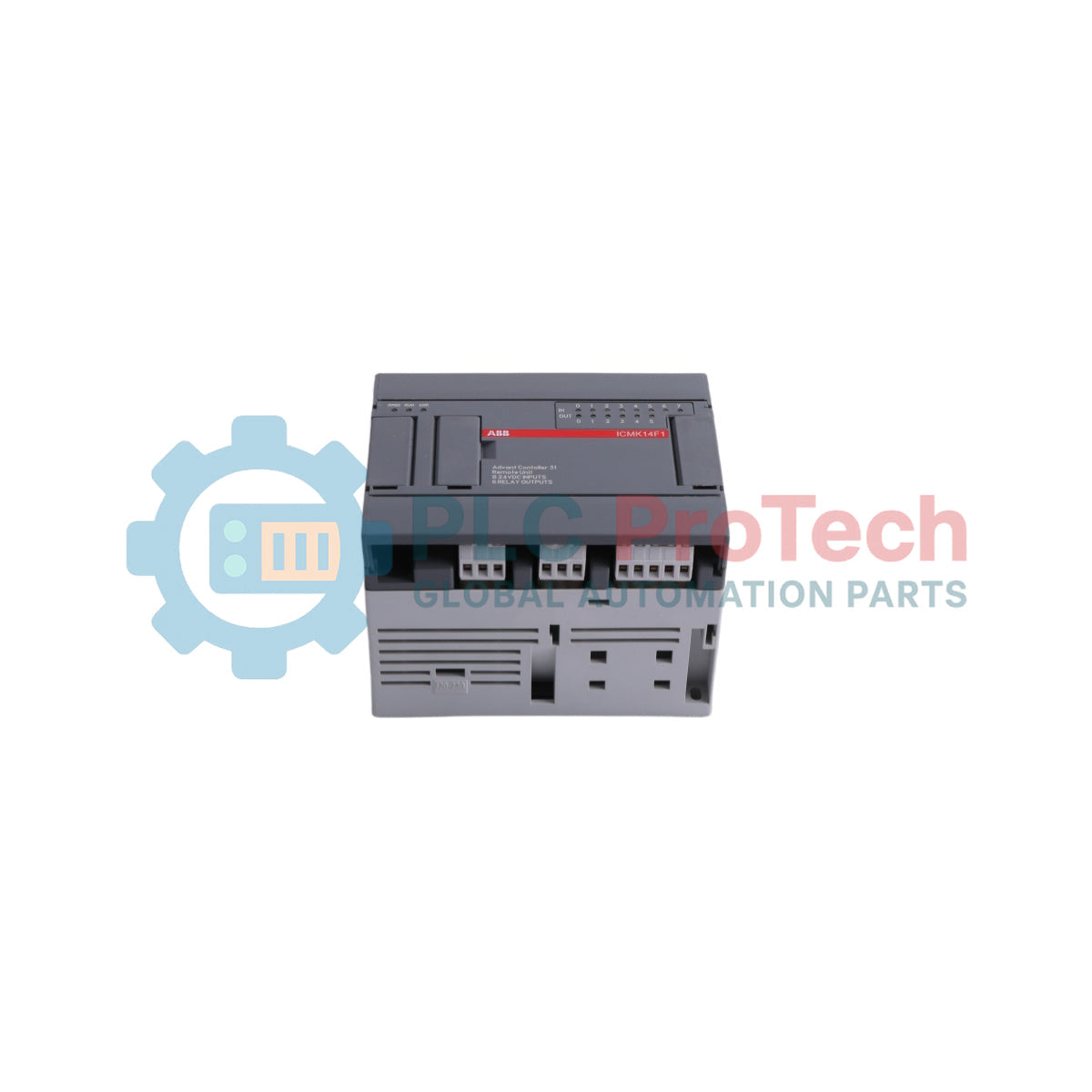

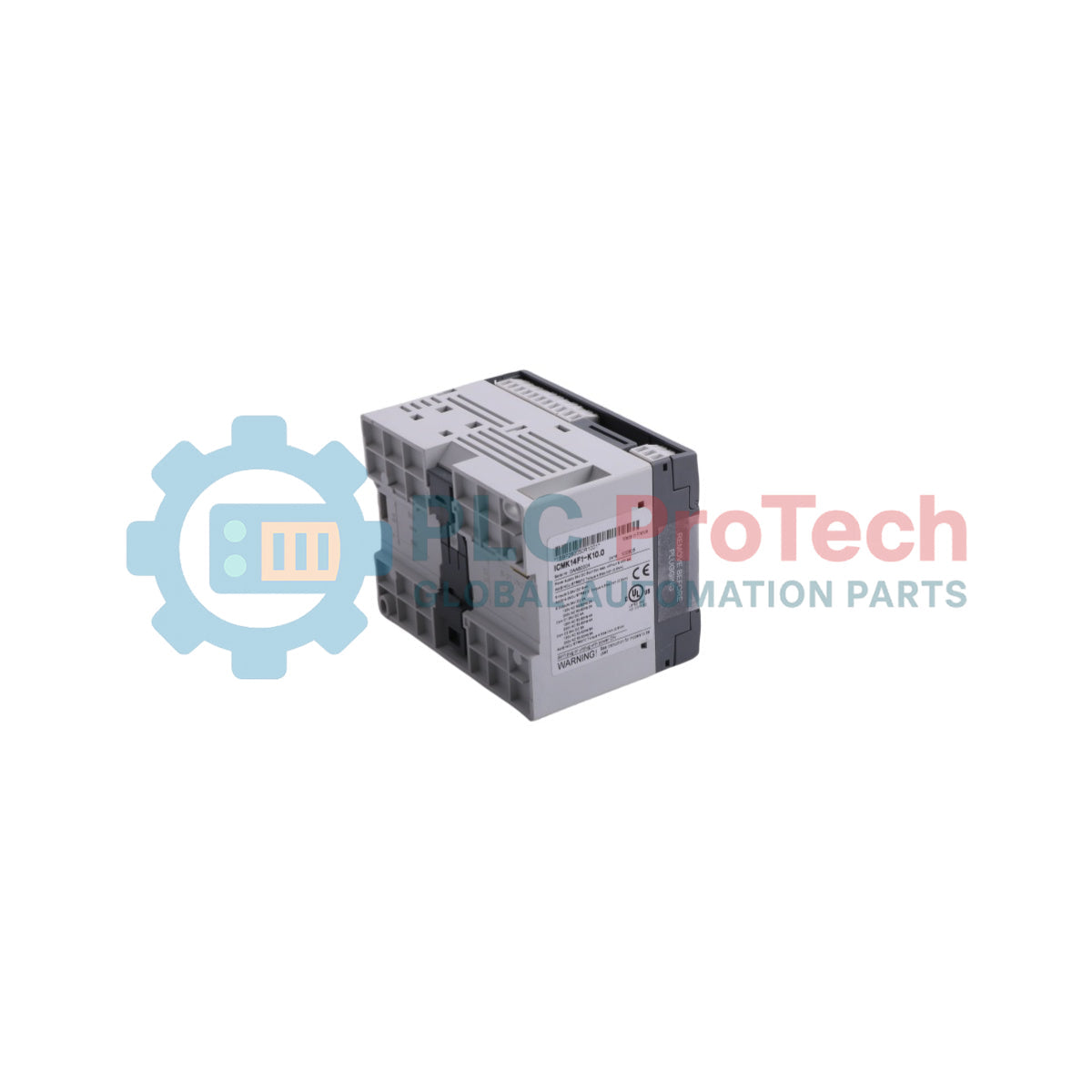

ABB ICMK14F1 1SBP260050R1001 AC 31 Extensible Remote Unit

SKU ICMK14F1 1SBP260050R1001

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: ABB
  • Product No.: ICMK14F1 1SBP260050R1001
  • Origin Germany
  • Product Type: Extensible Remote Unit
  • Barcode: 8537101190
  • Payment: T/T, Western Union
  • Weight: 0.4 kg
  • Dimensions: 140 mm x 120 mm x 85 mm (H x W x D)
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

Advant Controller 31 Extensible Remote Unit

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

Technical Datasheet

ABB ICMK14F1 1SBP260050R1001 AC 31 Extensible Remote Unit

Download Open in new tab
Quantità
Call sales Contact

Product Description

Description

The ABB ICMK 14 F1, product ID 1SBP260050R1001, is an extensible remote unit engineered for the Advant Controller 31 (AC 31) automation system. It serves as a decentralized connection point on the CS 31 master/slave bus, enabling localized distributed applications close to sensors and actuators. The unit features 8 built-in isolated binary inputs and 6 relay outputs. Designed for modular flexibility, it supports the local addition of up to 6 binary or analog extension units to expand system I/O capabilities up to a maximum of 8 analog input channels and 8 analog output channels.

Features

  • Decoupled architecture supporting up to 6 local binary or analog extension units.
  • Integrated CS 31 multipoint serial interface for high-speed fieldbus communication.
  • Configurable input processing accommodating both PNP and NPN sensor types.
  • Electrical isolation between inputs and internal electronics up to 1500 V a.c..
  • Direct diagnostics via localized status visualization LED indicators (POWER, RUN, ERR) on the front panel.
  • Built-in rotary selector switches on the front panel for manual decade and unit addressing on the bus.

Applications

  • Distributed machine control networks.
  • Industrial manufacturing processes (e.g., ceramic, floor board, and electrical contactor assembly lines).
  • Water treatment plant automation.
  • Infrastructure management including building power and tunnel ventilation systems.

Ordering Information

Product Model Reference Number Description
ICMK 14 F1 24VDC 1SBP260050R1001 Extensible remote unit, features 8 isolated inputs (24 V d.c.) and 6 relay outputs (250 V a.c. / 2 A), powered by 24 V d.c. supply.
ICMK 14 F1 120/230VAC 1SBP260051R1001 Extensible remote unit, features 8 isolated inputs (24 V d.c.) and 6 relay outputs (250 V a.c. / 2 A), includes an integrated 24 V d.c. power supply output for sensor inputs, powered by 120 / 230 V a.c. supply.
ICMK 14 N1 24VDC 1SBP260052R1001 Extensible remote unit, features 8 isolated inputs (24 V d.c.) and 6 transistor outputs (24 V d.c. / 0.5 A), powered by 24 V d.c. supply.

Technical Distinctions

  • ICMK 14 F1 24VDC: Standard direct current (d.c.) power supply version paired with heavy-duty relay switching outputs.
  • ICMK 14 F1 120/230VAC: Alternate current (a.c.) power supply version equipped with an auxiliary 24 V d.c. loop power output to energize field sensors directly.
  • ICMK 14 N1 24VDC: Standard direct current (d.c.) power supply version utilizing solid-state transistor outputs, engineered for high-frequency and rapid switching operations.

Technical Specifications

Parameter Specification
Manufacturer ABB
Model ICMK 14 F1 24VDC
Product ID 1SBP260050R1001
Product Type Extensible Remote Unit
Nominal Power Supply Voltage 24 V d.c.
Admissible Voltage Range 19.2 to 30 V
Current Consumption (Unit Alone) 80 mA typical
Current Consumption (Max Configuration) 400 mA typical
Polarity Reversal Protection Yes
Power Dissipation 5 W
Number of Binary Inputs 8
Input Isolation 1500 V a.c. (inputs / electronic)
Input Type PNP and NPN
Nominal Input Voltage 24 V d.c.
Signal 0 Voltage (IEC 1131-2) 0 to +5 V
Signal 1 Voltage (IEC 1131-2) +15 to +30 V
Input Current (at 24 V d.c.) 7 mA (Inputs Ixx.02 to Ixx.07); 9 mA (Inputs Ixx.00 and Ixx.01)
Minimum Filtering Time 5 ms
Number of Outputs 6 relays
Output Isolation 1500 Vrms for 1 minute (outputs / electronic)
Total Charging Current (Direct Current) 2 A at 24 V d.c. (resistive load); 2 A (L/R = 20 ms); 1 A (L/R = 30 ms); 0.6 A (L/R = 40 ms); 0.35 A (L/R = 60 ms)
Total Charging Current (Alternate Current) 2 A at 24 to 230 V a.c. (AC-1); 0.5 A at 24 to 230 V a.c. (AC-15)
Total Charging Current Capacity 6 x 2 A
Minimum Cut-off Values 10 mA under 12 V d.c.
Breaking Capacity (UL B300) 2 A under 120 V a.c.; 1.5 A under 250 V a.c.
Number of Commons 2 (arranged as 2+4)
Switching Frequency < 1 Hz (resistive loads); < 0.2 Hz (inductive/lamp loads)
Communication Protocol ABB CS 31 (master/slave)
Bus Interface Type RS 485 multipoint serial interface (half-duplex)
Bus Transmission Speed 187.5 kBauds
Bus Transmission Control CRC
IP Protection Rating IP20
Operating Temperature (Horizontal) 0 degC to +55 degC
Operating Temperature (Vertical) 0 degC to +40 degC
Storage Temperature -40 degC to +75 degC
Unshielded Cable Length Limit 300 m (inputs); 150 m (outputs)
Shielded Cable Length Limit 500 m (inputs); 500 m (outputs)

Installation Guidelines

  • Mounting: Secure the unit to a standard 35 mm DIN rail using the integrated mounting lock, or use 4 mm diameter (M4) screws for panel mounting.
  • Wiring: Utilize removable terminal blocks supporting a maximum wire cross-section of 2.5 mm². Tighten connection screws to an indicative torque of 0.5 Nm.
  • Earthing: Ensure robust earthing by connecting the rigid or multi-conductor AWG 14 wire to the unit's grounding plate fixture.
  • Bus Termination: Connect a 120 Ohm, 0.25 Watt line termination resistor across each extremity of the RS 485 CS 31 bus network.
Shipping &amp; Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
How many extension modules can be locally attached to the remote unit?
The device supports the direct attachment of up to 6 local binary or analog extension units.
What is the acceptable range for the 24 V d.c. power supply input?
The admissible power supply voltage range is from 19.2 to 30 V d.c.
What type of serial interface does the device use for bus communication?
The remote unit uses an RS 485 multipoint half-duplex serial interface running the CS 31 protocol.
What are the storage temperature boundaries for this module?
The permitted storage temperature range is from -40 degC to +75 degC.
