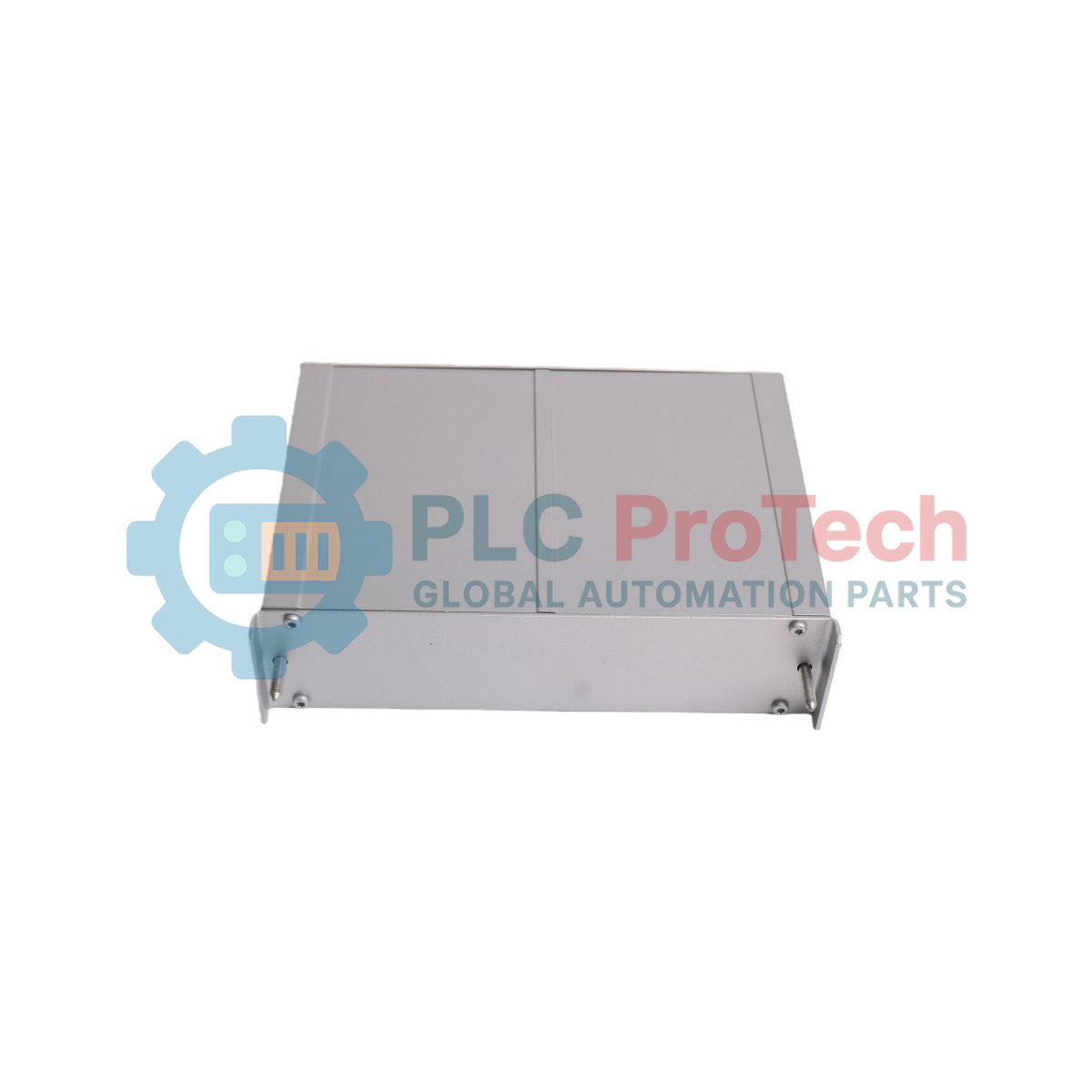

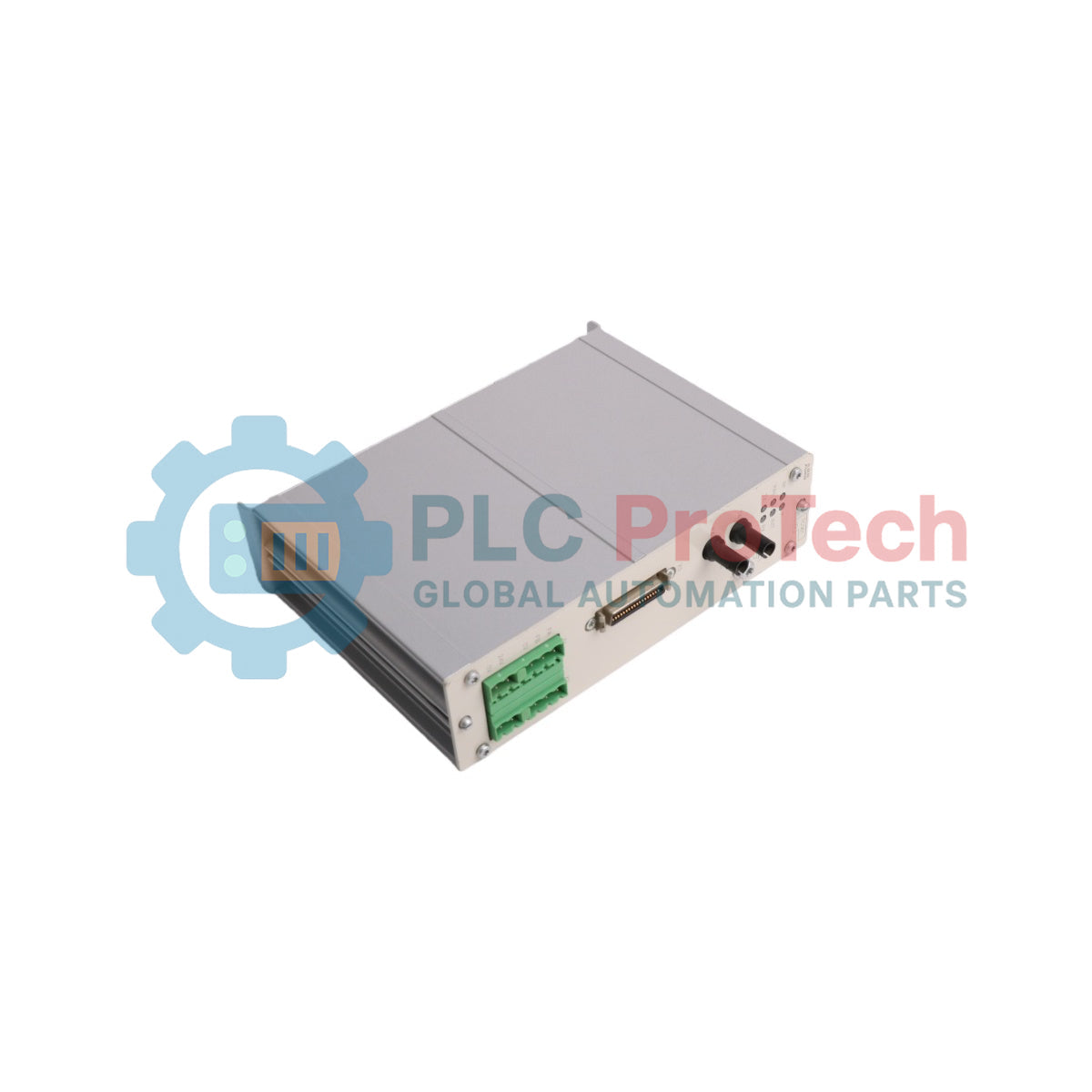

The ABB PFPA201 (3BSE022827R1) is a high-precision Data Processing Unit (DPU) specifically engineered for the Cylmate Engine Monitoring system. As a core component of the PFP200 series (versions prior to 3.0), this module is designed for continuous, real-time monitoring of large-bore diesel and gas engines, typically used in marine propulsion and power generation. The PFPA201 (Version 2.0) processes complex combustion data, cylinder pressure signals, and crank angle measurements to optimize engine performance and prevent mechanical failure. This unit acts as the primary computational hub, translating raw sensor input into actionable diagnostic data for the engine's control system and operator interfaces.
| Attribute | Details |
| Model | PFPA201 (2.0) |
| Product ID | 3BSE022827R1 |
| Brand | ABB |
| Product Type | Cylmate Data Processing Unit |
| Series | PFP200 Engine Monitoring |
| Software Requirement | Operator Station Software 2.0 or higher |
| Net Weight | 4.5 kg |
| Gross Weight | 4.5 kg |
| Country of Origin | Sweden |
| Customs Tariff Number | 85389091 |
| WEEE Category | Product Not in WEEE Scope |
| Replacement Part ID | 3BSE022827R2 (Successor Model) |
Industrial engine monitoring components must be ordered by the specific Revision/Version number to ensure software compatibility. Note that the PFPA201 Version 2.0 requires corresponding software versions for full functionality.
Product ID: 3BSE022827R1
ABB Type Designation: PFPA201 (2.0)
Invoice Description: PFPA201 Cylmate Data Processing Unit
Minimum Order Quantity: 1 piece
The PFPA201 Version 2.0 must be utilized in conjunction with Operator Station Software version 2.0. Utilizing this hardware with legacy 1.x software versions or mismatched firmware will result in communication errors and incorrect data processing. Before installation, verify the existing system's software architecture to ensure seamless integration.
This unit is classified under "Spare_Parts" for frame size considerations but requires a stable, vibration-damped mounting environment within the engine control cabinet. Given its application in engine rooms, ensure that the cabinet provides adequate protection against oil mist and thermal stress. The unit weighs 4.5 kg; ensure mounting brackets are rated for high-vibration maritime or industrial environments.
The 3BSE022827R1 is part of the previous hierarchy of Force Measurement Portfolio (before version 3.0). For new installations or total system overhauls, the replacement Product ID 3BSE022827R2 is available. When replacing a failed DPU, it is recommended to back up current configuration parameters from the Operator Station before disconnecting the existing hardware.
What is the function of the PFPA201 in a Cylmate system?
The PFPA201 is the central processing engine that calculates cylinder-specific data such as Pmax (peak pressure), Ptdc (pressure at top dead center), and indicated power, providing the necessary data for engine balancing and fuel optimization.
Can I use PFPA201 (2.0) with Software Version 1.x?
No. Technical documentation specifies that Data Processing Unit 2.0 strictly requires Operator Station Software 2.0. Upgrading hardware without a corresponding software update will lead to system incompatibility.
Is this unit suitable for hazardous area installation?
The PFPA201 is typically installed in the engine control room or a protected engine-side cabinet. For specific ATEX or marine class certification (DNV, GL, etc.), refer to the original system-wide certification documentation provided with the PFP200 series.
Global Express Shipping
Returns & Warranty
Manufacturer: ABB
Product No.: PFPA201 3BSE022827R1
Country of origin:Switzerland
Product Type: Cylmate Data Processing Unit
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 1220g
Dimensions: 24 cm x 19 cm x 5.3 cm
Shipping port: Xiamen
Warranty: 12 months
The ABB PFPA201 (3BSE022827R1) is a high-precision Data Processing Unit (DPU) specifically engineered for the Cylmate Engine Monitoring system. As a core component of the PFP200 series (versions prior to 3.0), this module is designed for continuous, real-time monitoring of large-bore diesel and gas engines, typically used in marine propulsion and power generation. The PFPA201 (Version 2.0) processes complex combustion data, cylinder pressure signals, and crank angle measurements to optimize engine performance and prevent mechanical failure. This unit acts as the primary computational hub, translating raw sensor input into actionable diagnostic data for the engine's control system and operator interfaces.
| Attribute | Details |
| Model | PFPA201 (2.0) |
| Product ID | 3BSE022827R1 |
| Brand | ABB |
| Product Type | Cylmate Data Processing Unit |
| Series | PFP200 Engine Monitoring |
| Software Requirement | Operator Station Software 2.0 or higher |
| Net Weight | 4.5 kg |
| Gross Weight | 4.5 kg |
| Country of Origin | Sweden |
| Customs Tariff Number | 85389091 |
| WEEE Category | Product Not in WEEE Scope |
| Replacement Part ID | 3BSE022827R2 (Successor Model) |
Industrial engine monitoring components must be ordered by the specific Revision/Version number to ensure software compatibility. Note that the PFPA201 Version 2.0 requires corresponding software versions for full functionality.
Product ID: 3BSE022827R1
ABB Type Designation: PFPA201 (2.0)
Invoice Description: PFPA201 Cylmate Data Processing Unit
Minimum Order Quantity: 1 piece
The PFPA201 Version 2.0 must be utilized in conjunction with Operator Station Software version 2.0. Utilizing this hardware with legacy 1.x software versions or mismatched firmware will result in communication errors and incorrect data processing. Before installation, verify the existing system's software architecture to ensure seamless integration.
This unit is classified under "Spare_Parts" for frame size considerations but requires a stable, vibration-damped mounting environment within the engine control cabinet. Given its application in engine rooms, ensure that the cabinet provides adequate protection against oil mist and thermal stress. The unit weighs 4.5 kg; ensure mounting brackets are rated for high-vibration maritime or industrial environments.
The 3BSE022827R1 is part of the previous hierarchy of Force Measurement Portfolio (before version 3.0). For new installations or total system overhauls, the replacement Product ID 3BSE022827R2 is available. When replacing a failed DPU, it is recommended to back up current configuration parameters from the Operator Station before disconnecting the existing hardware.
What is the function of the PFPA201 in a Cylmate system?
The PFPA201 is the central processing engine that calculates cylinder-specific data such as Pmax (peak pressure), Ptdc (pressure at top dead center), and indicated power, providing the necessary data for engine balancing and fuel optimization.
Can I use PFPA201 (2.0) with Software Version 1.x?
No. Technical documentation specifies that Data Processing Unit 2.0 strictly requires Operator Station Software 2.0. Upgrading hardware without a corresponding software update will lead to system incompatibility.
Is this unit suitable for hazardous area installation?
The PFPA201 is typically installed in the engine control room or a protected engine-side cabinet. For specific ATEX or marine class certification (DNV, GL, etc.), refer to the original system-wide certification documentation provided with the PFP200 series.
Global Express Shipping
Returns & Warranty
Orders are processed and delivered Monday-Friday (excluding public holidays).
For full eligibility, restocking fees, and international return details, please view our official Refund & Return Policy .
