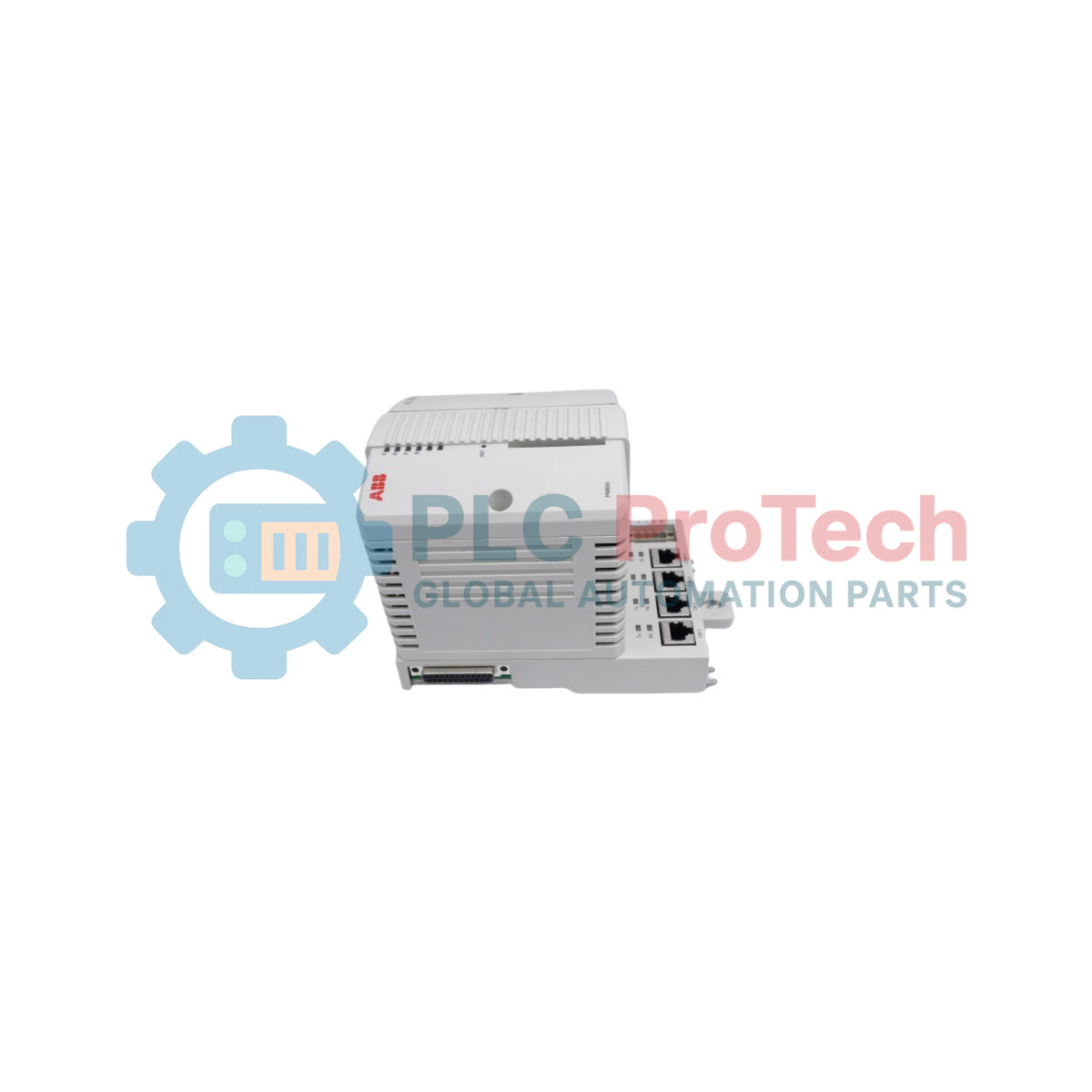

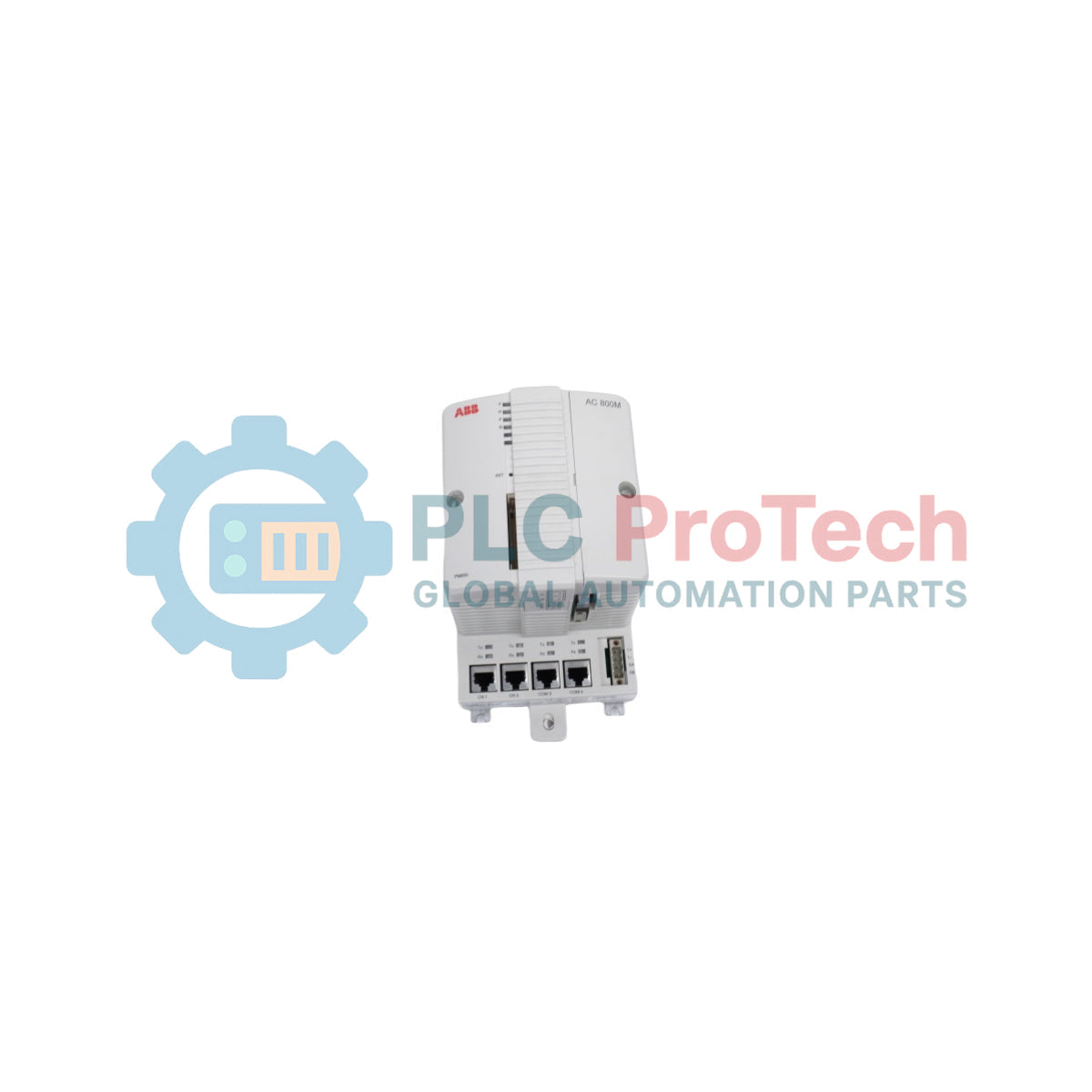

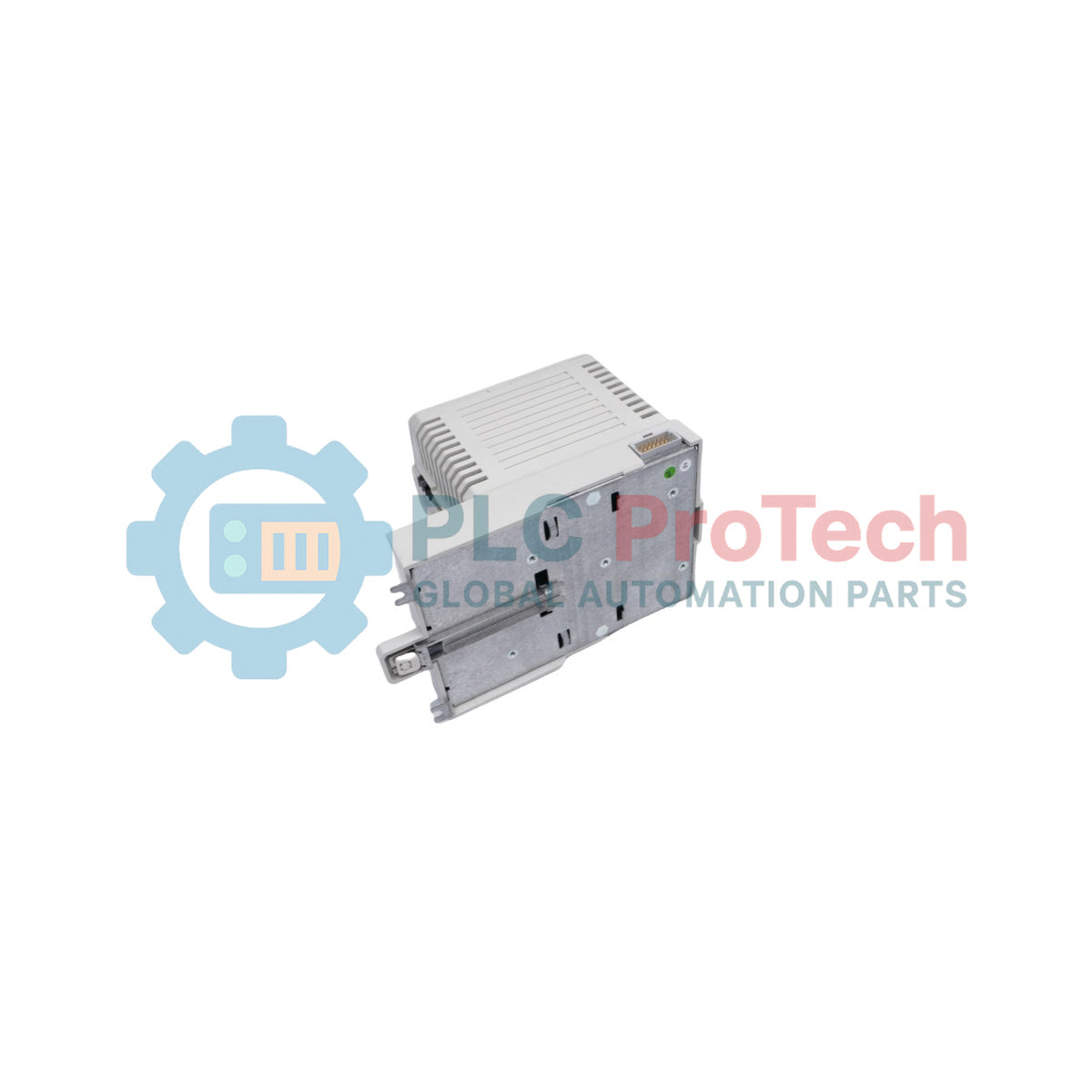

The ABB PM856K01 3BSE018104R1 is a high-performance processor unit kit designed for the AC 800M control system architecture. This central controller integrates an MPC860 microprocessor operating at 48 MHz to manage real-time application logic and process data across industrial control loops. The unit features 8 MB of SDRAM and 2 MB of flash PROM for firmware storage, with dedicated internal battery backup to safeguard volatile memory. Designed for flexible connectivity, the PM856K01 includes dual Ethernet ports for network communication, alongside dual serial interfaces configured for service tool interaction and modem support. It supports modular expansion through the electrical ModuleBus, accommodating up to 12 S800 I/O units, or via an optical ModuleBus for expanded cluster configurations.
| Category | Specification |
|---|---|
| Manufacturer | ABB |
| Model | PM856K01 |
| Product ID | 3BSE018104R1 |
| Processor | MPC860 at 48 MHz |
| Memory | 8 MB SDRAM, 2 MB Flash PROM |
| Power Input | 24 V nominal (19.2V to 30V DC) |
| Power Dissipation | 5 W typical (10 W max) |
| Protection Rating | IP20 (EN60529, IEC 529) |
| Communication Ports | 2 x Ethernet (RJ45), 2 x Serial RS-232C (RJ45) |
| I/O Capacity | Up to 12 S800 I/O units (Electrical ModuleBus) |
| Dimensions (W x H x D) | 119 x 186 x 135 mm |
| Weight | 1100 g (2.4 lb) |
| Connector Pin | Function |
|---|---|
| CN1, CN2 | Ethernet (IEEE 802.3, 10Base-T) |
| COM3 | Serial RS-232C (with modem support) |
| COM4 | Serial RS-232C (service tool) |
| Power Connector | 4-pin screw (L+, L-, SA, SB) |
