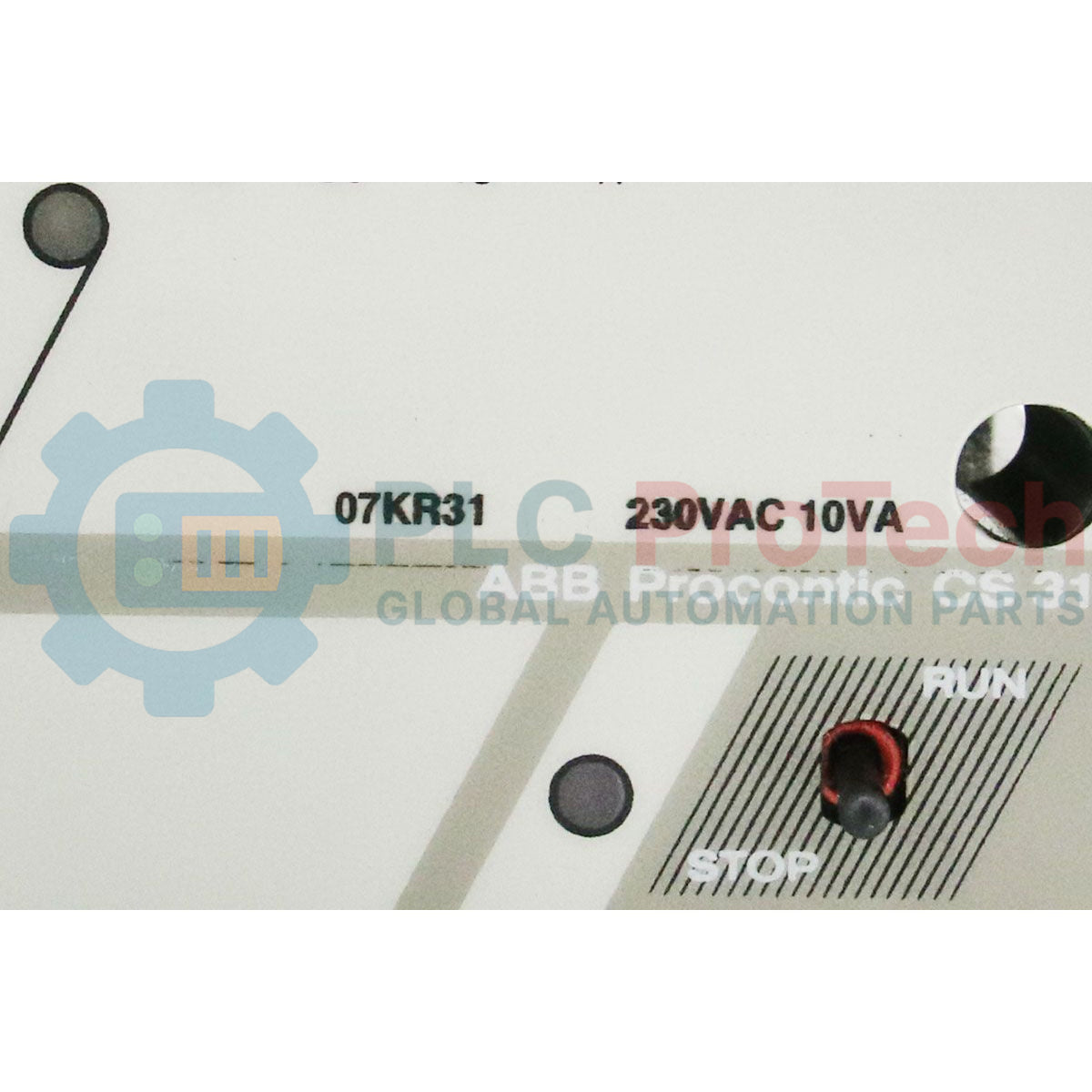

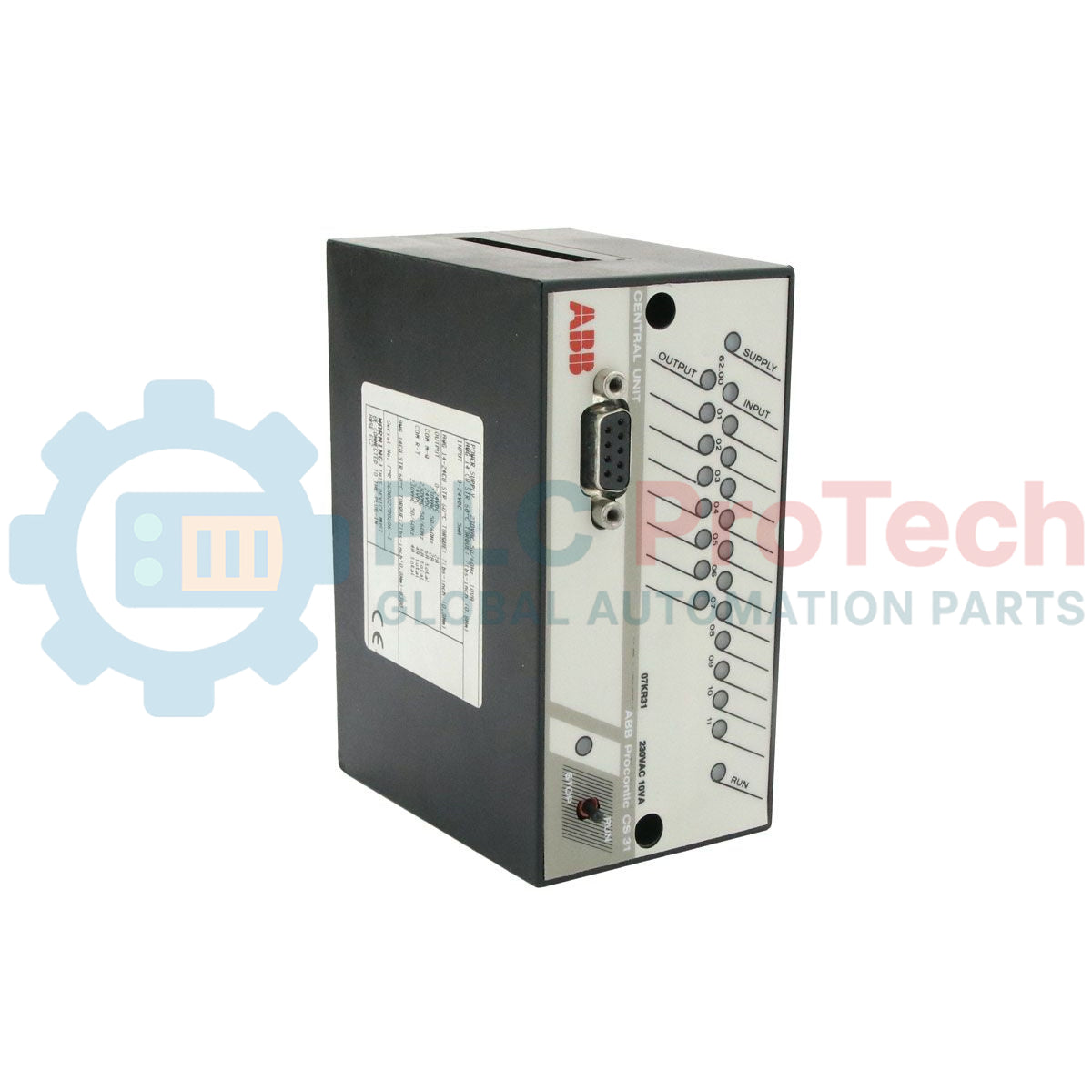

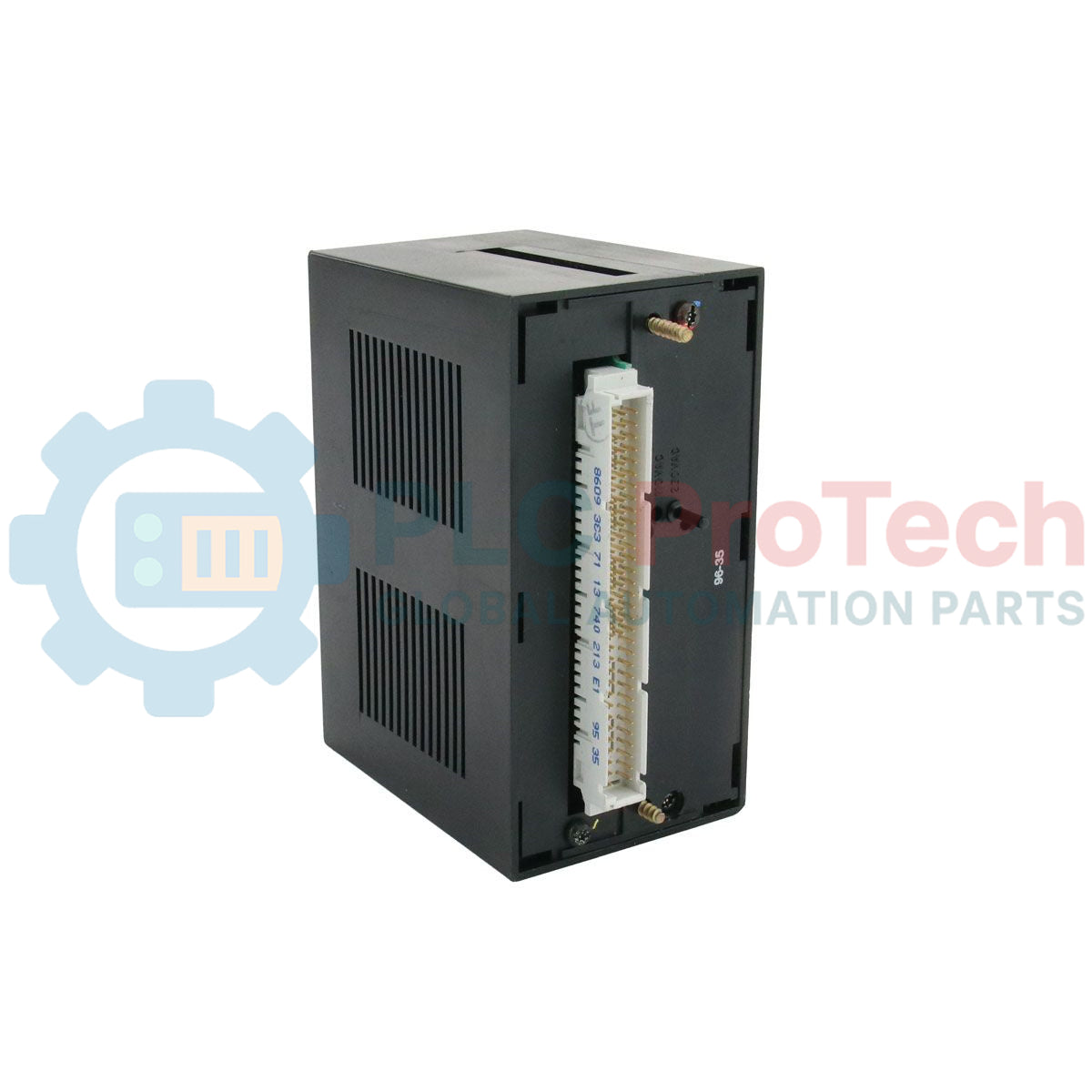

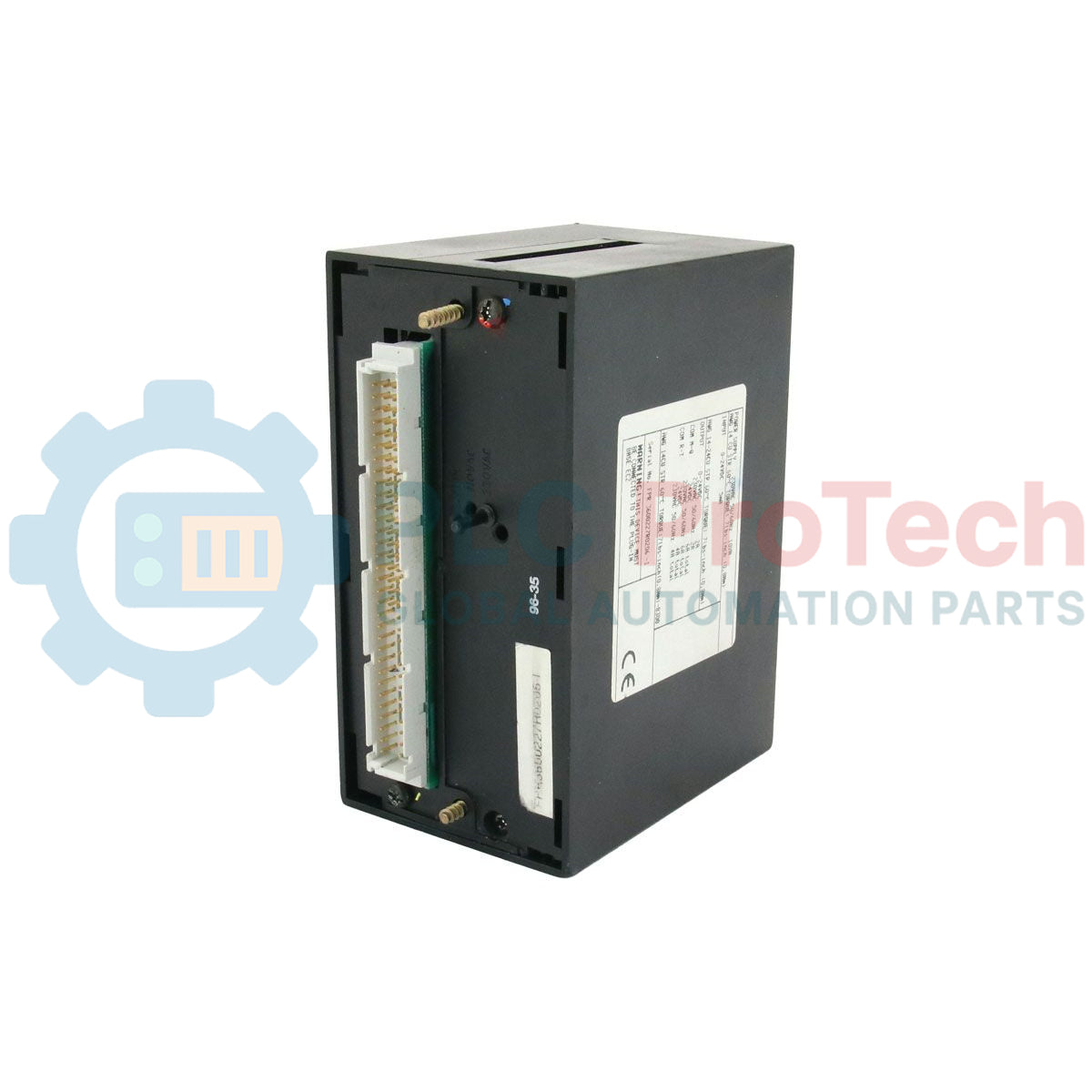

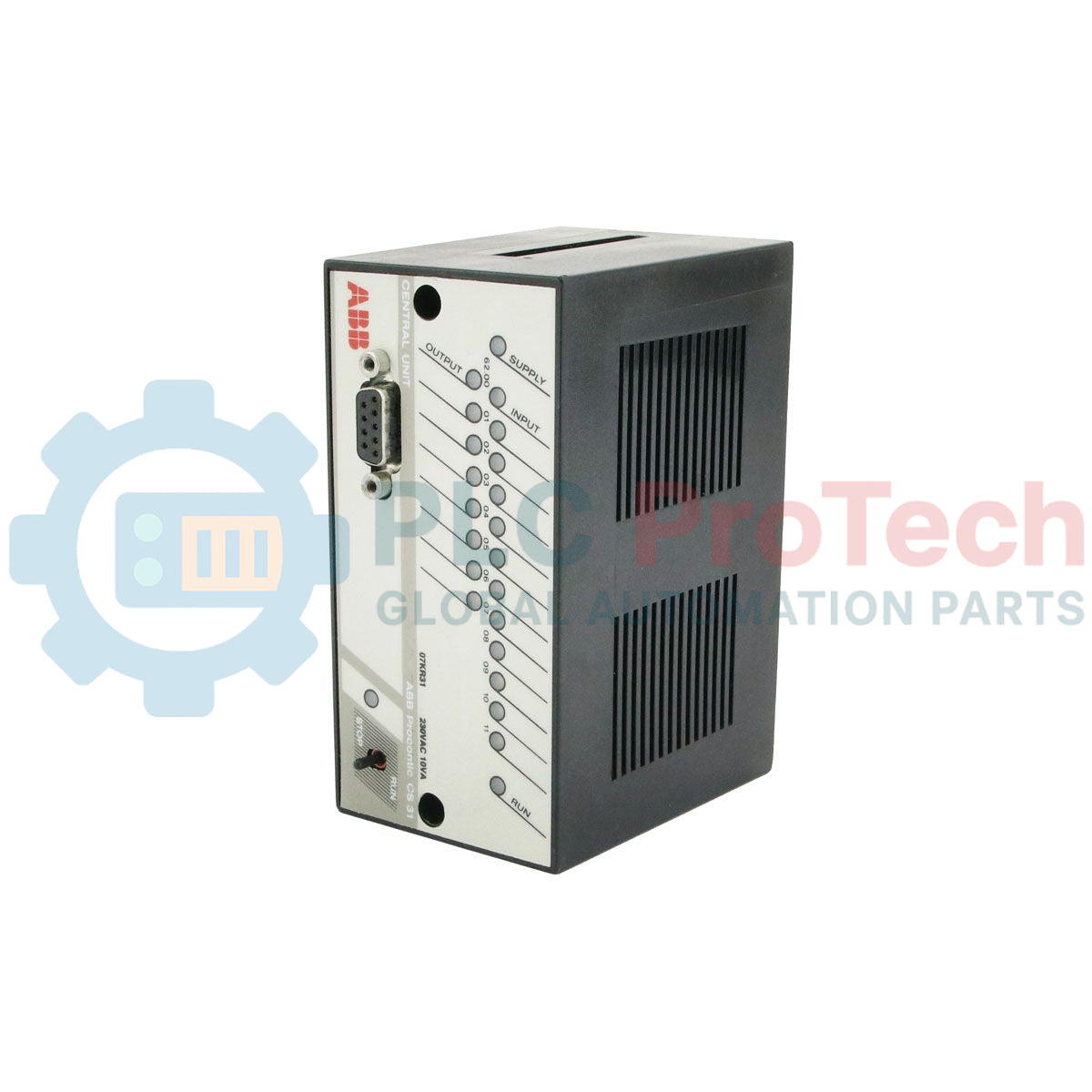

The 07 KR 31 (07KR31), also identified under the part number FPR3600227R1202, is a high-performance Central Processing Unit (CPU) specifically developed for the ABB Procontic series. This controller is a cornerstone for legacy industrial automation and control systems in sectors such as metallurgy, specialized machine manufacturing, and chemical processing. In an era where system uptime is critical, the 07 KR 31 provides a stable and robust platform for managing complex digital and analog logic. Its integrated 24 VDC power supply and support for the CS31 remote bus architecture allow for a distributed control strategy, enabling engineers to maintain legacy infrastructure with high reliability while avoiding the prohibitive costs of a total system overhaul.

Architectural Framework and Mapping

The 07 KR 31 functions as a master controller capable of managing extensive I/O data through its internal memory and external bus interfaces.

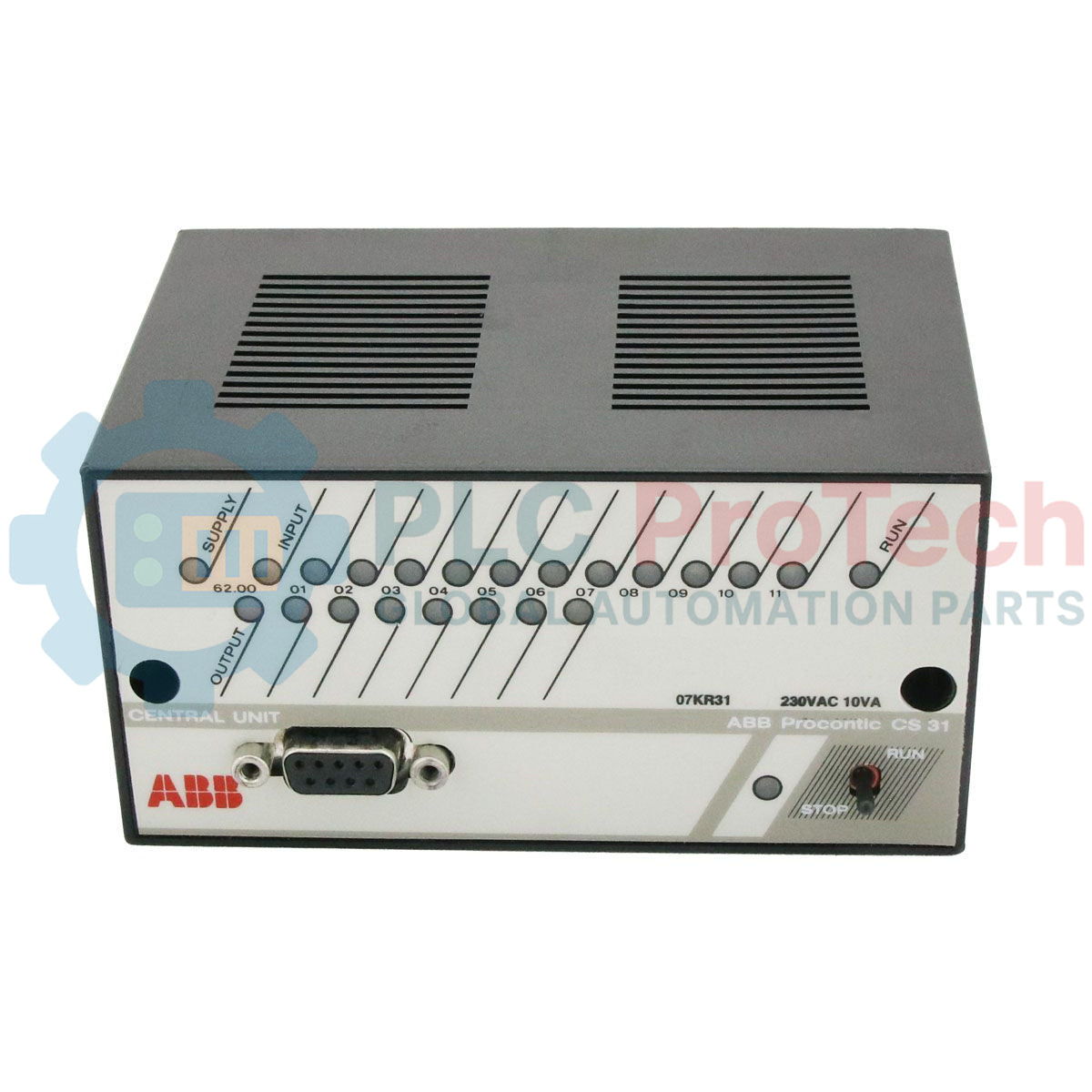

• Integrated I/O: The basic unit features 12 local digital inputs (E 62,00 to E 62,11) and 8 relay digital outputs (A 62,00 to A 62,07), providing immediate control capability without peripheral modules.

• CS31 Bus Expansion: It supports a massive remote I/O range, accommodating up to 61 remote modules. This allows for thousands of binary flags (M-flags) and hundreds of word-based operands (MW) to be processed in real-time.

• High-Speed Processing: Dedicated hardware addresses handle high-speed counting and zero-crossing detection (E 63,13 and E 63,14), essential for precise positioning or frequency-based tasks.

• Diagnostic Logic: The CPU reserves specific memory areas (M 255,00 range) for system diagnostics, ensuring that hardware faults or bus errors are captured and reported immediately to the HMI or supervisory system.

Performance and Hardware Specifications

Expert Support FAQ

Is the 07 KR 31 directly compatible with 07 KT 31 modules?

Yes, the 07 KR 31 is designed to integrate seamlessly with 07 KT 31 series modules and various function modules, allowing for expanded analog processing and specialized control tasks within the same rack or bus.

How does the CPU handle power fluctuations in a 24 VDC environment?

The internal 24 VDC power supply is industrial-grade, designed to handle standard industrial voltage tolerances. However, for environments with high electrical noise or instability, an external regulated power supply and surge protector are recommended.

What is the primary method for troubleshooting bus communication errors?

Users should monitor the diagnostic flags ranging from M 255,00 to M 255,15. These flags provide specific error codes related to the CS31 remote bus integrity and internal CPU status.

Field Engineering & Maintenance Guide

• Relay Output Longevity: Since the 07 KR 31 utilizes mechanical relay outputs, it is vital to check the load types. For inductive loads (such as solenoids or contactors), always install external RC snubbers or flyback diodes to prevent arcing, which can weld the internal relay contacts over time.

• CS31 Bus Shielding: The CS31 bus is sensitive to electromagnetic interference. Ensure the bus cable shield is grounded at a single point (usually at the CPU end) to prevent ground loops while effectively draining induced noise.

• Battery Maintenance: Although this unit is robust, ensure the internal memory backup battery is checked during annual shutdowns. A depleted battery will lead to the loss of user programs and flag settings (KW/MW data) during a power cycle.

• Cooling and Airflow: Given its compact dimensions, do not obstruct the ventilation slots on the top or bottom of the housing. Maintain at least 20 mm of clearance from adjacent wiring ducts to ensure passive convection keeps the internal components within the rated 55 deg Celsius limit.
