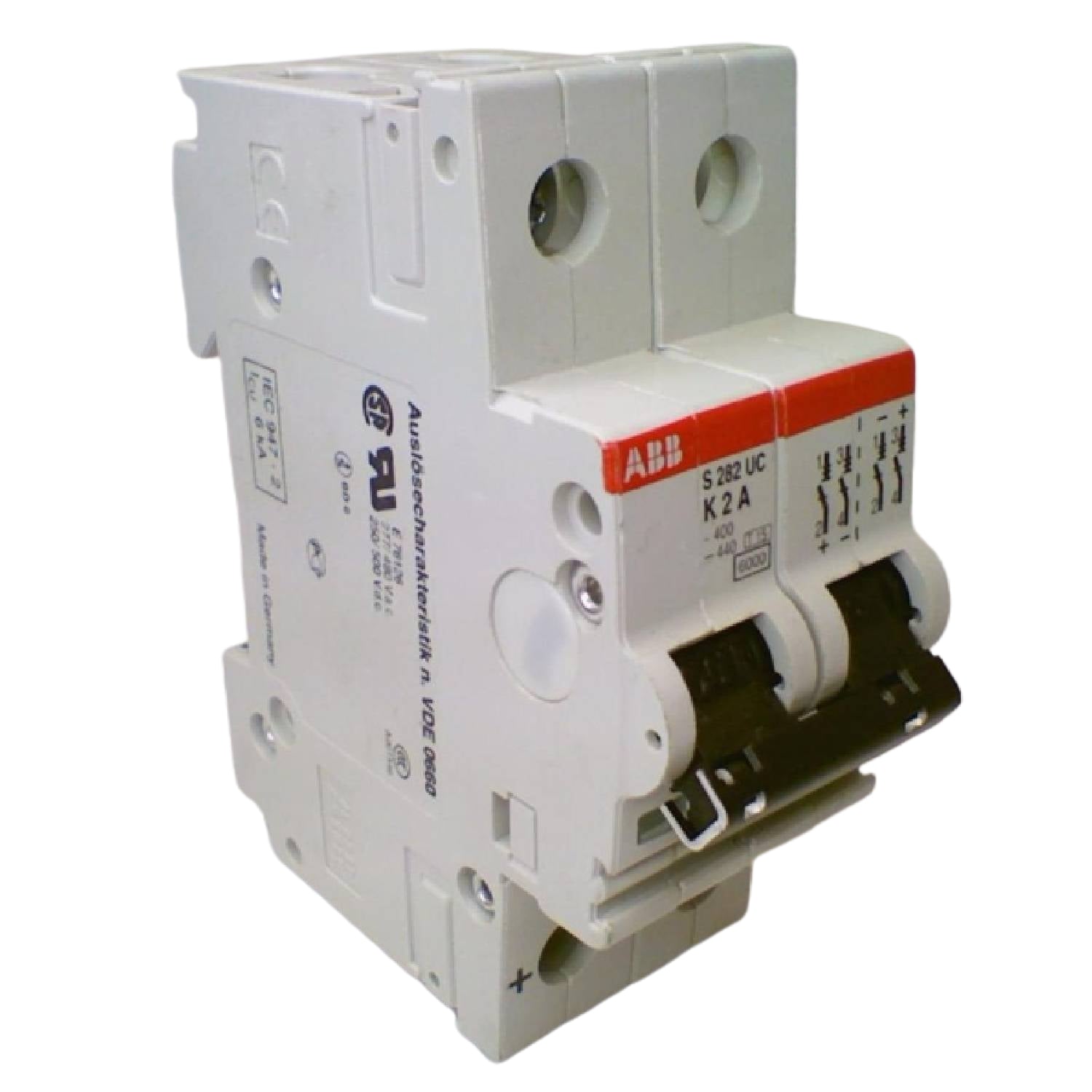

The S282UC-K2 universal current miniature circuit breaker with Product ID GHS2820164R0277 is a 2-pole electrical device engineered to deliver comprehensive current limitation, short-circuit protection, and overcurrent mitigation. As part of the S280UC product series, this unit features a delayed thermal tripping mechanism for overload protection and an electromechanic magnetic tripping mechanism for short circuit protection. It is specifically optimized with a high DC voltage rating to serve as a reliable solution for direct current sub-circuits up to 440 V DC across two poles, making it highly compatible with applications in photovoltaics, telecommunication infrastructure, electric traction setups, and specialized industrial settings.
| Parameter | Value |
|---|---|
| Extended Product Type | S282UC-K2 |
| Product ID | GHS2820164R0277 |
| EAN | 4012233652808 |
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Product ID | GHS2820164R0277 |
| Extended Product Type | S282UC-K2 |
| Number of Poles | 2 |
| Tripping Characteristic | K |
| Rated Current | 2 A |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | 6.0 kA |
| Pollution Degree | 2 |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV (6.2 kV at sea level, 5.0 kV at 2000 m) |
| Dielectric Test Voltage | 50/60 Hz, 1 min.: 2 kV |
| Housing Material | Insulation group I, RAL 7035 |
| Actuator Type | Insulation group II, black, sealable |
| Actuator Marking | I / O |
| Contact Position Indication | ON / OFF |
| Degree of Protection | IP20 (IP40 inside an enclosure with cover) |
| Electrical Endurance (Nelec) | 10000 cycle |
| Mechanical Endurance (Nendu) | 20000 cycle |
| Terminal Type | Screw Terminals |
| Screw Terminal Type | Cable Clamp |
| Connecting Capacity | Rigid 0.75 ... 25 mm² / Flexible with Ferrule 0.75 ... 16 mm² |
| Tightening Torques | 2.5 N-m |
| Recommended Screw Driver | Pozidriv 2 |
| Maximum Operating Voltage UL/CSA | 500 V DC / 480 V AC |
Global Express Shipping
Returns & Warranty
Manufacturer: ABB
Product No.: S282UC-K GHS2820164R0277
Country of origin:Sweden
Product Type: Miniature Circuit Breakers
Payment: T/T, Western Union
Weight: 240g
Dimensions: 90 mm x 85 mm x 35 mm (H x W x D)
Shipping port: Xiamen
Warranty: 12 months
