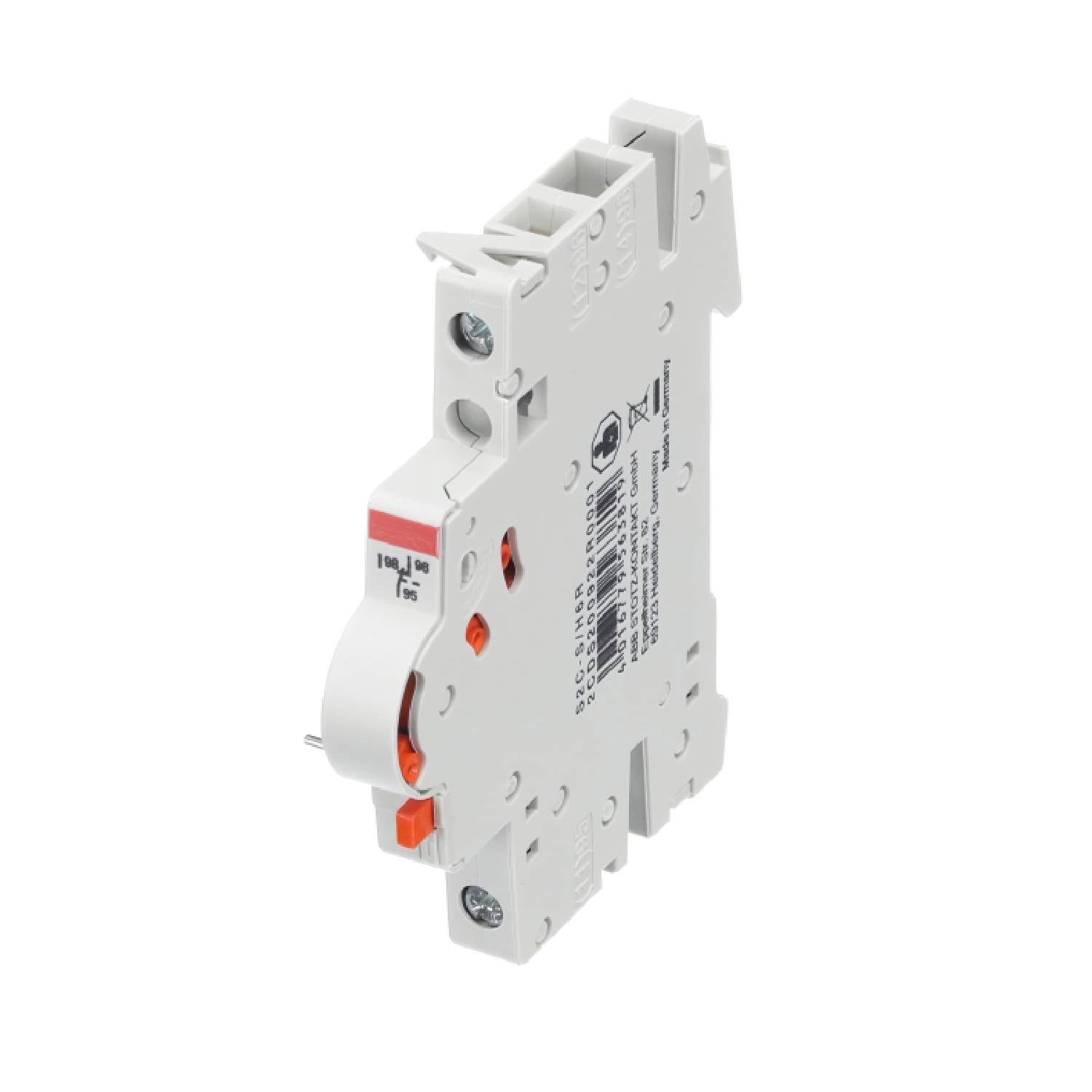

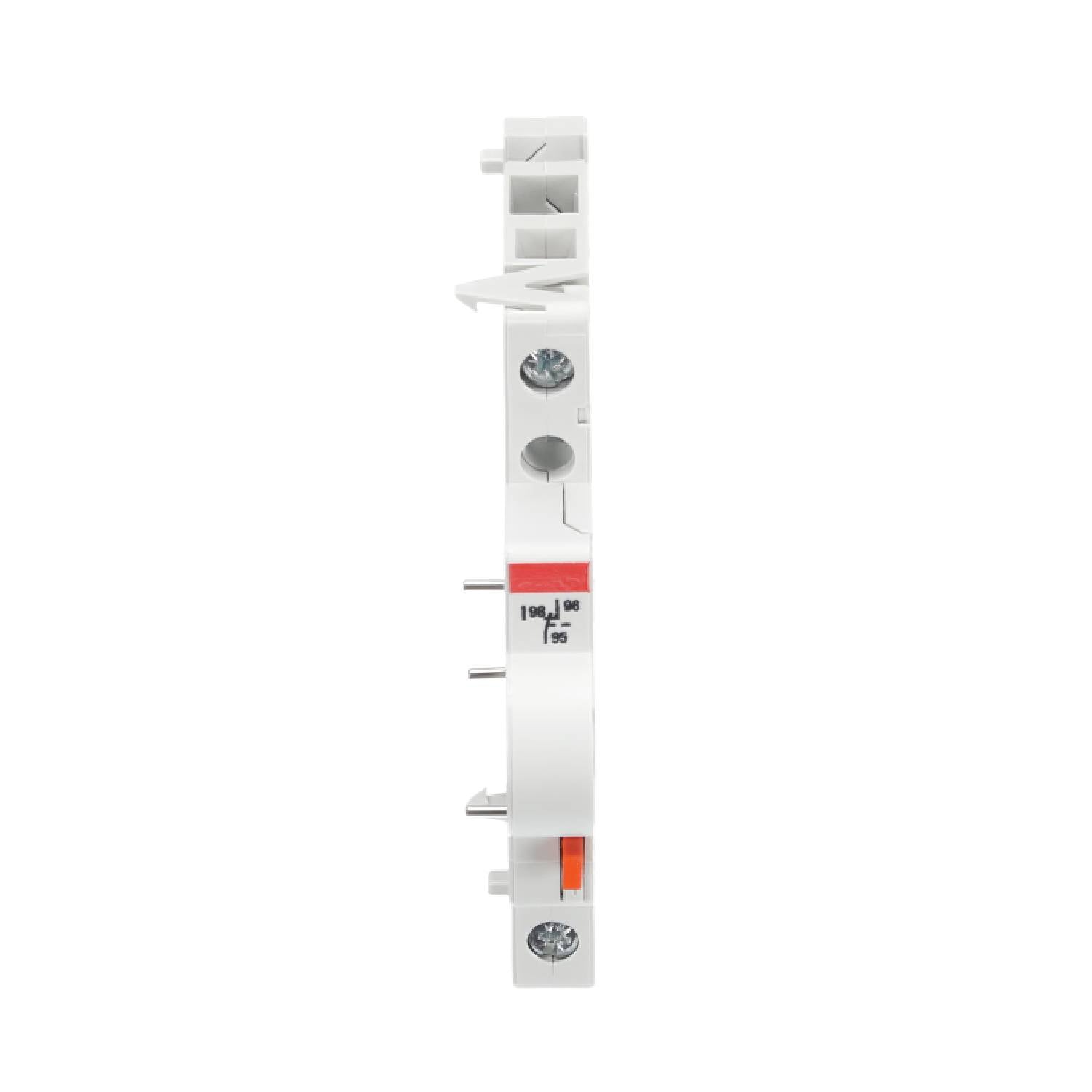

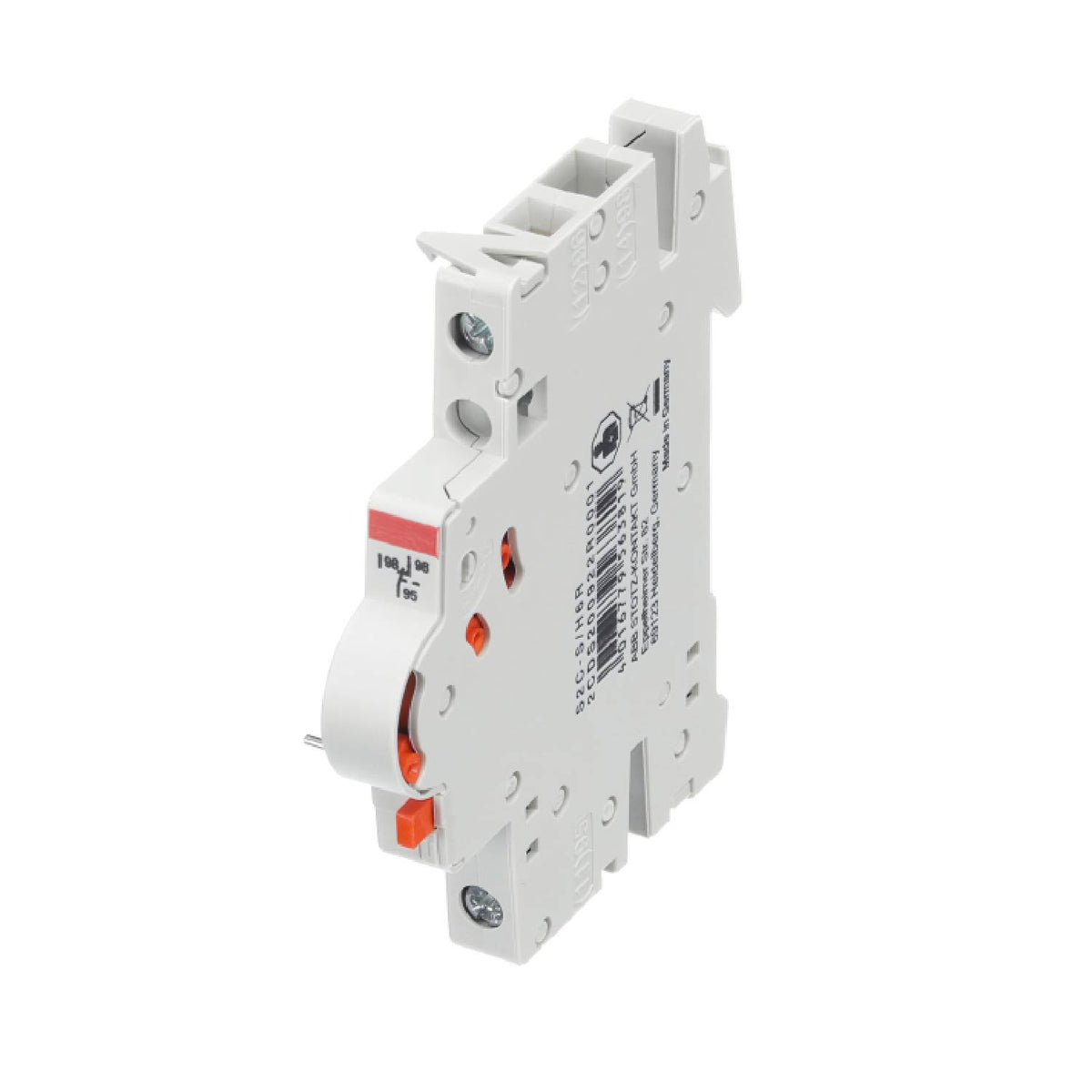

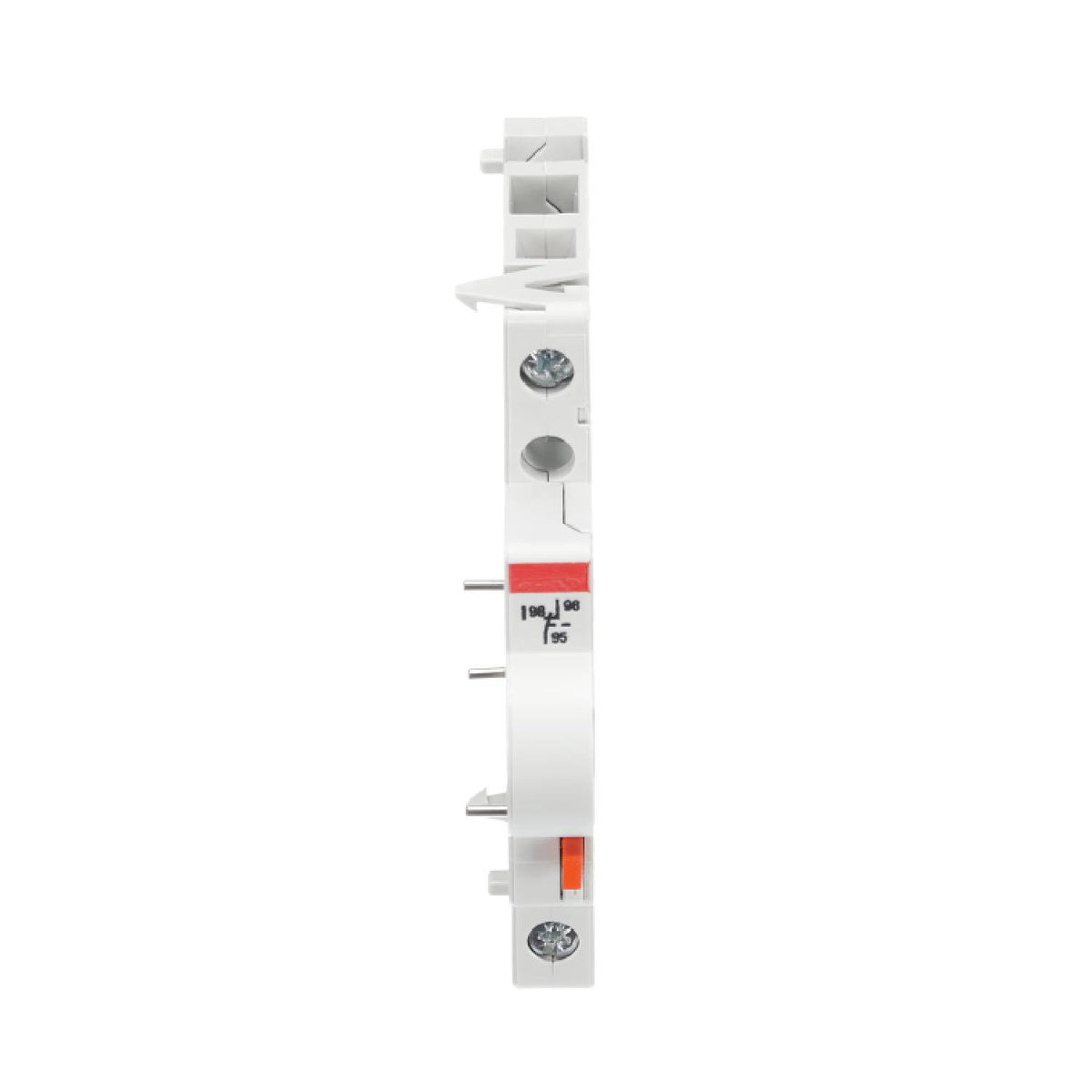

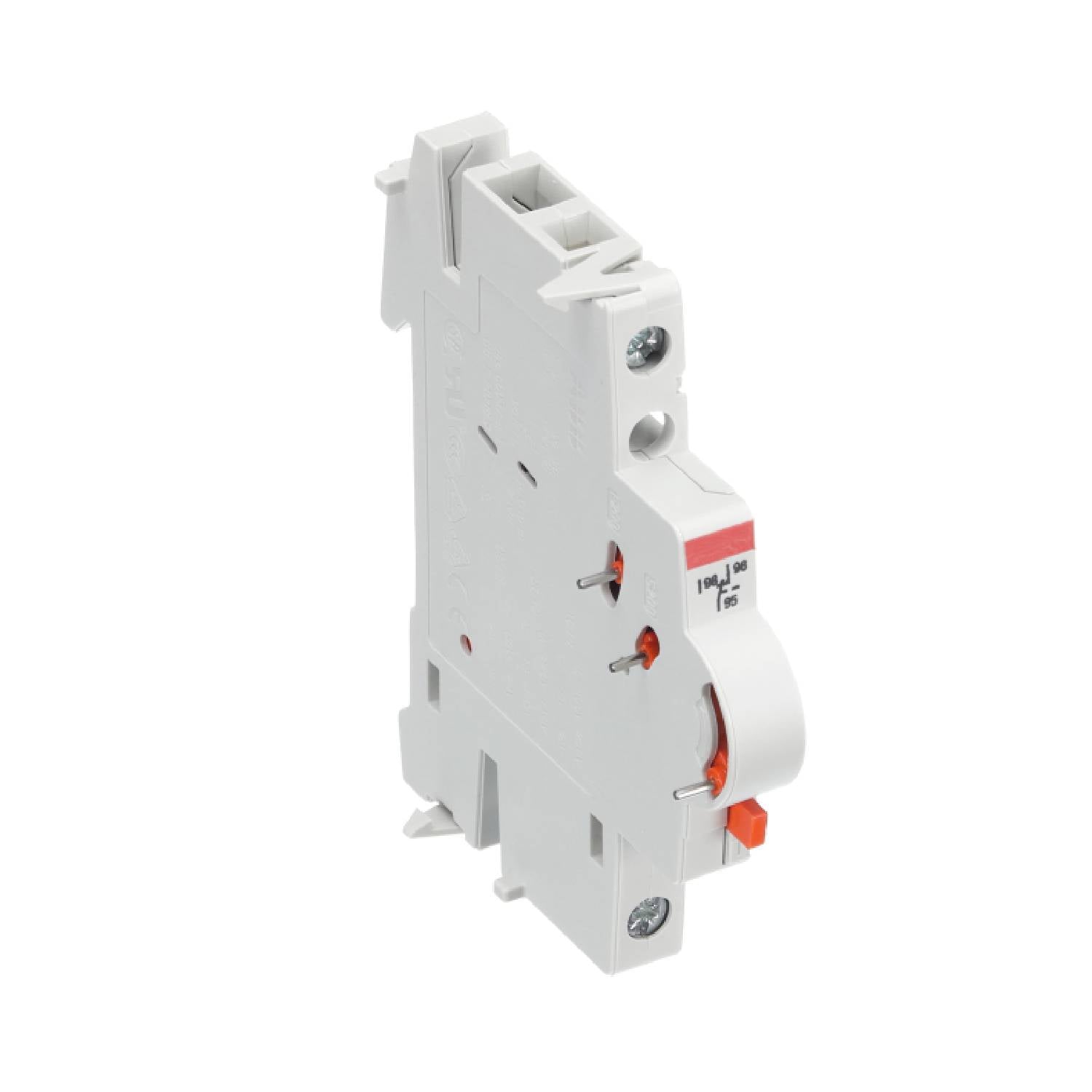

The S2C-S/H6R universal contact with Product ID 2CDS200922R0001 is a high-reliability universal auxiliary/signal contact mechanical assembly designed for low-voltage modular DIN rail systems. This component allows an operator or system logic to choose via an integrated manual selector switch between indicating the precise contact position of the primary device or signaling a distinct electrical fault, such as an overcurrent or short-circuit event. It is engineered for seamless system compatibility across a broad selection of modular hardware including S200 series miniature circuit breakers, residual current devices, and switches.
| Parameter | Value |
|---|---|
| Extended Product Type | S2C-S/H6R |
| Product ID | 2CDS200922R0001 |
| EAN | 4016779563819 |
| Minimum Order Quantity | 1 piece |
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Product ID | 2CDS200922R0001 |
| Extended Product Type | S2C-S/H6R |
| Function | Signal/Auxiliary Contact |
| Suitable For | S200, S200M, S200MT, S300P, F200, DS201, SD200, DS200, S-ARC1, DS-ARC1 |
| Suitable for Product Class | Miniature Circuit Breaker, Residual Current Device |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 0 |
| Number of Auxiliary Contacts CO (SPDT) | 1 |
| Power Loss | 0.5 W (Maximum 0.5 W) |
| Product Net Width | 8.8 mm |
| Product Net Height | 85 mm |
| Product Net Depth / Length | 69 mm |
| Product Net Weight | 0.043 kg |
| Package Level 1 Units | blister 1 piece |
| Package Level 1 Gross Weight | 0.045 kg |
Global Express Shipping
Returns & Warranty
Manufacturer: ABB
Product No.: S2C-S/H6R 2CDS200922R0001
Country of origin:Germany
Product Type: Auxiliary Contact Blocks
Payment: T/T, Western Union
Weight: 43g
Dimensions: 69 mm x 8.8 mm x 85 mm (H x W x D)
Shipping port: Xiamen
Warranty: 12 months
