Product Overview

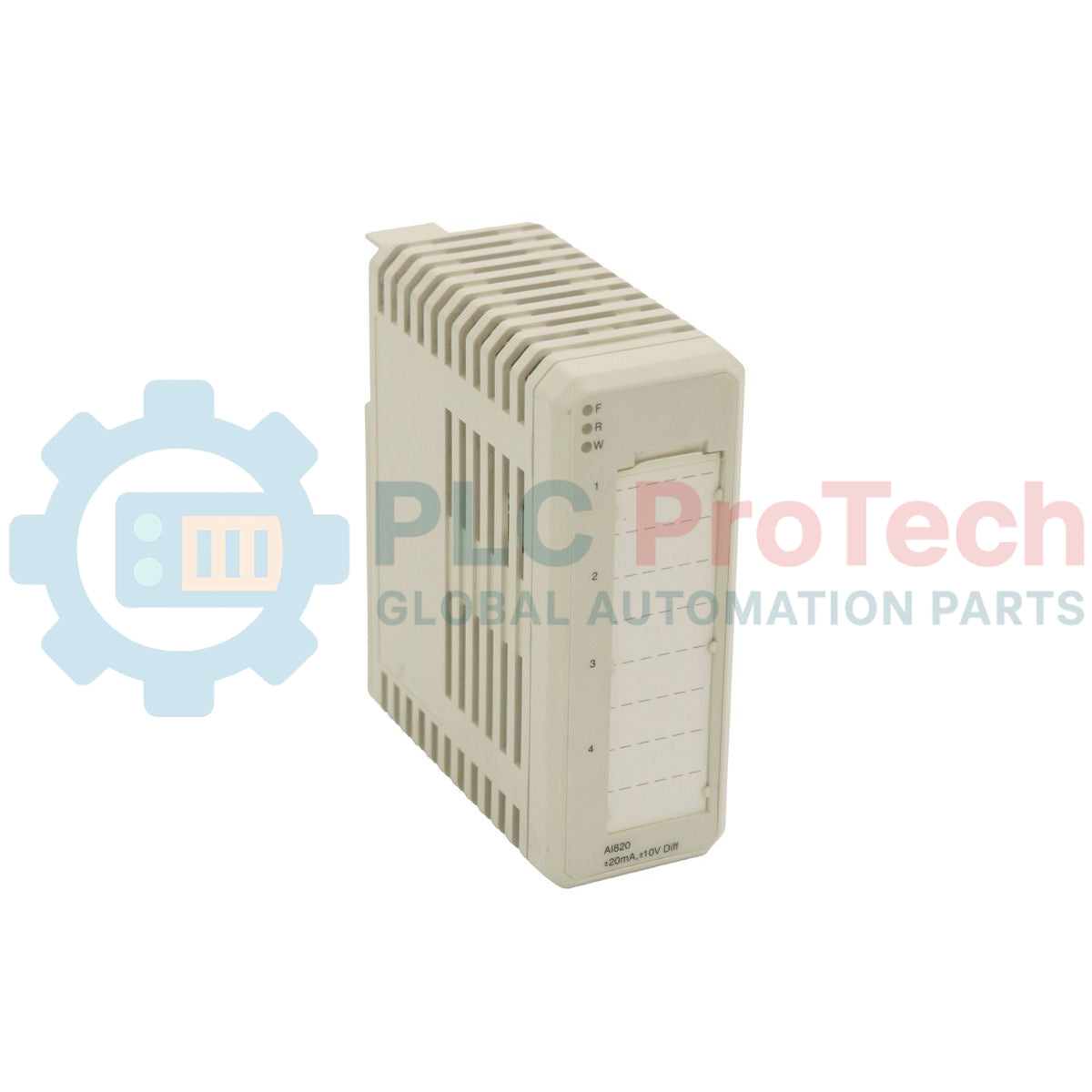

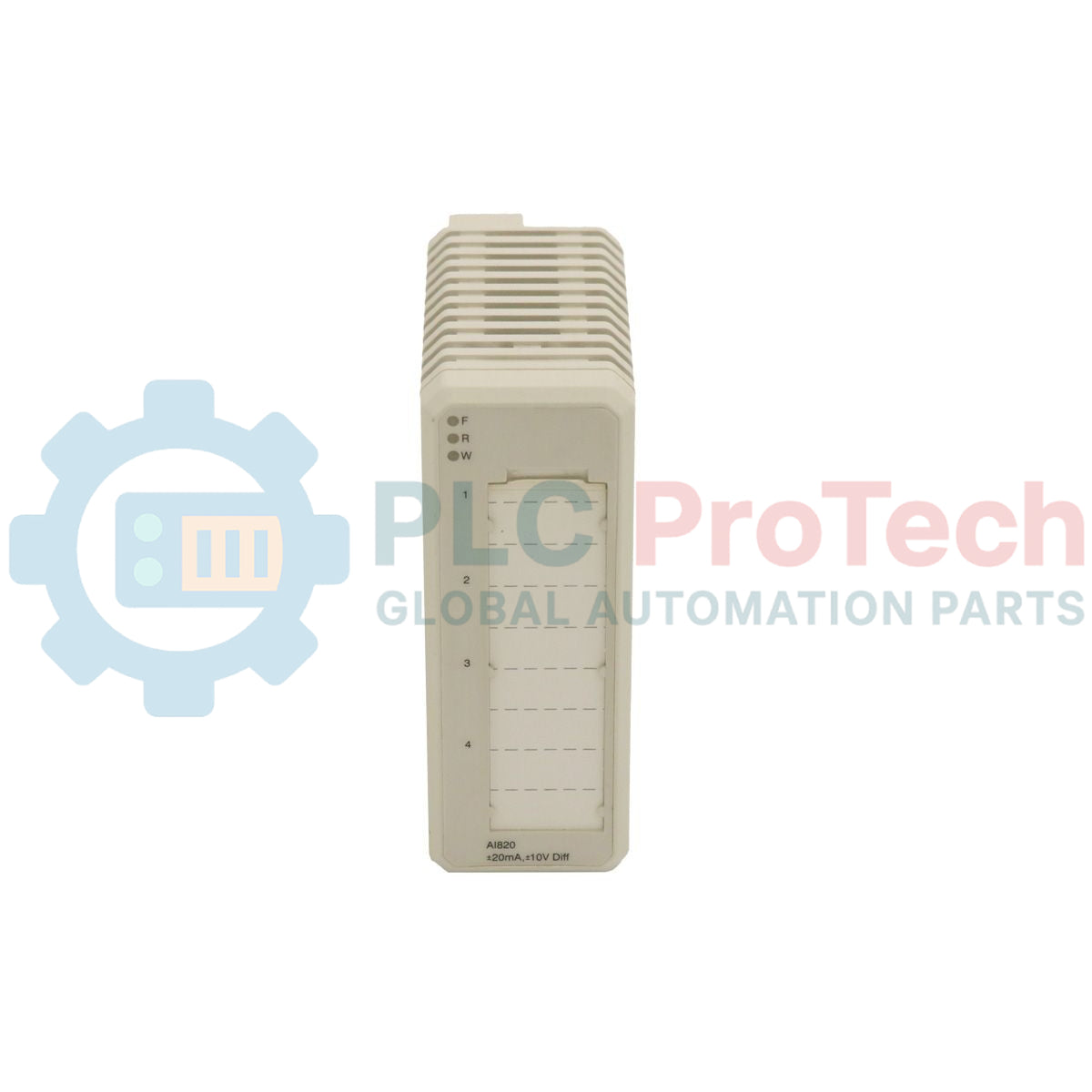

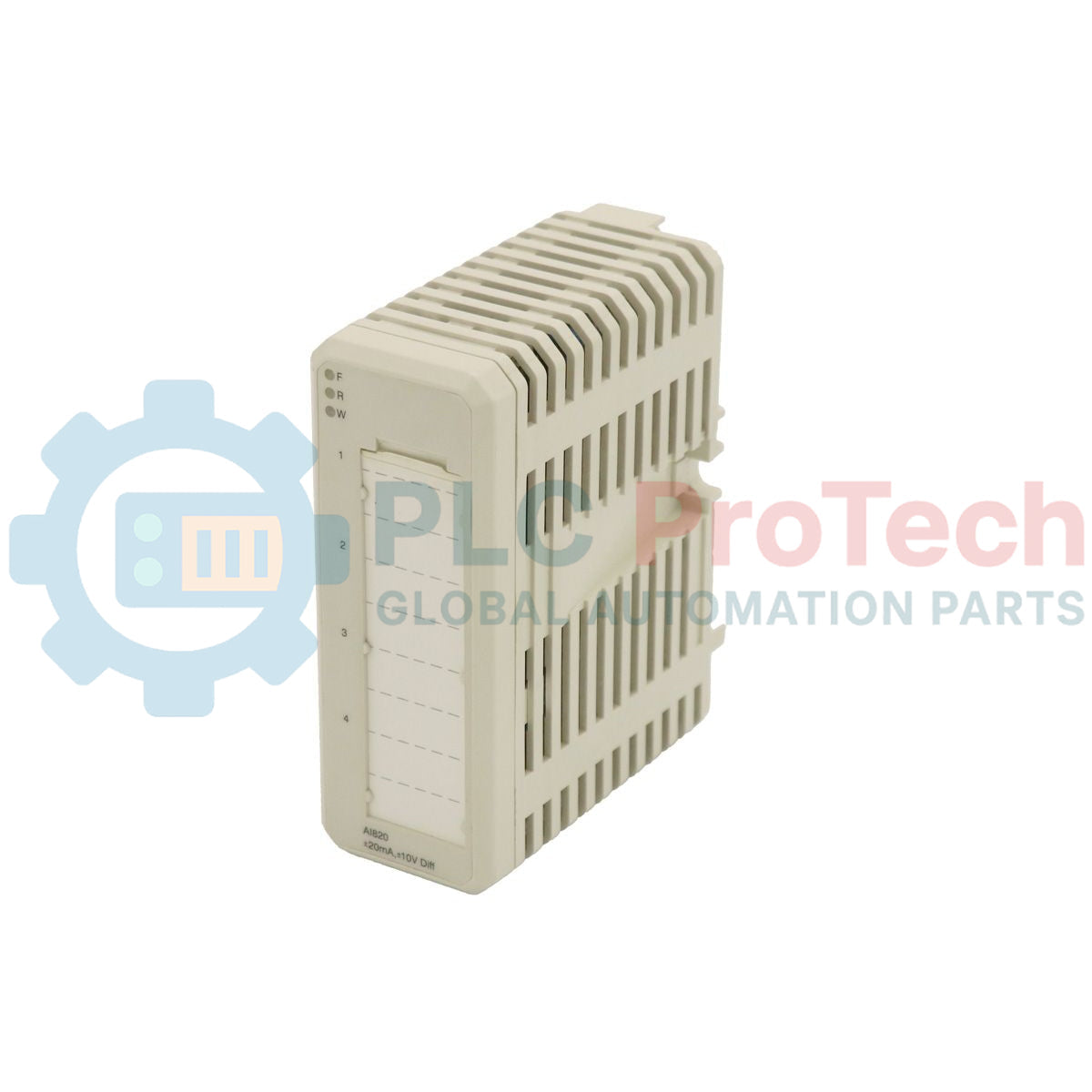

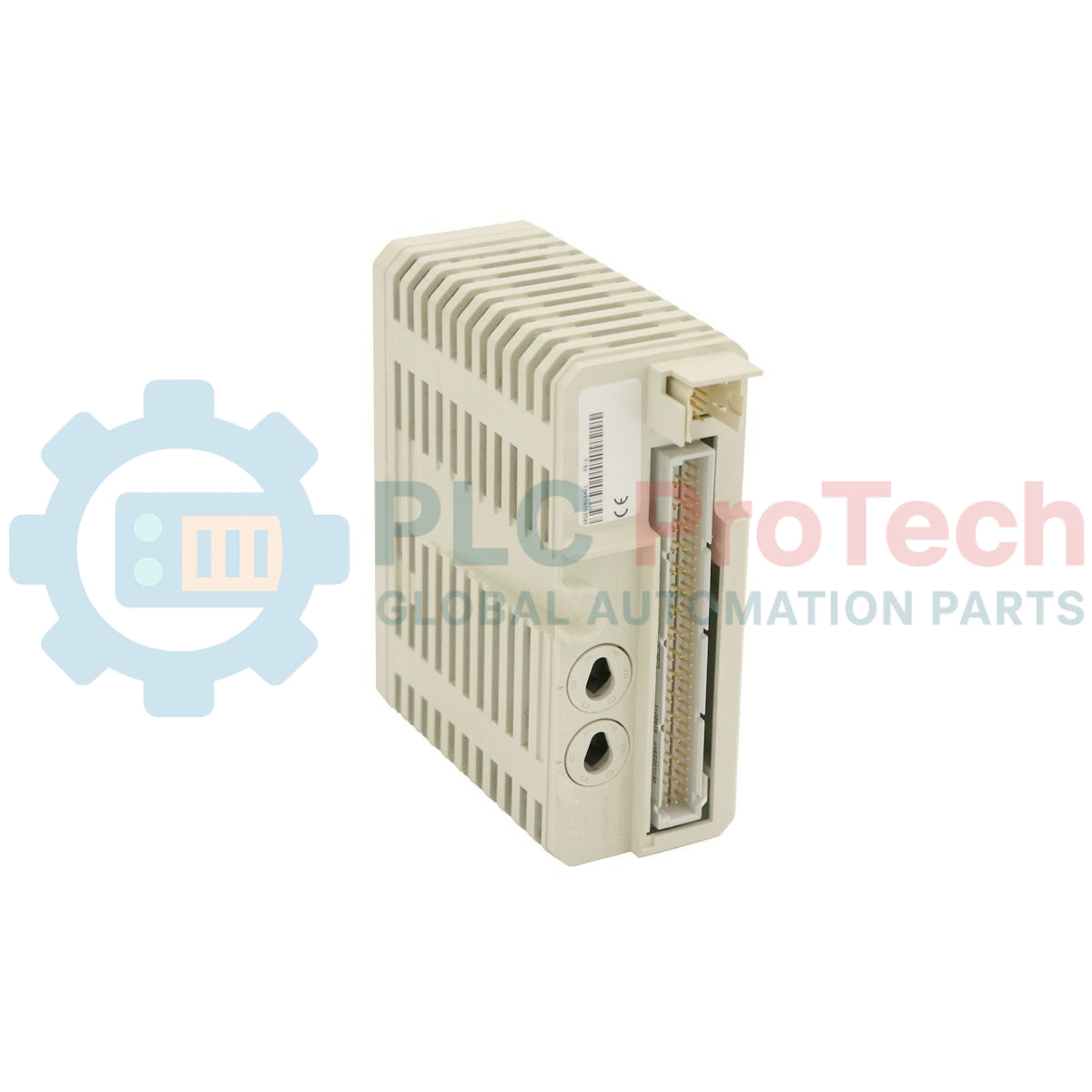

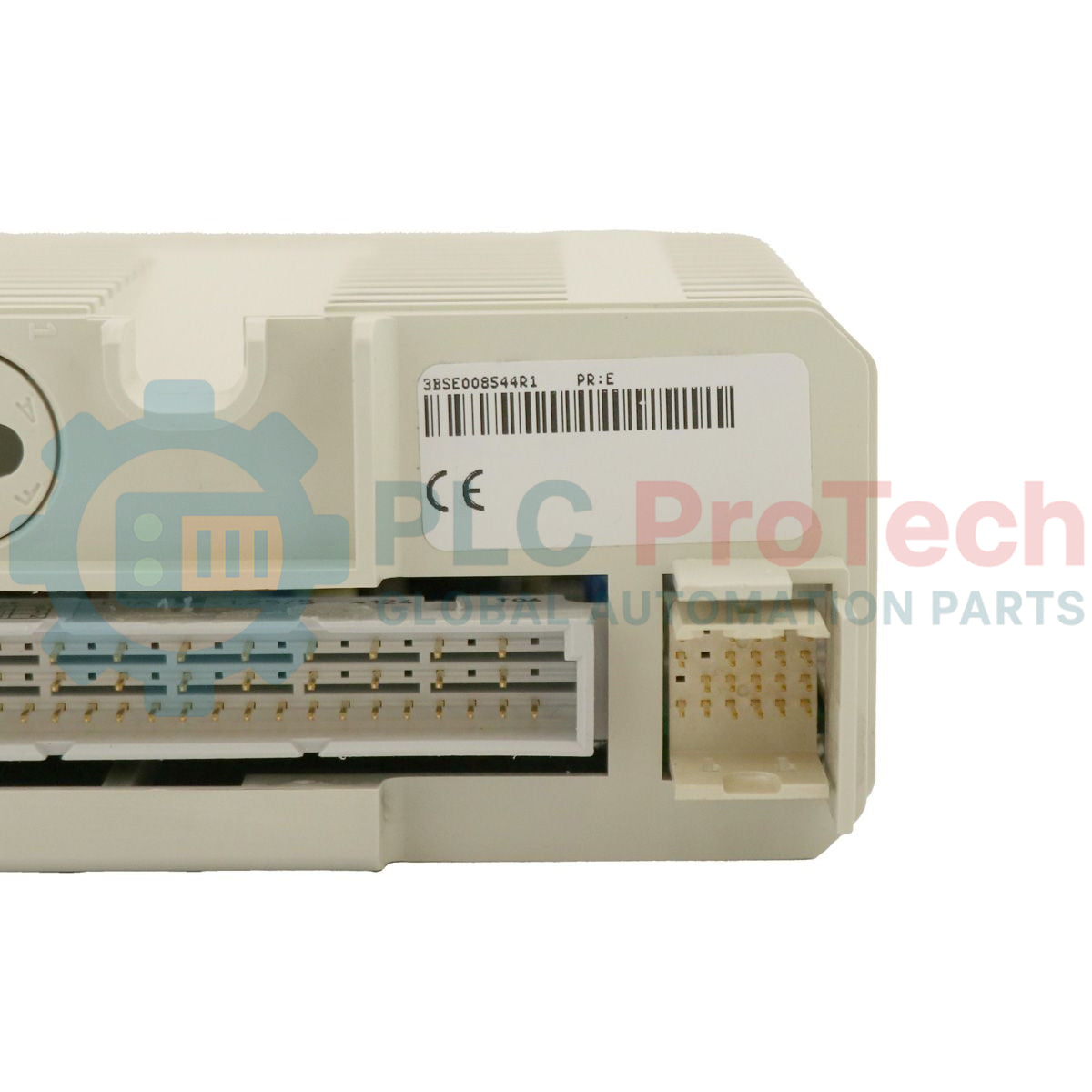

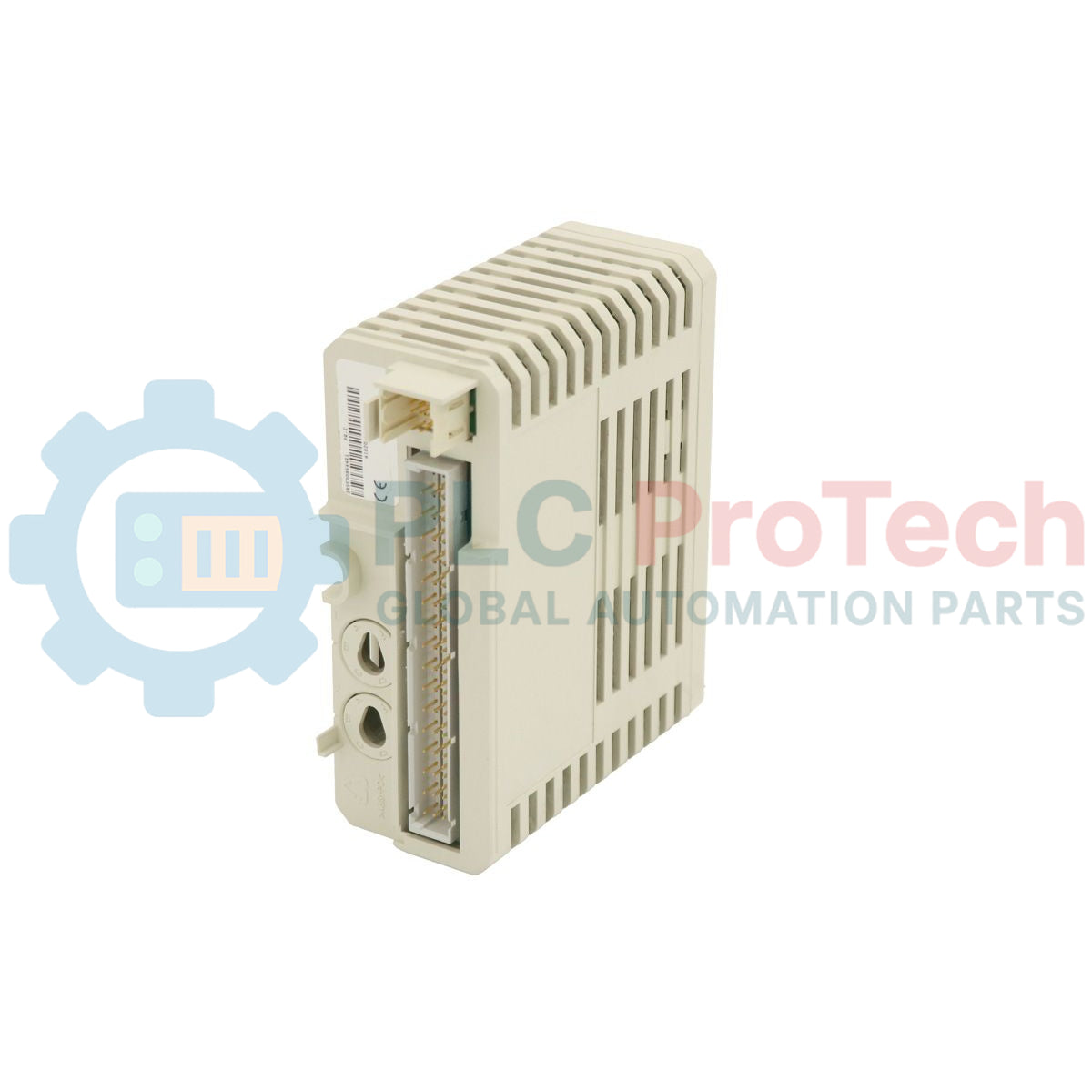

The ABB 3BSE008544R1 (Type: AI820) is a high-performance 4-channel Analog Input Module designed for the S800 I/O family. This module is engineered for maximum versatility, supporting a wide range of voltage and current signals, including bipolar ranges such as ±20mA and ±10V. A critical feature of the AI820 is its individually galvanic isolated channels, which provide superior protection against ground loops and common-mode interference up to 50V. This makes the 3BSE008544R1 an ideal choice for complex industrial environments where signal integrity and high precision are required for mission-critical process monitoring.

Functional Intelligence & Signal Precision

The AI820 utilizes 14-bit plus sign resolution to deliver high-fidelity data to the controller. Each of the four channels can be independently configured for different signal types, allowing a single module to simultaneously process inputs from diverse field instruments like pressure transmitters, flow meters, and temperature sensors. Its high input impedance for voltage signals and a precise 250 Ohm internal resistance for current signals ensure minimal load on field devices. The module integrates seamlessly with 800xA, Advant OCS, and Compact Product Suite systems, providing deterministic data acquisition across the plant floor.

Technical Specifications

Technical FAQs

Why is individual galvanic isolation important?In many analog loops, different field instruments may have varying ground potentials. Without individual isolation, these differences can cause ground loop currents that distort signals or damage hardware. The AI820 isolates each channel from the others and from the system backplane, ensuring that an electrical fault or noise on one channel does not affect the rest of the module or the controller.

Which Module Termination Units (MTUs) are compatible with 3BSE008544R1?The AI820 must be paired with an S800 MTU for field wiring. Compatible units include TU810, TU812, TU814, TU830, or TU833. The choice of MTU depends on whether your application requires screw terminals, spring terminals, or extended grounding features.

Field Engineering & Installation Guide

• MTU Selection: Verify your field wiring type before installation. If your project requires redundant I/O or fused power distribution, ensure you have selected the appropriate MTU (such as the TU830) for the 3BSE008544R1.

• Configuration Logic: In the control system software (e.g., Control Builder M), ensure each channel is correctly mapped to its specific signal range. Incorrect software scaling can lead to "Out of Range" errors even if the physical field wiring is correct.

• Shielding Protocol: To maximize the benefits of the module's 50V CMV protection, field cables should be shielded. Terminate the shields at the designated grounding points on the MTU to minimize electromagnetic interference (EMI).

Engineering Advantages

The ABB 3BSE008544R1 provides a robust, space-efficient solution for analog data acquisition. Its ability to handle bipolar signals and provide per-channel isolation reduces the need for external signal conditioners and isolators, lowering the overall cost of the control cabinet. For B2B procurement, choosing the original 3BSE008544R1 ensures full compatibility with the 800xA lifecycle and maintains the industrial certifications (CE, RoHS) required for global process safety and environmental compliance.
