Description

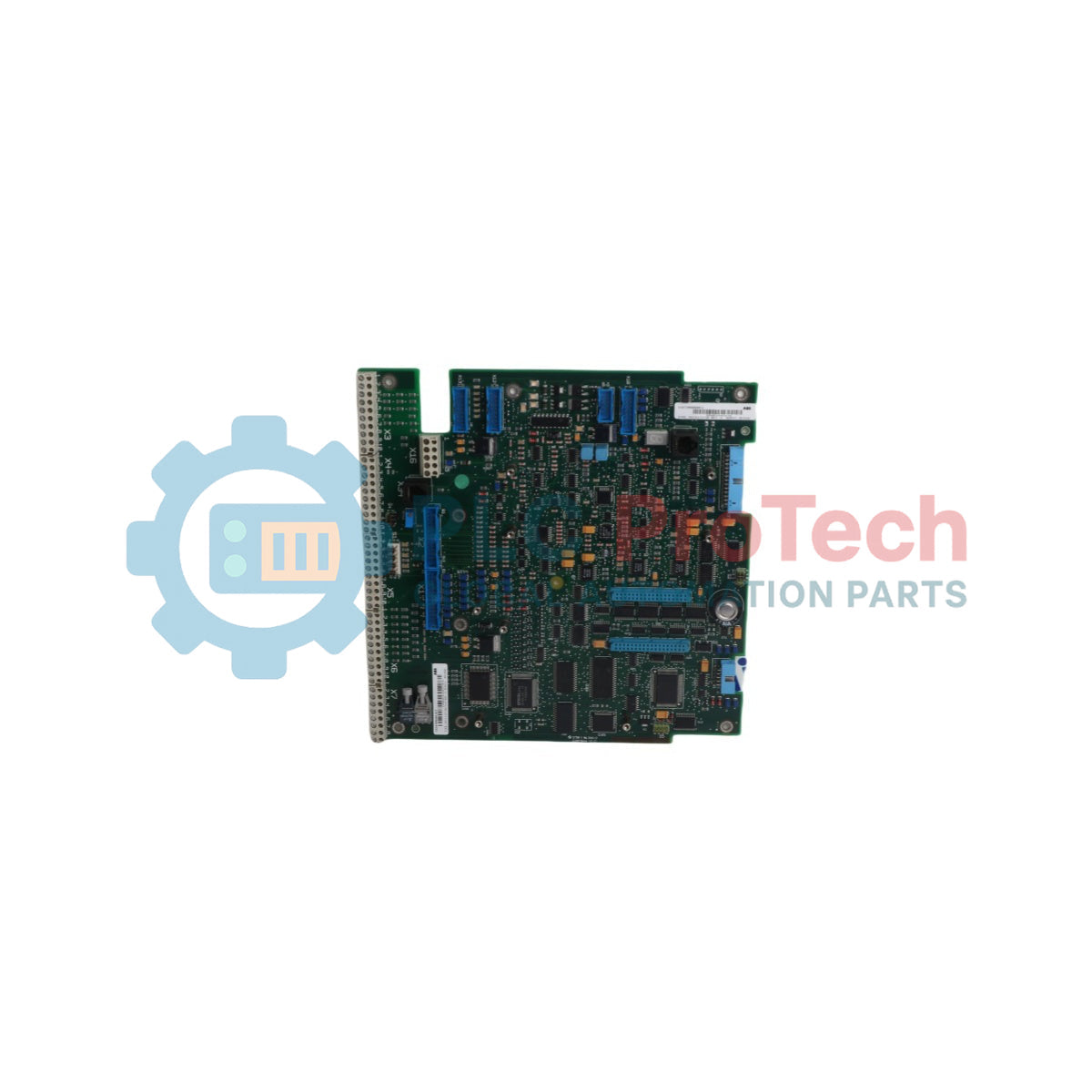

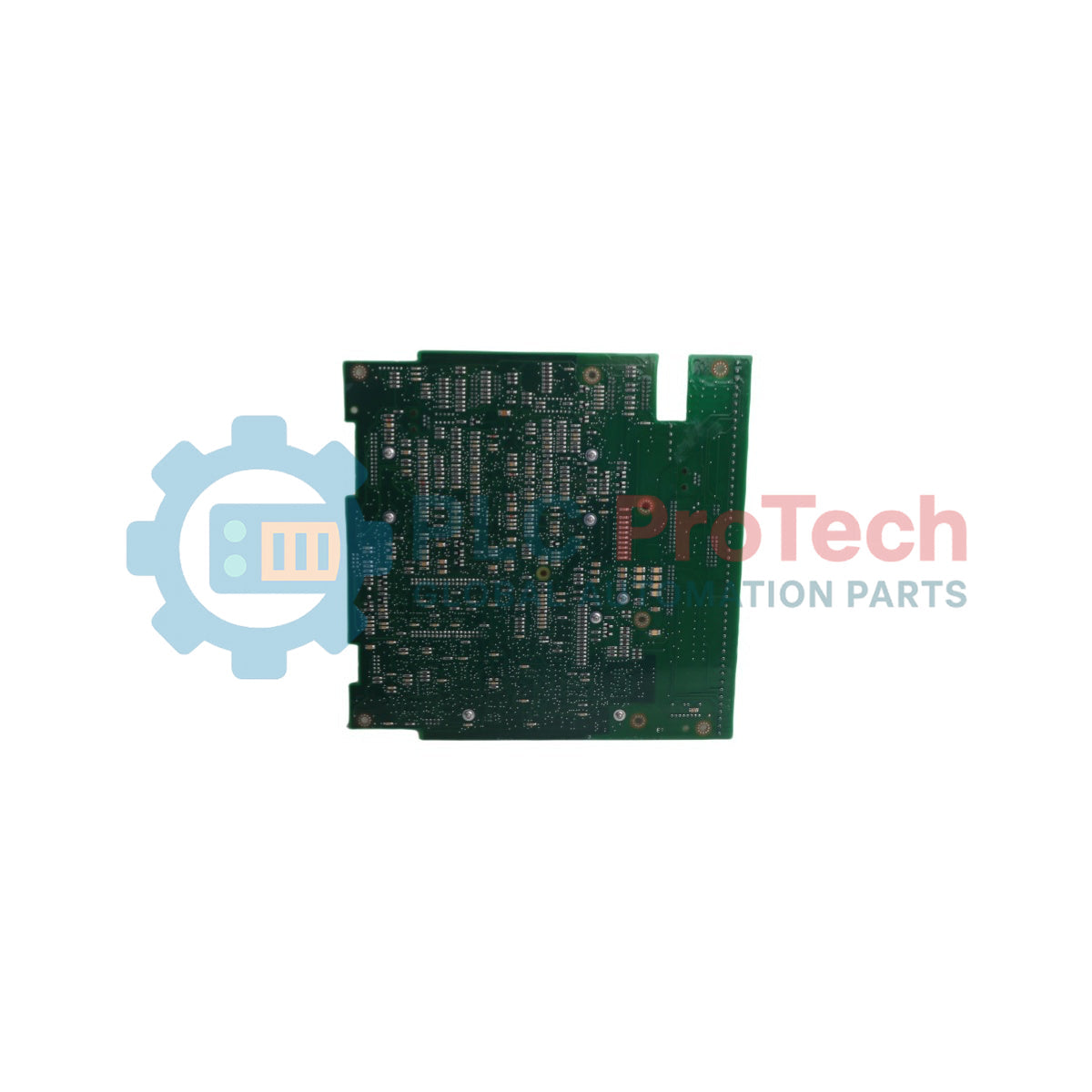

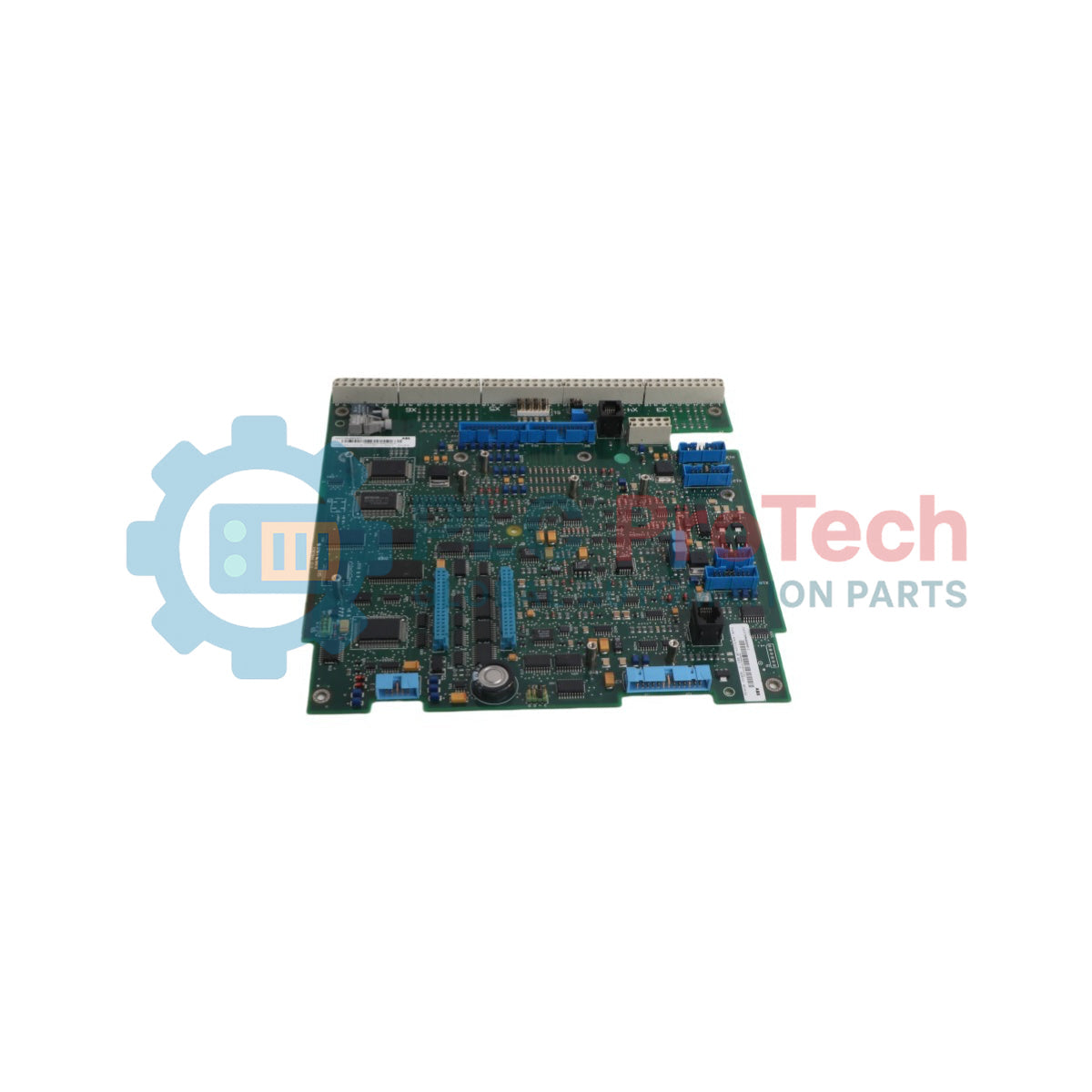

The SDCS-CON-2B (with Part ID 3ADT309600R0012) is a microprocessor-based processing assembly designed to provide main armature and excitation regulation for the DCS 500B and associated thyristor power converter drive frameworks. This high-performance Control Board is built around an integrated 80186EM microprocessor paired with an advanced, application-specific ASIC circuit (DC94L01) to manage core firmware logic, execution scripts, and precise firing angle determinations across the active power bridges. The module acts as the centralized computational core within the converter matrix, continuously monitoring runtime diagnostics, evaluating input variables, and transmitting firing commands via high-speed ribbon connectors directly to the power interface card networks. Operating values and firmware code profiles are maintained on modular flash-based programmable memory sub-circuits, allowing engineers to download tailored application profiles or track faults through an integrated physical seven-segment state indicator layout without sacrificing real-time deterministic performance.

Features

• Microprocessor Architecture: Driven by an industrial-grade 80186EM microprocessor and specialized ASIC DC94L01 hardware for rapid current loop and diagnostic cycles.
• Integrated Diagnostics Display: Includes a localized seven-segment display assembly on the board surface to show real-time drive operational status and numerical error warnings.
• Dual Flash Component Profile: Uses distinct Flash PROM units to segregate standard system boot commands from specialized application functionalities and parameter values.
• Comprehensive Parameter Logging: Features onboard static RAM circuits configured to log precise fault histories, warning timestamps, and operational hour records.
• Fail-Safe Response Profiles: Implements hardwired protective states where digital outputs are instantly forced low and analogue outputs are reset to absolute zero (0V) when severe anomalies occur.

Applications

• High-Performance Armature Current Control in DCS 500B Heavy Industry Drive Infrastructure
• Three-Phase Industrial Motor Field Excitation Systems (DCF 500B Configurations)
• Multi-Pulse Large Power Rectifier Phase-Angle Control Arrays
• Heavy Machinery Rebuilds and Retrofits replacing legacy analog power converters

Technical Specifications

Performance

Mechanical

Electrical

Connections/Interfaces

The interface architecture establishes routing connections to standard power interface and external extension expansion modules:

Installation Guidelines

• Electrostatic Precaution Execution: Always wear a properly grounded wrist strap before extracting or replacing the control module to prevent damage to sensitive CMOS microprocessor tracks.
• Firmware Verification: Ensure the Flash PROM sub-circuits contain the correct application macro version matched to the physical armature or field excitation frame before applying system power.
• Connector Interlocking: Verify that ribbon cable paths running to connectors X12, X13, and X17 are fully seated and locked by the side retaining clips to eliminate line resistance errors.
• External I/O Configuration: When matching the card to an external SDCS-IOB-3 isolated interface, configure plugs S4:1-2 and S4:3-4 on the control surface explicitly in accordance with the system blueprint to isolate raw inputs.
