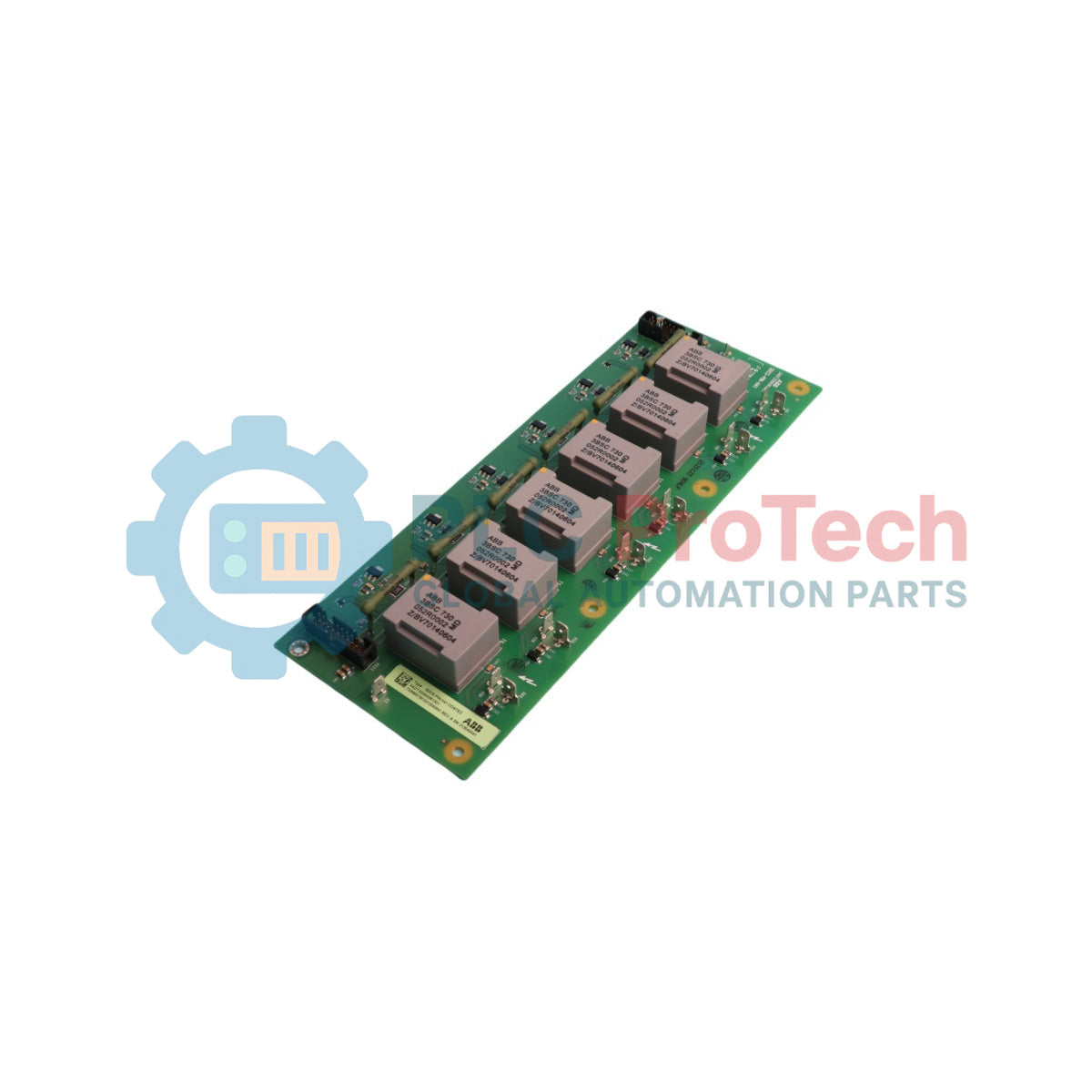

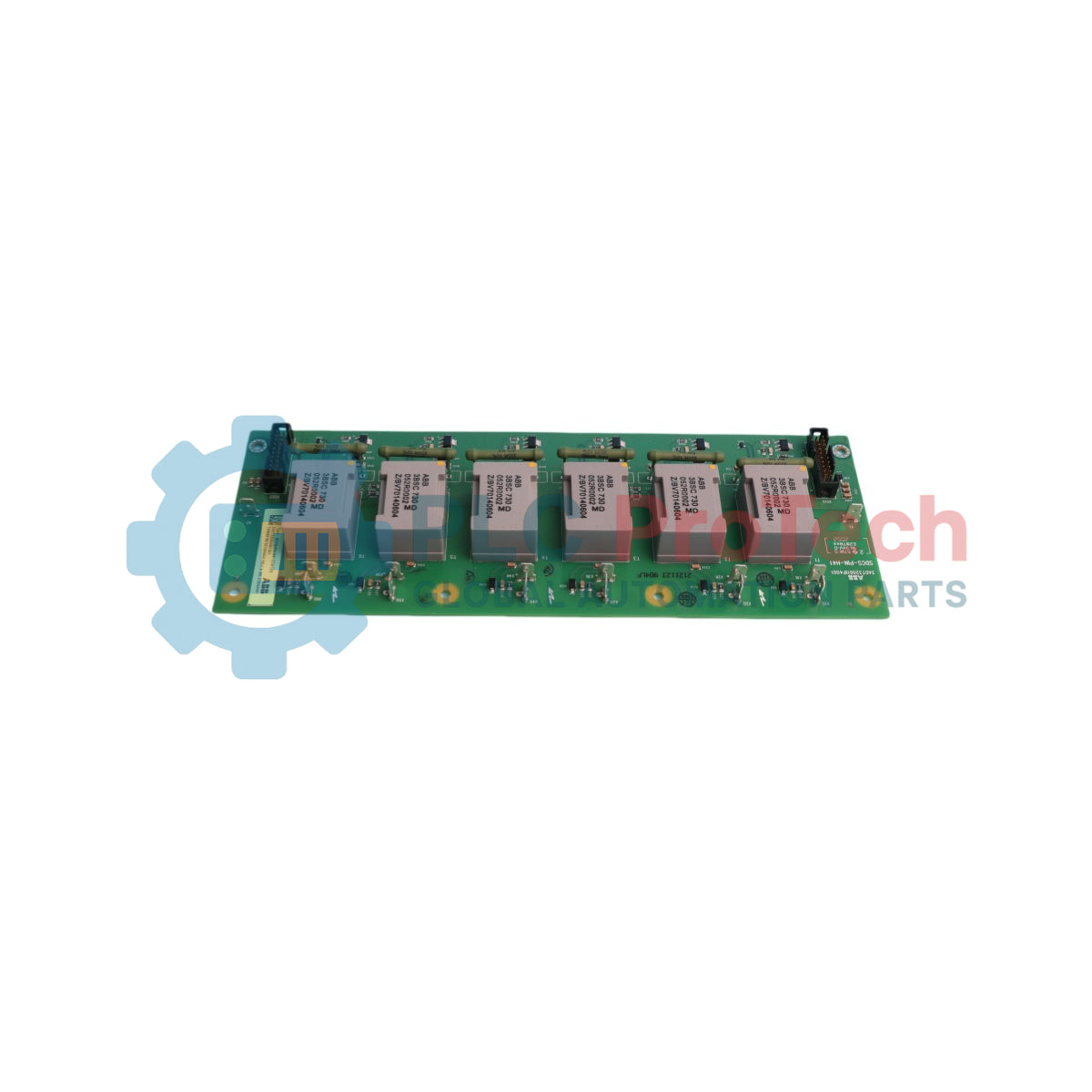

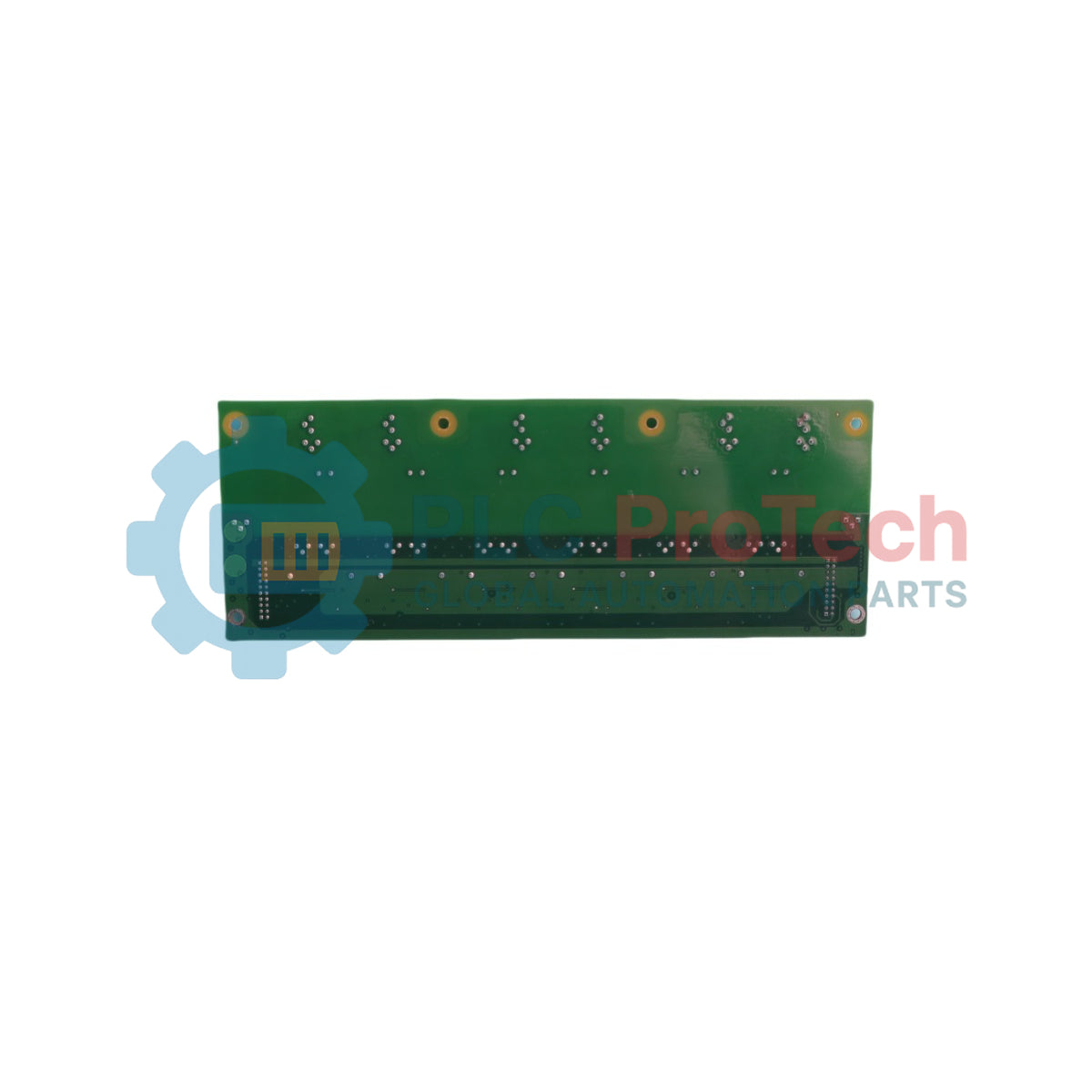

The ABB SDCS-PIN-48-coat is an industrial-grade firing control module optimized for application within high-power thyristor converter assemblies across a rating spectrum from 25A up to 5200A. Operating fundamentally as a ruggedized pulse transformer board, this assembly coordinates the delivery, amplification, and distribution of high-energy gate firing signals to heavy-duty power semiconductors.
This unit features advanced conformal coating protection to guard sensitive conductor layers against conductive particulates, moisture, and chemical vapor degradation typical of harsh industrial plant environments. It handles high-speed pulse timing configurations for modern 12-pulse configurations, standard converter stacks ranging from 900A to 5150A, and specialized DCR rebuild kits. The board integrates multi-channel isolation transformers to guarantee robust galvanic decoupling, blocking hazardous high-voltage back-EMF transients from penetrating the upstream digital control logic boards.
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model Designation | SDCS-PIN-48-coat |
| Product ID / Order Number | 3ADT220090R0043 |
| Device Classification | Pulse Transformer Board (Coated) |
| Compatible Module Span | 25A to 5200A (including 900A - 5150A ranges) |
| System Architectures | 12-Pulse Systems / DCR Rebuild Kits |
| Board Treatment | Industrial Conformal Coating |
| Part Type Status | Original / New |
| Country of Origin | Finland (FI) / Thailand (TH) |
| Shipping Weight (Calculated) | 0.45 kg |
| Package Dimensions (Calculated) | 230 mm x 170 mm x 50 mm |
The SDCS-PIN-48-coat module functions as a direct functional upgrade for standard uncoated legacy PIN-48 iterations within identical converter frames. It is specifically authorized for deployment in high-capacity 12-pulse configurations and custom DCR modernization applications. Field engineers must confirm firmware parameter compatibility matches the specific multi-pulse firing patterns required by their configuration before putting the system back into active production.
CRITICAL WARNING: HIGH POTENTIAL DISCHARGE RISK
Isolate, decouple, and lock out all incoming 3-phase high-voltage power paths and auxiliary line feeds before opening the cabinet doors. The main DC bus capacitors carry lethal electrical charges long after standard line disruption. Wait a minimum of 15 minutes for complete discharge, and use a verified, high-voltage multi-meter to ensure absolute zero-energy potential across all terminal screws before executing maintenance.
