Description

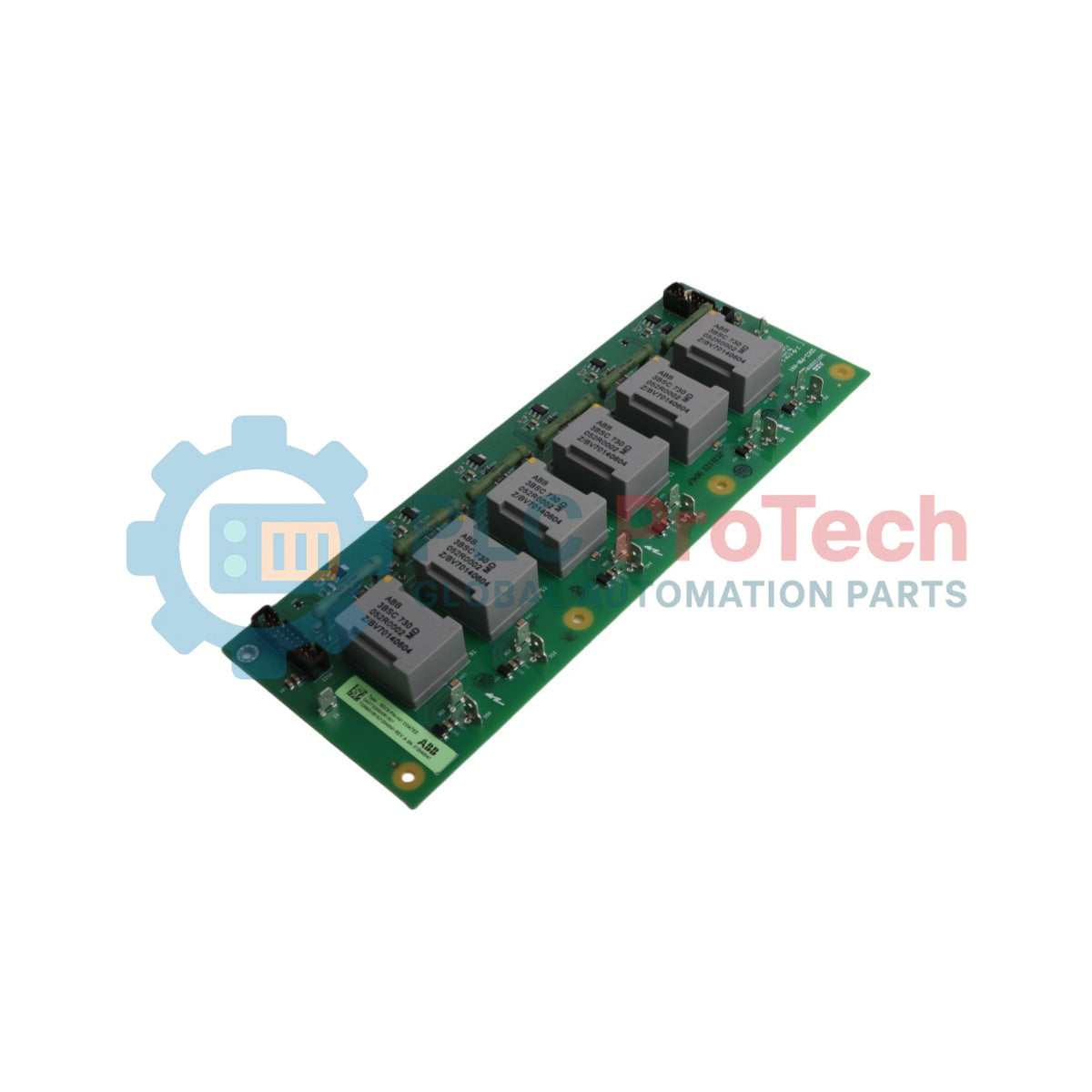

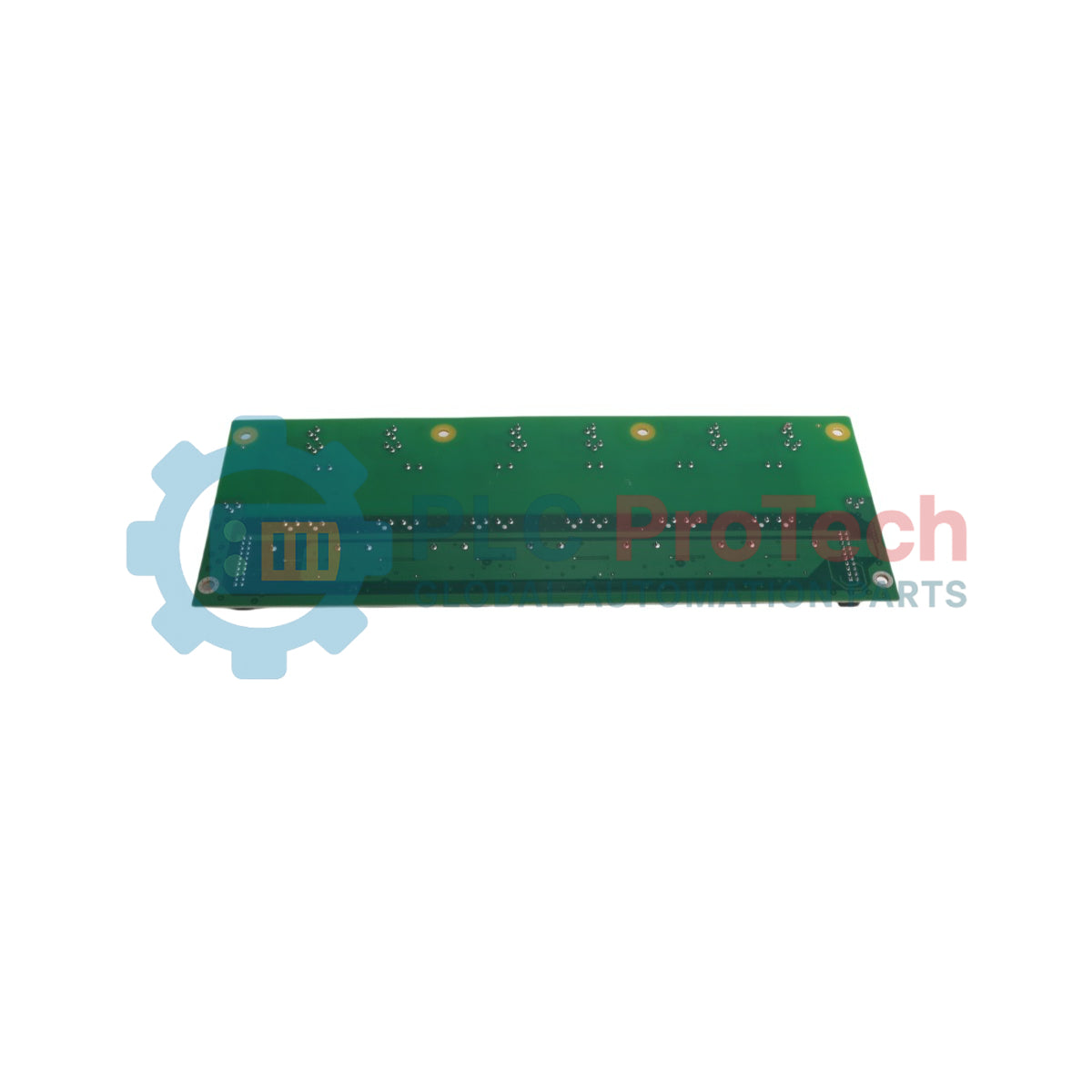

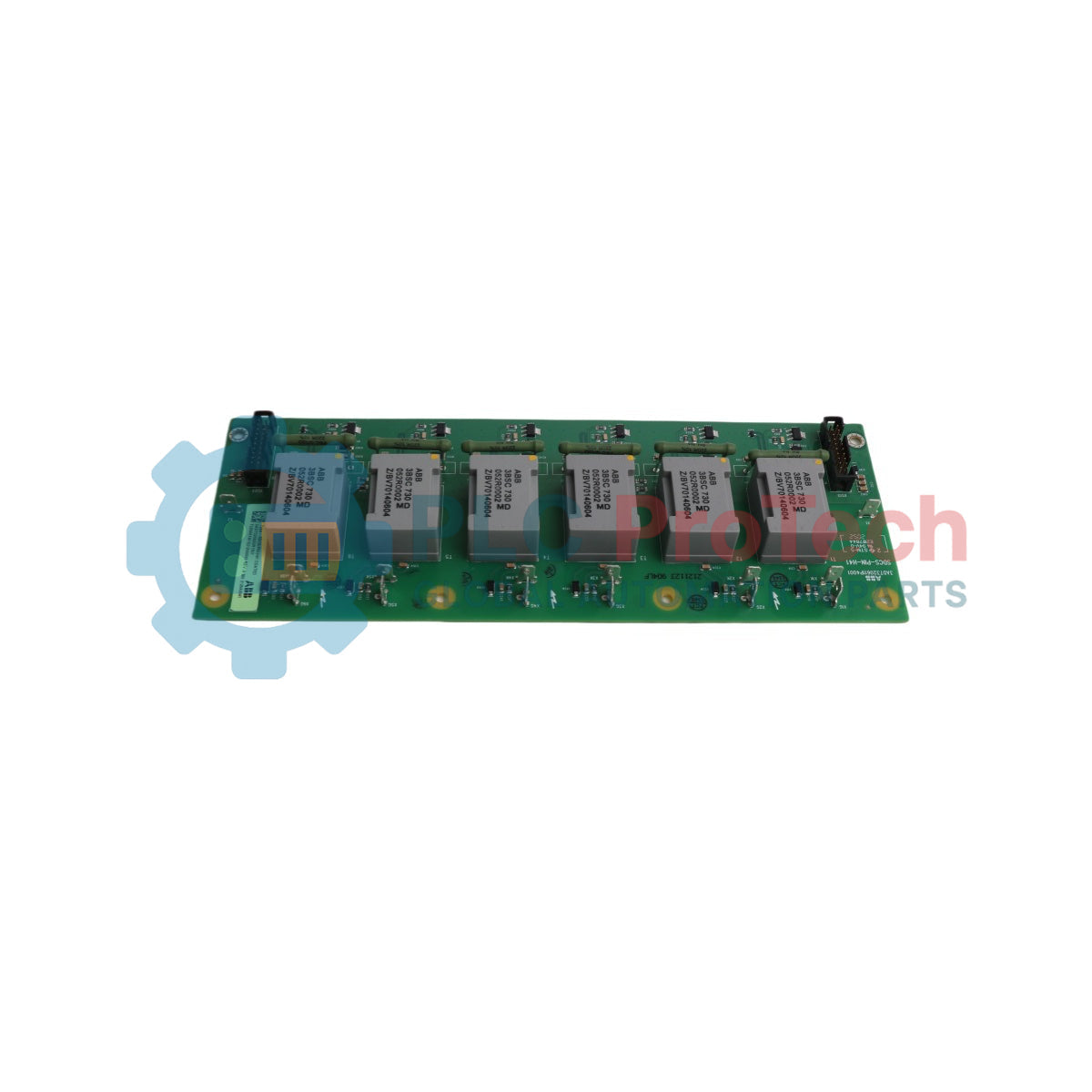

The ABB SDCS-PIN-H41 is a high-power trigger interface and pulse isolation assembly engineered for integration within large-scale thyristor power controllers and multi-phase electrical converters. Functioning natively as a firing pulse transformer board, this device creates a highly synchronized, galvanically isolated pathway between low-voltage microprocessing control electronics and high-potential primary power bridges.

The board maintains precise gating control across standard system input potentials of 380-480V, reliably tracking and stabilizing internal charging voltages through an expansive range from 12V to 600V DC. Rated for deployment in automated configurations tracking from 10A to 100A, its localized pulse transformers suppress line notches, high-frequency transients, and heavy commutation noise. Built to withstand punishing industrial switchgear conditions, the module is supplied with a conformally coated circuit layout that neutralizes the risks of surface tracking, moisture absorption, and fine chemical dust degradation.

Features

• High-Isolation Pulse Driving: Deploys specialized magnetic cores to enforce rigid galvanic isolation between logic circuits and main power potentials.
• Expansive DC Charging Spectrum: Guarantees stable and linear pulse delivery across an operational span of 12V to 600V DC.
• Conformal Board Treatment: Standard factory protective treatment shields delicate tracks from atmospheric corrosion and leakage currents.
• Robust Current Matrix: Designed for dependable thermal and electrical performance across operational loops scaling up to 100A.

Applications

• Gate pulse generation and power component interfacing inside ABB DCT880 T6 frame size controller systems.
• Phase-angle triggering control in heavy industrial heating elements, melting furnaces, and structural carbon processing facilities.

Technical Specifications

Alternative Models & Compatibility

The SDCS-PIN-H41 represents a specialized firing pulse solution optimized for particular control designs within the DCT880 T6 frame architecture. This unit differs directly from standard pulse interface setups, such as the older SDCS-PIN-H11 and alternative SDCS-PIN-H51 cards. When commissioning a replacement board, engineers must access the device firmware to reconcile physical properties with control software. Set parameter 99.07 (Service Mode) to "Set Type code", then align the systemic identification inside parameter 95.16 to prevent firing mismatch faults and initialize the new hardware profile.

Installation Guidelines
