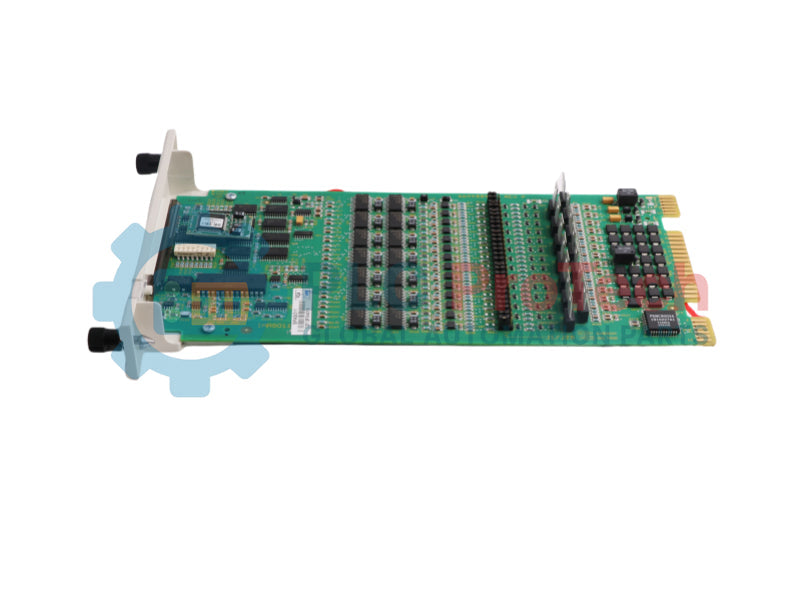

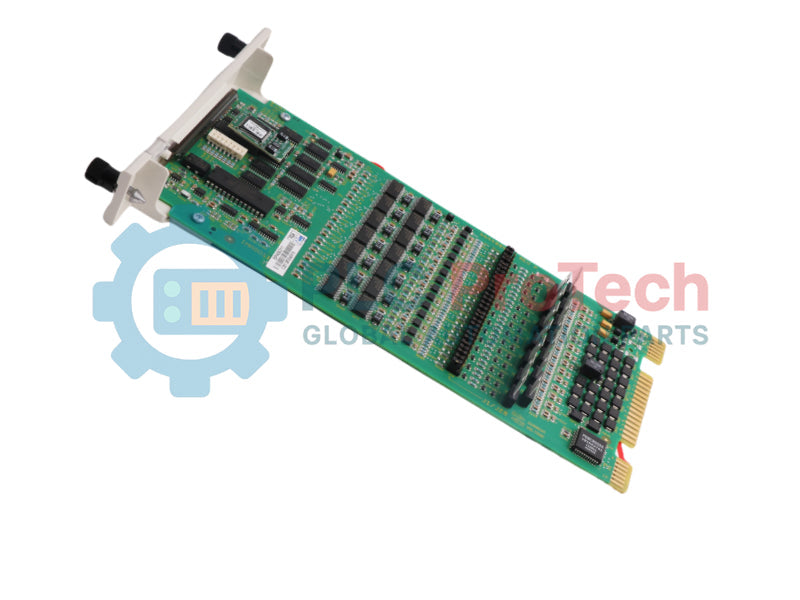

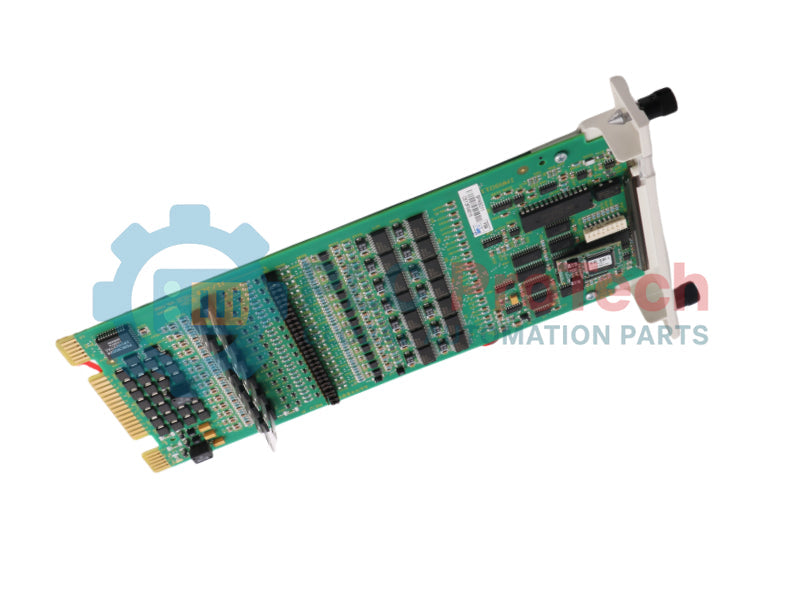

Regulating field actuators with high precision, the ABB SPASO11 plays an essential role as a multi-channel Analog Output Module within the Symphony Plus distributed control architecture. It handles 14 independent analog output channels, supporting standard 4-20mA current loops and 1-5V voltage interfaces to steer control valves, variable speed drives, and structural positioners. Operating natively as an integrated I-O module part of the S+ HR I-O family, the module provides deterministic signal conversion to sustain loop performance across continuous manufacturing and complex utility frameworks.
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Product ID / Type Designation | SPASO11 |
| Product Type | 1-O Module (Analog Output Module) |
| Channel Type | AO (Analog Output) |
| Number of Output Channels | 14 |
| Supported Signal Formats | 4-20mA, 1-5V |
| Product Net Depth / Length | 73.66 mm |
| Product Net Height | 358.14 mm |
| Product Net Width | 271.78 mm |
| Product Net Weight | 0.750 kg (Calculated) |
| Number of Batteries | 0 |
| HS Code / Customs Tariff Number | 85389081 (Parts suitable for use with electrical control apparatus) |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Shipping Weight (Calculated) | 1.450 kg |
| Package Dimensions (Calculated) | 410 mm x 320 mm x 120 mm |
The SPASO11 functional module is introduced under the S+ HR Series lineup specifically to act as the direct architectural replacement for vintage Infi 90 IMASO11 components. It features identical rear backplane indexing slots and handles the exact same 14-channel layout, allowing engineers to replace aging modules without altering terminal blocks. Ensure that when upgrading from old IM systems, your main rack controller firmware is validated at Composer version 6.1 or higher to properly process the updated module identification registers on startup.
A major deployment constraint relates to loop resistance and terminal power characteristics. When driving 14 concurrent channels configured for 4-20mA current loop execution, ensure that external loop impedances remain inside the exact technical load limitations of the Symphony Plus baseplate specifications. Overloading a circuit causes channel output saturation, causing the driver circuitry to flag an I/O circuit failure status code within the DCS diagnostics interface. If loop pathways track long open-air cable runs, external auxiliary isolation units must be added to block induced noise.
During initial loop commissioning, checking output calibration constants is vital before locking lines to moving actuators. Use the system configuration tools to force specific 4.00 mA and 20.00 mA steps to verify total positional valve tracking. If an engineering block requires a 1-5V voltage baseline instead of current control, field configuration switches located on the termination block or internal firmware toggles must be accurately aligned to avert severe signal clipping anomalies during live process runtime.
CRITICAL WARNING
Disconnect all primary power paths to the local rack slot section before executing module physical insertion. Running live changes without checking that the backplane connector guide tracks remain fully clean can trigger system cross-talk or interrupt adjacent active output operations.
Examine the structural slot assembly inside the Symphony Plus chassis to guarantee it remains free of material grit or misaligned pins.
Slide the card framework steadily along the molded alignment tracking rails until the rear plug clicks firmly home.
Secure the built-in module panel retaining fasteners to ground the front surface structure and prevent mechanical shifting.
Global Express Shipping
Returns & Warranty
Manufacturer: ABB
Product No.: SPAS011
Country of origin:Switzerland
Product Type: Analog Output Module
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 750g
Dimensions: 73.66 mm x 358.14 mm x 271.78 mm
Shipping port: Xiamen
Warranty: 12 months
