Module Overview

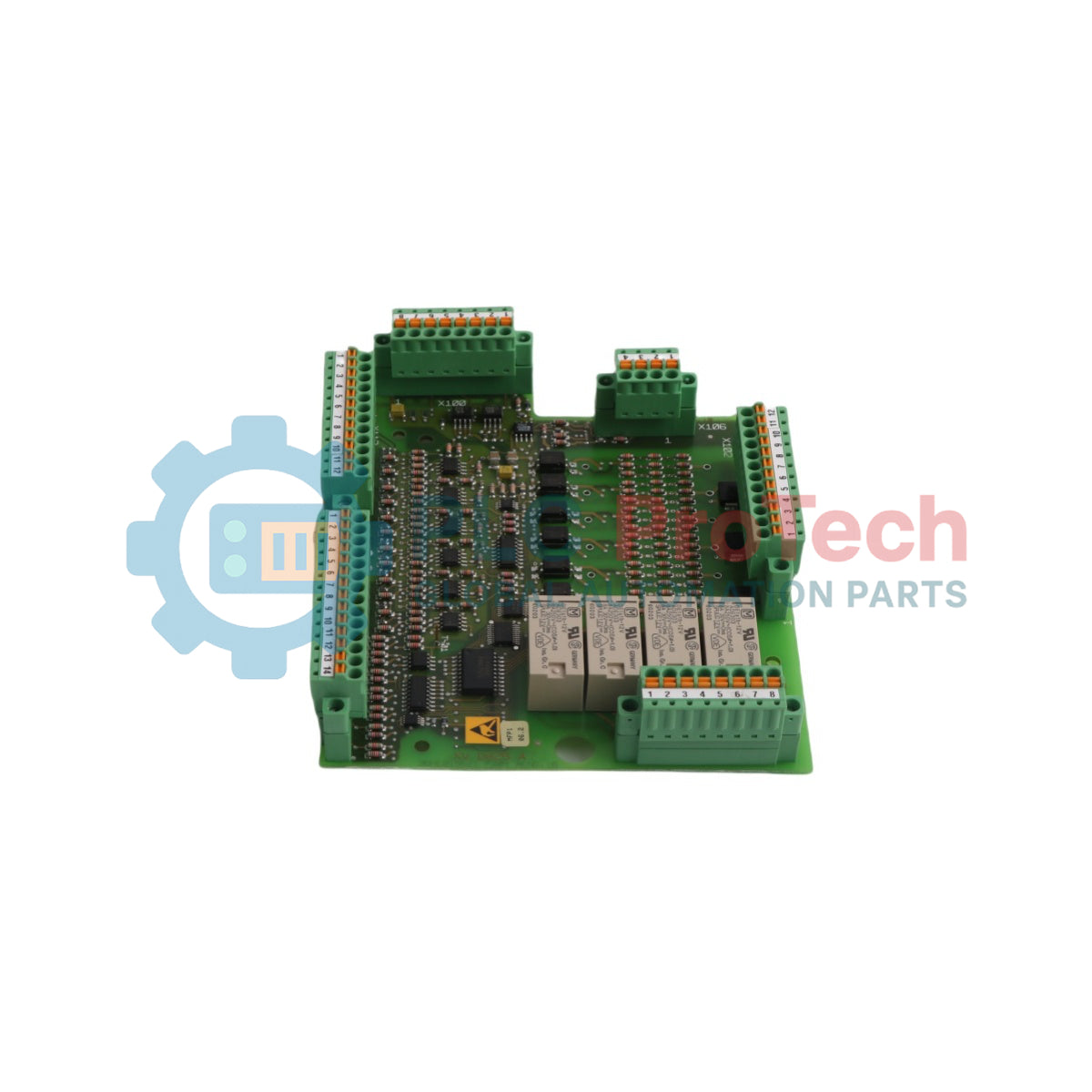

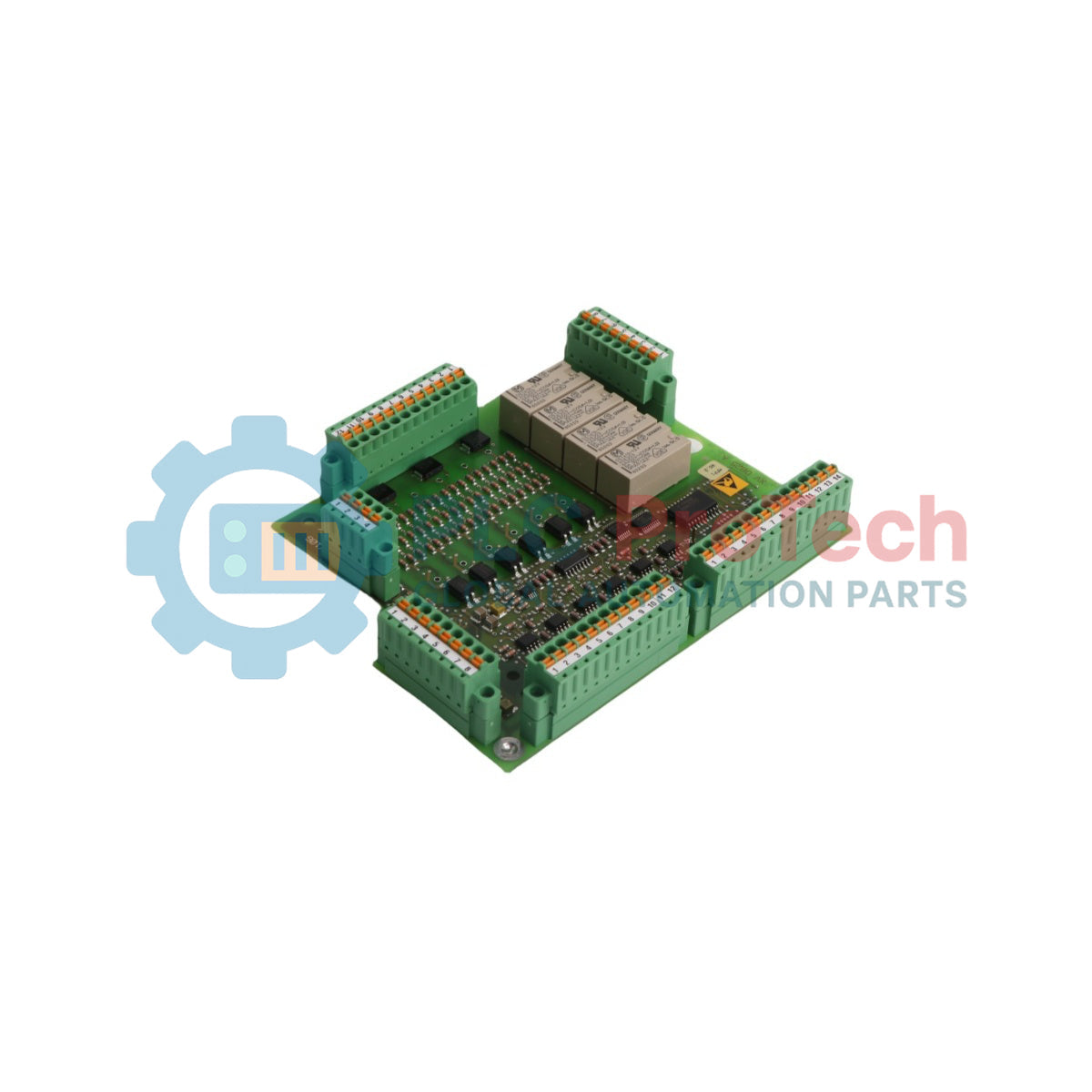

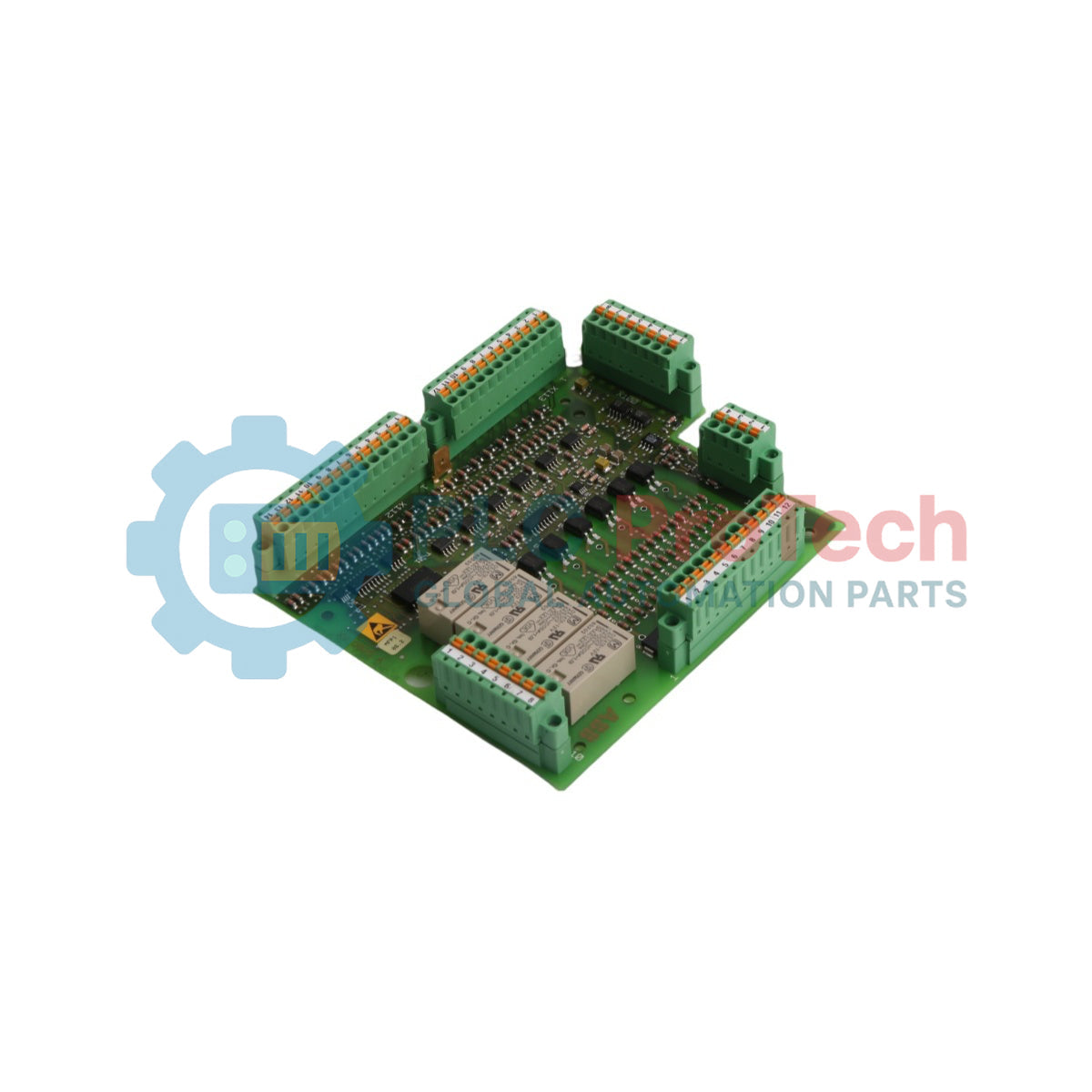

The ABB 3BHE015412R0101 XVC904A101 is a specialized heavy-duty industrial interface adapter board engineered to serve as the central Power Electronics Controller Interface Adapter (PECINT) within medium voltage AC drive networks. Operating as the primary signal distribution motherboard inside high-capacity variable speed drive cabinets, this unit bridges ABB's core Power Electronics Controller (PEC) platform with peripheral gate driver circuits and localized terminal infrastructure. Built on a robust PCB Component Variant platform (PCBcmp.Var.), the hardware integrates factory-applied varnish protective coatings to ensure long-term structural data path reliability and prevent localized voltage breakdown within industrial cooling bays.

Functional Attributes

• Double-Index Nomenclature Coverage: Resolves internal procurement or database conflicts by providing exact matching with both XVC904A101 and continuous XVC904A101:PCBcmp.Var. system notations.
• Heavy-Duty Mechanical Frame Integration: Features a robust 18.9 kg assembly profile optimized to withstand high physical stress, low-frequency motor vibrations, and sudden structural shock loads.
• Varnish Protected Circuitry (Var.): Coated with high-grade industrial insulation varnish to seal multi-layer tracking lanes against ambient moisture, conductive dust, and liquid-cooling micro-leaks.
• Deterministic Signal Adaptation (PECINT): Handles high-speed optical-to-electrical signal conversion and level conditioning between the central processing units and the active gate drives.

Target Deployments

• ACS 5000 Water-Cooled Multi-Drive Cabinets: Installed directly into the core PEC interface rack to coordinate high-current phase switching and real-time loop diagnostics.
• Industrial Synchronous Motor Converters: Deployed across mining ventilation setups, high-capacity water pumps, and metal rolling mills to preserve terminal synchronization.
• Harsh Process Environments: Preferred for continuous-duty chemical, extraction, and petrochemical installations requiring absolute signal integrity over long operating lifecycles.

Technical Specifications

Field Deployment Protocols

1. 1 Affix an approved ESD grounding strap before retrieving the massive PECINT motherboard assembly from its protective anti-static shipping materials.
2. 2 Document and unplug all optical communication loops, field wire blocks, and main power connectors linking the drive rack to the active adapter interfaces.
3. 3 Support the 18.9 kg physical chassis using mechanical lifting tools, loosen the frame anchor screws, and pull the adapter unit steadily out along the cabinet rails.
4. 4 Slide the new adapter board into position, seat the bus links fully, and tighten all structural ground fasteners securely before reconnecting the fiber optic communication cables.
