Product Overview

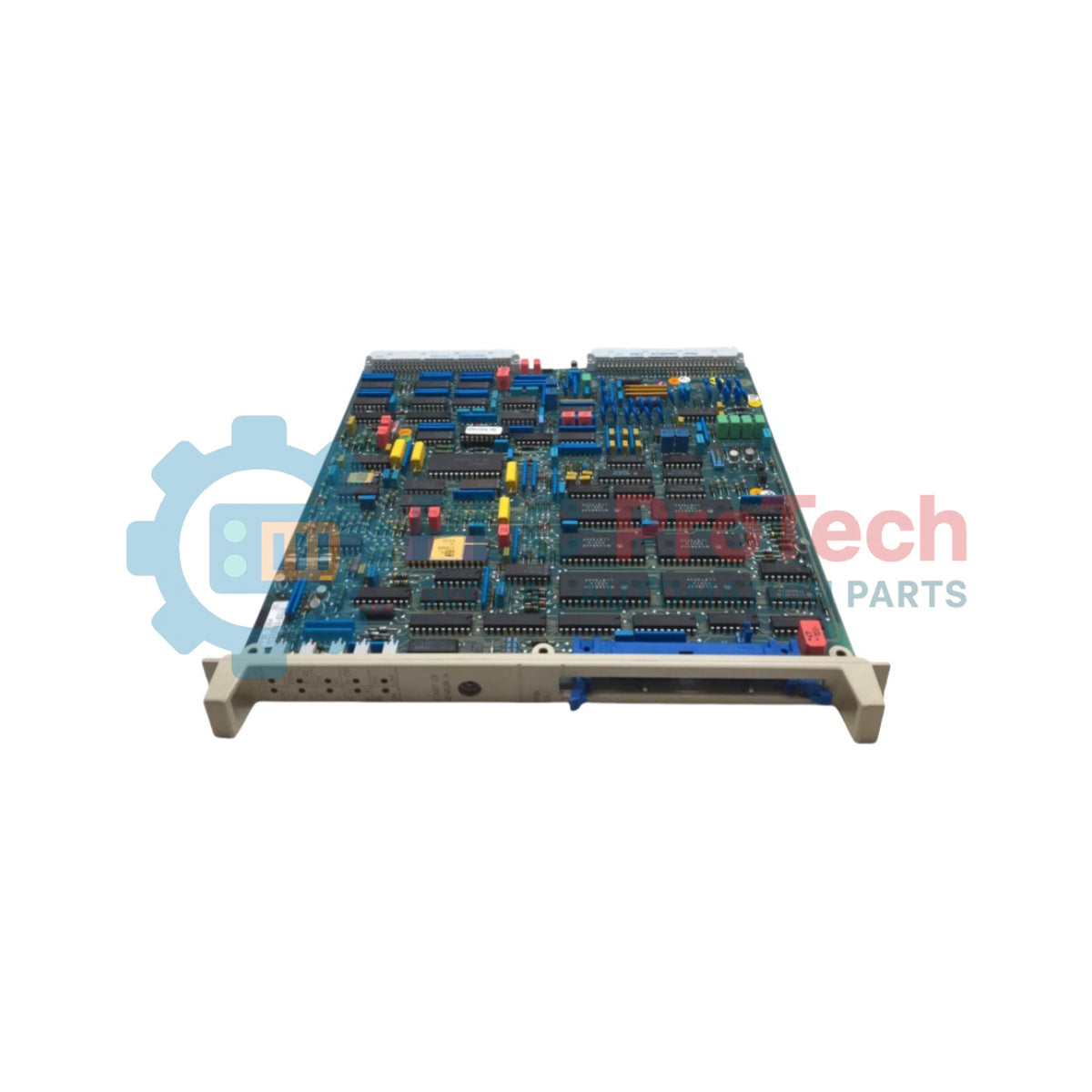

The YM322001-EC (PFSK 106) is a high-performance Channel Control Board engineered for the ABB Advant and Master Process Control platforms. Primarily deployed in mission-critical industries such as offshore oil platforms, nuclear power generation, and chemical processing, this board serves as a vital communication bridge between field instrumentation and the central processing unit. The PFSK 106 ensures high-speed data acquisition and precise signal synchronization, which is paramount in maintaining system stability and preventing unplanned shutdowns. By integrating robust electrical isolation and advanced diagnostic capabilities, this module minimizes signal interference in electromagnetically noisy environments, directly enhancing the operational availability of the DCS architecture.

Technical Configuration

The internal circuitry of the PFSK 106 is designed for heavy-duty cycle operations in industrial control racks. It features high-density surface mount components that facilitate multi-channel processing without excessive heat generation. The board utilizes specialized ABB proprietary protocols for internal bus communication, ensuring seamless handshakes with Master Controllers. Its modular design allows for rapid hot-swapping or replacement, reducing Mean Time to Repair (MTTR). The board is also equipped with status LEDs that provide real-time visual feedback on channel health and data transmission activity, allowing onsite engineers to identify bus faults without complex external debugging tools.

Technical Specifications

FAQs

Is the YM322001-EC compatible with older Advant OCS installations?

Yes, the PFSK 106 is designed with backward compatibility in mind for the MasterView and Advant systems, provided the backplane supports the standard communication bus protocols.

What is the primary indicator of a hardware failure on this board?

The "FAULT" LED on the front faceplate will illuminate solid red if the onboard self-diagnostics detect a checksum error or channel timeout. Always verify power rail stability before replacing the unit.

Does this unit require manual software configuration after replacement?

Replacement is typically transparent to the system. However, ensuring that the jumpers or dip-switches on the new board match the original configuration is essential for correct channel addressing.

Implementation and Maintenance Guidelines

• Electrostatic Discharge (ESD) Protection: This board contains sensitive CMOS components. Always wear a grounded wrist strap and use a static-dissipative mat when handling the unit during installation or troubleshooting to prevent latent circuit damage.

• Slot Alignment and Seating: Ensure the board is perfectly aligned with the rack guide rails before insertion. Apply firm, even pressure until the DIN connectors are fully seated. Tighten any front-panel screws to 0.4 Nm torque to ensure proper ground contact.

• Environmental Monitoring: While rated for 60 deg C, maintaining the control cabinet at a stable 25 deg C will significantly extend the electrolytic capacitor life on the board. Ensure cooling fans and filters are checked every 6 months in high-vibration or dusty environments.
