Unit Functionality

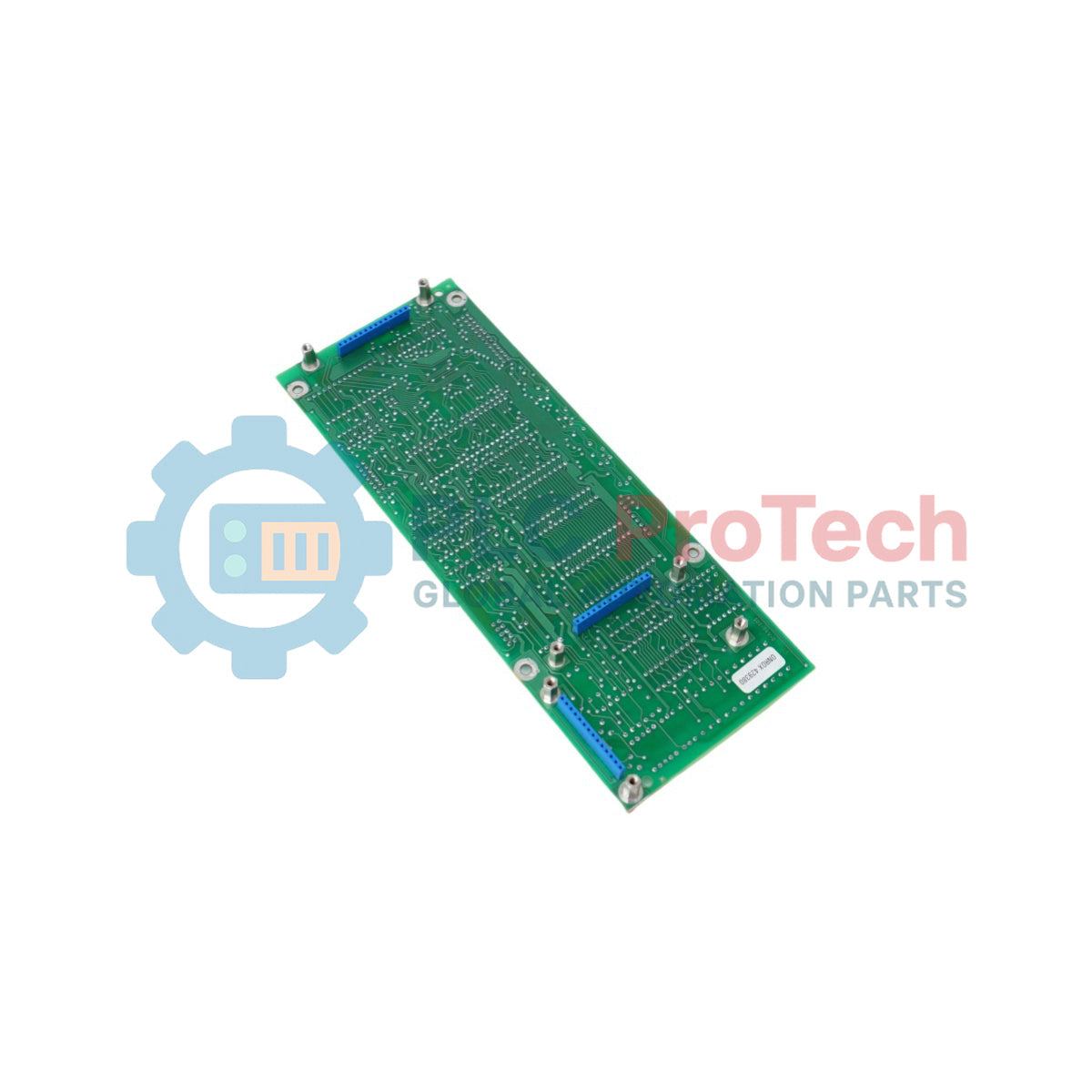

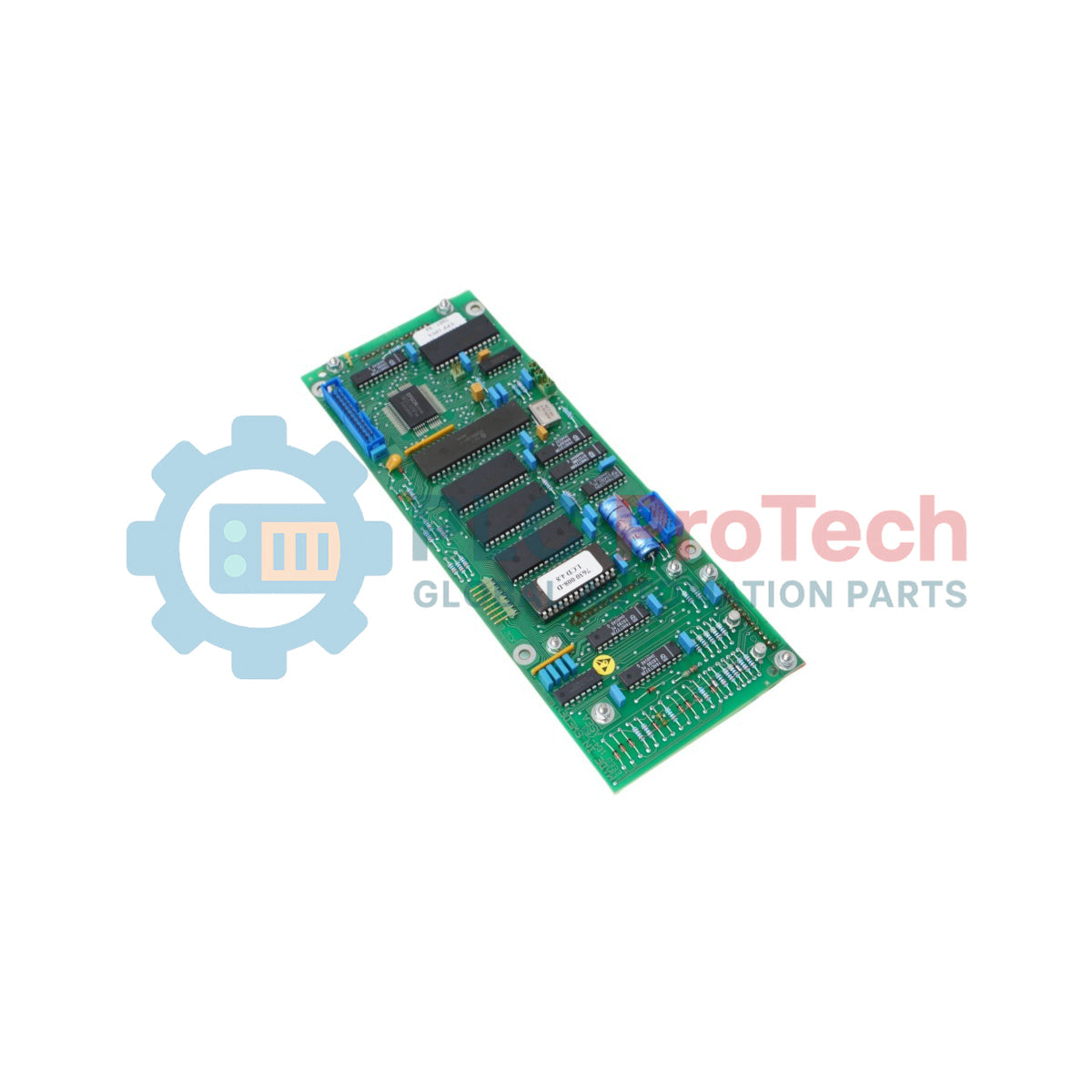

The ABB YT204001-HS YPP 109A is a dedicated display control board specialized for industrial human-machine telemetry within vintage large-scale power conversion architectures. Serving as the vital communication master for drive parameters, this ABB YPP 109A board (frequently documented by engineers as the YPP109A module) conditions visual diagnostic outputs, panel interface interactions, and real-time operator inputs. The unit forms a secure bridge between localized computing processors and the external monitoring console, translating multi-layer logic signals into stable data fields suitable for display matrix interfaces across extensive high-power motor control networks.

Functional Attributes

• Console Data Routing: Orchestrates the serialization of display matrix updates and local push-button command registers to secure error-free system parameters.
• Retrofit Engineering Baseline: Created as the functional field-level successor to legacy unit YT204001-DL, fitting exact physical mounting points and structural connector sockets for both the YPP 109A and YPP109A hardware variants.
• Electromagnetic Ground Plane: Enhanced heavy industrial circuit trace spacing keeps human interface pathways shielded from severe noise spikes emitted by adjoining silicon-controlled rectifiers.
• Multilayer Diagnostic Path: Monitors drive configuration values natively to push precise telemetry directly to automated HMI terminals.

Drive Subsystem Compatibility

• YGMP / YGMT / YGMV / YGMW DC Platforms: Acts as the operator panel coordinator for managing high-current motor fields and torque loop diagnostic arrays.
• Double-Index Compatibility (YPP 109A / YPP109A): Integrated seamlessly into legacy industrial drive cabinets regulating large motor assemblies across metals, mining, and paper processing sectors.
• YHMP / YHMT / YHMV / YHMW Drive Assemblies: Translates specific variable speed loop diagnostics into high-visibility panel updates.
• TYRAK LCI Synchronous Converters: Deployed in high-voltage medium-voltage AC control rooms to maintain critical operation variables during synchronous motor execution.

Technical Specifications

On-Site Replacement Steps

1. 1 Affix an electrostatic protection strap linked directly to the main structural frame before retrieving the display control assembly from its box.
2. 2 Label and carefully unplug all external front panel matrix cables, serial links, and peripheral line arrays from the faulty control card.
3. 3 Unscrew the mounting standoff screws, replace the old board with the updated hardware, and hand-tighten fasteners to maintain correct grounding contact with the metal frame.
4. 4 Re-engage the display data interfaces, checking connector orientation closely. Ensure clean terminal grouping before powering up the main cabinet.
