Product Overview

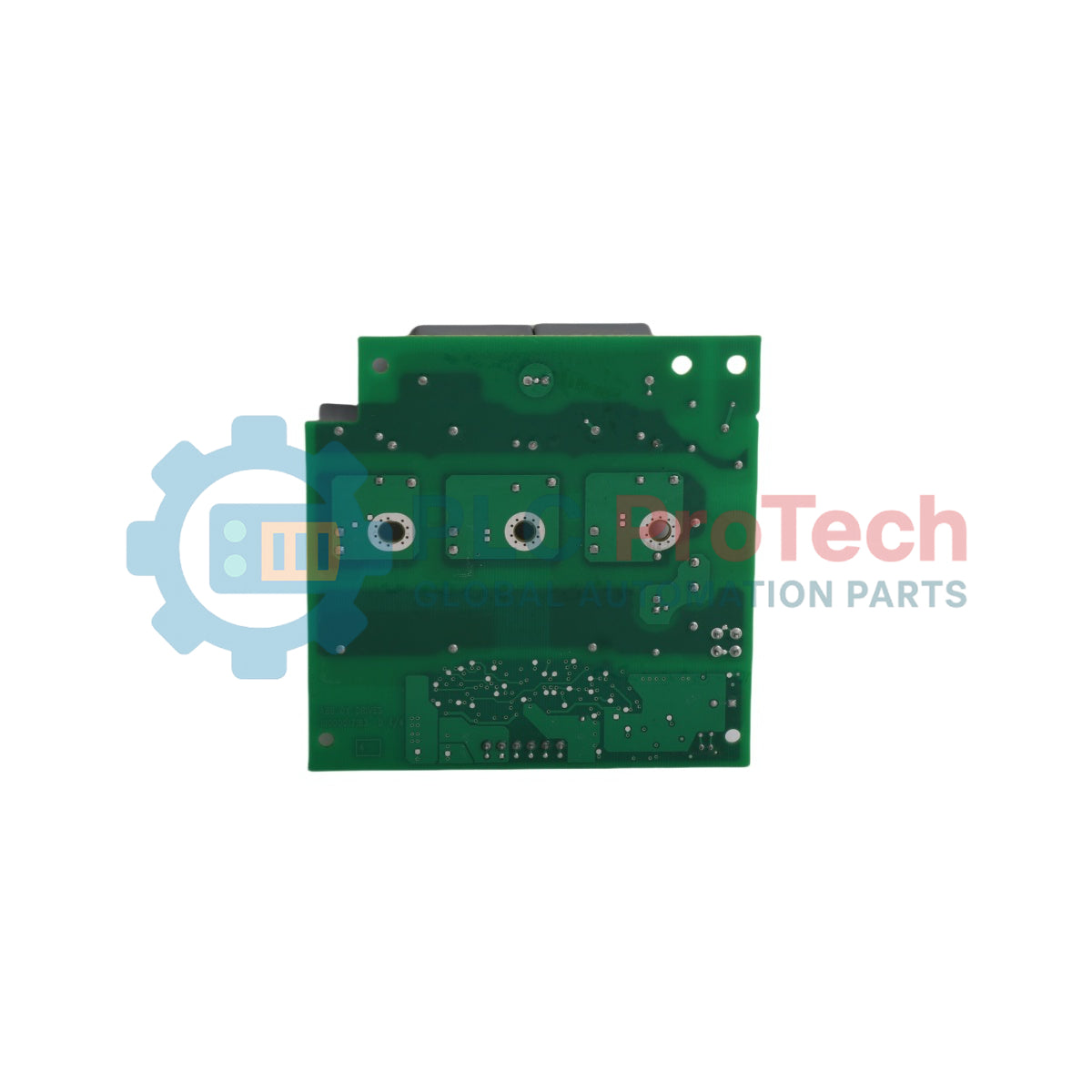

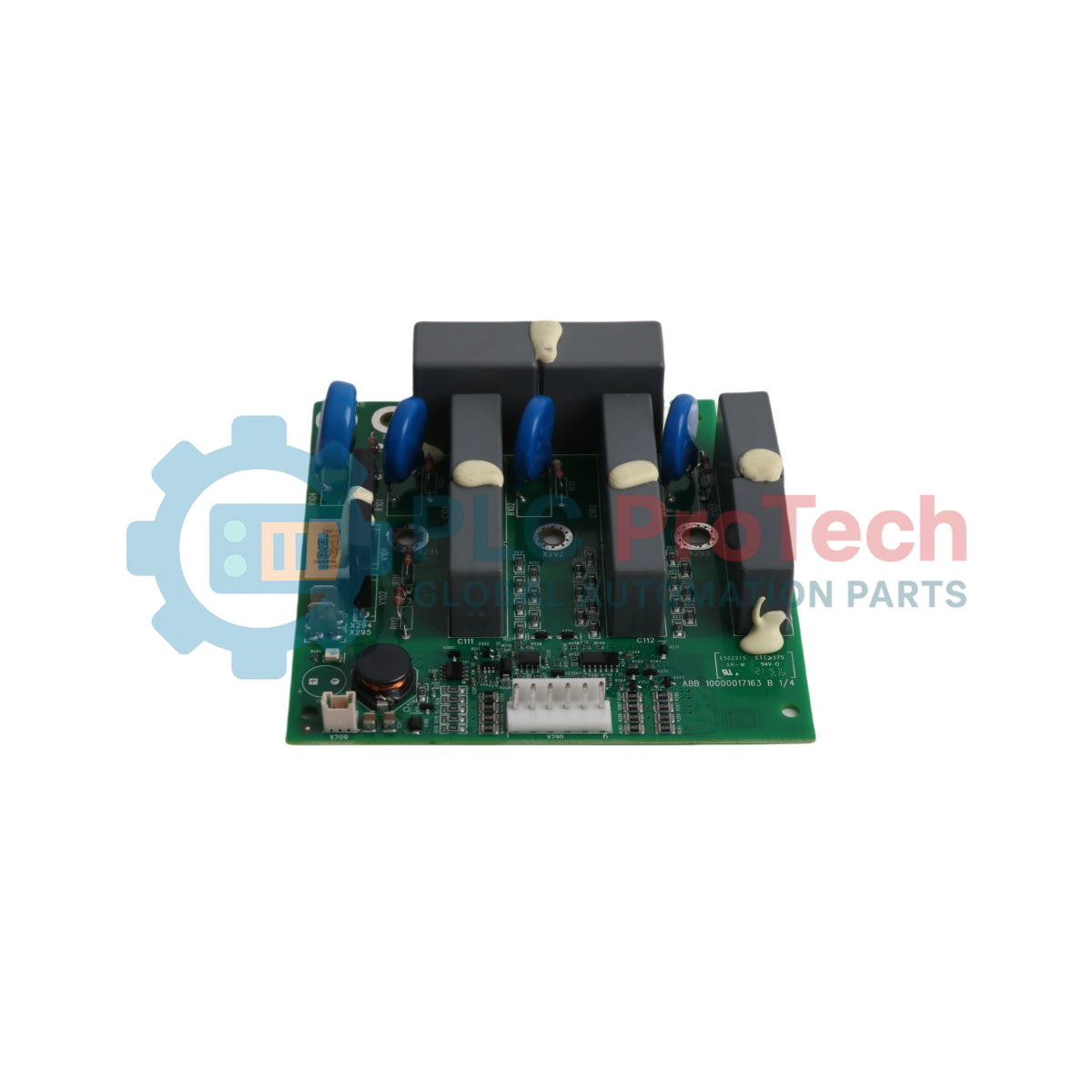

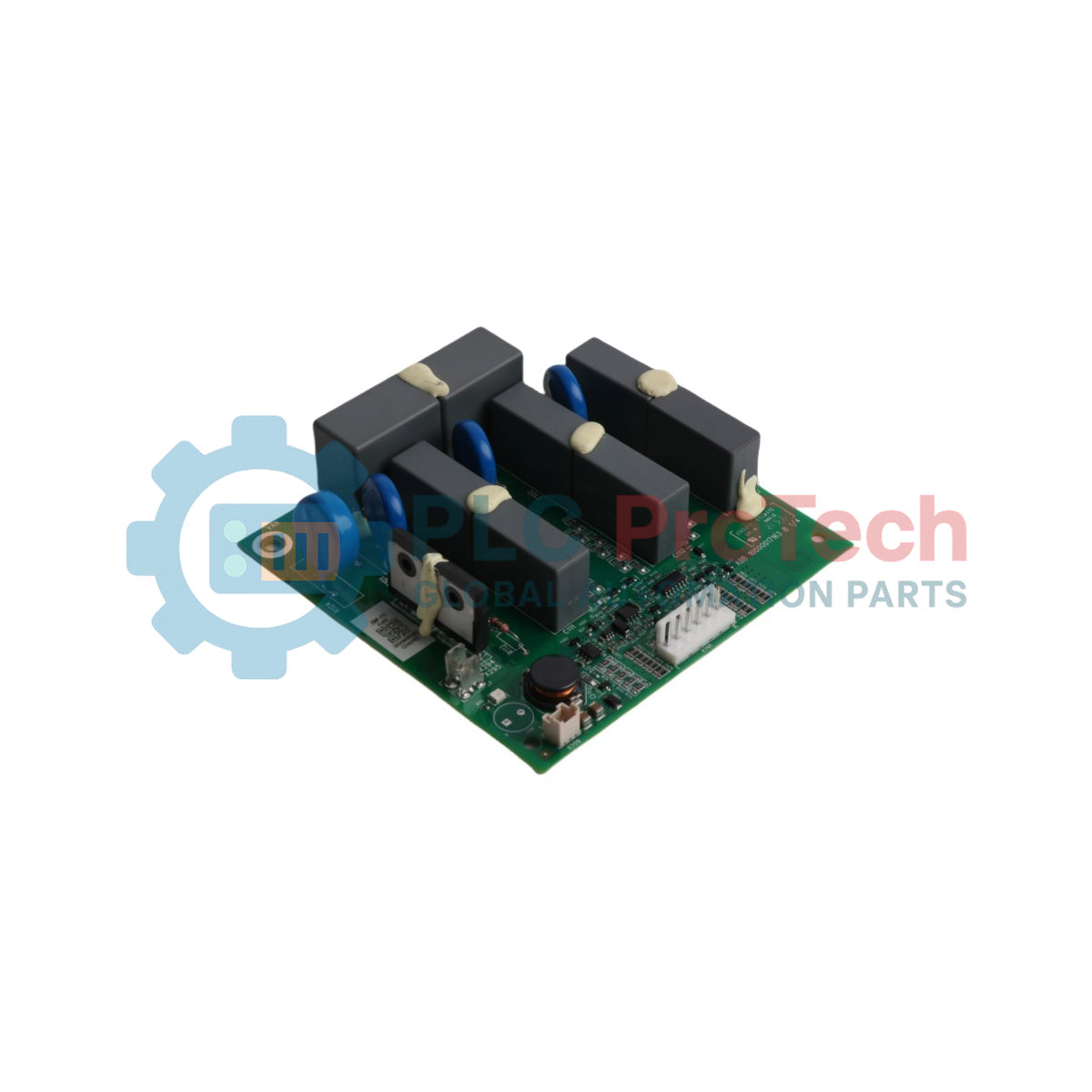

The ABB ZINP-771 3AUA0000078551 is a high-reliability main circuit interface board designed specifically for the ABB ACS880-01 hardware framework, optimizing frame sizes R6 through R9. Operating inside intensive industrial infrastructure such as oil refinery extraction pumps, water treatment facilities, and underground mining ventilation networks, this interface board links high-power electronic switches to low-voltage internal command modules. By delivering integrated diagnostic feedback, signal routing, and rapid fault monitoring, the ZINP-771 ensures stable motor control and safeguards critical power stages. Deploying this authentic OEM spare component stabilizes current pathways, prevents phase imbalances, and maximizes continuous production uptime in high-demand operations.

Functional Technical Configuration

Engineered to maintain strict signal fidelity and physical isolation in challenging electrical environments, the board includes the following core architectures:

• High-to-Low Voltage Bridge: Secures precise signal conversions and transmission between dangerous DC link potentials and logic level control loops. IndiaMART +1
• Integrated Fault Monitoring: Processes hardware trip triggers and temperature sensor diagnostics directly to the main inverter processor. IndiaMART +1
• Optimized Power Paths: Distributes electrical gate drive currents evenly across the internal inverter bridges to minimize thermal concentration. IndiaMART +1
• Industrial Grade Resilience: Equipped with factory conformal coating to block moisture, metallic dust crystallization, and corrosive chemical vapors.

Hardware Performance Data

Frequently Asked Questions

Which specific drive frame sizes utilize the ZINP-771 interface board?

This component is designed explicitly for ABB ACS880-01 series modular configurations utilizing R6 through R9 physical frame structures. Moglix

What symptoms indicate a deteriorating ZINP-771 circuit board?

A compromised interface board often results in erratic current feedback errors, intermediate DC bus ripple alerts, failure to clear gating faults, or sudden signal dropouts between control modules.

Does the 3AUA0000078551 board require specialized programming during replacement?

No, it serves as an analog and digital hardware interface board. It routes internal hardware configurations based entirely on your drive primary firmware and parameter setup.

On-Site Engineering and Installation Directives

• Electrostatic Grounding Measures: Technicians must secure an approved ESD wrist strap to a verified chassis ground point before handling the circuit board to protect sensitive components.
• Structural Hardware Torque: Mount the board inside the inverter housing frame using original fasteners, tightening structural hardware evenly to exactly 0.6 Nm to prevent micro-fractures in the PCB substrate.
• Ribbon Loom Seating: Inspect all multipin flat ribbon connectors for physical alignment and contamination. Push connectors in until locking tabs click to avoid high-impedance control loops.
• Thermal Pathway Clearance: Maintain clean spacing and verify operational status of local drive cabinet fans during swap-outs, ensuring the ambient temperature immediately surrounding the board remains below 60 deg C.
• Isolation Impedance Testing: Prior to reconnecting primary three-phase utility input power, run a standard insulation test to ensure all signal-level output blocks are completely isolated from high-voltage motor terminals.
