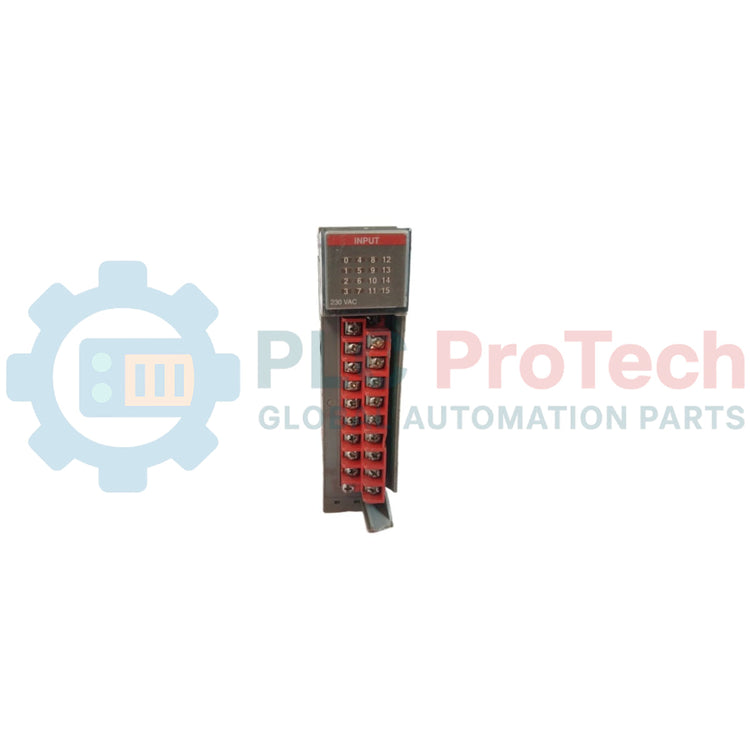

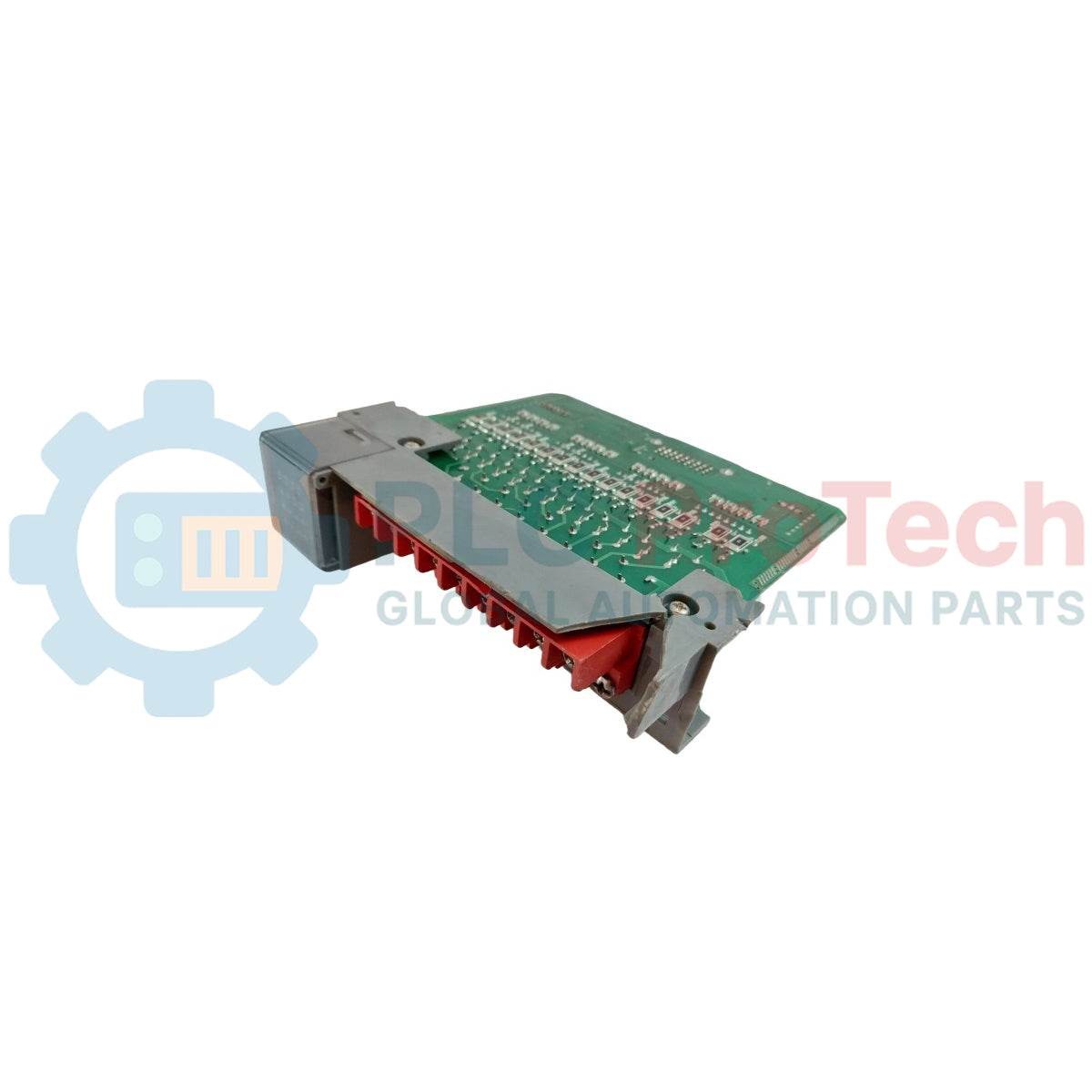

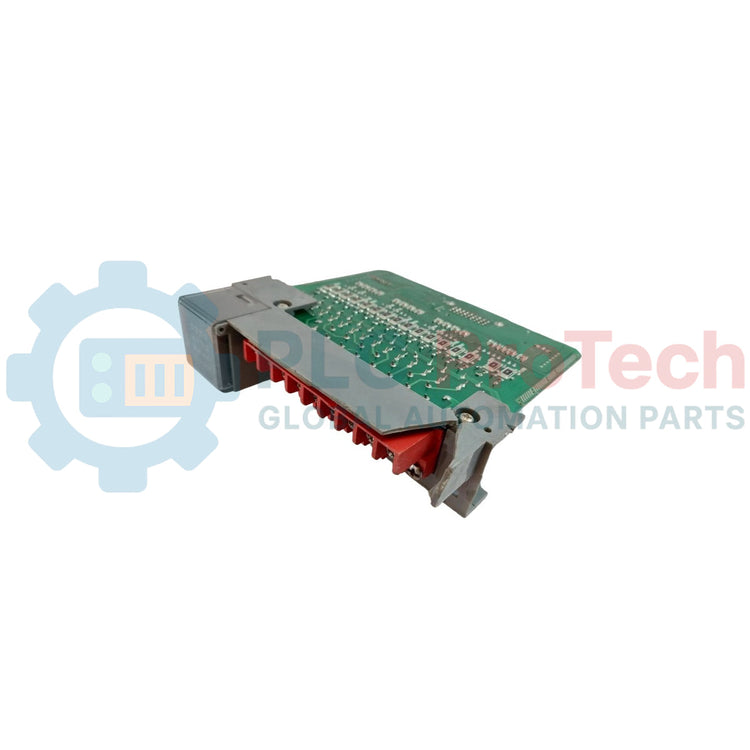

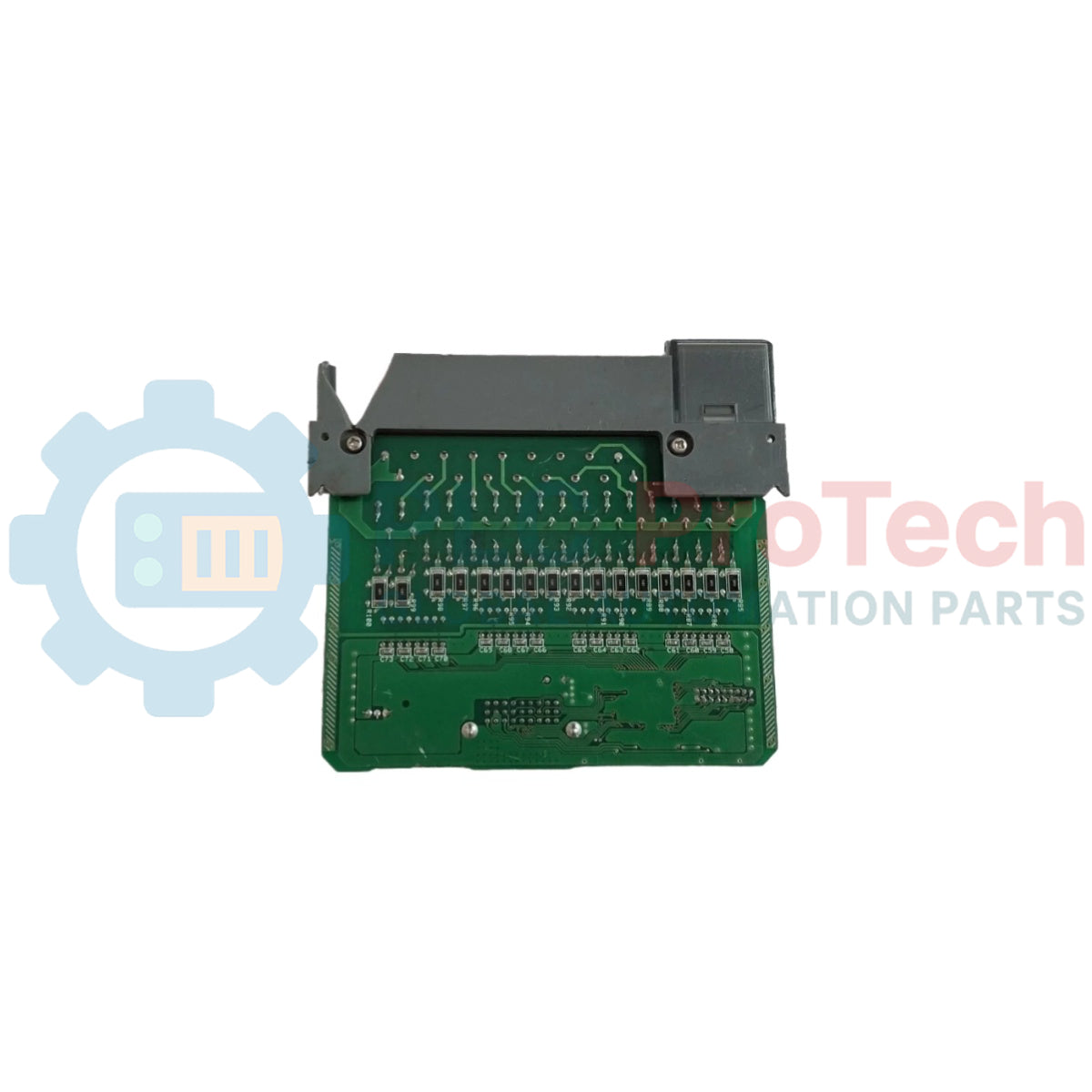

Allen-Bradley 1746-IM16 SLC 500 200/240V AC Digital Input Module

SKU 1746-IM16

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: Allen-Bradley
Product No.: 1746-IM16
Origin United States
Product Type: Digital Input Module
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 0.28 kg
Dimensions: 145 mm x 35 mm x 130 mm (H x W x D)
Shipping port: Xiamen
Warranty: 12 months

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

Quantità

Call sales Contact

Product Description

The Allen-Bradley 1746-IM16 is a 16-channel digital AC input module designed for integration into SLC 500 programmable logic controller systems. The module interface processes high-voltage 200/240V AC discrete signals from field sensing devices and converts them into digital logic levels across the backplane for processing. Equipped with a removable terminal block and electro-optical isolation, the 1746-IM16 ensures reliable signal acquisition in demanding industrial automation applications.

Features

16 digital AC input channels arranged in a single group with internally connected commons.
Removable terminal block designed for easy maintenance without disturbing field wiring.
Electro-optical isolation protecting control logic circuitry from high-voltage transients on I/O terminals.
Standard 200/240V AC signal input rating operating across a wide 170...265V AC voltage range.

Applications

High-voltage AC sensor signal conditioning
Industrial motor starter state monitoring
Power distribution logic feedback
Discrete process equipment input interface

Technical Specifications

Attribute	Value
Manufacturer	Allen-Bradley / Rockwell Automation
Model	1746-IM16
Country of Origin	Malaysia
Voltage Category	200/240V AC signal input
Number of Inputs	16
Points per Common	16
Operating Voltage Range	170...265V AC @ 47...63 Hz
Backplane Current Consumption (5V DC)	0.085 A
Backplane Current Consumption (24V DC)	0.0 A
Nominal Input Current	12 mA @ 240V AC
Maximum Inrush Current	1.6 A
Maximum Inrush Current Duration	0.5 ms
Maximum Off-State Voltage	50V AC
Maximum Off-State Current	2 mA
Maximum Signal Delay	On = 35 ms, Off = 45 ms
Isolation	1500V Electro-optical (I/O terminals to control logic) / Comm Circuits: 500V DC
Operating Temperature	0...60 degC (32...140 degF)
Nonoperating Temperature	-40...85 degC (-40...185 degF)
Operating Humidity	5...95% (noncondensing)
Operating Vibration	Displacement 0.015 in. peak @ 5...57 Hz, Acceleration 2.5 g @ 57...2000 Hz
Operating Shock	30 g
Heat Dissipation (Watts per Point)	0.35 W
Heat Dissipation (Minimum Watts)	0.425 W
Heat Dissipation (Total Watts)	6.00 W

Connections/Interfaces

Terminal / Pin	Function
IN 0	Input Channel 0 (SLC: Decimal 0 / PLC: Octal 0)
IN 1	Input Channel 1 (SLC: Decimal 1 / PLC: Octal 1)
IN 2	Input Channel 2 (SLC: Decimal 2 / PLC: Octal 2)
IN 3	Input Channel 3 (SLC: Decimal 3 / PLC: Octal 3)
IN 4	Input Channel 4 (SLC: Decimal 4 / PLC: Octal 4)
IN 5	Input Channel 5 (SLC: Decimal 5 / PLC: Octal 5)
IN 6	Input Channel 6 (SLC: Decimal 6 / PLC: Octal 6)
IN 7	Input Channel 7 (SLC: Decimal 7 / PLC: Octal 7)
IN 8	Input Channel 8 (SLC: Decimal 8 / PLC: Octal 10)
IN 9	Input Channel 9 (SLC: Decimal 9 / PLC: Octal 11)
IN 10	Input Channel 10 (SLC: Decimal 10 / PLC: Octal 12)
IN 11	Input Channel 11 (SLC: Decimal 11 / PLC: Octal 13)
IN 12	Input Channel 12 (SLC: Decimal 12 / PLC: Octal 14)
IN 13	Input Channel 13 (SLC: Decimal 13 / PLC: Octal 15)
IN 14	Input Channel 14 (SLC: Decimal 14 / PLC: Octal 16)
IN 15	Input Channel 15 (SLC: Decimal 15 / PLC: Octal 17)
AC COM	AC Common (Upper) - Internally Connected
AC COM	AC Common (Lower) - Internally Connected

Installation Guidelines

Power Disconnection: Never install, remove, or wire modules while power is applied to the chassis.
Enclosure Rating: Install as open-type equipment within an enclosure suitable for specific environmental conditions, rated Pollution Degree 2, Overvoltage Category II, up to 2000 m altitude.
ESD Protection: Handle modules using grounded wriststraps and avoid touching circuit components or backplane connectors to prevent electrostatic discharge damage.
Chassis Slot Restrictions: Do not install I/O modules in Slot 0; the first slot is reserved exclusively for the processor or CPU/adapter module.
Wiring Torque & Capacity: Use maximum 2 mm2 (14 AWG) wiring, up to 2 wires per terminal, and tighten terminal screws to a maximum torque of 0.9 Nm (8 lb-in.). Tighten terminal block retaining screws to 0.6 Nm (5.3 lb-in.).

Compliance and Certifications

UL Listed
CSA Certified
C-UL Approved
CE Compliant
C-Tick
Class I, Division 2 Hazardous Location Groups A, B, C, D

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What is the operating voltage range for the device?

The operating voltage range for the device is 170 to 265V AC at 47 to 63 Hz.

What is the maximum backplane current draw for the module?

The module consumes 0.085 A at 5V DC from the backplane and 0.0 A at 24V DC.

What wiring wire gauge and torque limits apply to the terminal block?

The terminal block supports a maximum wire size of 2 mm2 (14 AWG) with a maximum terminal screw torque of 0.9 Nm (8 lb-in.).

Does the input module feature removable wiring terminals?

Yes, the module is equipped with a removable terminal block secured by upper and lower retaining screws.
