Description

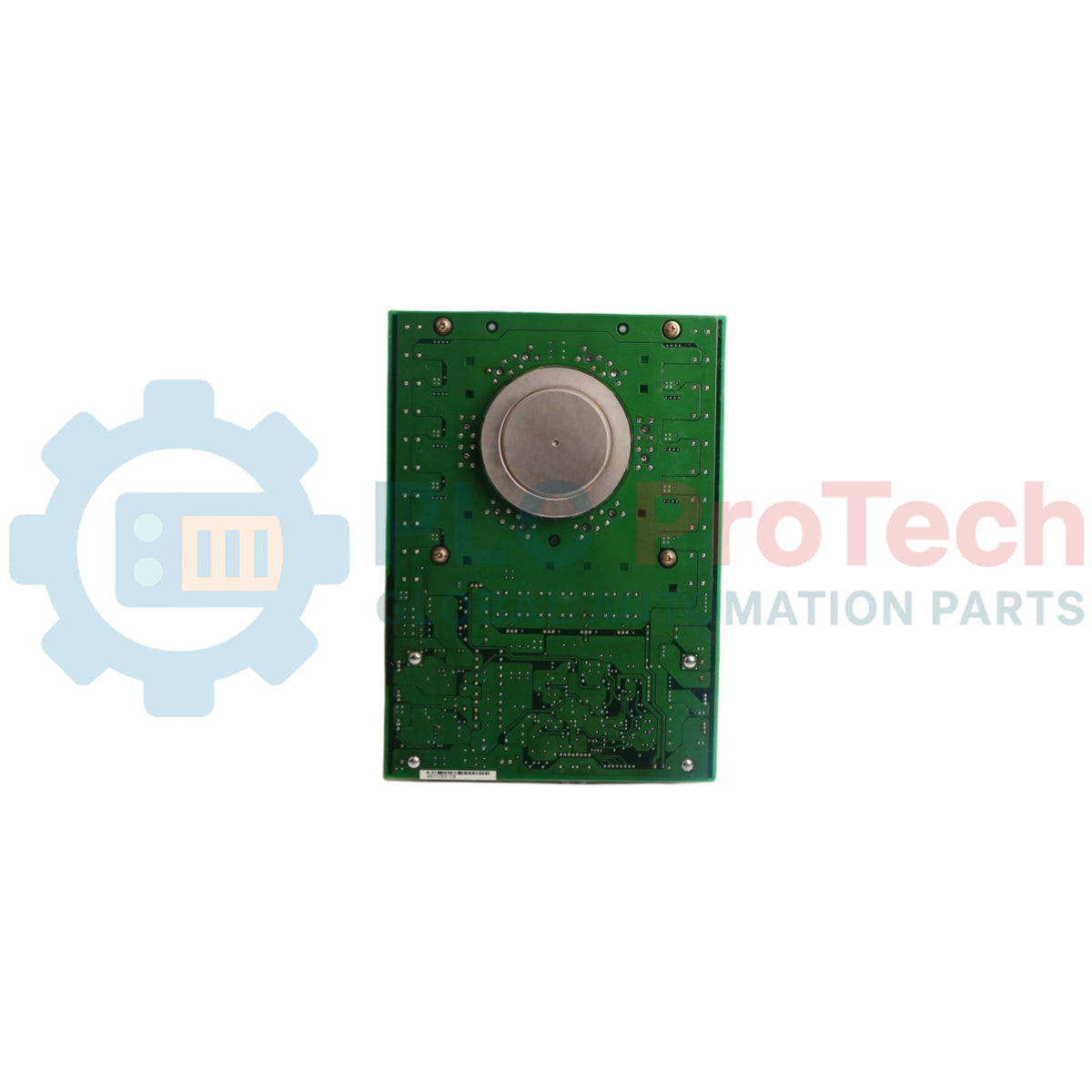

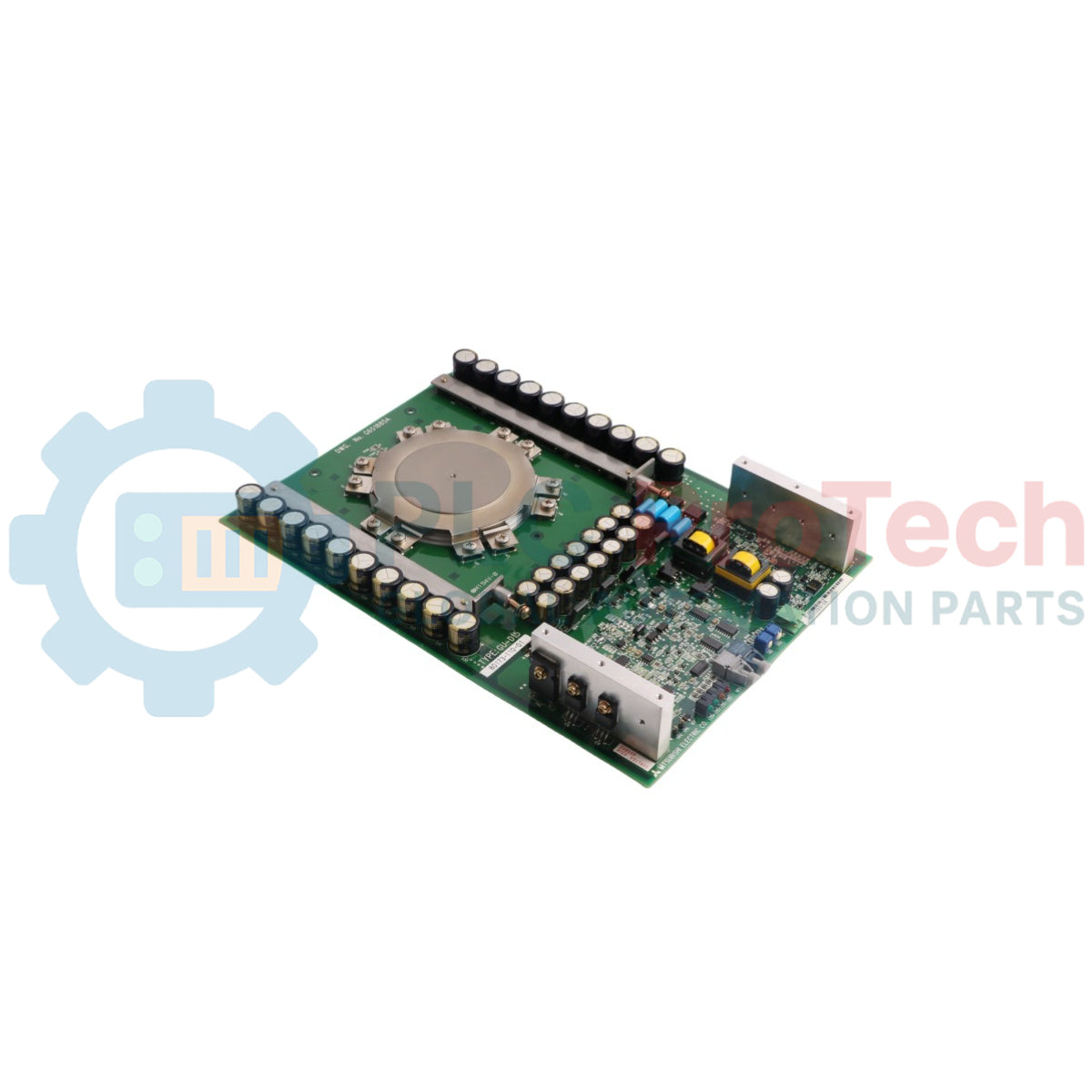

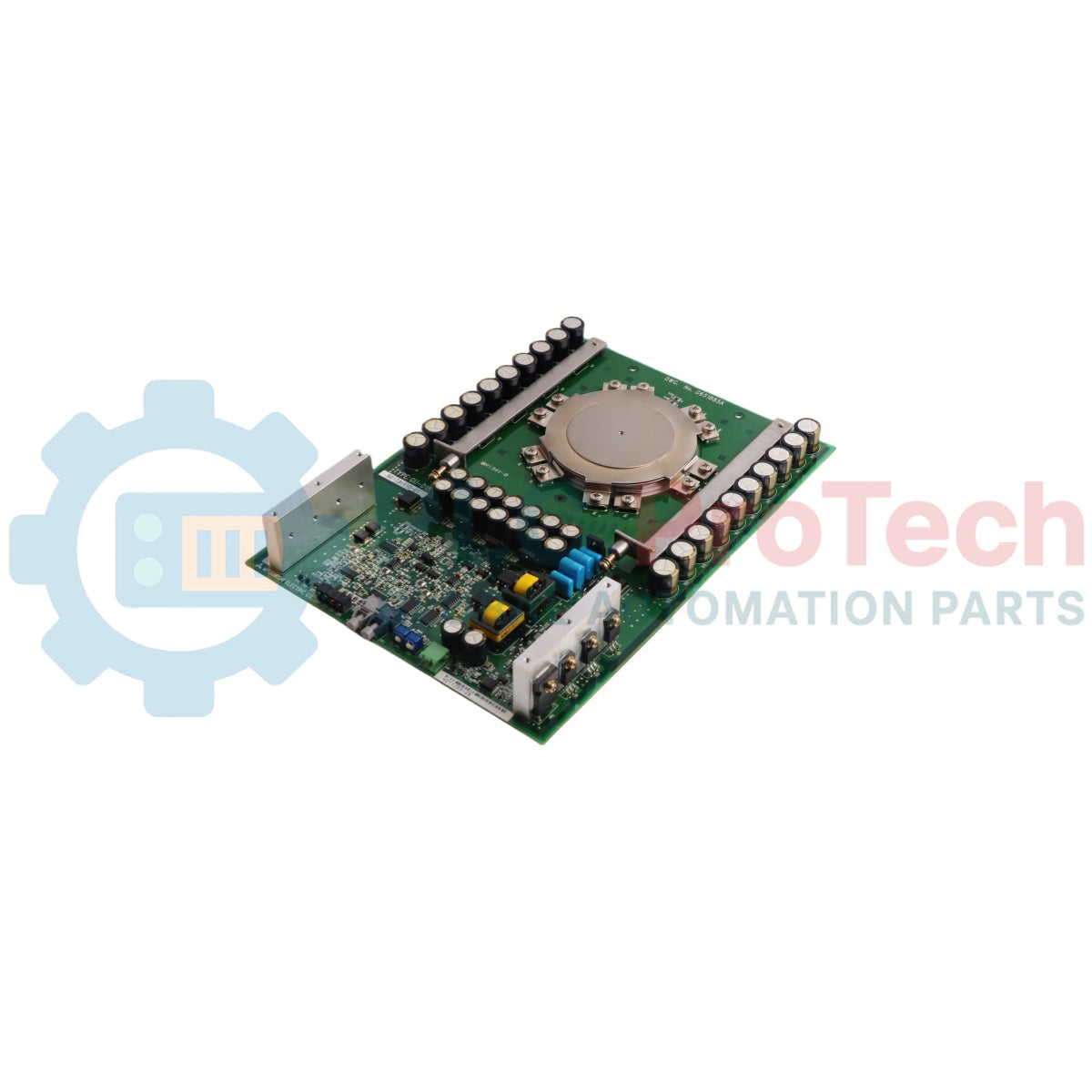

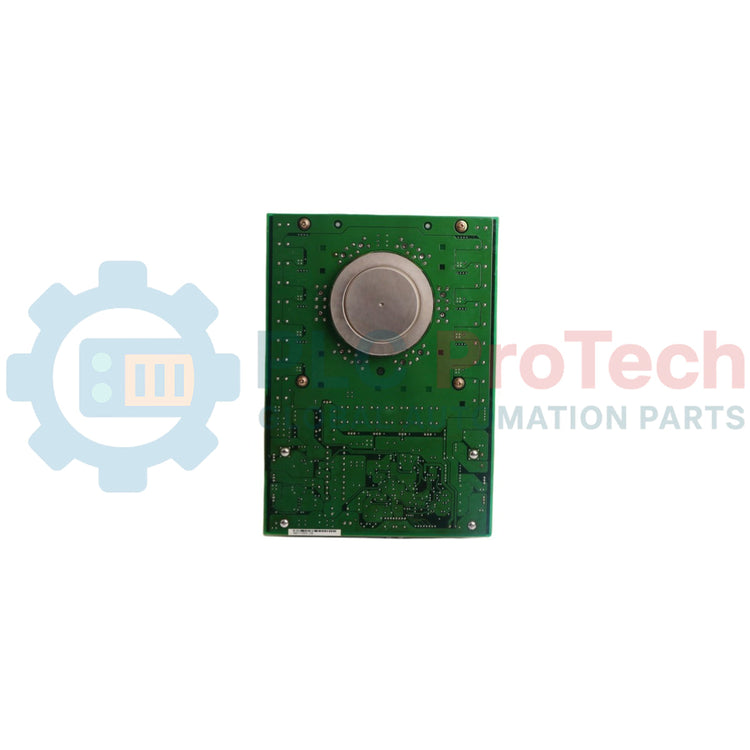

The 80173-110-01 (Model GU-D15, also identified by part number G651885A) is a specialized industrial gate driver hardware module engineered by Allen-Bradley for medium-voltage motor speed manipulation. Operating as a dedicated GCT Thyristor Board, this unit serves as the critical intermediate control link between high-level digital signal processors and the heavy-duty Gate Commutated Turn-Off (GCT) thyristors. The board is designed to generate the high-current, rapid-rise-time gating pulses necessary to reliably turn on and hold open large power semiconductors, while providing low-latency turn-off current paths that safely exhaust remaining gate charge. Primarily deployed inside PowerFlex 7000 medium-voltage AC drives and industrial soft starters, the circuit delivers high-isolation signal buffering to isolate sensitive control architecture from high-voltage main bus transients during dynamic phase switching, inverter modulation, and regenerative motor braking cycles.

Features

• Precise Gate Commutation: Delivers high-energy triggering pulses characterized by steep rise times to minimize switching losses across high-power thyristors.
• Galvanic Control Isolation: Implements reliable optical or magnetic coupling barriers to shield upstream control racks from high-potential power bus spikes.
• Real-Time Fault Diagnostics: Monitored circuits continuously track feedback parameters to intercept overcurrent or gating failures at the device level.
• Matched Drive Integration: Fully engineered to match the mechanical slide-in footprints and electrical timing parameters of specific factory-built inverter cages.

Applications

• Gate Driver Modulation and Phase Inversion Control inside PowerFlex 7000 Medium-Voltage Drives
• Synchronous Phase Control and Main Inverter Switching in Multi-Megawatt Motor Systems
• Heavy Industrial Soft Starters and Regenerative Power Conversion Topologies

Technical Specifications

Mechanical and General

Installation Guidelines

• Pre-Installation Discharge Verification: Ensure the main DC bus capacitors of the drive system are completely discharged and verified with a calibrated voltage meter before servicing the gate driver area.
• Fiber Optic Handling Precautions: Avoid bending signal light guides past their minimum rated bend radius to prevent internal glass fractures and subsequent pulse transmission timing errors.
• Low-Inductance Gating Leads: Keep the connection leads between the board output terminals and the thyristor gate-cathode terminals as short as possible to prevent excessive parasitic inductance.
• Electrostatic Discharge Management: Personnel must remain connected to a verified factory ground via an ESD wrist strap during handling to shield the on-board gate logic components from static damage.
