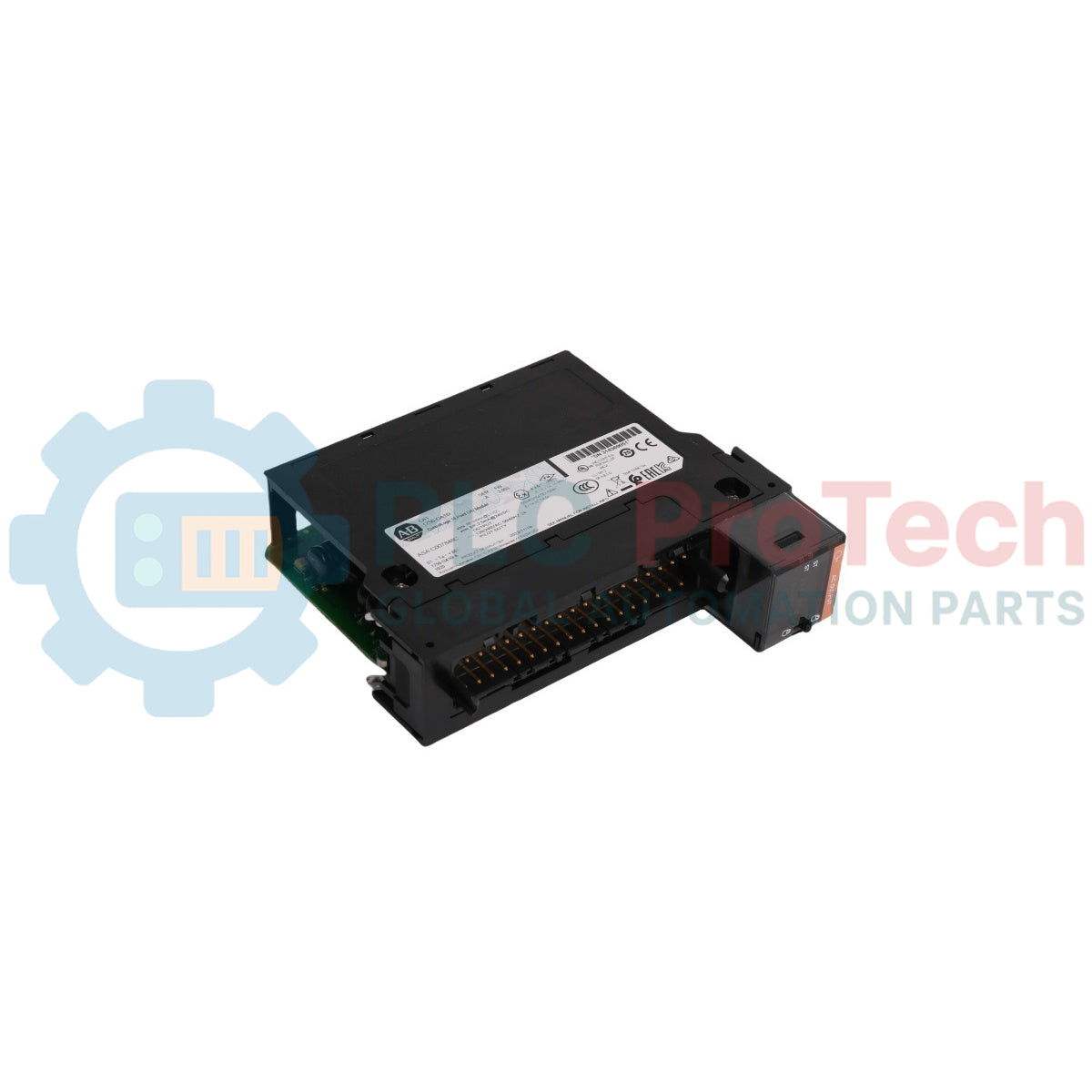

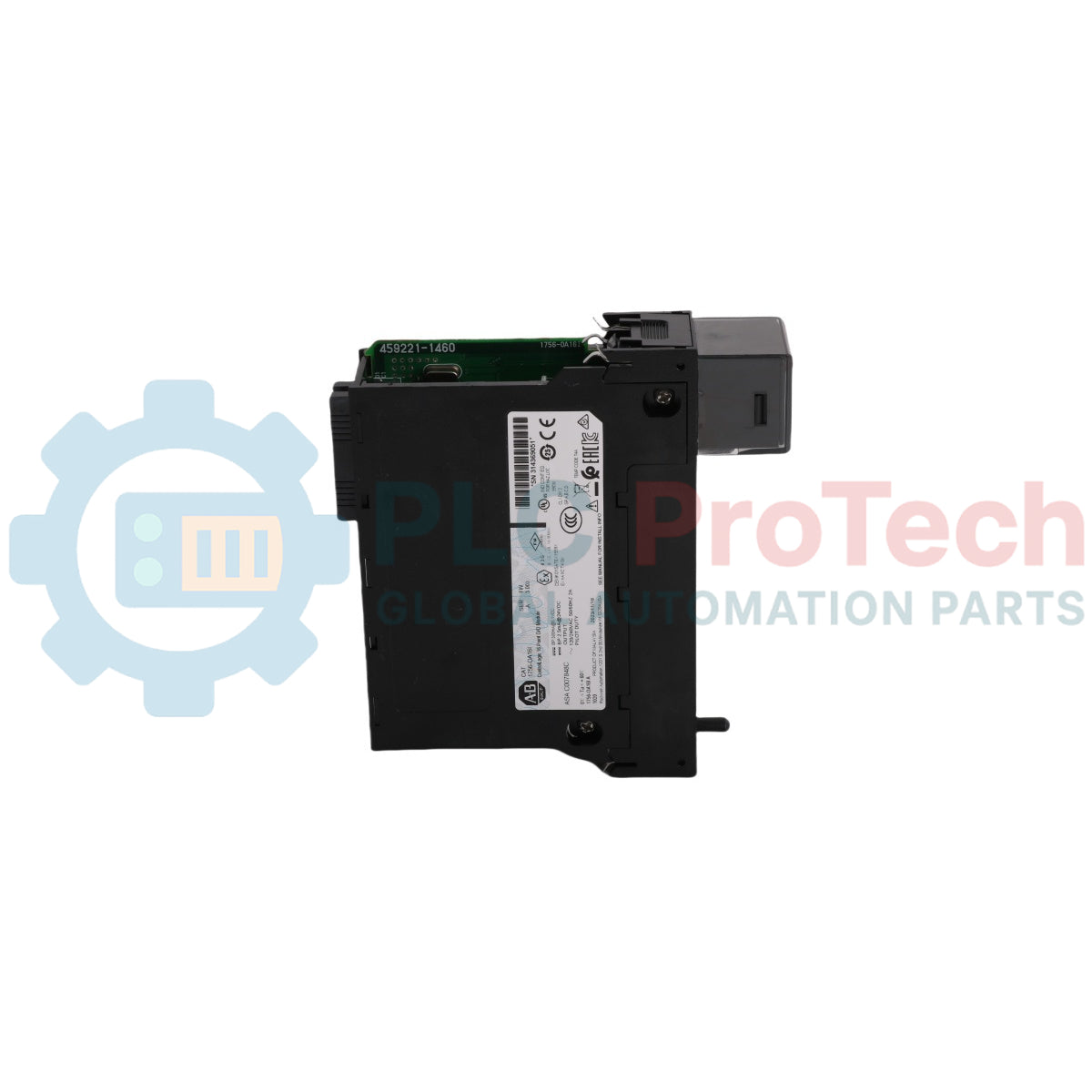

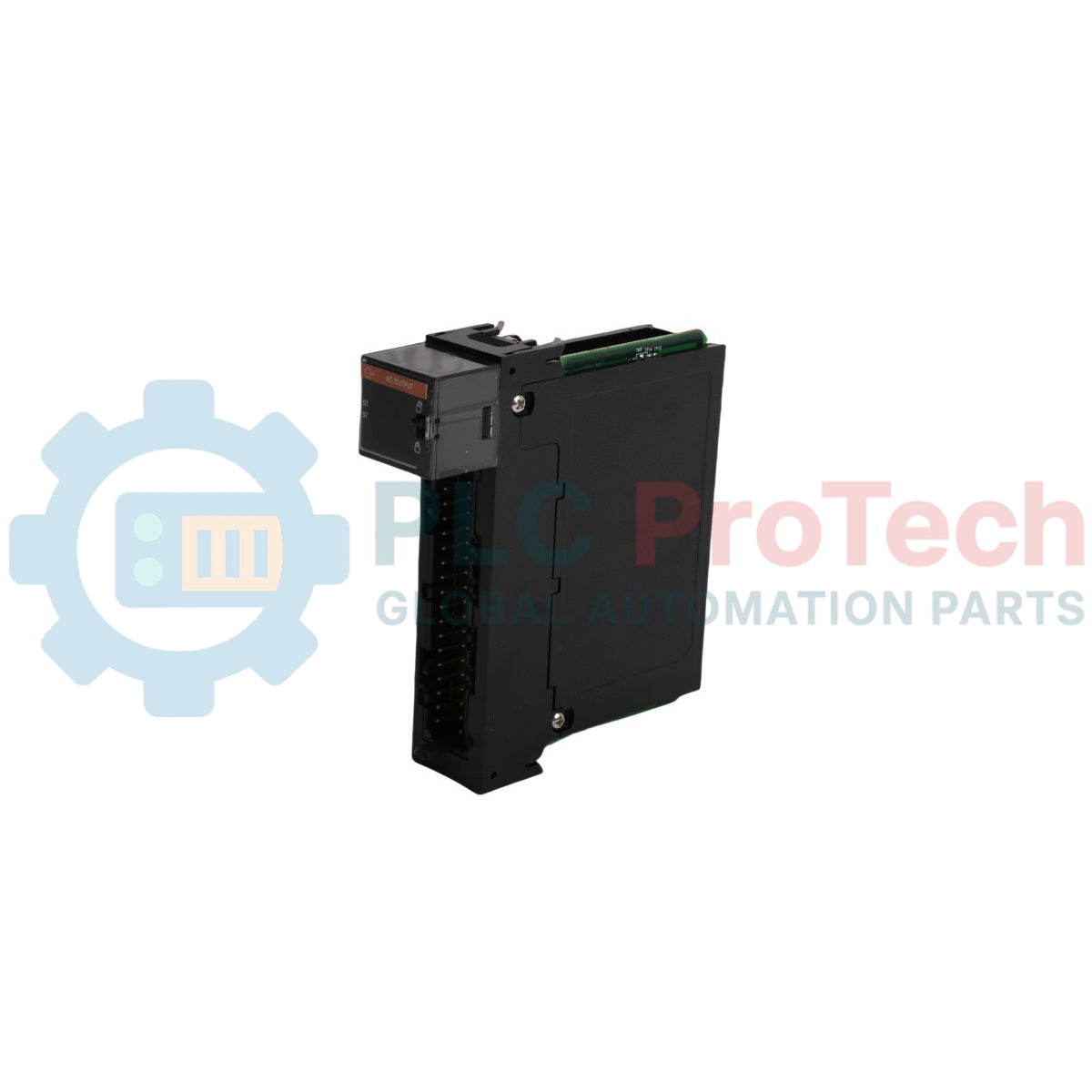

The Allen-Bradley 1756-OA16I is a ControlLogix digital AC output module designed to control field-side industrial actuators, motor starters, and solenoids. Operating across a broad output voltage range of 74 to 265 V AC, the 1756-OA16I features 16 individually isolated channels to prevent cross-channel interference and ensure reliable system operation. Equipped with a 36-pin removable terminal block interface, this module integrates seamlessly into standard ControlLogix chassis architectures and supports minimum firmware revisions 1.0, 2.0, and 3.0 alongside Studio 5000 / RSLogix 5000 design software version V20 or higher.
| Parameter | Specification |
|---|---|
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Catalog Number | 1756-OA16I, 1756-OA16IK |
| UPC | 612598164516 |
| Country of Origin | Malaysia |
| Outputs / Number of Channels | 16 individually isolated |
| Pilot Duty | Yes |
| Voltage Category | 120/240V AC 50/60 Hz |
| Operating Voltage Range | 74...265V AC, 47...63 Hz |
| Output Voltage and Current | 1.0 A per point @ 74...265V AC |
| Current Per Point, Max |
2 A @ 30 C (86 F) linear derating 1 A @ 60 C (140 F) linear derating |
| Current Per Module, Max |
5 A @ 30 C (86 F) linear derating 4 A @ 60 C (140 F) linear derating |
| Surge Current Per Point | 20 A for 43 ms per point, repeatable every 2 s @ 60 C (140 F) |
| Load Current, Min | 10 mA per point |
| Output Delay Time (Off to On) |
9.3 ms @ 60 Hz 11 ms @ 50 Hz |
| Output Delay Time (On to Off) |
9.3 ms @ 60 Hz 11 ms @ 50 Hz |
| Current Draw @ 5.1V | 300 mA |
| Current Draw @ 24V | 2.5 mA |
| Total Backplane Power | 1.59 W |
| Power Dissipation, Max | 5.5 W @ 60 C (140 F) |
| Thermal Dissipation | 18.76 BTU/hr |
| Off-State Leakage Current, Max | 3 mA per point |
| On-State Voltage Drop, Max |
1.5V peak @ 2 A 6V peak @ load current < 50 mA |
| Commutating Voltage |
4 V/us for loads > 50 mA 0.2 V/us for loads < 50 mA |
| Scheduled Outputs | Synchronization within 16.7 s max, reference to Coordinated System Time |
| States in Fault Mode Per Point | Hold last state, On or Off (Off is default) |
| States in Program Mode Per Point | Hold last state, On or Off (Off is default) |
| Isolation Voltage | 250V continuous, basic insulation type, outputs-to-backplane, and output-to-output |
| Inhibit Voltage, Max | Zero crossing 60V peak |
| Minimum Module Firmware Revision | 1.0 / 2.0 / 3.0 |
| Minimum Design Software Revision | V20 |
| Module Keying | Electronic, software configurable |
| Fusing | Not protected. A fused IFM is recommended to help protect outputs |
| Removable Terminal Block (RTB) | 1756-TBCH, 1756-TBS6H (36-pin) |
| RTB Keying | User-defined mechanical |
| Slot Width | 1 |
| Wire Category | 1 |
| Enclosure Type | None (open style) |
| North American Temp Code | T4A |
| Parameter | Specification |
|---|---|
| Temperature, Operating | 0...60 C (32...140 F) |
| Temperature, Surrounding Air, Max | 60 C (140 F) |
| Temperature, Nonoperating | -40...+85 C (-40...+185 F) |
| Relative Humidity | 5...95% noncondensing |
| Vibration | 2 g @ 10...500 Hz |
| Shock, Operating | 30 g |
| Shock, Nonoperating | 50 g |
| Emissions | IEC 61000-6-4 |
| ESD Immunity |
6 kV contact discharges 8 kV air discharges |
| Radiated RF Immunity |
10V/m with 1 kHz sine-wave 80% AM from 80...2000 MHz 10V/m with 200 Hz 50% Pulse 100% AM @ 900 MHz 10V/m with 200 Hz 50% Pulse 100% AM @ 1890 MHz 3V/m with 1 kHz sine-wave 80% AM from 2000...2700 MHz |
| EFT/B Immunity | ±4 kV at 5 kHz on signal ports |
| Surge Transient Immunity | ±1 kV line-line (DM) and ±2 kV line-earth (CM) on signal ports |
| Conducted RF Immunity | 10V rms with 1 kHz sine-wave 80% AM from 150 kHz...80 MHz |
| Oscillatory Surge Withstand | 3 kV |
| Certification | Rating / Standards |
|---|---|
| UL | UL Listed Industrial Control Equipment. See UL File E65584. |
| CSA |
CSA Certified Process Control Equipment. See CSA File LR54689C. CSA Certified Process Control Equipment for Class I, Division 2 Group A,B,C,D Hazardous Locations. See CSA File LR69960C. |
| CE |
European Union 2014/30/EU EMC Directive, compliant with: * EN 61326-1; Meas./Control/Lab., Industrial Requirements * EN 61000-6-2; Industrial Immunity * EN 61000-6-4; Industrial Emissions * EN 61131-2; Programmable Controllers (Clause 8, Zone A & B) European Union 2014/35/EU LVD, compliant with: * EN 61131-2; Programmable Controllers (Clause 11) |
| RCM |
Australian Radiocommunications Act, compliant with: * EN 61000-6-4; Industrial Emissions |
| FM | FM Approved Equipment for use in Class I Division 2 Group A,B,C,D Hazardous Locations |
| KC |
Korean Registration of Broadcasting and Communications Equipment, compliant with: * Article 58-2 of Radio Waves Act, Clause 3 |
| EAC |
Russian Customs Union TR CU 020/2011 EMC Technical Regulation Russian Customs Union TR CU 004/2011 LV Technical Regulation |
Global Express Shipping
Returns & Warranty
Manufacturer: Allen-Bradley
Product No.: 1756-OA16I
Country of origin:Malaysia
Product Type: Digital Output Module
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 350g
Dimensions: 145 mm x 35 mm x 135 mm (H x W x D)
Shipping port: Xiamen
Warranty: 12 months
