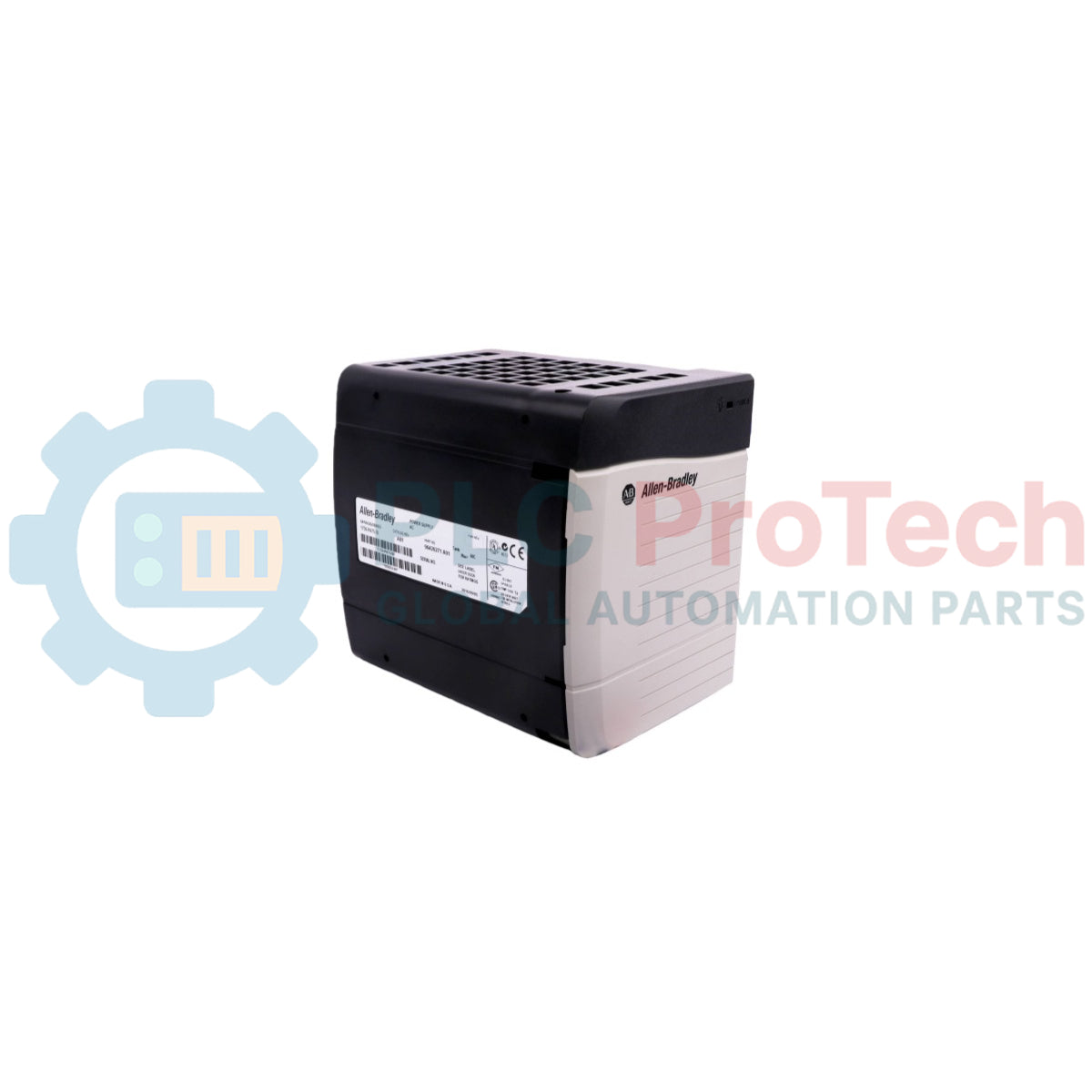

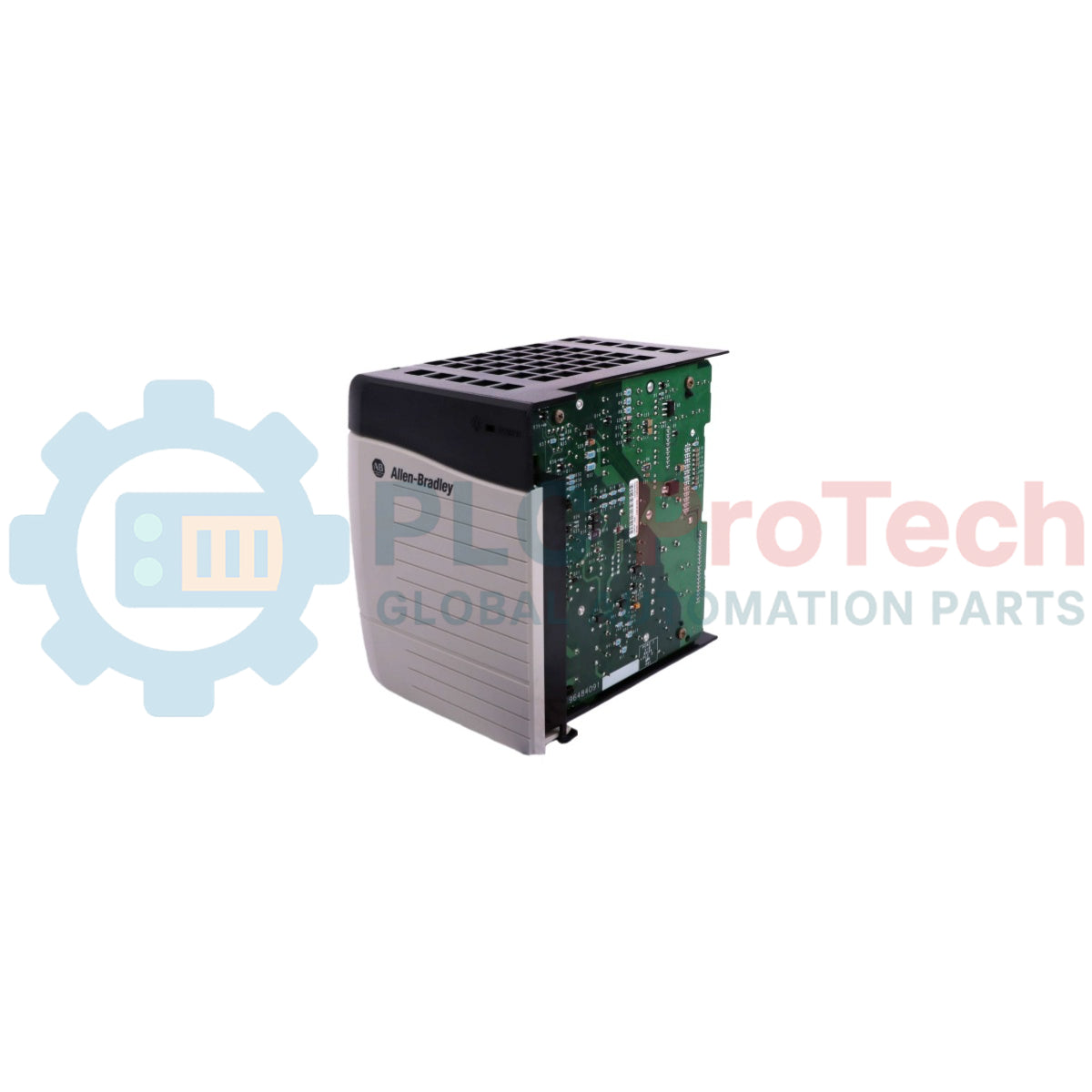

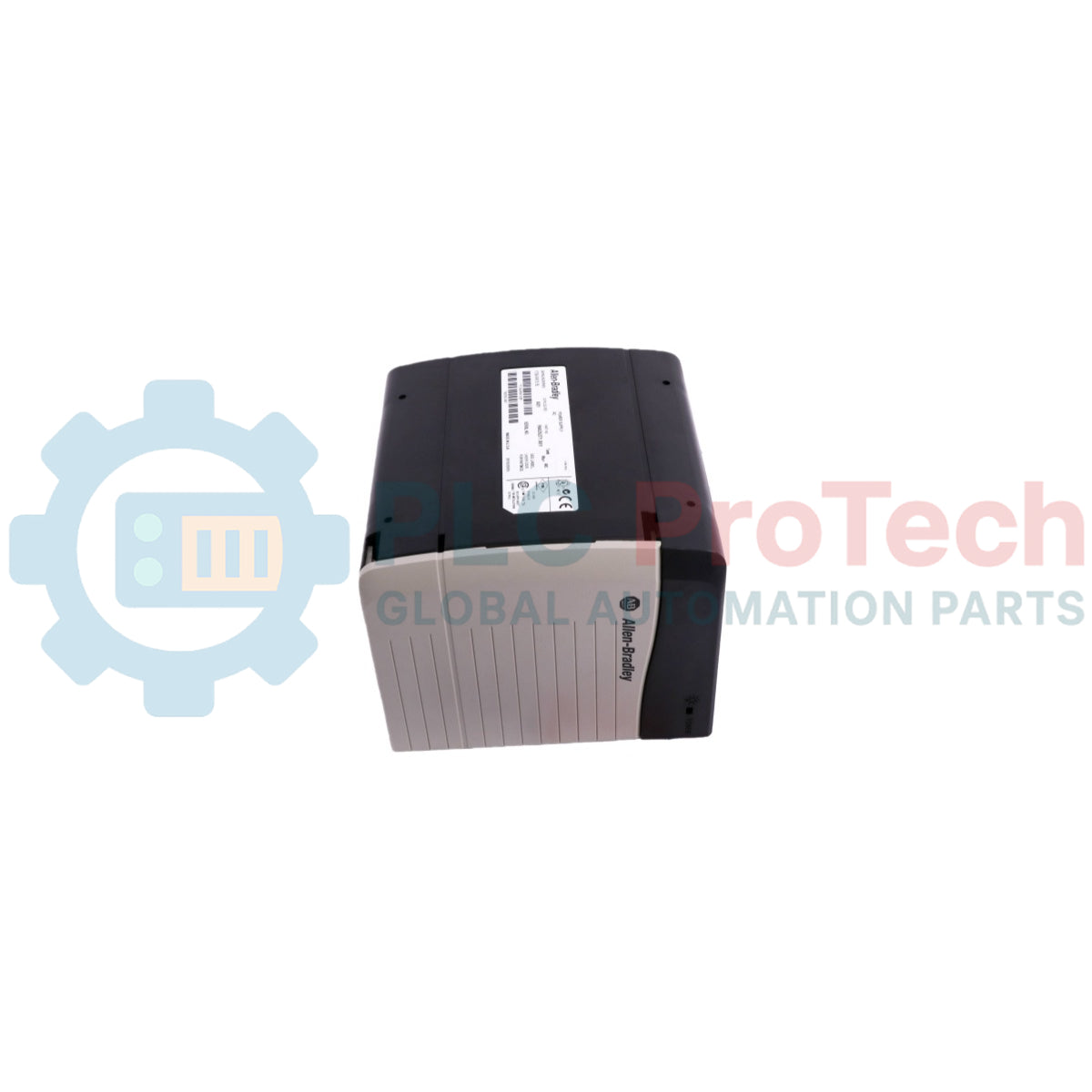

Allen-Bradley 1756-PA75 ControlLogix AC Power Supply

SKU 1756-PA75

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: Allen-Bradley
Product No.: 1756-PA75
Origin United States
Product Type: Power Supply Modules
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 0.95 kg
Dimensions: 145 mm x 112 mm x 140 mm (H x W x D)
Shipping port: Xiamen
Warranty: 12 months

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

Quantità

Call sales Contact

Product Description

Description

The Allen-Bradley 1756-PA75 is a standard ControlLogix AC power supply designed to mount directly onto the left side of a 1756 ControlLogix chassis. It converts standard alternating current input into regulated DC power to supply the backplane, supporting system controllers, I/O modules, and communication modules. The 1756-PA75 delivers up to 75 W of total output power at surrounding operating temperatures up to 60 degC.

Features

Mounts on the left side of compatible 1756 ControlLogix chassis.
Wide input voltage capability supporting nominal 120V/240V AC ranges.
Multi-voltage DC backplane power distribution providing 1.2V DC, 3.3V DC, 5.1V DC, and 24V DC outputs.
Reinforced insulation isolation between power input and the chassis backplane.

Applications

Industrial Control Systems using ControlLogix PAC platforms.
Factory automation backplane power distribution.
Process control cabinet installations requiring high-reliability AC power inputs.

Technical Specifications

Parameter	Specification
Manufacturer	Allen-Bradley / Rockwell Automation
Model	1756-PA75
Input Voltage Range	85...265V AC
Input Voltage, Nominal	120V/240V AC
Input Frequency Range	47...63 Hz
Input Power, Max	100VA / 100 W
Output Power, Max	75 W @ 0...60 degC
Inrush Current, Max	20 A
Current Capacity @ 1.2V DC	1.5 A
Current Capacity @ 3.3V DC	4 A
Current Capacity @ 5.1V DC	13 A
Current Capacity @ 24V DC	2.8 A
Isolation Voltage	250V (continuous), Reinforced Insulation Type, Power Input to Backplane (Type tested at 3500V DC for 60 s)
Module Location	Left side of 1756 chassis
Chassis Compatibility	1756-A4, 1756-A7, 1756-A10, 1756-A13, 1756-A17 (Series B, Series C)
Wire Size	2.5 mm2 (14 AWG) solid or stranded copper wire rated at 90 degC or greater, 1.2 mm insulation max
Wire Category	1-on power ports
Conductor Screw Torque	0.565 N-m (5 lb-in)
Enclosure Type Rating	None (open-style)
Operating Temperature	0...60 degC
Nonoperating Temperature	-40...+85 degC
Relative Humidity	5...95% noncondensing
Vibration	2 g @ 10...500 Hz
Operating Shock	30 g
Nonoperating Shock	50 g
Dimensions (Approx.)	14.0 x 11.2 x 14.5 cm (5.51 x 4.41 x 5.71 in.)
Weight (Approx.)	0.95 kg (2.10 lb)

Installation Guidelines

Mounting Position: Install directly on the far-left slot position of the 1756 ControlLogix chassis.
Wiring Requirements: Use 2.5 mm2 (14 AWG) solid or stranded copper wire rated at 90 degC or higher, with maximum insulation thickness of 1.2 mm.
Torque Specifications: Tighten field-wiring conductor screws to 0.565 N-m (5 lb-in).
Thermal Considerations: Ensure adequate cabinet ventilation so surrounding air temperature does not exceed 60 degC.

Compliance and Certifications

UL: UL Listed Industrial Control Equipment (File E65584)
c-UL-us: UL Listed Industrial Control Equipment for US and Canada (File E65584); Class I, Division 2 Group A, B, C, D Hazardous Locations (File E194810)
CSA: CSA Certified Process Control Equipment (File LR54689C); Class I, Division 2 Group A, B, C, D (File LR69960C)
FM: FM Approved Equipment for Class I Division 2 Group A, B, C, D Hazardous Locations
CE: European Union 2014/30/EU EMC Directive (EN 61326-1, EN 61000-6-2, EN 61000-6-4, EN 61131-2) and 2014/35/EU LVD Directive (EN 61010-2-201, EN 61131-2)
UKCA: Compliance with Electromagnetic Compatibility, Electrical Equipment Safety, and Explosive Atmospheres Regulations
RCM: Australian Radiocommunications Act compliant (EN 61000-6-4)
KC: Korean Registration of Broadcasting and Communications Equipment
EAC: Russian Customs Union TR CU 020/2011 EMC and TR CU 004/2011 LV Technical Regulation
CCC: CNCA-C23-01 Implementation Rule Explosion-Proof Electrical Products

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What is the maximum total output power of the power supply?

The maximum total output power supplied to the chassis backplane is 75 W across all operating voltage rails at temperatures up to 60 degC.

Where does the power supply mount in a ControlLogix chassis?

The device mounts on the left side of a standard 1756 ControlLogix chassis.

What wire size should be used for the power connections?

Use 2.5 mm2 (14 AWG) solid or stranded copper wire rated at 90 degC or greater.
