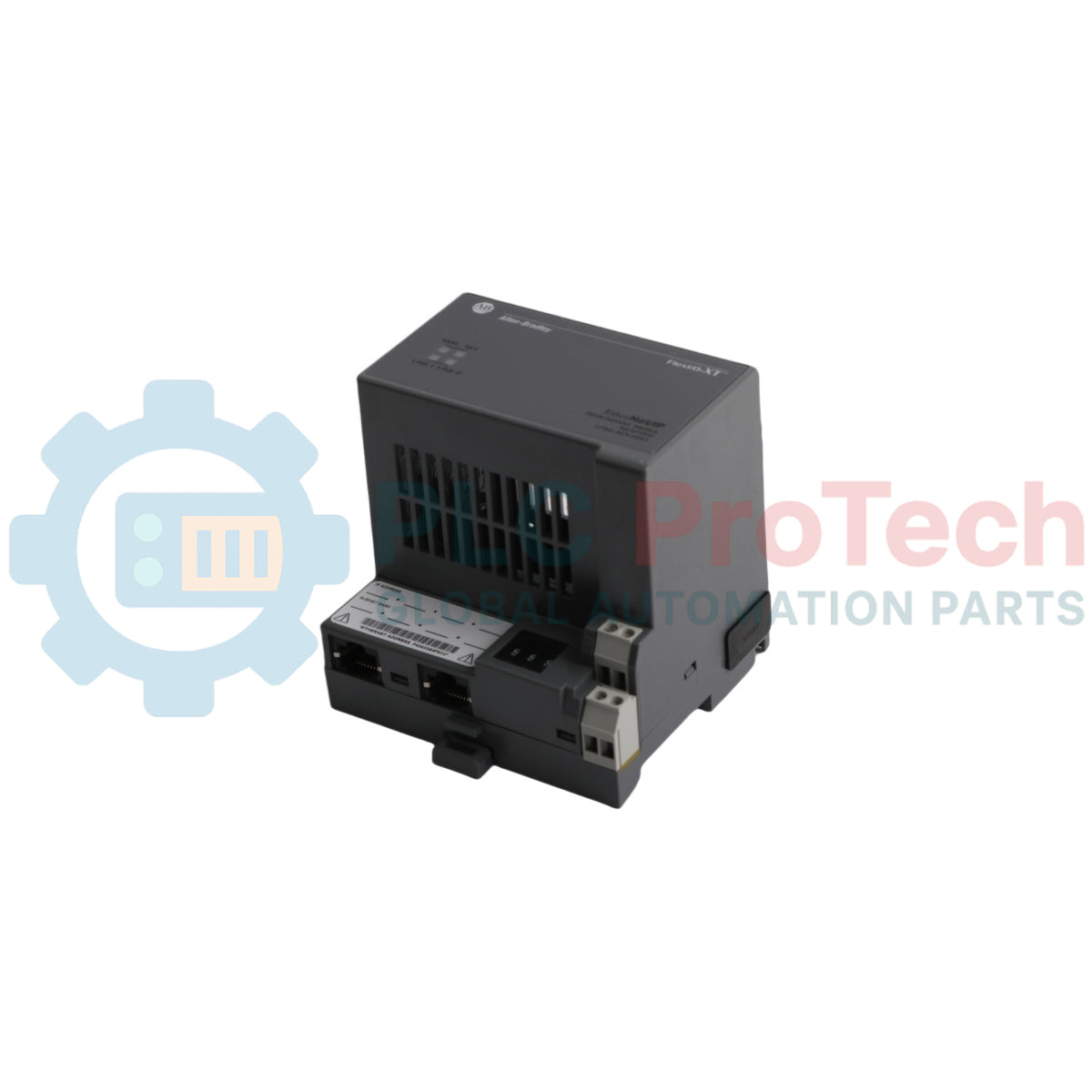

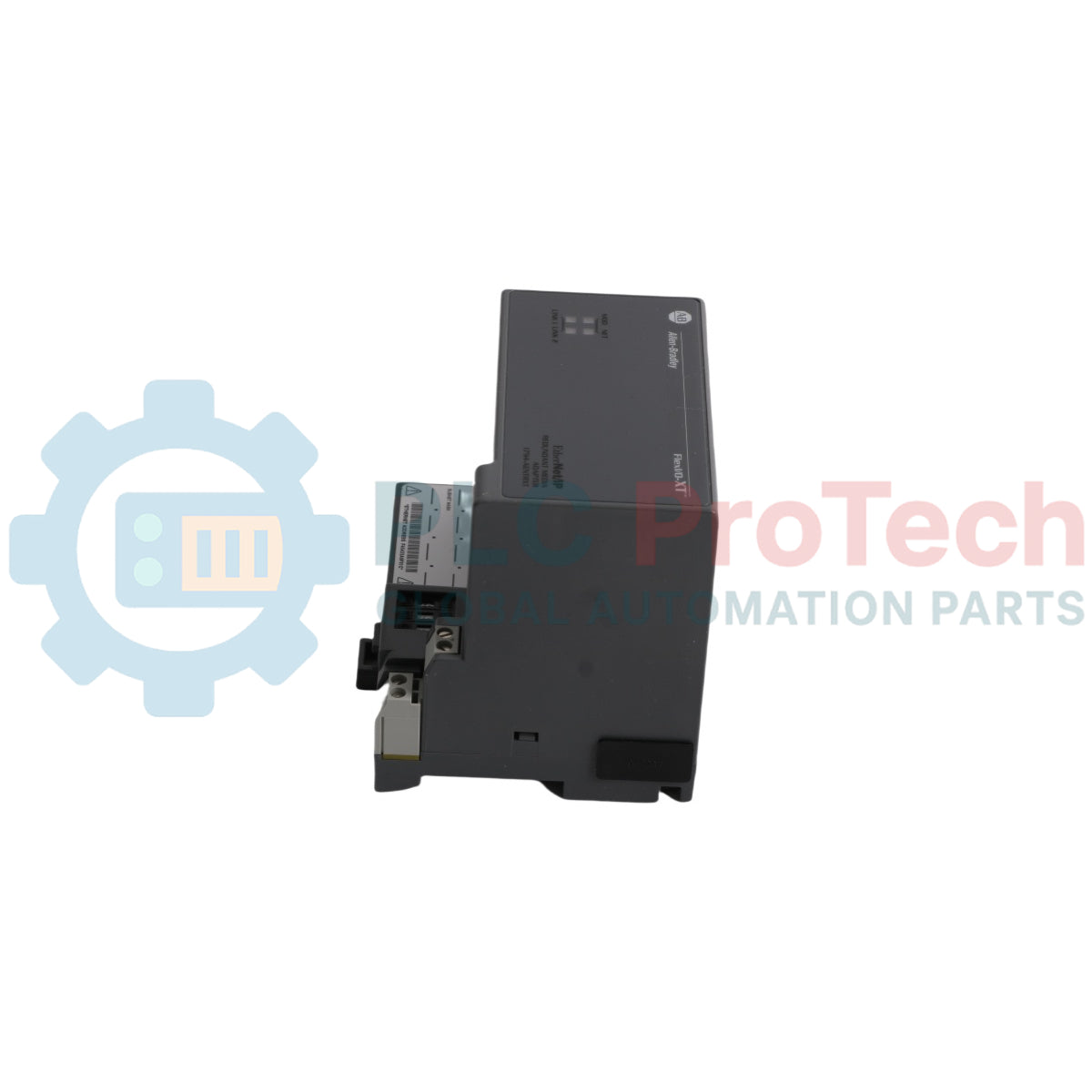

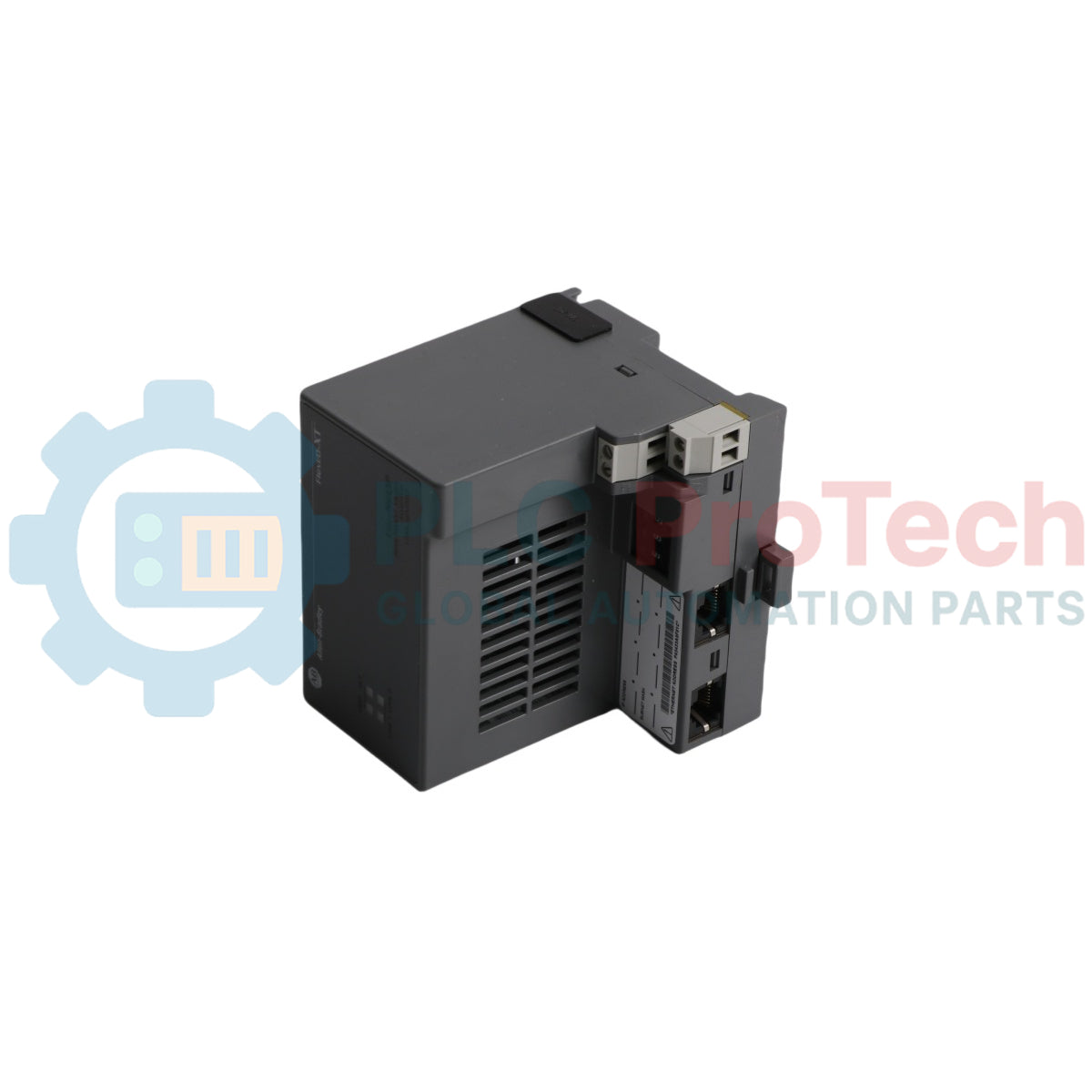

The 1794-AENTRXT is a ruggedized communications adapter module engineered for the FLEX I/O XT distributed input/output platform. This device functions as the network interface link that connects a localized cluster of I/O modules to a centralized programmable automation controller via an EtherNet/IP network infrastructure. Armed with integrated dual RJ45 Ethernet ports, the component natively supports Device Level Ring (DLR), linear, and star network topologies, enabling media redundancy that preserves system tracking capabilities if a single physical line break occurs.
As an XT (Extended Temperature) variant, this industrial hardware block incorporates resilient component architectures and factory conformal coating to withstand extreme thermal conditions ranging from -25 to 70 Celsius. The 1794-AENTRXT manages high-speed bidirectional data exchanges, translating physical field-side input/output registers across the isolated backplane using an integrated FlexBus connection interface. It is standard across oil and gas upstream stations, offshore drilling platforms, wastewater aeration facilities, and remote pipeline telemetry panels requiring continuous industrial uptime in unconditioned environments.
| Parameter | Specification |
|---|---|
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Brand | FLEX I/O XT |
| Part Number | 1794-AENTRXT |
| Module Type | EtherNet/IP Dual-Port Communications Adapter |
| Communication Rate | 10/100 Mbps, Auto-Negotiation |
| Network Connections | Two (2) RJ45 Category 5 copper ports |
| Supported Topologies | Device Level Ring (DLR), Linear, Star |
| Maximum I/O Module Capacity | 8 FLEX I/O / FLEX I/O XT modules |
| Number of TCP/IP Connections | 96 |
| Number of CIP Connections | 128 |
| FlexBus Backplane Current Output | 640 mA at 5V DC maximum |
| Input Supply Voltage | 24V DC Nominal |
| Operational Voltage Range | 19.2V DC to 31.2V DC (includes 5% AC ripple) |
| Power Consumption Load | 450 mA maximum at 24V DC |
| Power Dissipation Maximum | 7.1 W at 24V DC |
| Thermal Dissipation Maximum | 24.2 BTU/hour at 24V DC |
| Operating Temperature | -25 to 70 degC |
| Storage Temperature | -40 to 85 degC |
| Relative Humidity | 5% to 95% non-condensing |
| Coating Protection | Factory Conformal Coated PCB Assemblies |
| Country of Origin | USA / Singapore |
| Weight | 0.23 kg |
| Dimensions | 87 mm x 94 mm x 92 mm |
| Connector / Switch Node | Function |
|---|---|
| Ethernet Port 1 (RJ45) | Primary network media interface connection point |
| Ethernet Port 2 (RJ45) | Secondary redundancy or linear drop network interface point |
| Removable Power Terminals | Intake interface for 24V DC external operational voltage power supply |
| Network Address Rotary Switches | Three hardware thumbwheel dials for setting the last octet of the IP address |
| Status LED Indicators | Visual diagnostic arrays (Module, Network, Link 1, Link 2, Interconnect) |
Hook the upper tracking slots on the back panel of the module housing onto the upper lip of standard zinc-plated 35 mm DIN tracking. Apply uniform downward and inward physical force until the spring-loaded lower metal retention tab snaps shut behind the bottom rail track. Secure the rail string with heavy-duty end anchors.
Position the network adapter at the leftmost position on the DIN rail track segment. Align the side-facing female FlexBus socket of the first functional I/O terminal base block with the male interface pins protruding from the right side of the adapter casing, sliding the base laterally until the interlocking tabs lock into position.
For standalone or default networks, adjust the three front-panel rotary switches to select an explicit decimal code value between 001 and 254. This selection dynamically overrides and assigns the terminal IP configuration block to 192.168.1.xxx. Set the switches to 888 to initiate a full factory reset.
Ensure ambient air circulation pathways are completely free of structural debris within the enclosure. Maintain the factory minimum 50 mm clearance boundaries above, below, and to the sides of the terminal assembly rail to enable natural convective cooling under high ambient operational profiles.
What protocol does this communications component utilize?
It communicates natively across EtherNet/IP networks deploying standard Common Industrial Protocol configurations.
What function does the dual-port setup execute inside this device?
The dual RJ45 interface enables the device to support Device Level Ring topologies for media redundancy or daisy-chain linear layouts without external switches.
What is the extended temperature threshold rating for this hardware?
The module is fully certified to maintain uninterrupted data conversions under ambient parameters shifting from -25 to 70 Celsius.
Can an engineer hot-swap this communications adapter while the I/O rack is running?
No, while individual I/O modules support live removal, disconnecting or removing the network adapter disrupts backplane data transfer for the whole rail cluster.
What is the maximum current load this adapter can feed to the connected I/O blocks?
The integrated power circuit supplies a maximum of 640 mA at 5V DC backplane potential down the FlexBus line to power attached extension modules.
How is a unique IP address assigned if the thumbwheel switches are set to zero?
If set to 000, the adapter defaults to checking a DHCP or BOOTP server utility across the open network to pull its assigned IP registers.
What terminal base block parameters should be matched for the XT series?
To preserve the robust environmental parameters of the XT adapter, it should be paired exclusively with conformal coated components like the 1794-TB3K.
What cable specification is mandatory for network tracking?
Category 5 or higher shielded twisted-pair (STP) industrial Ethernet copper cabling runs are required to mitigate electromagnetic distortion.
What do flashing red patterns on the Module Status display mean?
A flashing red indication typically signals that a recoverable minor fault or configuration data block mismatch exists inside the internal memory map.
Does this adapter unit contain an embedded web management utility?
Yes, typing the module's IP address into a standard network web browser opens an internal portal for diagnostics, status parameters, and configuration viewing.
