The Allen-Bradley 1771-ALX is a PLC-5 local I/O adapter module engineered to interface local I/O chassis within a 1771 I/O architecture. Designed for installation in the leftmost slot of an I/O chassis, this module manages communication across the local I/O bus and allows individual racks to be disconnected without requiring a complete system shutdown. Its hot-disconnect capability ensures that interconnect cables can be removed for maintenance without disrupting bus communication to downstream chassis in the system.
The module features onboard configuration switches that must be matched with backplane settings for the specific application. It supports standard interconnect cabling options—such as the 1771-CX1, 1771-CX2, and 1771-CX5 cables—and requires the 1771-CXT terminator plug on the final adapter of the bus chain. Operating reliably within standard industrial automation environments, the 1771-ALX provides robust backplane management for legacy PLC-5 control systems.
| Parameter | Specification |
|---|---|
| Manufacturer | Allen-Bradley |
| Product Type | Local I/O Adapter Module |
| Product Family | PLC-5 (1771 I/O) |
| Catalog Number | 1771-ALX |
| Backplane Current Draw | 1.2A at 5VDC |
| Power Dissipation | 5.7 to 6.3W |
| Thermal Dissipation | 19.44 to 21.48 BTU/hr |
| Max Chassis Distance | 98.4 cable-feet (30 meters cumulative bus length) |
| Compatible Interconnect Cables | 1771-CX1 (1m), 1771-CX2 (2m), 1771-CX5 (5m) |
| Bus Terminator | Cat. No. 1771-CXT |
| Module Chassis Location | Left-most slot of 1771 I/O chassis |
| Keying Positions | Upper connector: between 54 and 56; Lower connector: between 4 and 6 |
| Country of Origin | United States |

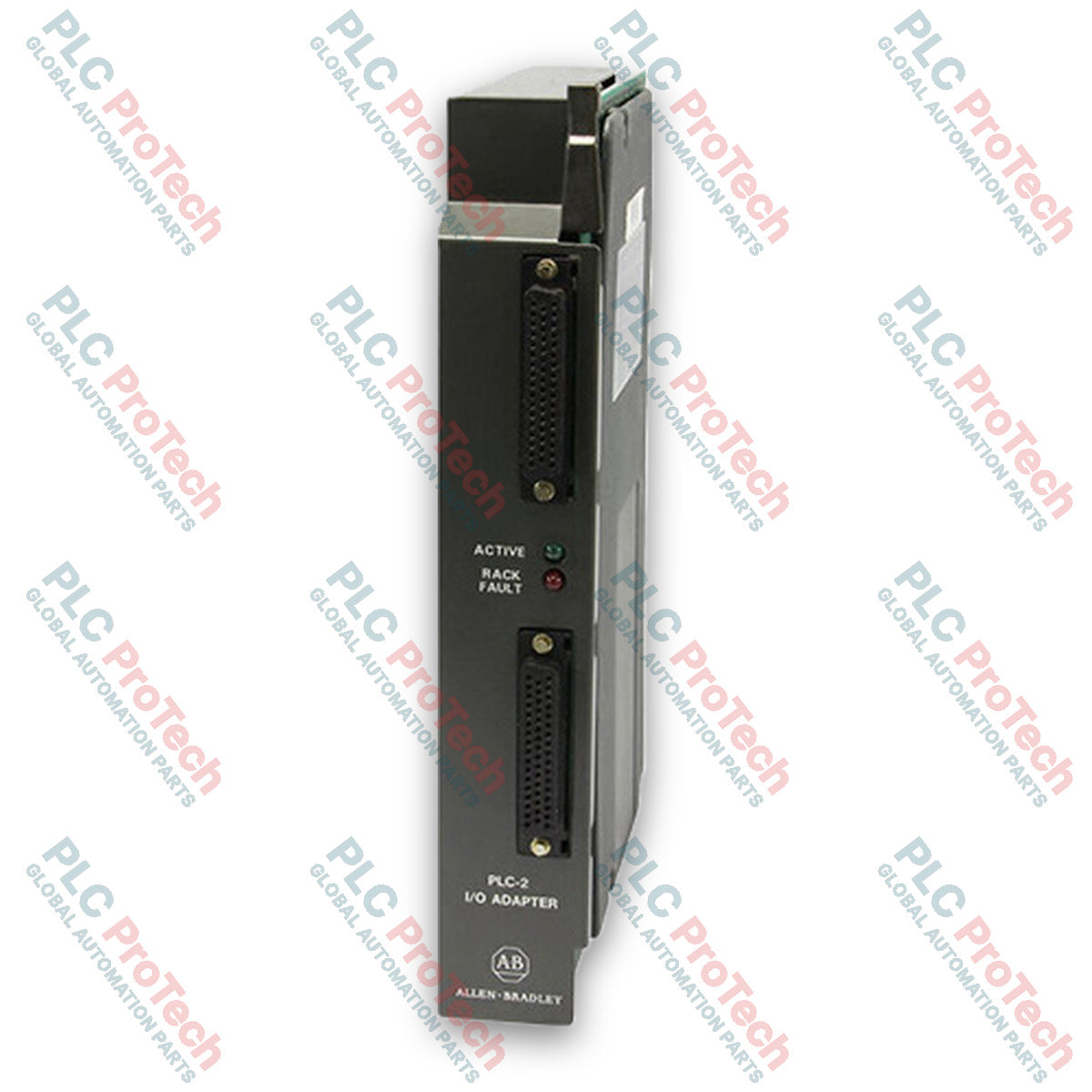

The 1771-ALX module features physical ports for interconnect cabling to link adjacent 1771 I/O chassis. Front-panel connections accommodate standard 1771 series multi-conductor communication cables. Switch blocks on the module must be precisely configured to match chassis rack addressing and communication parameters.
